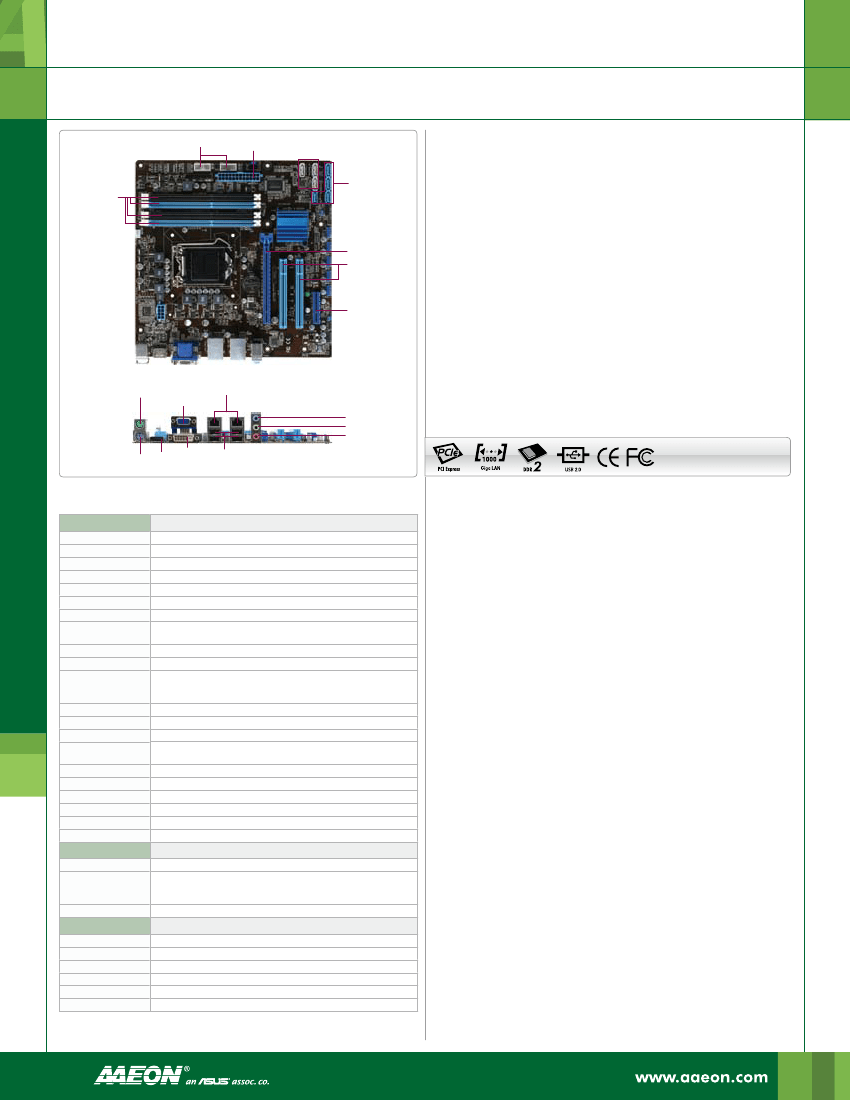

IMBM-Q67A-A10-G2: DescriptionMicro-ATX Industrial Motherboard with Intel 2nd Generation Core i7/ i5/ i3 Processor; File Size320KB，2 Pages; ManufacturerAAEON; Websitehttp://www.aaeon.com

Download Datasheet Compare View All

IMBM-Q67A-A10-G2 Overview

Micro-ATX Industrial Motherboard with Intel 2nd Generation Core i7/ i5/ i3 Processor

Preview

Download Datasheet

View All

IMBM-Q67A

Embedded & Industrial Motherboards

10-55

Micro-ATX Industrial Motherboard with Intel® 2nd Generation Core™ i7/ i5/ i3 Processor

COM x 2

ATX

Features

■

Intel®

SATA 3.0Gb/s x 4

DDR2 800 MHz

up to 4 GB

PCI-E [x16]

PCI x 2

2nd Generation Core™ i7/ i5/ i3 Processor

■

VGA x 1, DVI x 1, DP x 1

■

Gigabit Ethernet x 2

■

UBS2.0 x 14

■

SATA 6.0Gb/s x 3 + SATA 3.0Gb/s x 4

■

Multiple Expansion Slot: PCI-E [x16] x 1, PCI-E [x4] x 1, PCI x 2

PCI-E [x4]

PS/2 Keyboard

VGA

LAN x 2

Line-in

Line-out

Mic-in

DVI-D

PS/2 Mouse

USB2.0 x 4

Specifications

System

Form Factor

Processor

System Memory

Chipset

I/O Chipset

Ethernet

BIOS

Wake On LAN

Watchdog Timer

TPM

H/W Status Monitoring

Expansion Interface

Battery

Power Requirement

Power Consumption

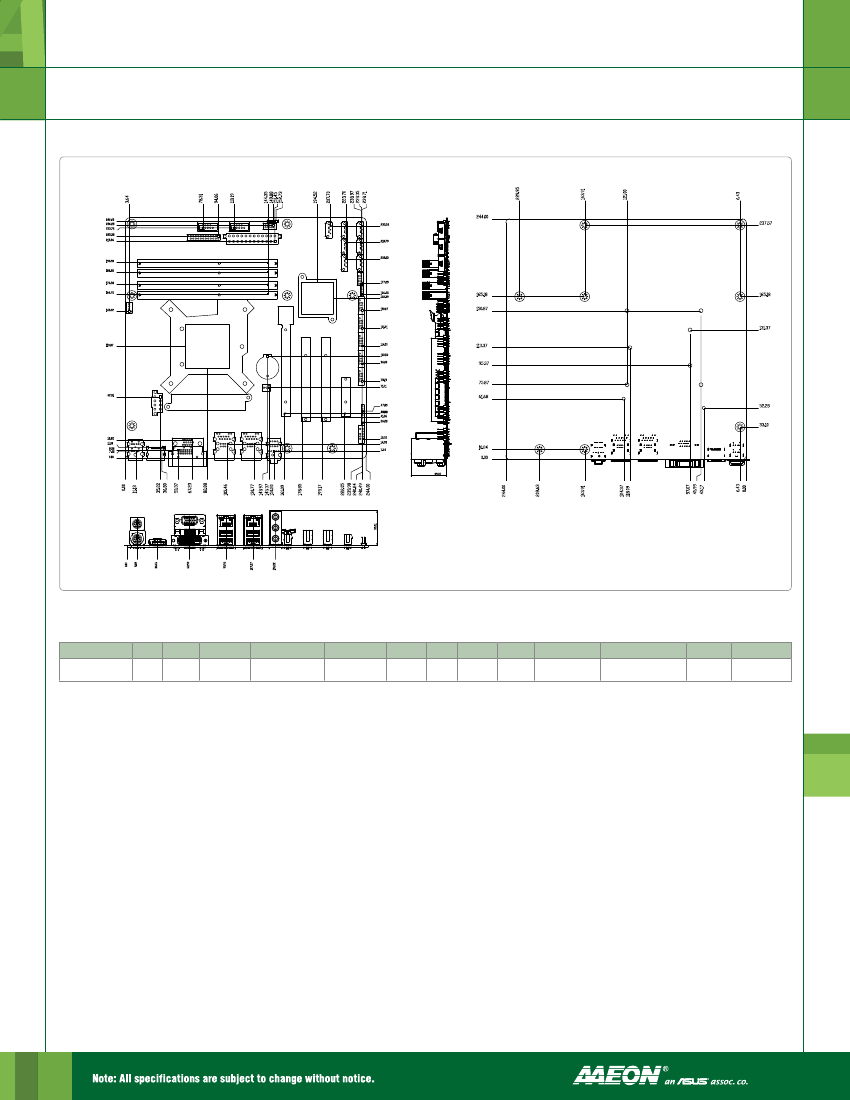

Board Size

Gross Weight

Operation Temperature

Storage Temperature

Operation Humidity

MTBF (Hours)

Micro ATX

LGA 1155 Intel® 2nd Generation Core™ i7/i5/i3 Processor

240-pin DIMM x 4 DDR3 1600/1333/1066MHz up to 32 GB

Intel® Q67

NUVOTON NCT6776F

Intel® 82579LM + Relteak 8111F

AMI Plug & Play UEFI BIOS - 64MB

LAN1: Supports Intel AMT 7.0

LAN2: Support WOL, PXE

Programmable 1~255 steps System reset

Infineon SLB9635

Temperature Monitor on CPU/Chassis

Voltage Monitor on Vcore/ 5V/ 3.3V/ 12V

Fan Monitor on CPU/Chassis

PCI-E [x16] x 1, PCI-E [x4] x 2, PCI x 2

Lithium Battery

24-pin ATX connector x 1, 8-pin ATX 12V connector x 1

Intel® Core™ i7-2600 Processor, DDR3-1600 8 GB x 4

3.15A@5V; 8.22A @12V; 0.67A@3.3V

9.6" x 9.6" (244 mm x 244 mm)

1.55 lb (0.7 Kg)

32 °F ~ 140 °F (0 °C ~ 60 °C)

-40 °F ~ 185 °F (-40 °C ~ 85 °C)

0% ~ 90% relative humidity, non-condensin

87,000

Intel® Graphics Media Accelerator, Dual independent display

Up to 2048 x 1536 @75Hz for VGA

Up to 1920 x 1200 @60Hz for DVI

Up to 2560 x 1600 @75Hz for DP

VGA, DVI, DP

SATA 6.0 Gb/s x 3, SATA 3.0Gb/s x 4 (RAID 0/1/5/10 support, except SATA7)

RS-232 x 1, RS-232/422/485 x 1

SPP/EPP/ECP

USB 2.0 x 14 (10 ports at mid-board, 4 ports at back panel)

PS/2 Port x 2 (Keyboard & Mouse)

Line-in, Mic-in, Line-out, S/PDIF

Packing List

•

SATA Cable x 2

•

COM Port Cable

•

I/O Shield

•

Product CD

•

IMBM-Q67A

Display

Graphic Engine

Resolution

Output Interface

I/O

Storage

Serial Port

Parallel Port

USB

PS/2 Port

Audio
