PRODUCT
SPECIFICATION
FEATURES
POWER DIVIDERS
FOUR-WAY, 1 TO 18 GHz
•
Designed to Meet MIL-E-5400 Class 3
•
SMA Female Connectors per MIL-PRF-39012
•
High Isolation Wilkinson Circuit Design
4004 SERIES
SPECIFICATIONS
VSWR
Insertion
Frequency
max
Loss max
Range
(dB) @ f (GHz) Input/Output
GHz
1-2
0.6
1.25/1.25
2-4
0.4
1.25/1.25
2-6
0.7
1.35/1.35
3.7-4.2
0.4
1.20/1.20
3.7-4.2
0.4
1.20/1.20
4-8
0.8
1.35/1.35
8-18
0.6
1.60/1.50
NOTES:
1.
2.
Isolation
min
(dB)
20
20
20
20
20
20
17
Amplitude
Unbalance
max
(dB)
0.3
0.3
0.3
0.2
0.2
0.4
0.5
Phase
Unbalance
max
(Degrees)
4
6
6
6
2
6
2
8
16
Average
Power
1
(W) @ 1 GHz
20
20
20
5
5
20
5
Model
4124
4134
4234A
4214
4214A
4144
4234
Input power with 1.5 max output load VSWR. Power handling is reduced when used as a combiner. Consult factory
To equalize the phase at all four ports, add an additional external line length to J3 and J4 equivalent to 3.5 cm of air line each.
OUTLINE DRAWING
MODELS 4124, 4134, 4234A,
4214 AND 4144
Spectrum Microwave
8 Executive Drive Hudson, NH 03051 Phone: 603-459-1600
www.SpectrumMicrowave.com
Fax: 603.459.1605
PRODUCT
SPECIFICATION
POWER DIVIDERS
FOUR-WAY, 1 TO 18 GHz
Model
4124
4134
4144
4214
4234A
A”
1.65
1.65
1.06
1.96
1.45
B”
.38
.38
.38
.39
.38
C”
.45
.45
.30
.50
.31
D”
.85
.85
.70
1.50
.71
E”
1.35
1.35
1.20
2.50
1.21
F”
1.75
1.75
1.60
3.50
1.61
G”
2.20
2.20
1.90
4.00
1.92
H”
1.10
1.10
.95
2.00
.96
I”
.38
.38
.38
.50
.38
J”
.19
.19
.19
.20
.19
Model
4124
4134
4144
4214
4234A
A (cm)
4,19
4,19
2,69
4,98
3,68
B (cm)
0,97
0,97
0,97
0,99
0,97
C (cm)
1,14
1,14
0,76
1,27
0,79
D (cm)
2,16
2,16
1,78
3,81
1,80
E (cm)
3,43
3,43
3,05
6,35
3,07
F (cm)
4,45
4,45
4,06
8,89
4,09
G (cm)
5,59
5,59
4,83
10,16
4,88
H (cm)
2,79
2,79
2,41
5,08
2,44
I (cm)
0,97
0,97
0,97
1,27
0,97
J (cm)
0,48
0,48
0,48
0,51
0,48
OUTLINE DRAWINGS
MODEL 4214A
Spectrum Microwave
8 Executive Drive Hudson, NH 03051 Phone: 603-459-1600
www.SpectrumMicrowave.com
Fax: 603.459.1605
PRODUCT
SPECIFICATION
POWER DIVIDERS
FOUR-WAY, 1 TO 18 GHz

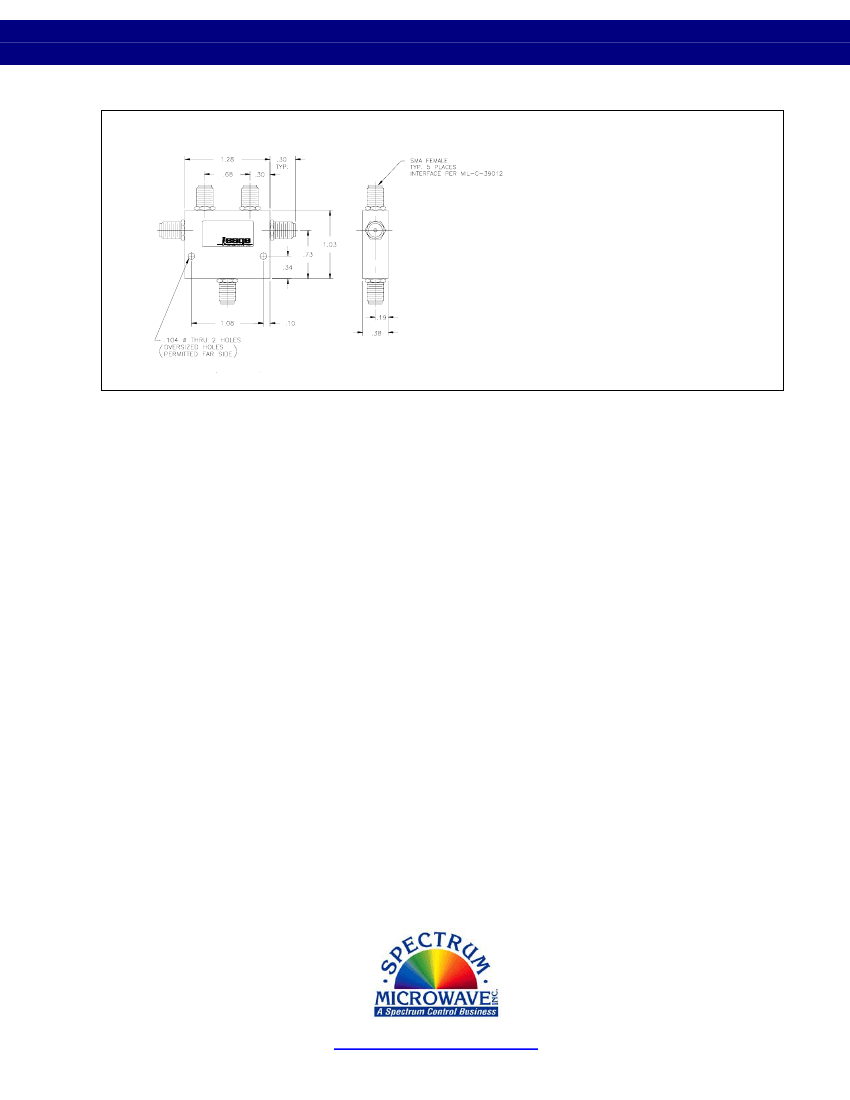

MODEL 4234
MISCELLANEOUS:
1.
2.
3.
4.
Spectrum Microwave “Standard Warranty and Order Terms and Conditions” apply to all orders.
All specifications subject to change without notice.
Check “Ordering and Availability Listing” for delivery and ordering information.
Contact our local Manufacturers Representative for pricing.
Specification Revision - 071910
Spectrum Microwave
8 Executive Drive Hudson, NH 03051 Phone: 603-459-1600
www.SpectrumMicrowave.com
Fax: 603.459.1605
