Photoelectric sensors
W2 Flat, Photoelectric proximity sensor, energetic
Type
Part No.
> WT2F-P180
> 6030573
At a glance
• V-optic sensor with fixed sensing ranges of 9 mm or 18 mm for detecting
transparent and glossy objects
• Energetic proximity sensor with fixed sensing ranges of 34 or 115 mm
• Rugged housing with metal sleeves for 2 mm fixing screws included with delivery
• 0.5 ms response time
• IP 67 enclosure rating
• Red light
Your benefits
• Variants with V-optics reliably detect transparent and glossy objects, resulting in a
low-cost application solution - even for demanding applications
• Smart, optimal design fits into small spaces, providing increased application
flexibility
• Sensors with four fixed sensing ranges provides a wide range of application
options
• Quick and easy installation since sensors can be mounted directly to the machine

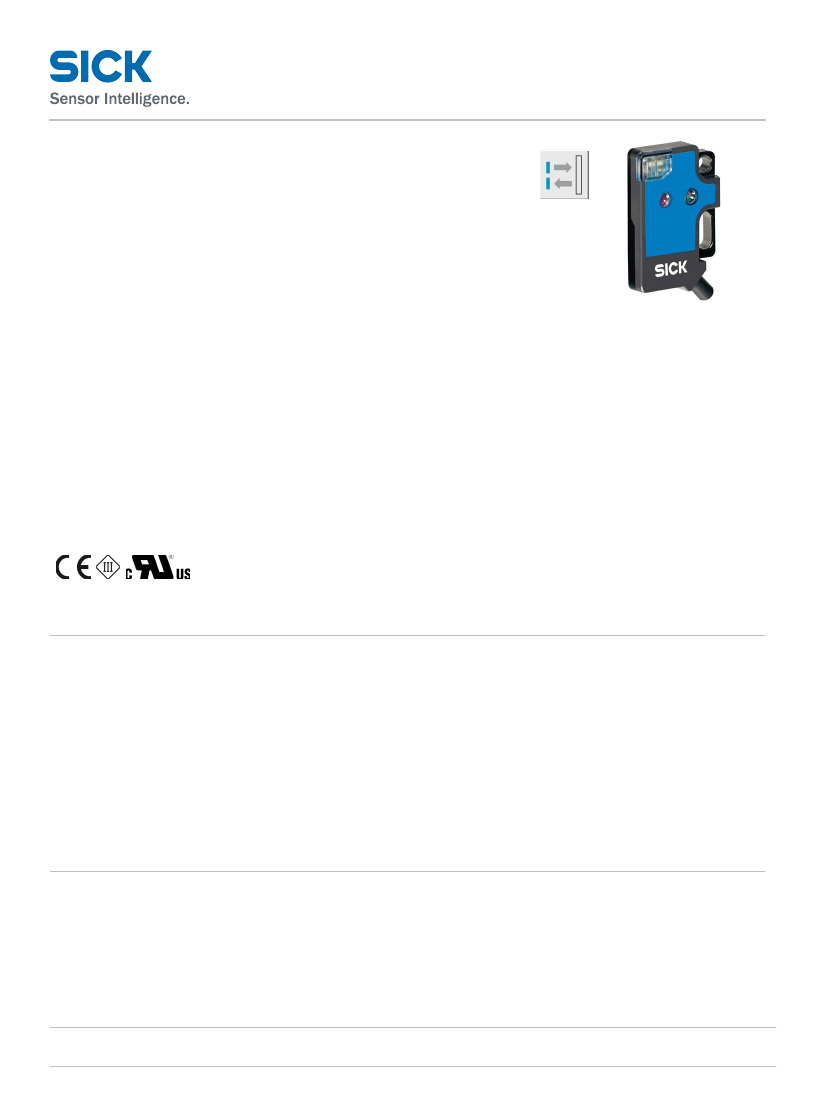

Illustration may differ
Features
Sensor/detection principle:
Dimensions (W x H x D):
Housing design (light emission):

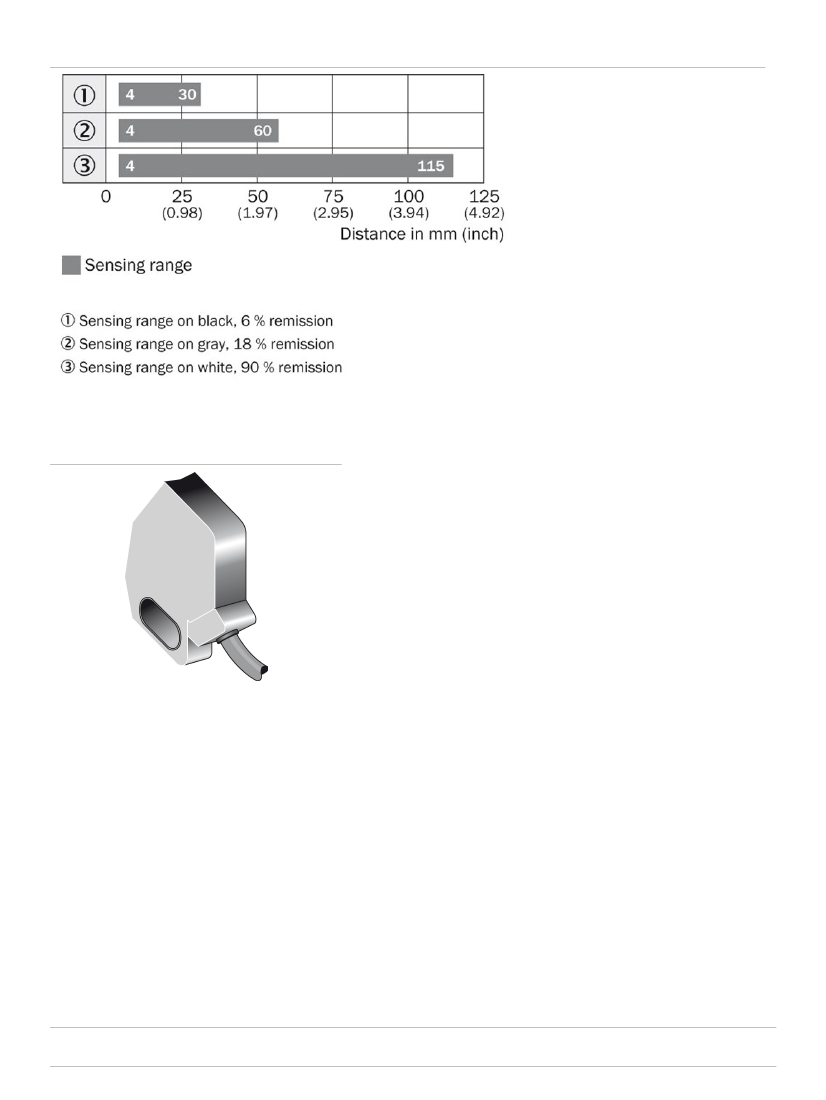

Sensing range max.:
Sensing range:
Type of light:
Light source:
Wave length:
Focus adjustable:
1) 2)
Photoelectric proximity sensor, energetic
14 mm x 19.5 mm x 3.5 mm
Rectangular
1)
4 mm ... 115 mm
2)
4 mm ... 115 mm
Visible red light
3)
LED
660 nm
-
3)
Average service life: 100,000 h at T = +25 °C
U
Object with 90 % reflectance (referred to standard white, DIN 5033)
Mechanics/electronics
Supply voltage:
Ripple:
Output type:
Switching mode:
Output current Imax.:
Response time:
12 V DC ... 24 V DC
2)
≤ 5 Vpp
PNP
Light switching
≤ 50 mA
3)
≤ 0.5 ms
1)
Photoelectric sensorsAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAA2/2/2016 2:00:51 AM
Switching frequency:
Connection type:
Cable material:
Cable diameter:
Circuit protection:::
Weight:
Polarisation filter:
Special device:
Reverse polarity protection:
Short-circuit protection:
Optics material:
Enclosure rating:
Ambient operating temperature:
Ambient storage temperature:
Signal voltage PNP HIGH/LOW:
Signal voltage NPN HIGH/LOW:
Housing material:
1)
+- 10 %
2)
1,000 Hz
5)
Cable, 3-wire, 2 m
PVC
2.4 mm
6) 7) 8)
A, C, D
20 g
-
-
ü
ü
PC
IP 67
-20 °C ... +55 °C
-40 °C ... +75 °C
Approx. VS - 1.8 V ∕ 0 V
Approx. VS ∕ < 1.8 V
Plastic, PC
4)
3)
4)
5)
6)
May not exceed or fall below U tolerances
Signal transit time with resistive load
With light/dark ratio 1:1
Do not bend below 0 °C
A=V
v
S
7)
8)
connections reverse-polarity protected
C = interference suppression
D = outputs overcurrent and short-circuit protected

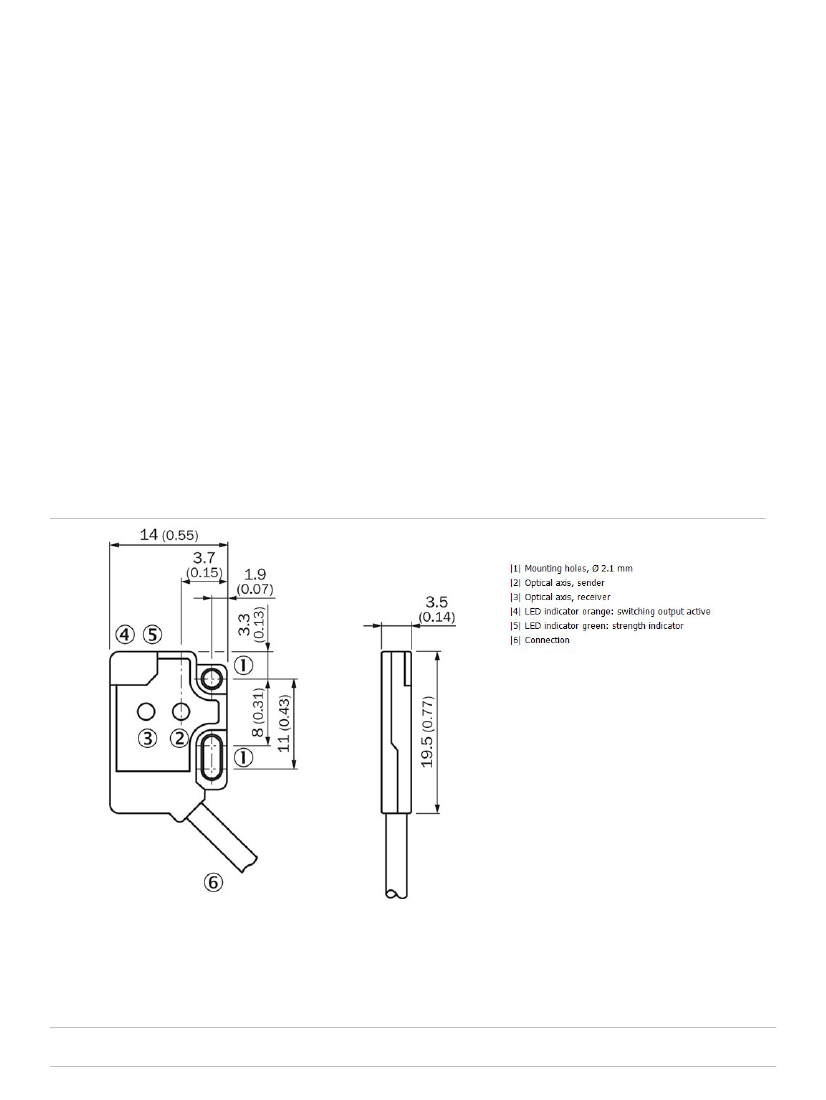

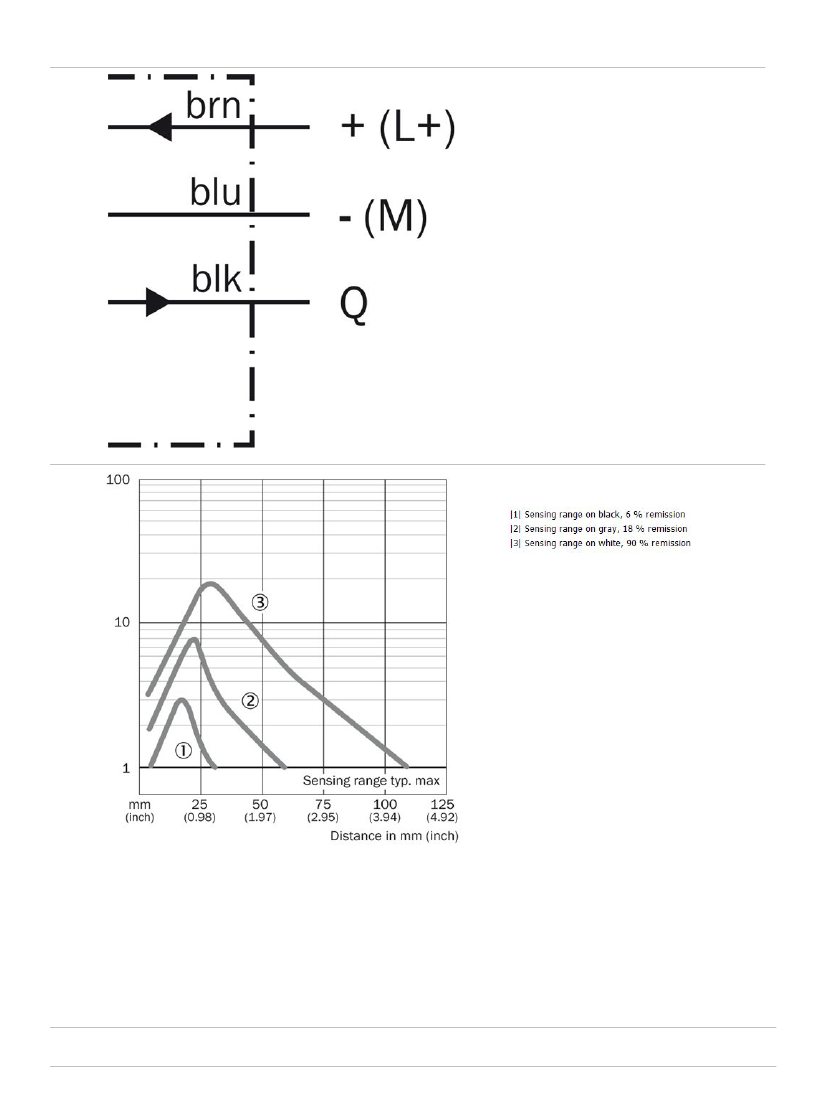

Dimensional drawing
