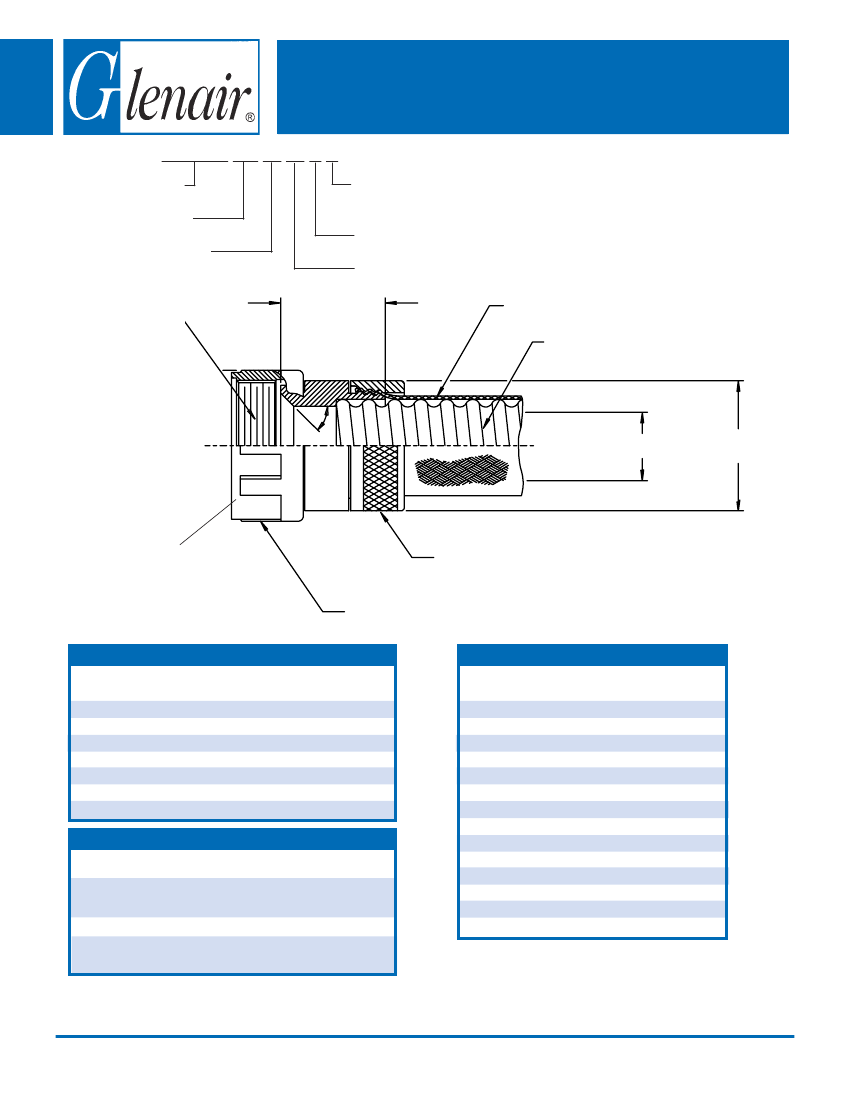

712S270
Self-Locking Composite Conduit Adapter for
Single-Shielded Series 74 PEEK or Standard Tubing
712S270 XM 03 24 N K
Basic Part No.
Finish (Table III)
N = Non-self locking, omit for self locking
Dash No. (Table I)
Conduit Size (Table II)
A Thread - Typ.
Class 2A
1.06 (26.9)
Single Layer Braid (.050 Max Thickness)
RFI Shield (Shown for Reference Only)
Convoluted Tubing (Shown
for Reference Only)
K = For use with peek conduit material,
omit for standard teflon conduit material
Series 74
Convoluted
Tubing
45°
Conduit I.D.
J
Hex Coupling
Nut
Knurl or Flute Style
Mfr. Option - Typ.
Anti-Decoupling Device
Table I
Dash
No.
01
02
03
04
05
06
07
A Thread Max Conduit
Unified
Size Table 2
.750 - 20
16
1.000 - 20
24
1.312 - 18
32
1.500 - 18
40
2.000 - 18
64
.500 - 20
09
.625 - 24
12
Weight in
Pounds Max.
.035
.047
.062
.077
.104
.030
.031
Dash
No.
06
09
10
12
14
16
20
24
28
32
40
48
56
64
Table II
Conduit
I.D.
.188 (4.8)
.281 (7.1)
.312 (7.9)
.375 (9.5)
.437 (11.1)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.250 (31.8)
1.500 (38.1)
1.750 (44.5)
2.000 (50.8)
J Dia
Max
.790 (20.1)
.985 (25.0)
.985 (25.0)
1.035 (26.3)
1.100 (27.9)
1.160 (29.5)
1.285 (32.6)
1.480 (37.6)
1.670 (42.4)
1.720 (43.7)
2.100 (53.3)
2.420 (61.5)
2.660 (67.6)
2.910 (73.9)
Table III
TABLE 2
XM
XW
XB
XO
Electroless Nickel
Cadmium Olive Drab Over Electroless
Nickel
No Plating - Black Material
No Plating - Base Material
Non-conductive
Metric dimensions (mm) are in parentheses and are for reference only.
© 2003 Glenair, Inc.
CAGE Codes 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
D-30
