LFV330-DAGBVXMR0300
LFV300
LEVEL SENSORS
Online data sheet
LFV330-DAGBVXMR0300 | LFV300
LEVEL SENSORS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T

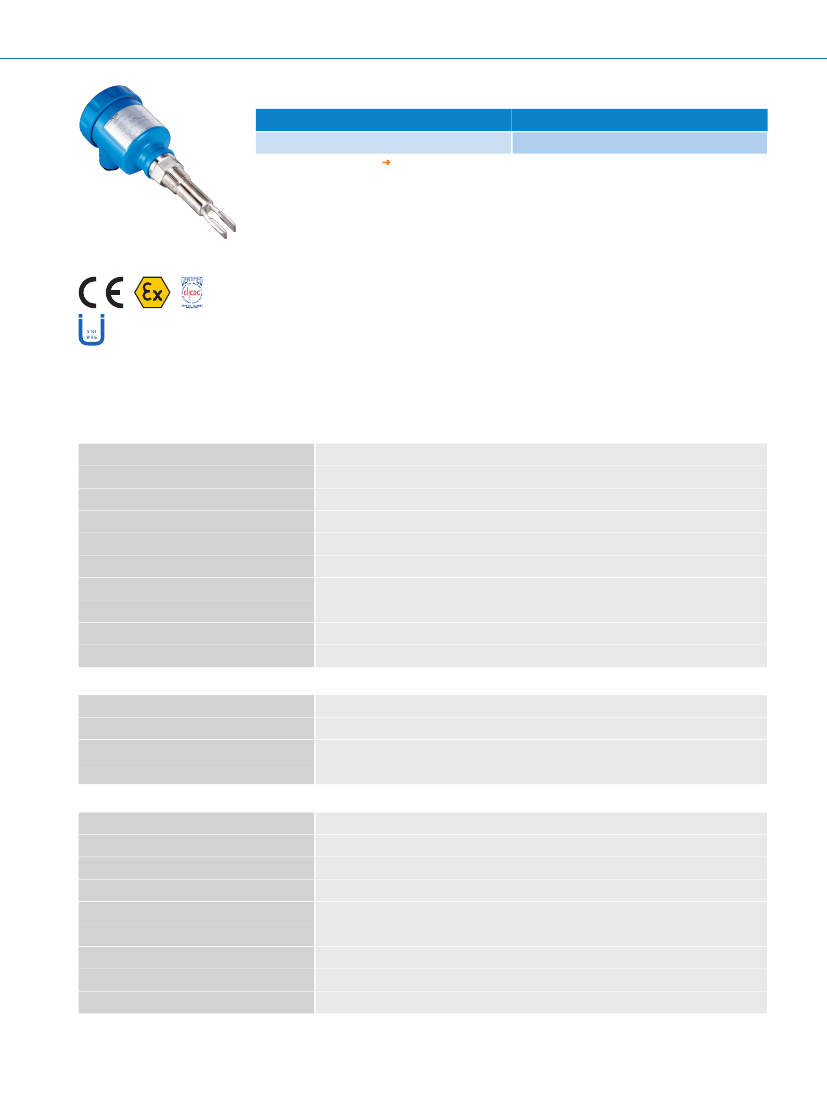

Ordering information
Type
LFV330-DAGBVXMR0300
Other models and accessories
www.sick.de/LFV300
Part no.
6041182
Illustration may differ
Detailed technical data
Features
Medium
Measurement
Probe length
Process pressure
Process temperature
Fill material density
ATEX approval
Type examination
GOST approval
WHG approval
Fluids
Switch
300 mm
–1 bar ... 64 bar
–50 °C ... +150 °C
0.5 g/cm³ ... 2.5 g/cm³
ATEX II 1/2G, 2G Ex d IIC T6
TÜV 09 ATEX 372527 X
✔
✔
Performance
Accuracy of sensor element
Repeatability
Viscosity
Response time
± 2 mm
≤ 1 mm
0.1 mPas ... 10,000 mPas
500 ms
Electronics
Power consumption
Initialization time
VDE protection class 1
Electrical connection
Supply voltage
Hysteresis
Output current
Inductive load
Capacitive load
5 mA ... 30 mA
< 2 s
✔
M20 x 1.5
Double relay (DPDT): 20 V DC ... 72 V DC / 20 V AC ... 253 V AC
2 mm
> 10 µA; < 3A AC, 1A DC
750 VA 54 W
750 VA 54 W
2
FLUID SENSORS | SICK
Online data sheet | 2015-12-07 11:19:05
Subject to change without notice
LFV330-DAGBVXMR0300 | LFV300
LEVEL SENSORS
Contact load
Enclosure rating
Temperature drift
Min. 50 mW / max. 750 VA, 54 W
IP 66 / IP 67
0,03 mm/K
Mechanics
Wetted parts
Process connection
Housing material
Sensor material
Stainless steel 316L (optional Ra ≤ 0.8 μm)
G ¾ A PN 64 / 1.4404
Aluminum
Stainless steel 1.4404
Ambient data
Ambient operating temperature
Ambient storage temperature
–40 °C ... +70 °C
–40 °C ... +80 °C
2015-12-07 11:19:05 | Online data sheet
Subject to change without notice
FLUID SENSORS | SICK
3
LFV330-DAGBVXMR0300 | LFV300
LEVEL SENSORS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T

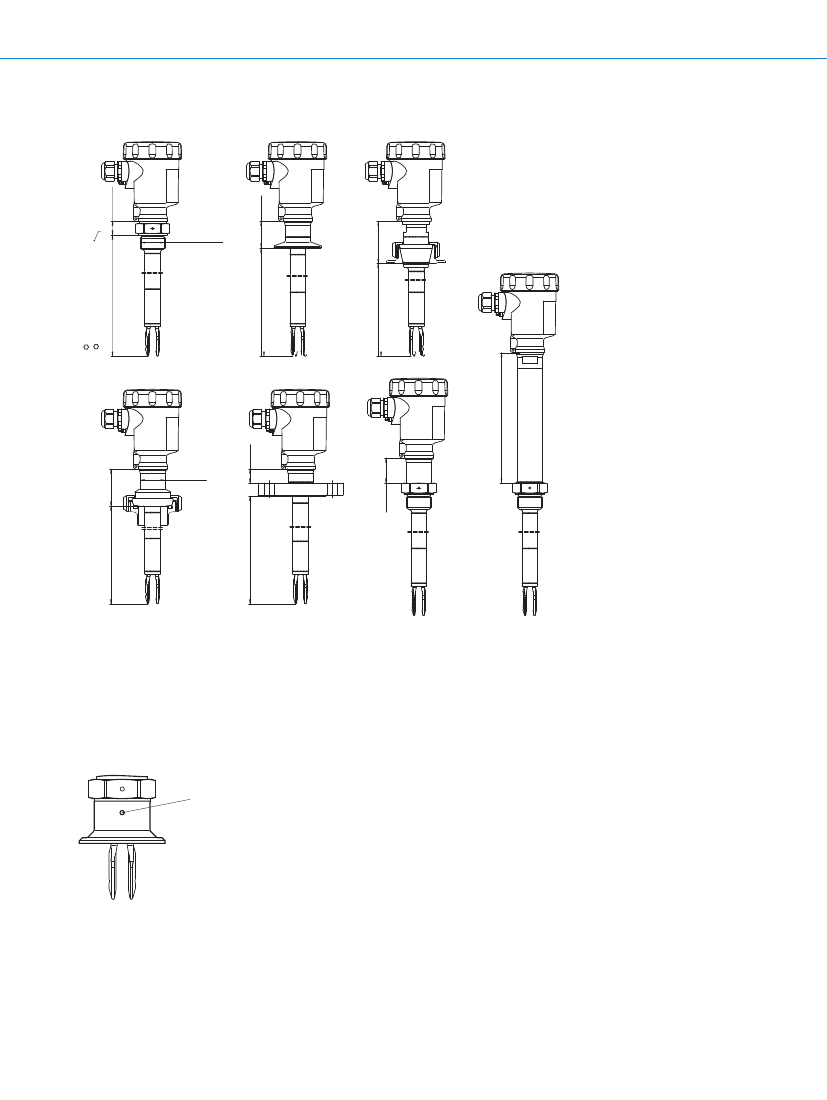

Dimensional drawing
(Dimensions in mm (inch))
LFV330
18.5
(0.73)
36
(1.42)
32 (G 3/4 A, 3/4" NPT)
41 (G 1 A, 1" NPT)
L
G 3/4 A,
3/4" NPT
G 1 A,
1" NPT
L
1
2
L
57
(2.24)
3
50
(1.97)
ø 33.7
(1.33)
19
(0.75)
L
L
4
5
6
7
① Thread
② Tri-Clamp
③ DN
25 cone
④ Bolting
D 40
⑤ Flange
⑥ Gas-tight
leadthrough
⑦ Temperature
adapter
Marking on the welded flange
1
① Marking
4
FLUID SENSORS | SICK
34
(1.34)
178
(7.01)
Online data sheet | 2015-12-07 11:19:05
Subject to change without notice
LFV330-DAGBVXMR0300 | LFV300
LEVEL SENSORS
Connection diagram
Relay - electronic module
1
2
8
3
① Signal
lamp (LED)
② DIL
switch for mode adjustment
③ DIL-switch
for sensitivity adjustment
Relay connection diagram (single chamber housing)
+ -
L1 N
1
2
3
4
5
6
7
8
1
① Relay
output
② Relay
output
③ Supply
voltage
Instruction for installation
Inflowing medium
2015-12-07 11:19:05 | Online data sheet
Subject to change without notice
2
1
2
3
3
4
5
6
7
FLUID SENSORS | SICK
5
