52-PV3WH2H0BB345

Description
HARDWARE SUPPLIED: O-RING AND HEXNUT
File Size158KB,1 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Download Datasheet View All

52-PV3WH2H0BB345 Overview

HARDWARE SUPPLIED: O-RING AND HEXNUT

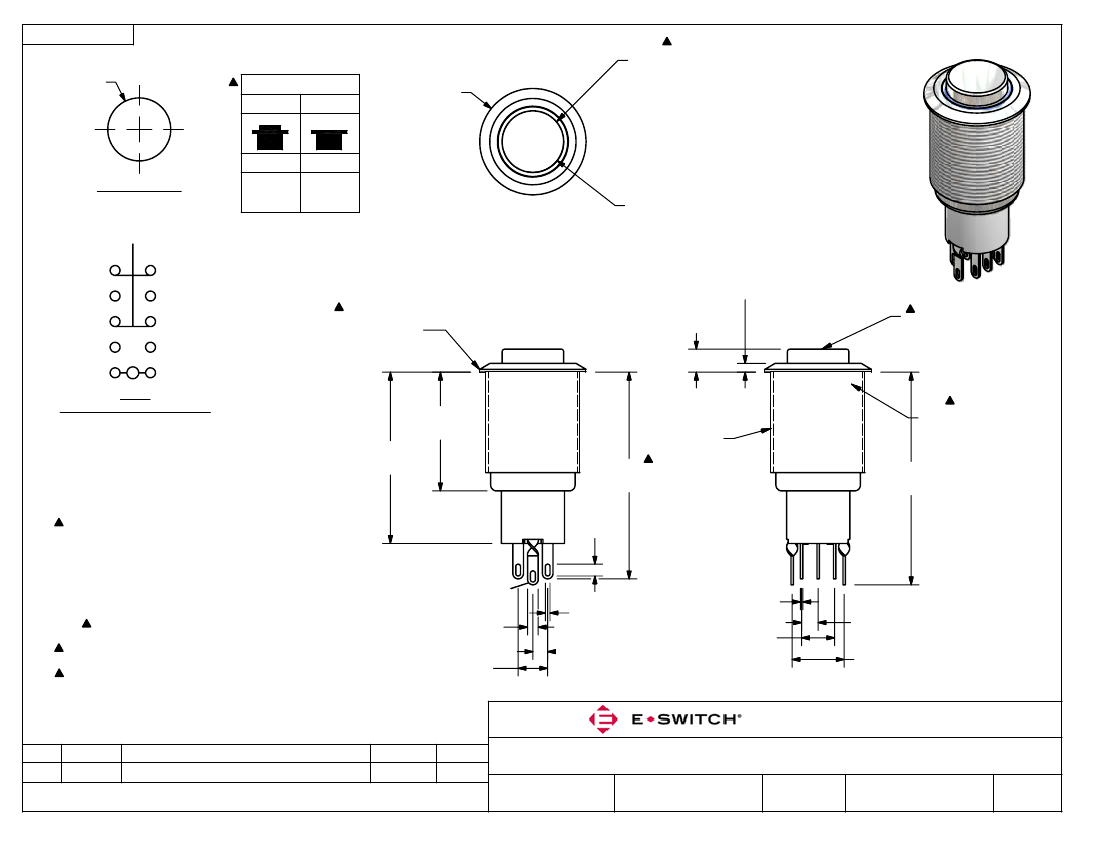

SHEET 1 OF 1
n
16.00
RING
ILLUMINATION
SWITCH FUNCTION
POS. 1
POS. 2
n
18.00
[.709 in]
[.630 in]
ON
PANEL CUTOUT
MAX. PANEL THICKNESS
14.0mm [.551]
1-3, 4-6
(ON)
1-2, 4-5
n
10.40
[.409 in]
(ON) = MOMENTARY
1
1
4
4
-
L
3
2
6
5
BODY FINISH
BRUSHED STAINLESS STEEL
1.50
[.059 in]
3.90
[.154 in]
ACTUATOR FINISH
BRUSHED STAINLESS STEEL
+
DPDT
CONTACT CONFIGURATION
20.10
`
1.00
[.791
`
.039
in]
29.00
`
1.00
[1.142
`
.039
in]
NOTE 14
HARDWARE SUPPLIED
M16x1.0
35.00
`
1.00
[1.378
`
.039
in]
2.00
[.079 in]
(-)
36.00
`
1.00
[1.417
`
.039
in]
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 48VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 MΩ MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20°C to 55°C
11. DENOTES CRITICAL PARAMETER.
12. LAMP VOLTAGE: 20mA, 24V
13. ILLUMINATION COLOR: BLUE
14. HARDWARE SUPPLIED: O-RING AND HEXNUT
15. INGRESS RATING: IP67
16. 2002/95/EC (ROHS) COMPLIANT
3
(+)
1.80
[.071 in]
5.00
[.197 in]
6
.80
[.031 in]
2.50
[.098 in]
(+)
.40
[.016 in]
5.60
[.220 in]
6
5
4
2.80
[.110 in]
8.80
[.346 in]
A
REV
20651
PCR NO
New Release
DESCRIPTION
6/19/2012
DATE
rc
BY
TITLE
SCALE
PV3WH2H0BB-345
1.5:1
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
6/19/2012
DR
rc
DWG
52-PV3WH2H0BB345
REV
A
