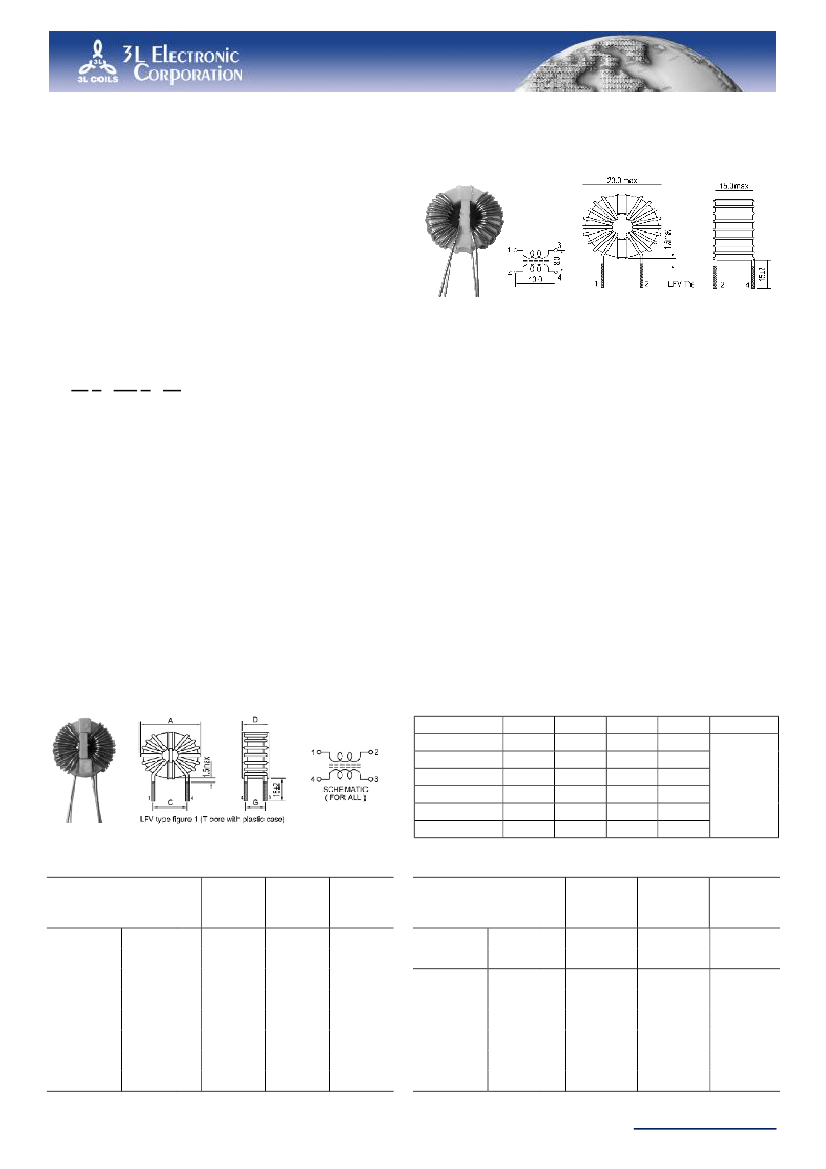

LF SERIES

LINE FILTER

Shape and Dimensions(unit:mm) :

Characteristics :

．Rated

DC Current: The current when temperature of

coil increases up to Max.

△T=40℃.

(Ta=20℃)

．Rated

voltage: 250VAC.

．Insulation:

AC 2000V 1 minute between line & line.

．Insulation

Resistance: 100 MΩ Min when DC 500V

between line & line.

．Operating

temperature : -25

℃

to 105

℃

Feature :

．Line

filters suppressing conductive noise ranging

from low to high frequencies generated at power

supply circuits of various electronic equipment.

．High

safety and reliability .

．Many

configuration available.

．Available

as vertically or horizontally mounted.

．Easy

PC board mounting.

．Customer's

specifications are welcome.

Product Identification :

LF V - 102 U - 2A

(1)(2) (3) (4) (5)

(1) Type:

Line Filter.

(2) Style:

vertical;

horizontal

indicate core type; Others: "V129";

"LV"; "LH"; "U9.8"; "U10"; "U16"; "UT20";

(3) Inductance:

102

for

1000uH.

(4) Tolerance: "U" means Minimum.

(5) Rate current: Amp.

Applications :

．Minimizes

noise emissions for conforming to FCC,

VCCI, FTZ, CISPR, JTTC and VDE. .

．Applied

Equipment: TV, VCR, Switching Power .

sources, NC machines, Computer systems,

Peripheral units and Measuring instruments

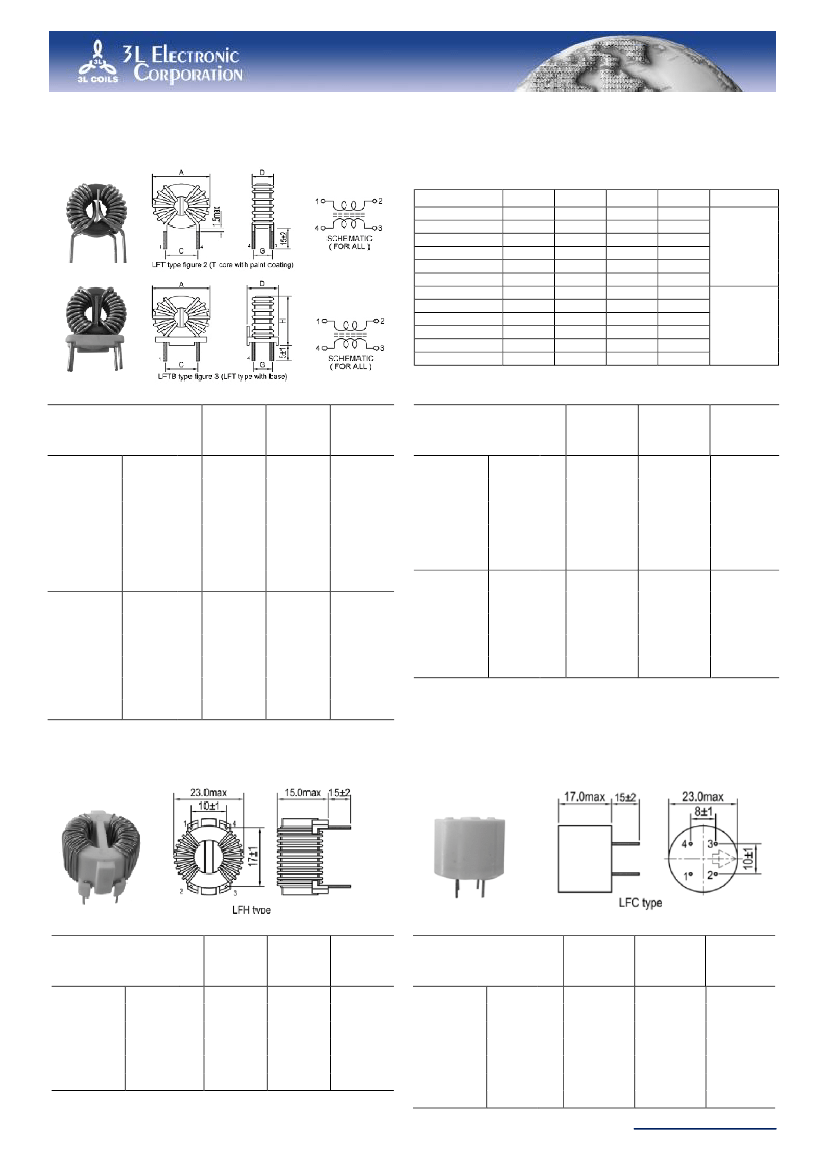

LFV series

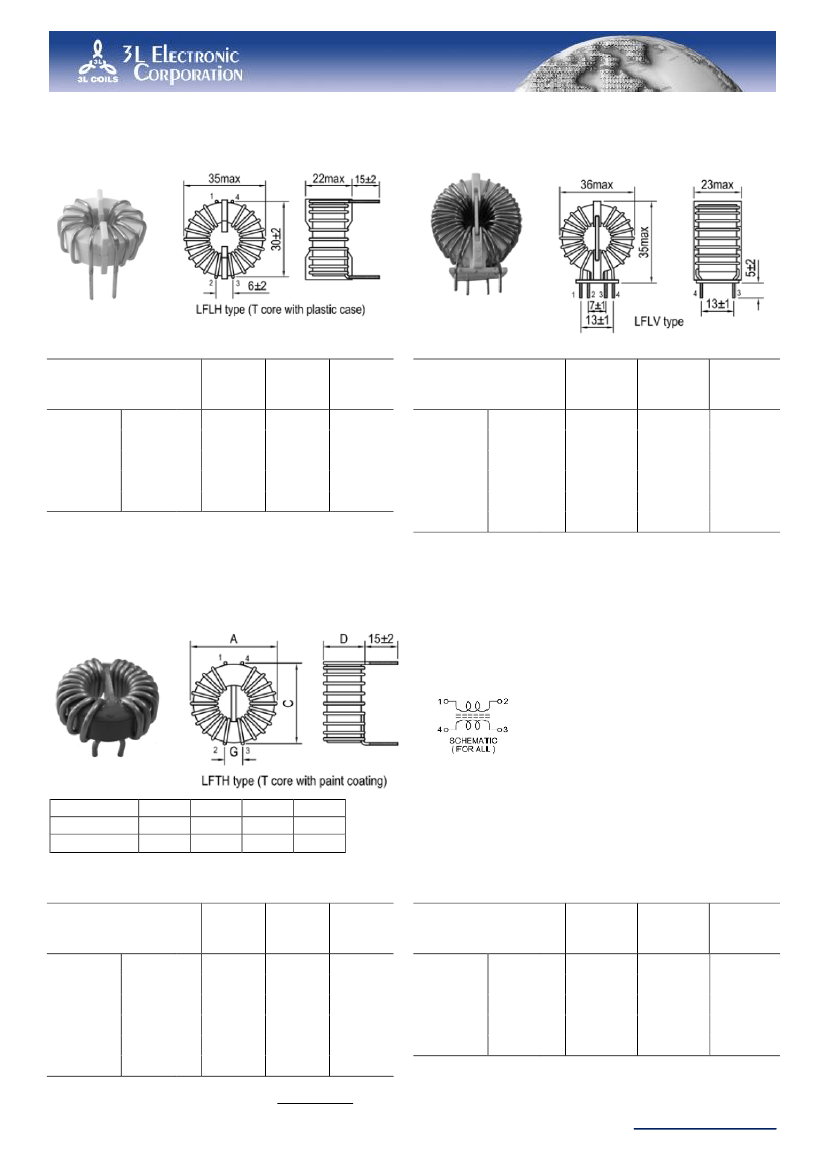

Shape and Dimensions(unit:mm) :

3L P/N

LFV129

LFV

LFV2208

LFV2513

LFV3113

LFV3715

A max

17.5

23.0

30.0

34.0

40.0

45.0

B max

14.5

15.0

20.0

23.0

5 typ

13 typ

20 typ

25 typ

10 typ

12 typ

18 typ

20 typ

Flgure

Figure 1

Electrical characteristics:

Part No.

601U -

LFV129-

102U -

202U -

(mH)

Min.

0.6

1.0

2.0

Rated

Current

(Amp.)

DCR

(mΩ)

Max.

100

Part No.

LFV129-

302U - 2A

502U - 1A

102U - 2A

202U - 2A

LFV-

302U - 2A

502U - 1A

802U - 1A

103U - 1A

(mH)

Min.

3.0

5.0

1.0

2.0

3.0

5.0

8.0

10.0

Rated

Current

(Amp.)

DCR

(mΩ)

Max.

150

110

150

200

230

260

Lasting. Leaning. Leading

3L Electronic Corp.

54.1

Web : http://www.3lcoil.com
