A202-2511-209-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> A202-2511-209-Z

A202-2511-209-Z: DescriptionD Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size346KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

A202-2511-209-Z Overview

D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle

A202-2511-209-Z Parametric

Parameter Name	Attribute value
Objectid	304388089
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.331 inch
body length	2.1 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	A202
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Termination type	IDC
Total number of contacts	25
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

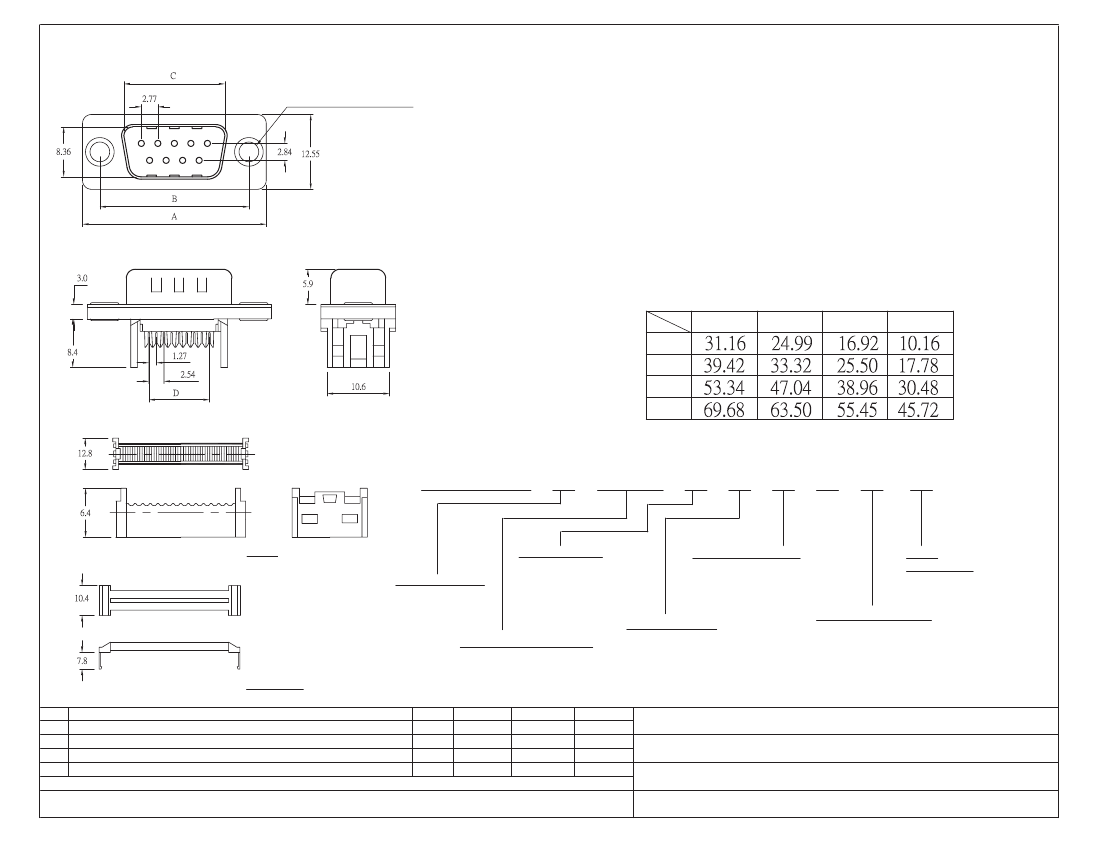

ø3.05 x 2 (Clear Hole)

4-40 x 2 (Threaded Insert)

ELECTRICAL:

CURRENT: 1 Amp

CONTACT RESISTANCE: < 30mΩ

INSULATOR RESISTANCE: > 1000MΩ

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -55° C TO +105° C

MATERIAL:

INSULATOR: PBT & 30% GLASS FIBER (UL94V-0)

CONTACT: BRASS

CONTACT PLATING: OPTIONAL GOLD OR TIN ALL OVER NICKEL

MECHANICAL:

WIRE SIZE: AWG 26 ~ AWG 28

DIMENSION(mm)

POS

DIM

HOW TO ORDER:

Cover

CONTACT TYPE:

2 - MALE

STRAIN RELIEF:

0 - w/STRAIN RELIEF

1 - w/OUT STRAIN RELIEF

MOUNTING OPTION:

1 - 3.05mm HOLE

2 - 4-40 THREADED INSERT

RoHS

COMPLIANT

NUMBER OF CONTACTS:

09, 15, 25, 37

Stain Relief

Rev

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm

Drawn Checked Approved

Date

A.M.

S.M.

11/20/03

B.S.

S.M.

6/20/07

SHELL PLATING:

1 - TIN PLATED

2 - ZINC PLATED

3 - ALL PLASTIC

4 - NICKEL PLATED

SELECTIVE PLATING:

1 - Au FLASH CONTACT AREA/TIN TAIL

9 - 15u" Au CONTACT AREA/TIN TAIL

A - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

IDC D-Subminiature Male Connector; 9,15,25 and 37 Position, Metal Shell

P/N: A202-XXXX-X0X-Z

Pg: 1
