EMC15DTKI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> EMC15DTKI

EMC15DTKI: DescriptionCard Edge Connector, 30 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size564KB，2 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

EMC15DTKI Overview

Card Edge Connector, 30 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, #4-40, Receptacle

EMC15DTKI Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOOP BELLOWS, ROUND PIN
Board mount options	MOUNTING FLANGE
body width	0.37 inch
subject depth	0.61 inch
body length	2.335 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	600VDC V
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
Manufacturer's serial number	E
Plug contact pitch	0.1 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	130 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.19 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30
Evacuation force-minimum value	.278 N

Preview

Download Datasheet

View All

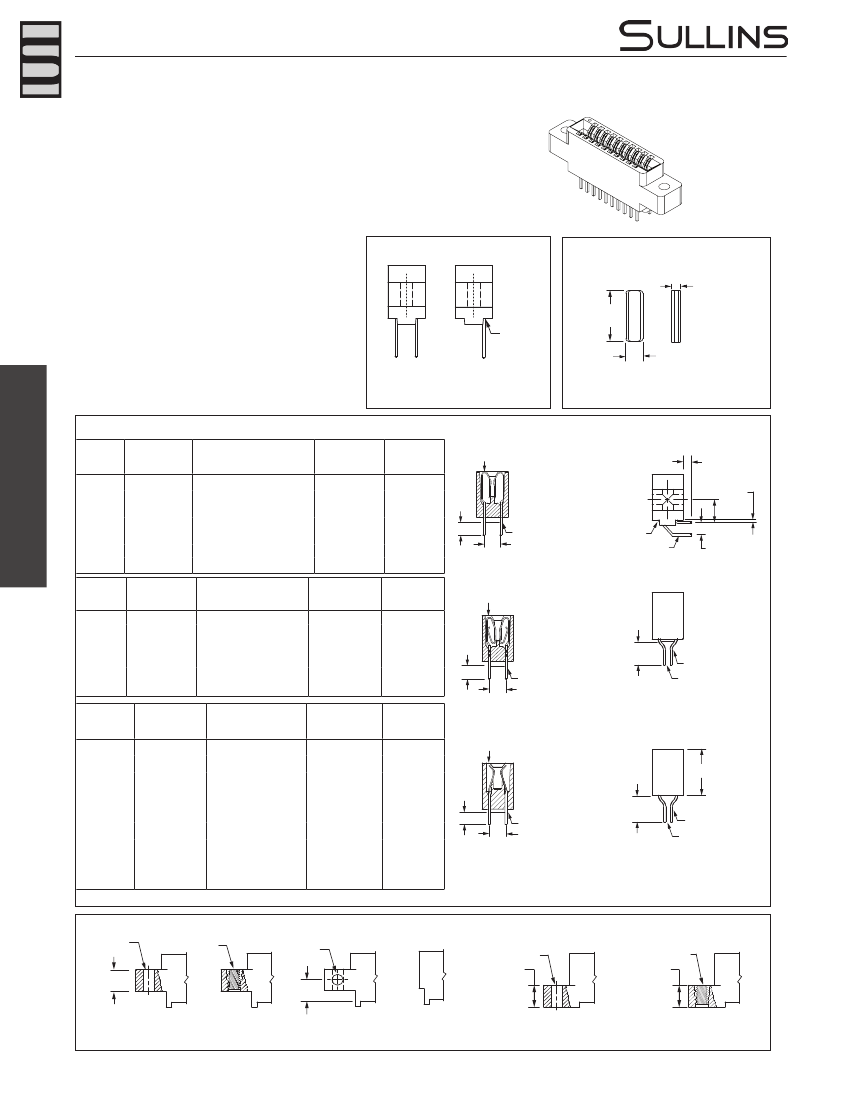

Female Card Edge

.100” [2.54 mm] Contact Centers, .610” [15.49 mm] Insulator Height,

Dip Solder/Wire Wrap/Right Angle/Card Extender

SPECIFICATIONS

• Accommodates .062” ± .008” [1.57 mm ± 0.20 mm] mating PCB

(For .093” [2.36 mm] or .125” [3.18 mm] mating PCB see following pages)

• PBT, PPS or PA9T insulator

• Molded-in key available

• 3 Amps current rating for one contact energized

• 30 milli Ohms maximum at rated current

READOUT

• UL Flammability Rating: 94V-0

POLARIZING KEY

PLC-K1

.285”

[7.24]

EVEN

NUMBER

SIDE

.038”

[0.97]

.100” [2.54]

DUAL (D)

HALF LOADED (H)

KEY IN BETWEEN CONTACTS

(ORDER SEPARATELY)

Female Card Edge

TERMINATION TYPE

HAIRPIN TERMINATION

BELLOWS

TYPE

DIP SOLDER

POST LENGTH

FITS MIN.

HOLE SIZE

.025” [0.64]

.015ʺ X .025ʺ[0.38 X 0.64] .125ʺ [3.18] .035ʺ [0.89]

POST CROSS SECTION

.170ʺ

.160ʺ

.560ʺ

.100ʺ

.180ʺ

.250ʺ

[4.32]

[4.06]

[14.20]

[2.54]

[4.57]

[6.35]

.035ʺ

.040ʺ

.043ʺ

[0.89]

[1.02]

[1.09]

HAIRPIN BELLOWS

RIGHT ANGLE

.030” [0.76]

.275”

[6.98]

DIP SOLDER

.015ʺ X .025ʺ[0.38 X 0.64]

DIP SOLDER

.025ʺ [0.64] SQUARE

WIRE WRAP

.025ʺ [0.64] SQUARE

RIGHT ANGLE

.025ʺ [0.64] SQUARE

RIGHT ANGLE

.025ʺ [0.64] SQUARE

RIGHT ANGLE

.025ʺ [0.64] SQUARE

POST CROSS SECTION

.025ʺ [0.64] ROUND

.025ʺ [0.64] SQUARE

.200” [5.08]

ODD NUMBER

SIDE

.150” [3.81]

(CW, CT, CS, CM)

(CA, CB, CC, TA, TB, TM, KA, KE, KU, KJ)

HAIRPIN or LOOP CARD EXTENDER

LOOP

TERMINATION

BELLOWS

TYPE

TK,CK

DIP SOLDER

WIRE WRAP

RIGHT ANGLE

POST LENGTH

.025”ʺ [0.64]

.190ʺ [4.83]

.560ʺ [14.20]

.100ʺ [2.54]

.180ʺ [4.57]

.250ʺ [6.35]

POST LENGTH

.025”ʺ [0.64]

.190ʺ [4.83]

.160ʺ [4.06]

.560ʺ [14.20]

.100ʺ [2.54]

.180ʺ [4.57]

.250ʺ [6.35]

.500ʺ [12.70]

.235ʺ [5.97]

.605ʺ [15.37]

FITS MIN.

HOLE SIZE

.033ʺ

.040ʺ

.043ʺ

[0.84]

[1.02]

[1.09]

LOOP BELLOWS

.200” [5.08]

(TK, CK, RS, RM)

CANTILEVER TERMINATION POST CROSS SECTION

TYPE

*KA

*KE

*KU

*KJ

*KR

*KN

DIP SOLDER

WIRE WRAP

RIGHT ANGLE

.025ʺ [0.64] SQUARE

FITS MIN.

HOLE SIZE

.040ʺ [1.02]

.043ʺ [1.09]

.040ʺ [1.02]

.043ʺ [1.09]

N/A

ACCOMMODATES

.062” [1.57] PCB

(CT, CS, CM,TK, CK, RS,RM)

Example P/N: EBC10DCSN-S288

(Requires -S288 Modification Code)

CANTILEVER CARD EXTENDER

.550” [13.97]

L - .015” [0.38]

CANTILEVER

.200” [5.08]

(KS, KD, KM)

ACCOMMODATES

.062” [1.57] PCB

CARD EXTENDER

.025ʺ [0.64] SQUARE

CARD EXTENDER

.025ʺ [0.64] SQUARE

(KR, KN)

Example P/N: EBC10DKRN

(Omit Modification Code)

* KA, KE, KU, KJ, KR, KN have no standoffs, unless requested.

MOUNTING STYLE

Ø.125”

[3.18]

.250”

[6.35]

#4-40

Ø.125”

[3.18]

.245”

[6.22]

Ø.125” [3.18]

D = .250” [6.35]

W = .430” [10.92]

#4-40

T = .250” [6.35]

X = .430” [10.92]

CLEARANCE

HOLE (H)

THREADED

INSERT(I)

SIDE MOUNTING

(S)

NO MOUNTING

EARS (N)

FLUSH MOUNTING

(D, W)

FLUSH MOUNTING WITH

THREADED INSERT(T, X)

www.sullinscorp.com

760-744-0125

toll-free 888-774-3100

fax 760-744-6081

info@sullinscorp.com
