3968-2-17-1

Description
Board Connector, 17 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size83KB,1 Pages
ManufacturerConexcon Group
Environmental Compliance
Download Datasheet Parametric View All

3968-2-17-1 Overview

Board Connector, 17 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle

3968-2-17-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid307348380
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.378 inch
subject depth0.674 inch
body length2.65 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Durability25 Cycles
Insulation resistance1000000000 Ω
insulator materialNYLON
Manufacturer's serial number3968
Plug contact pitch0.156 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.138 inch
Terminal pitch3.9624 mm
Termination typeSOLDER
Total number of contacts17

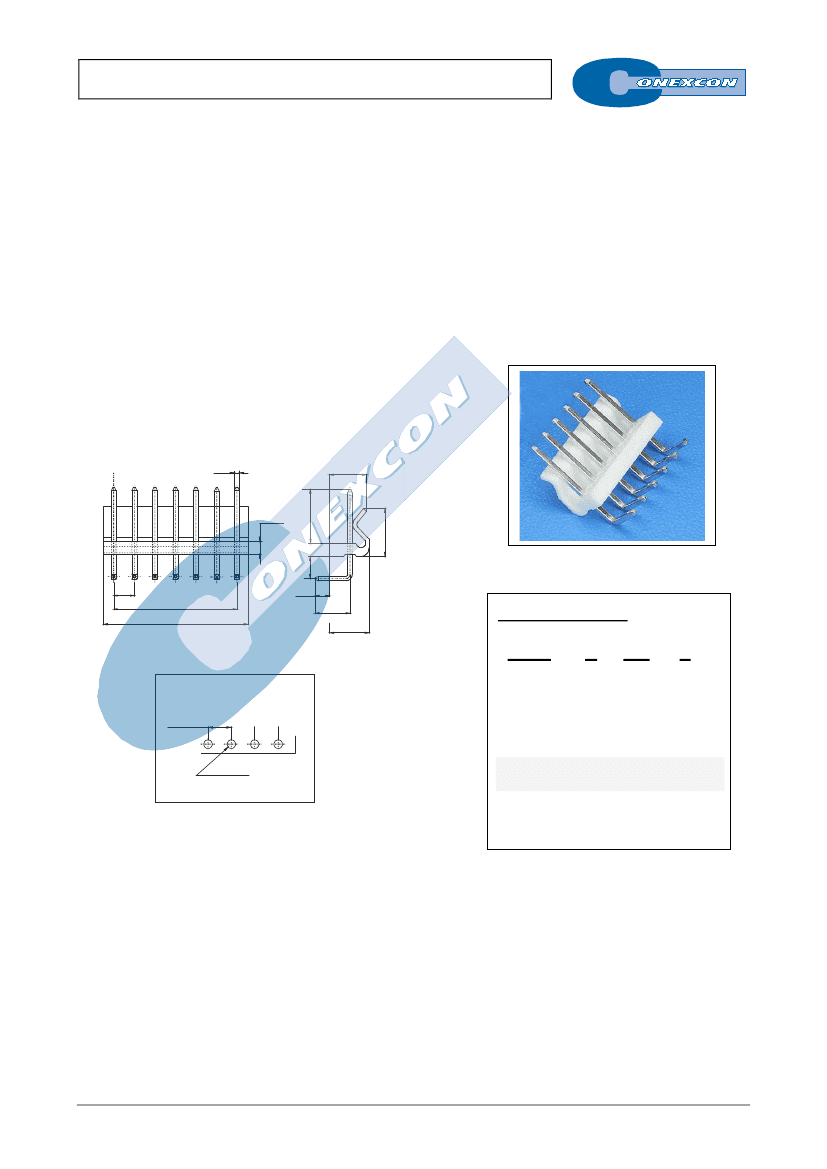

SINGLE ROW SIDE ENTRY PIN HEADER
3968 SERIES.
3.96 mm (0.156”) pitch.
General Features
Electrical Features
Available in 2 through 20 circuits
Mates with PCB sockets 3970 and 3971 series and wire
housing 3940, 3930 and 2631 series
1.14 mm. square pin
Polarised with friction lock
Voltage rating: < 250V
Current rating: < 5 A
Contact resistance: < 20 mΩ
Dielectric withstanding voltage: 1500 V AC/minute
Insulation resistance: >1000 MΩ
Materials
Mechanical Features
Insulator: Nylon 66 UL 94 V-0
Contact: brass
Operating temperature: -40ºC to +105ºC
RoHS compliant
Pin retention force to insulator: > 2.00 Kgf
Durability: 25 cycles
Dimensional Information
1.14
.045
9.0
.354
13.47
3.96
.156
A
B
3.50
.138
8.50
.335
9.6
.378
5.40
.213
11.7
.461
3.2
.126
.530
Ordering Information:
3968 -
1
RECOMMENDED HOLE PATTERN
T-
2
XX-
3
1
3.96±0.05
.156±.002
1. Connector Series
2. (T) Contact Plating
Ø1.80 ± 0.10
.071 ± .004
T =
2.
Tin plated
Recommended Finish
3. (XX) Number of circuits
Available in 2 through 20 circuits
Dimensions:
(In mm.)
A
= 3.96 x (XX*-1)
B
= 3.96 x (XX*)
* XX
(Number of circuits)
E-XX
