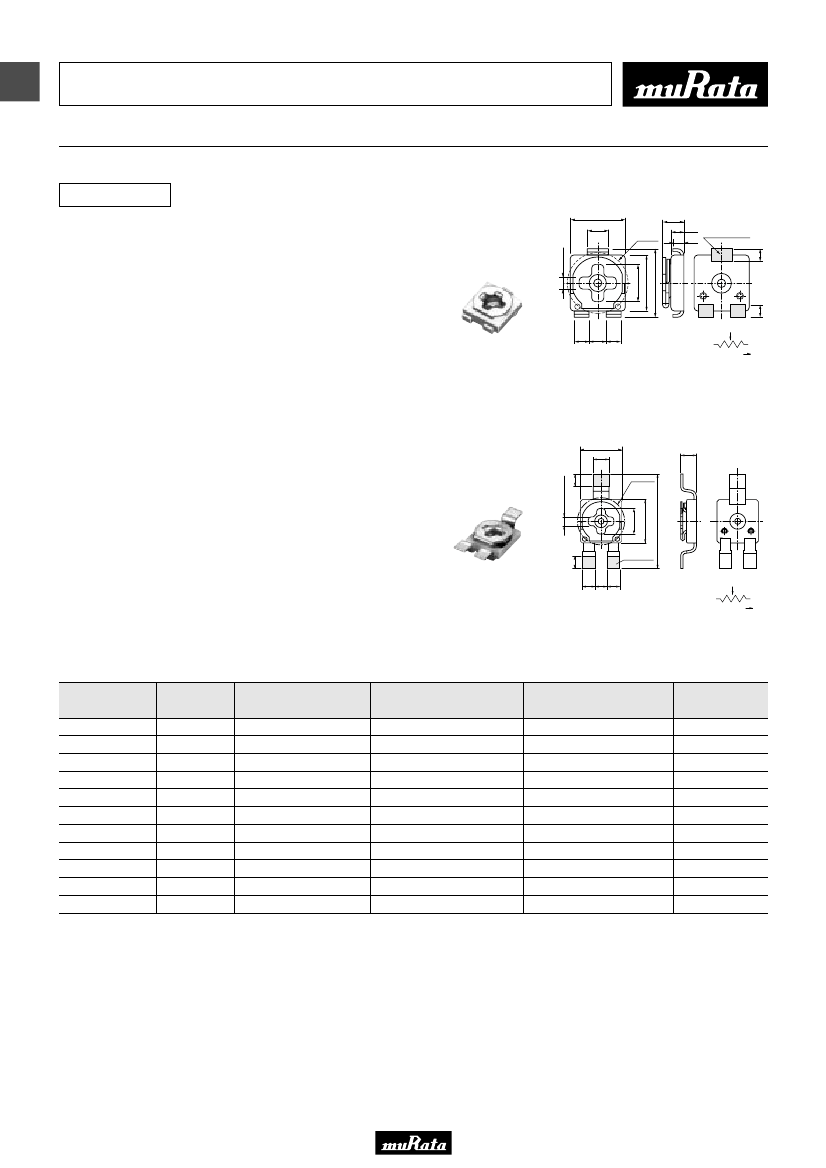

SMD Open Type 2mm Size PVZ2/PVA2 Series
PVZ2 Series
2.1
0.8±0.05
0.5
2.4 Dia.
∗1
0.4
Soldering Part
0.5
1
4
1.3
2.2
2.7±0.3
#1
#3
0.55 0.7 0.55
∗1
Driver Plate Rotation Area:
Please do not place any components
more than 0.5mm in height within this area.
#2
#1
CLOCKWISE
#3
s
Features
1. Ultra-small and thin external dimensions of
2.1(W)x2.7(L)x0.85 max. (T)mm.
(Top adjustment type: PVZ2A_C04 Series)
2. Ultra-small and thin external dimensions of
2.1(W)x4.8(L)x0.9 max. (T)mm.
(Rear adjustment type: PVZ2R_C04 Series)
Compact PCB design is possible by smaller
adjustment hole (3.0mm dia.) due to short wing
length (4.8mm).
3. Au plated termination achieves a high density
PCB mounting.
4. Cross-shaped driver slot allows for in-process
automatic adjustment and it provides superior
adjustability.
5. Two-piece parts construction achieves low cost and
excellent quality.
6. Special resin substrate allows high peak temperature
for reflow soldering. (PVZ2_Cxx Series)
0.45±0.1
0.8
#2
PVZ2A
(
Tolerance:
±0.2
)
in mm
2.1
0.8
#2
0.45±0.10
(0.6)
2.4 Dia.
*1
0.8
-0.15
+0.10
1.3
(0.6)
Soldering
Part
#1
#3
0.65 0.6 0.65
s
Applications
1. Pick-up module
3. Cellular-phone
5. Pager
7. Digital camera
2. LCD
4. PHS
6. DVC
8. Portable audio, etc.
Power Rating
(W)
0.05(50°C)
0.05(50°C)
0.05(50°C)
0.05(50°C)
0.05(50°C)
0.05(50°C)
0.05(50°C)
0.05(50°C)
0.05(50°C)
0.05(50°C)
0.05(50°C)
PVZ2R
2.2
4.8
#2
#1
CLOCKWISE
#3
∗1:
Driver Plate Rotation Area
(
Tolerancein:
±0.2
)
mm
Part Number
PVZ2p471C04
PVZ2p102C04
PVZ2p222C04
PVZ2p472C04
PVZ2p103C04
PVZ2p223C04
PVZ2p473C04
PVZ2p104C04
PVZ2p224C04
PVZ2p474C04
PVZ2p105C04
Soldering Method
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Reflow/Soldering Iron
Number of Turns
(Effective Rotation Angle)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
1(240°±10°)
Total Resistance Value
470ohm
±30%
1k ohm
±30%
2.2k ohm
±30%
4.7k ohm
±30%
10k ohm
±30%
22k ohm
±30%
47k ohm
±30%
100k ohm
±30%
220k ohm
±30%
470k ohm
±30%
1M ohm
±30%
TCR
(ppm/°C)
±500
±500
±500
±500
±500
±500
±500
±500
±500
±500
±500
*Available for other resistance value.
Operating Temperature Range: -25 to 85
°C
The blank column is filled with the code of adjustment direction and lead type A (top) or R (rear).
4
0.5
!Note
• This PDF catalog is downloadedand
!CAUTION
(forMurata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
• Please read rating from the website of storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
sales representatives or product engineers before ordering.
• This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
R50E.pdf
08.8.26
s

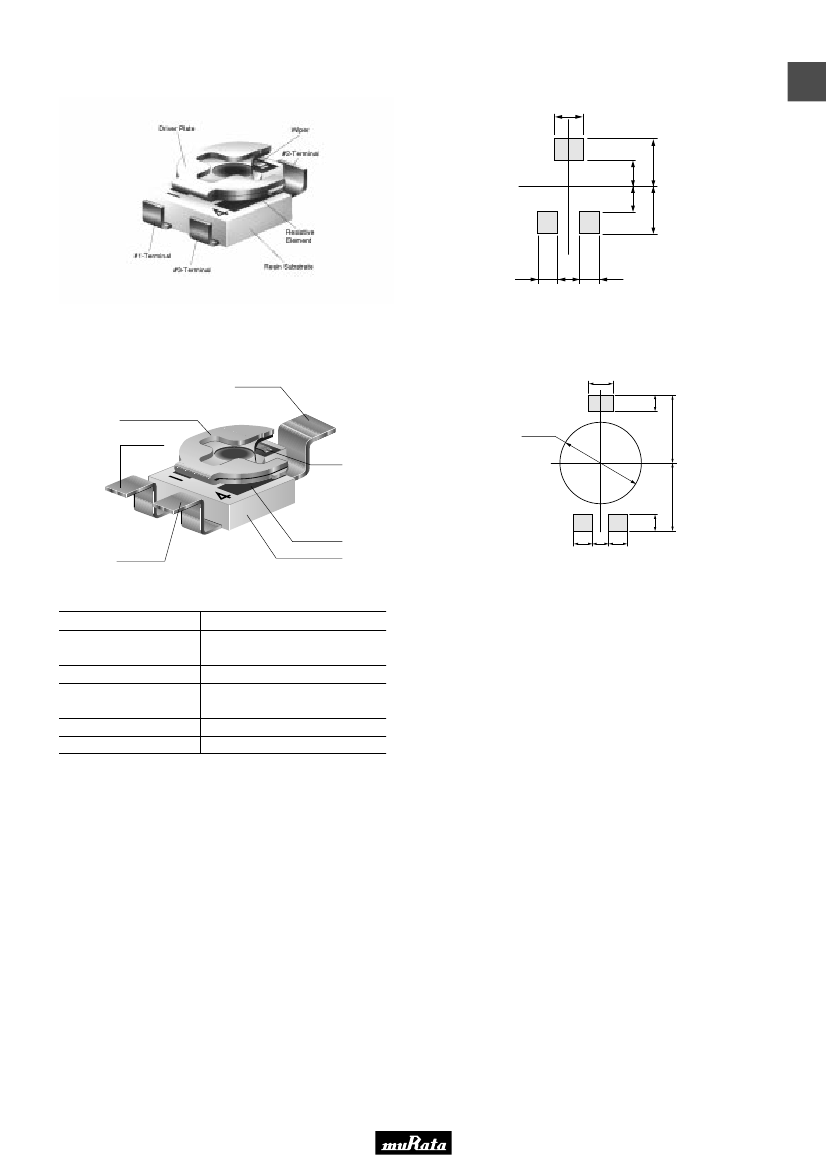

Construction
PVZ2A
s
Standard Land Pattern
PVZ2A
0.9
1
0.85
0.6
0.7
0.6
0.85
1.55
1.55
:
(
Tolerancein
±0.1
)
mm
s
Construction
PVZ2R
#2-Terminal
s
Standard Land Pattern
PVZ2R
0.9
0.6
Driver Plate
3.0 Dia.
#1-Terminal
Wiper
2.5
0.7
0.6
0.7
0.6
2.5
Resistive
Element
#3-Terminal
Resin Substrate
(
Tolerancein:
±0.1
)
mm
s
Characteristics
Humidity Exposure
High Temperature
Exposure
Humidity Load Life
Load Life
Temperature Cycle
Rotational Life
Res. Change: +10, -2%
Res. Change: R
<
50kohm···+2, -10%
=
50kohm<R···+2, -15%
Res. Change:
±10%
Res. Change: R
<
50kohm···+2, -10%
=
50kohm<R···+2, -15%
Res. Change:
±5%
Res. Change:
±10%
(10 cycles)
5
