VCXO
LVPECL TYPE
SPV-10 F
-
-
-
-
-
-
-
7×5 mm Industrial Standard Package
Low RMS phase jitter(12 kHz to 20 MHz)
2.5 V, 3.3 V Supply Voltage
LVPECL Output
Voltage Controlled Crystal Oscillator
Tri-state Function Available
NON-Multiplied
■ ELECTRICAL SPECIFICATIONS
ITEM
Output Logic Type
Frequency Range
Supply Voltage(V
DD
)
Operating Temperature Range
Storage Temperature Range
Frequency Stability
Input Current
Output Voltage Logic High(V
OH
)
Output Voltage Logic Low(V
OL
)
Rise / Fall Time
Duty Cycle
Start-up Time
Output Load Condition
Frequency Deviation
Control Voltage(Vc)
Linearity
Output Enable Function
(V
IH
and V
IL
)
RMS Phase Jitter
Frequency Aging
LVPECL
9.500 MHz to 79.999 MHz
2.5 V
DC
, 3.3 V
DC
±5 %
-20 to +70 ℃, -40 to +85 ℃
-55 to +125 ℃
±50 ppm, ±100 ppm Max.
88 mA Max.
V
DD
–
1.025 V
DC
Min.
V
DD
–
1.620 V
DC
Max.
0.4 ns Typ., 1 ns Max.
45 to 55 %, 40 to 60 %
10 ms Max.
50 Ω into V
DD
- 2.0 V
DC
±50 ppm, ±80 ppm, ±100 ppm Min.
1.65 ±1.35 V, 1.65 ±1.65 V
10 % Max.
70 % of V
DD
min. to Enable Output
30 % of V
DD
max. to Disable Output
1 ps Max.
±3 ppm Max.
High Impedance
BW : 12 kHz to 20 MHz
25 ℃, First year
Over Vc range
Please specify
Measured over
20 % to 80 % of waveform
Measured at 50% of
waveform
Over operating temperature
range
With Load
Value
Remarks
LVPECL VCXO
Non-multiplied

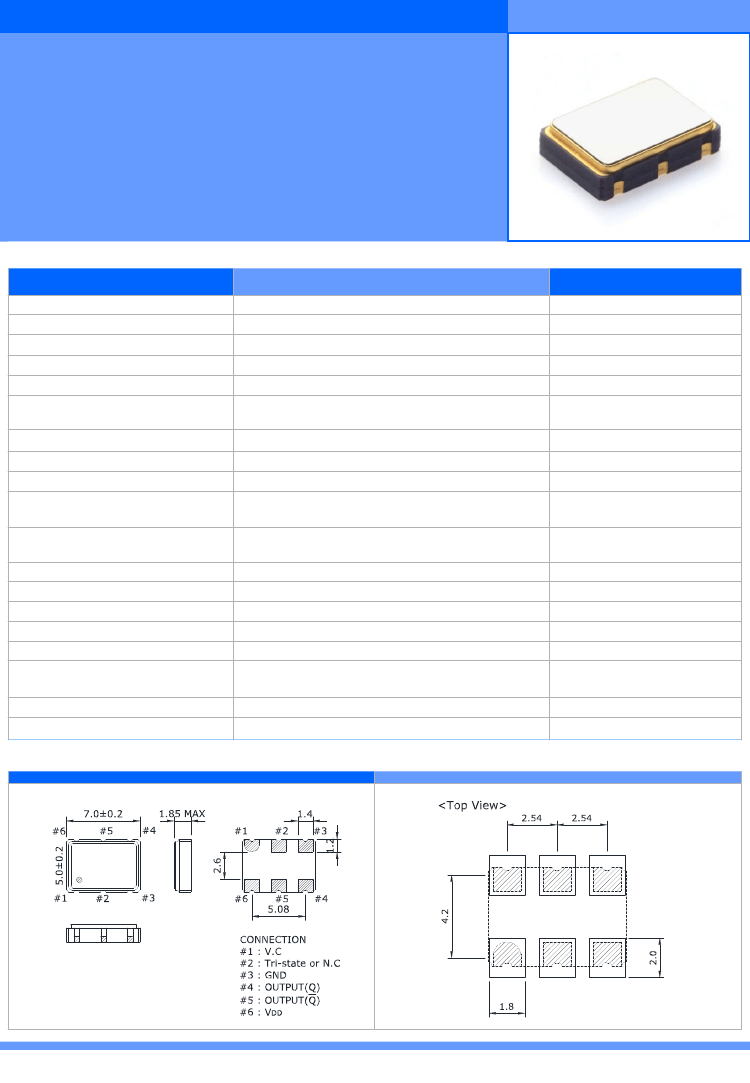

■ MECHANICAL DIMENSIONS
(mm)
■ LAND PATTERN
(mm)
http://www.sunny.co.kr
SUNNY ELECTRONICS CORP
VCXO
■ PART NUMBERING GUIDE
■ TABLE 1
FREQUENCY STABILITY VS. TEMPERATURE RANGE
SPV-10 33 30 G D D S R
–
74.250M
Temp
SUPPLY VOLTAGE(V
DD
)
33 : 3.3 V, 25 : 2.5 V
FREQUENCY STABILITY
TABLE 1
OPERATING TEMPERATURE RANGE
TABLE 1
DUTY CYCLE
D : 45/55, E : 40/60
DEVIATION
A : ±30 ppm min. B : ±50 ppm min.
C : ±80 ppm min. D : ±100 ppm min.
FREQUENCY
M : MHz
PACKAGE OPTION
R : TAPE AND REEL
BLANK : BULK
OE CONNECTION OPTION
S : TRI-STATE
BLANK : NO CONNECTION
Stability
±15
15
±20
20
*
*
*
*
*
*
±25
25
*
*
*
*
*
*
*
±30
30
*
*
*
*
*
*
*
±50
50
*
*
*
*
*
*
*
±100
100
*
*
*
*
*
*
*
0~50 ℃
0~60 ℃
-10~60 ℃
0~70 ℃
-10~70 ℃
-20~70 ℃
-40~85 ℃
A
B
C
D
E
F
G
*
■

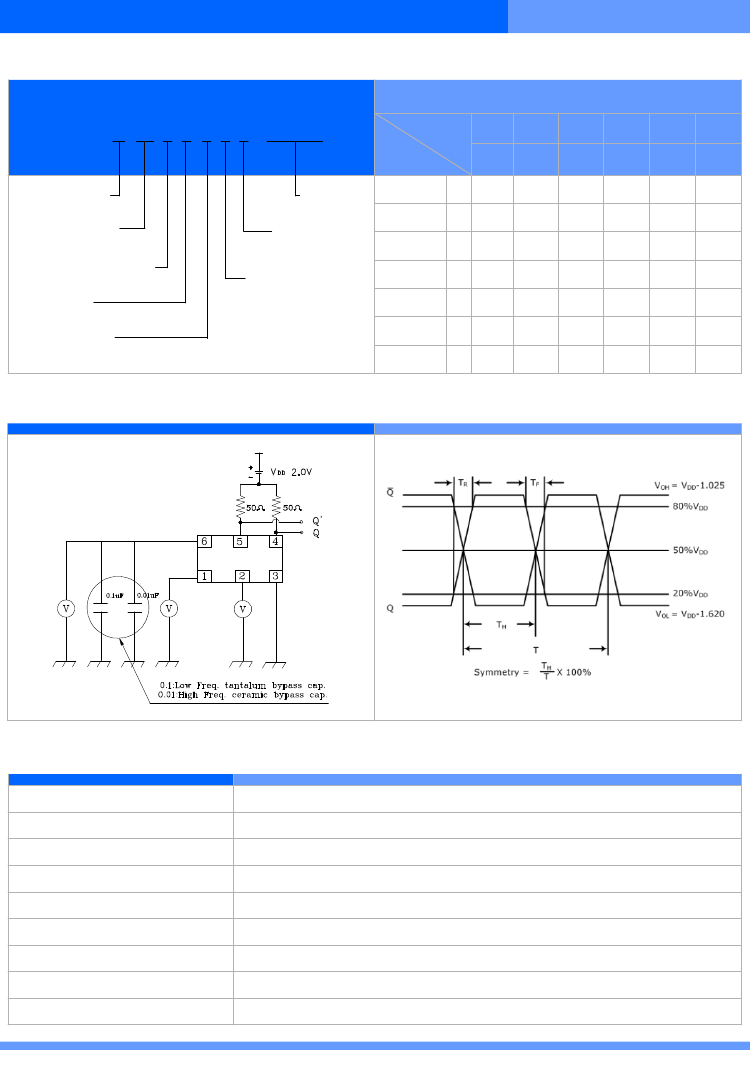

TEST CIRCUIT (PECL)
■
WAVEFORM (PECL)
■
ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
Temperature Cycling
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Moisture Resistance
Moisture Sensitivity
Resistance to Soldering Heat
Solderability
http://www.sunny.co.kr
MIL-STD-883, Method 1010, Condition B
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 1004
J-STD-020, MSL 1
MIL-STD-202, Method 210, Condition K
MIL-STD-883, Method 2003
SUNNY ELECTRONICS CORP
VCXO

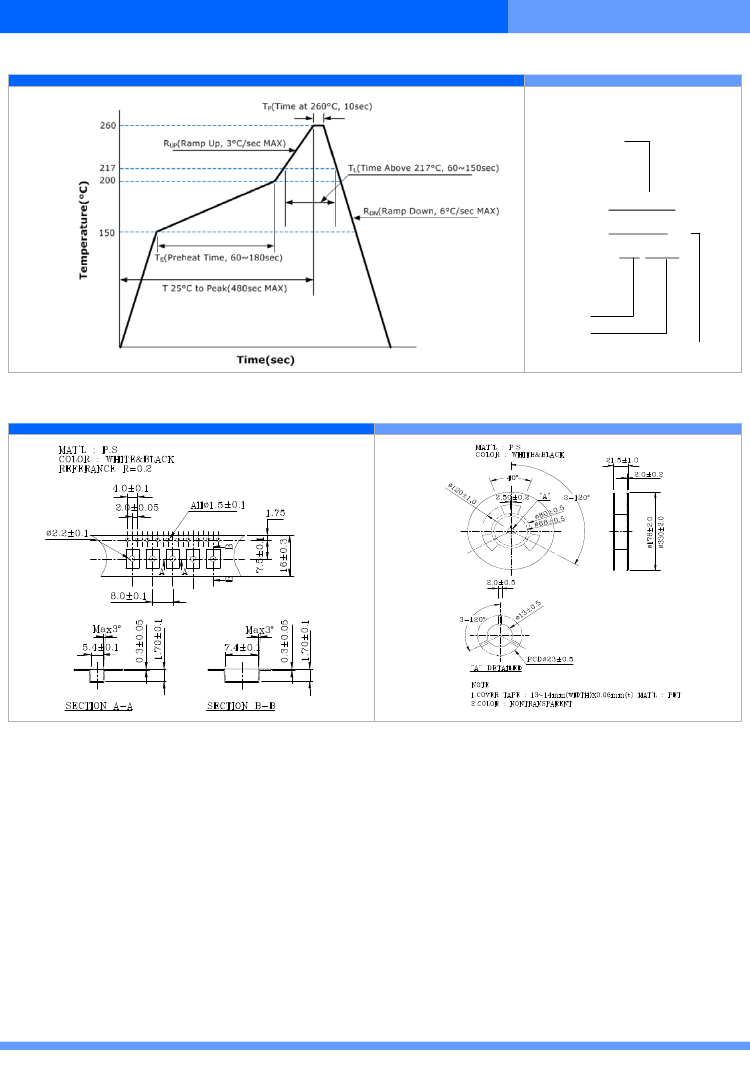

■ REFLOW PROFILE
■ MARKING GUIDE
Model Name
LINE 1 : SPV-103
LINE 2 : XX.XXX
LINE 3 : ●YY WW
Year
Week
Frequency in MHz
■ TAPE AND REEL DIMENSIONS
http://www.sunny.co.kr
SUNNY ELECTRONICS CORP
CRYSTALVCXO
OSCILLATORS
■TYPICAL PHASE NOISE PERFORMANCE (MEASURED BY AGILENT E5052B)
122.880 MHz
http://www.sunny.co.kr
SUNNY ELECTRONICS CORP
