40V NPN MEDIUM POWER HIGH GAIN TRANSISTOR IN SOT223
Features
BV
CEO
> 40V
I
C
= 5A High Continuous Collector Current
I
CM
= 20A Peak Pulse Current
Low Saturation Voltage V
CE(sat)
< 120mV @ 1A
R
SAT
= 50mΩ @ 5A for a Low Equivalent On-Resistance
h
FE
Specified up to 10A for a High Gain Hold-Up
Complementary PNP Type: FZT1151A
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT223
Case Material: Molded Plastic. “Green” Molding Compound;
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)
Applications
Solenoid, Relay and Actuator Drivers
DC Modules
Motor Control

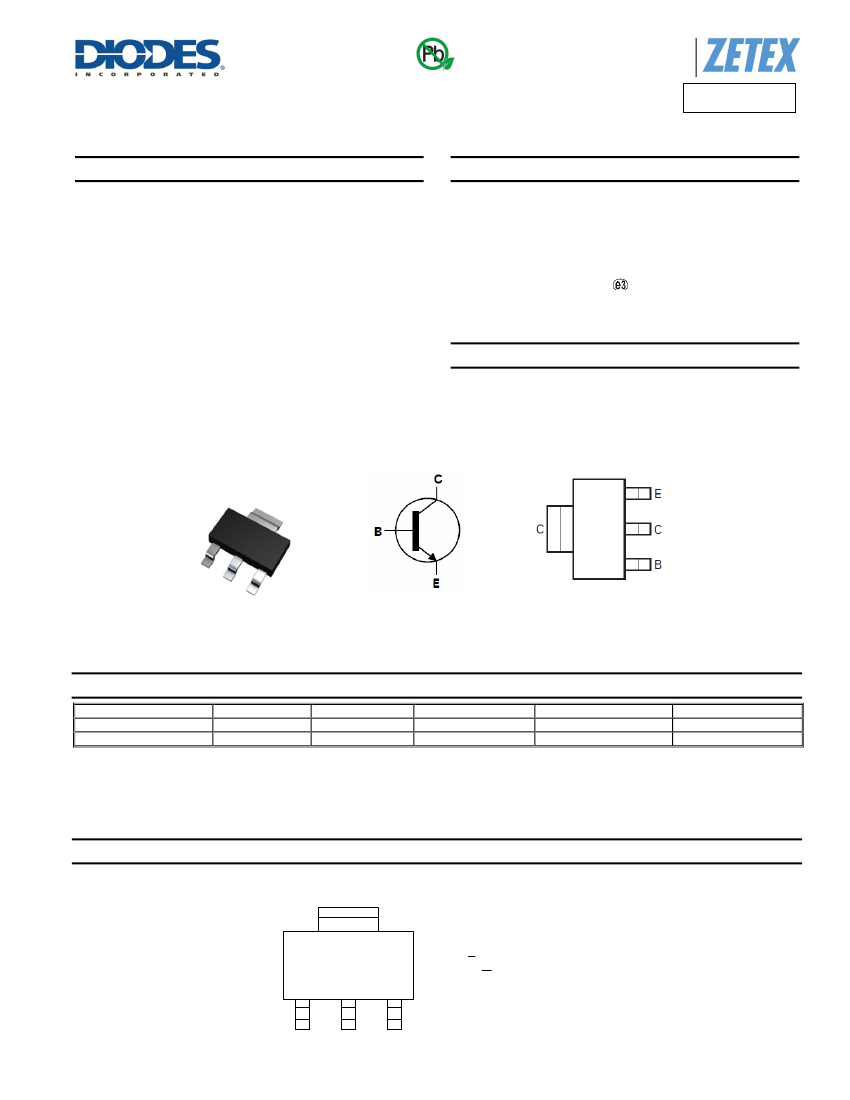

SOT223
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Note 4)
Product
FZT1051ATA
FZT1051ATC
Notes:
Compliance
AEC-Q101
AEC-Q101
Marking
FZT1051A
FZT1051A
Reel size (inches)
7
13
Tape width (mm)
12
12
Quantity per reel
1,000
4,000
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
