0473621010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0473621010

0473621010: Description22 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size310KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0473621010 Overview

22 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE

0473621010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Other features	POLARIZED
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (2)
Contact completed and terminated	TIN (50)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	47362
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	22
Base Number Matches	1

Preview

Download Datasheet

View All

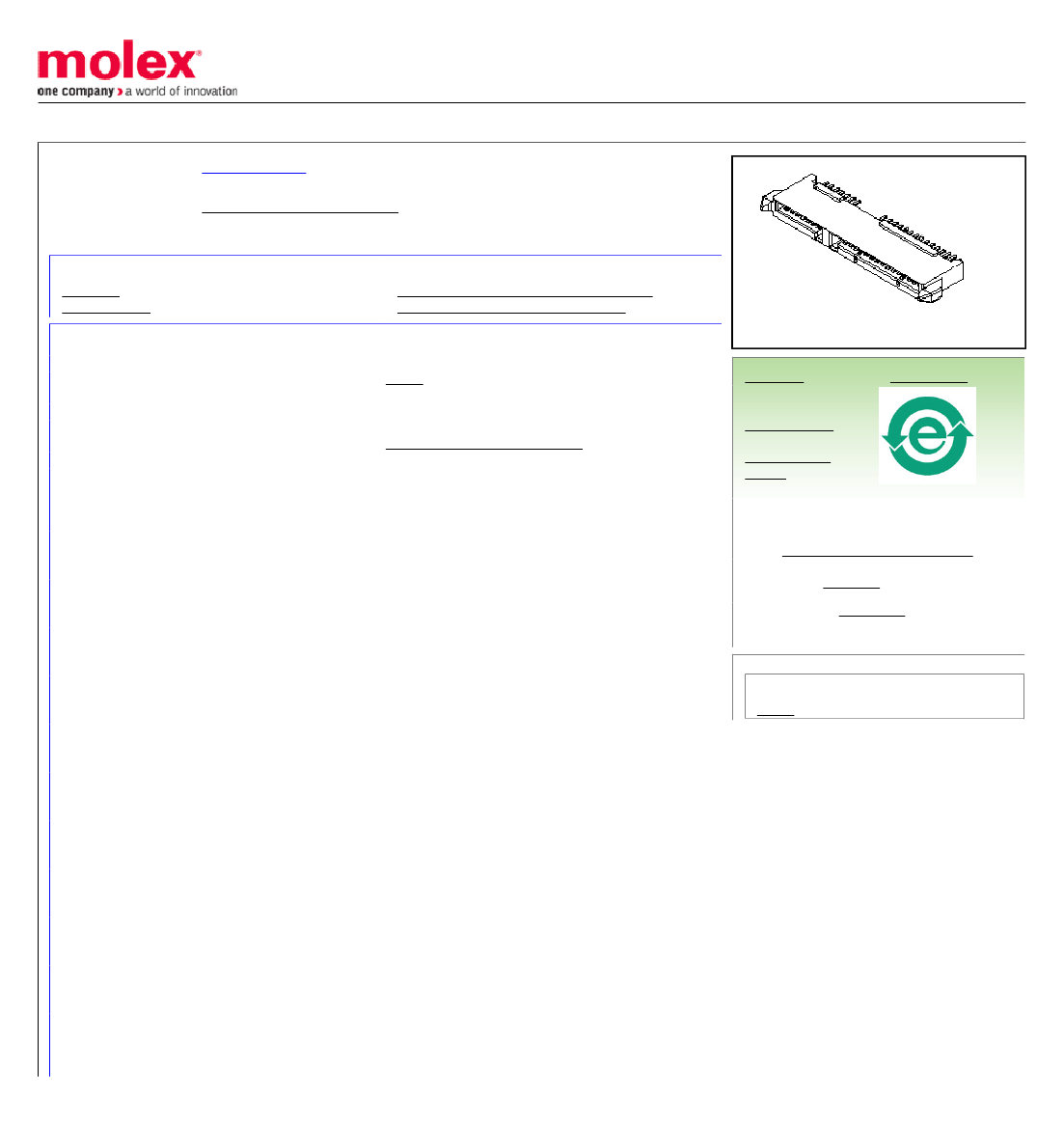

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0473621010

Active

serial_ata_127_host_receptacles

1.27mm (.050") Pitch Combo SATA Cable Connector, Straight Type, with Arris on top

surface, with bumps, Gold(Au) Flash Plating, 22 Circuits, Lead Free

Documents:

3D Model

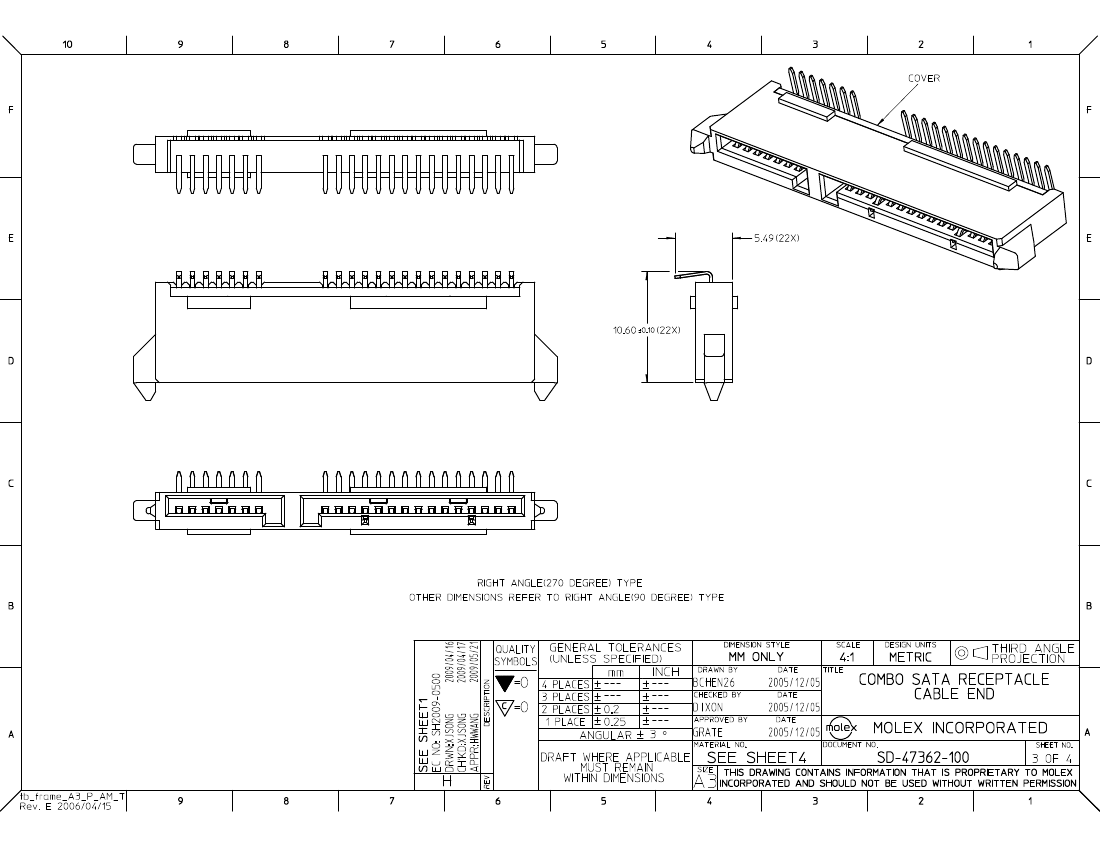

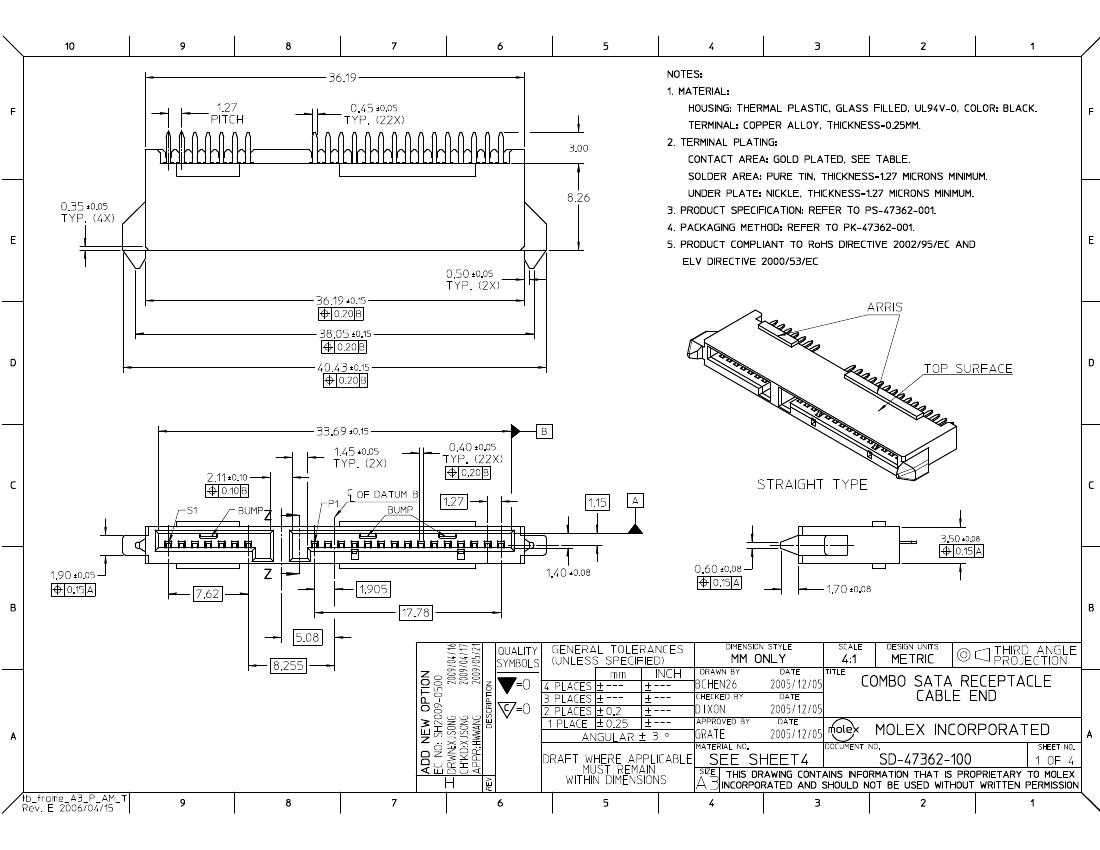

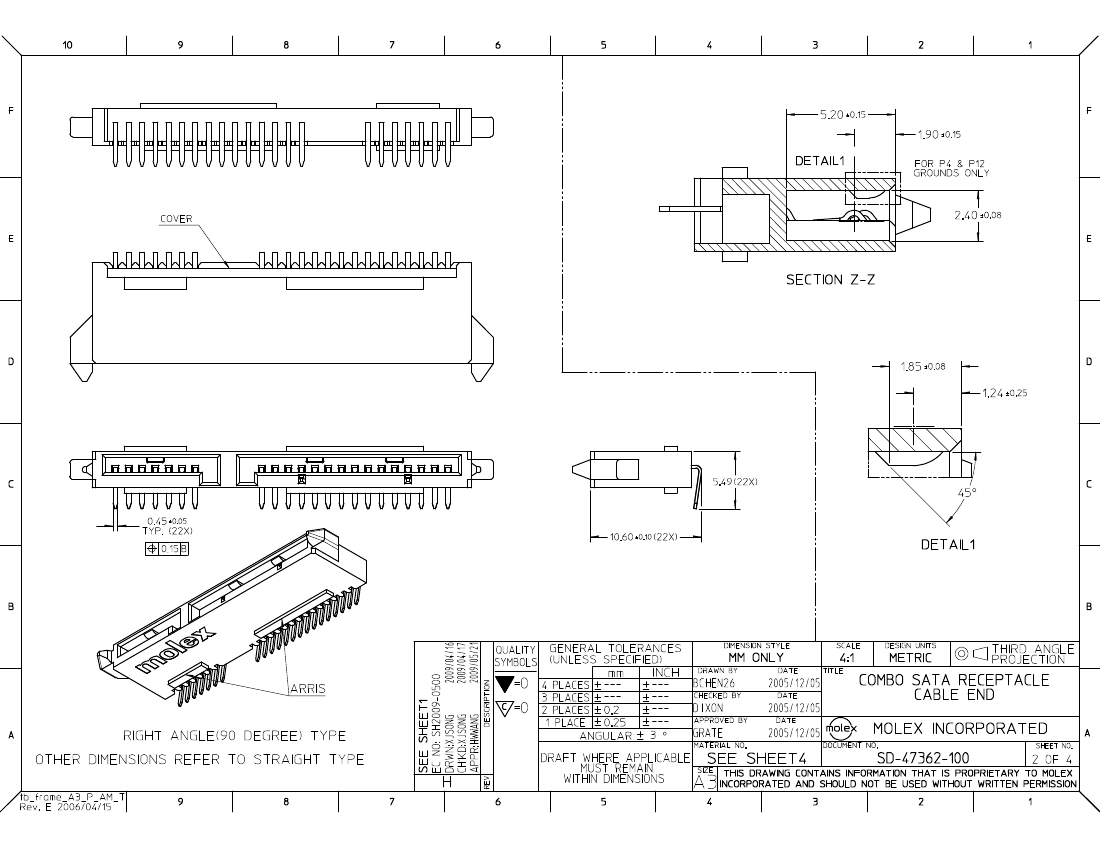

Drawing (PDF)

Product Specification PS-47362-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

I/O Connectors

47362

Wire-to-Board

Straight Type

Receptacle

serial_ata_127_host_receptacles

Serial ATA

N/A

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Type

Physical

Boot Color

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

Gender

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Ports

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

Wire Size AWG

N/A

Signal 7, Power 15

Black

Receptacle

Yes

Copper Alloy

Gold

Tin

Straight

None

Tray

0.050 In

1.27 mm

0.050 In

1.27 mm

0.05

1.27

Yes

-35°C to +85°C

Solder or Weld

N/A

Search Parts in this Series

47362Series

Electrical
