5264-10

Description
10 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
CategoryThe connector    The connector
File Size35KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

5264-10 Overview

10 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

5264-10 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number5264
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2.5 mm
Termination typeSOLDER
Total number of contacts10
UL Flammability Code94V-0

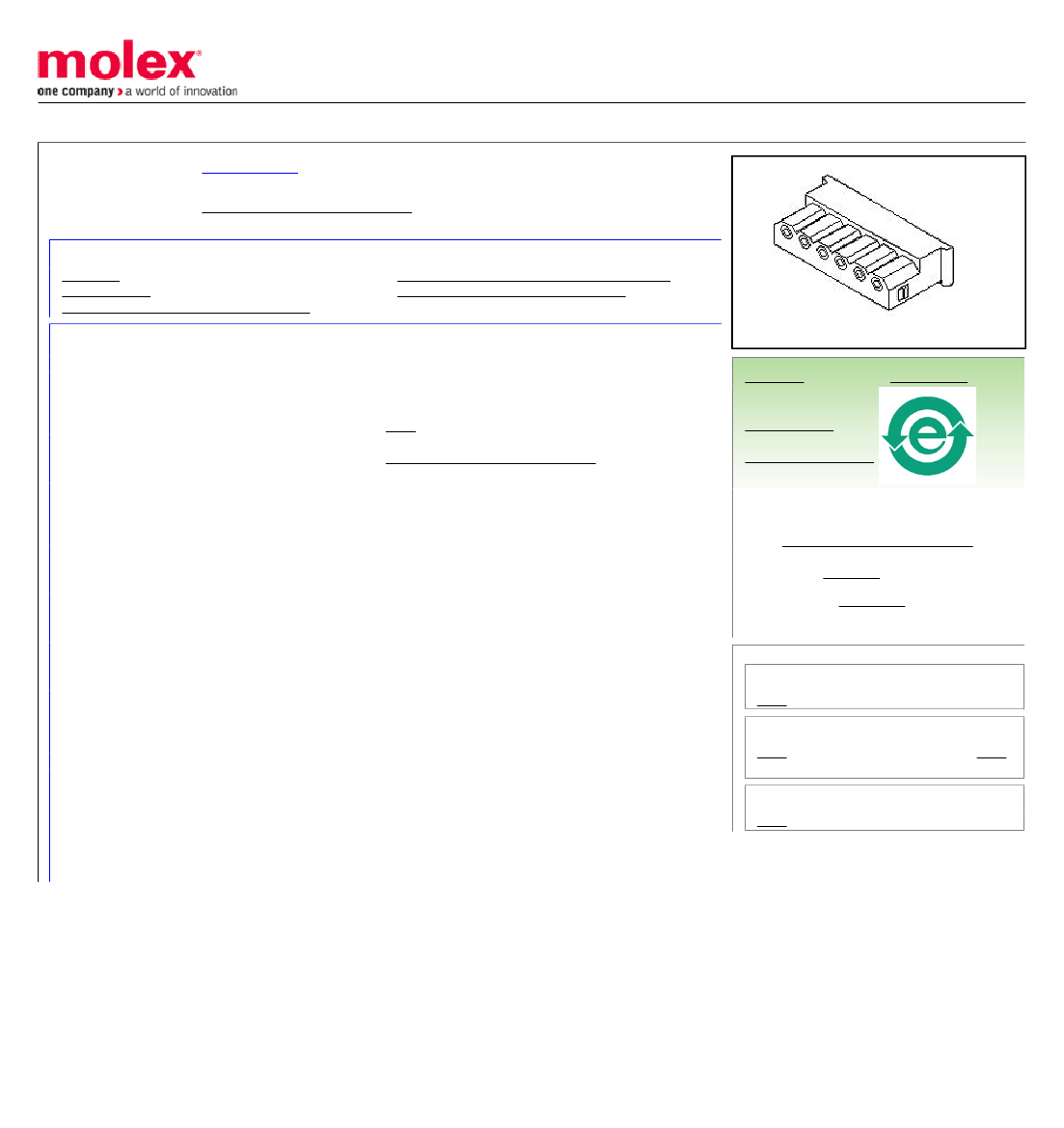

This document was generated on 04/15/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
50-37-5103
Active
SPOX™ Wire-to-Board Connectors
2.50mm Pitch SPOX™ Wire-to-Board Crimp Housing, Friction Lock, 10 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-5264-001 (PDF)
Packaging Specification SPK-5264-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
UL
E29179
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Overview
Product Name
UPC
Crimp Housings
5264
Signal, Wire-to-Board
SPOX™ Wire-to-Board Connectors
SPOX™
800753749535
Physical
Circuits (maximum)
Flammability
Gender
Glow-Wire Compliant
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
10
94V-0
Female
No
541.800/mg
1
Bag
No
2.50mm
Yes
No
-40°C to +105°C
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
5264Series
Mates With
5267 vertical shrouded PCB header, 5268
right angle shrouded PCB header
Use With
5263
Material Info
Old Part Number
5264-10
Reference - Drawing Numbers
Packaging Specification
Product Specification
SPK-5264-001
PS-5264-001, RPS-5264-001, RPS-5264-002,
RPS-5264-003, RPS-5264-004, RPS-5264-005,
RPS-5264-006
SD-5264-N
Sales Drawing
This document was generated on 04/15/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
