Features
■
Carbon element
■
Insulated shaft
■
Wide variety of mounting styles
■
Center detent option
■
RoHS compliant*
*R
oH
S
CO
M

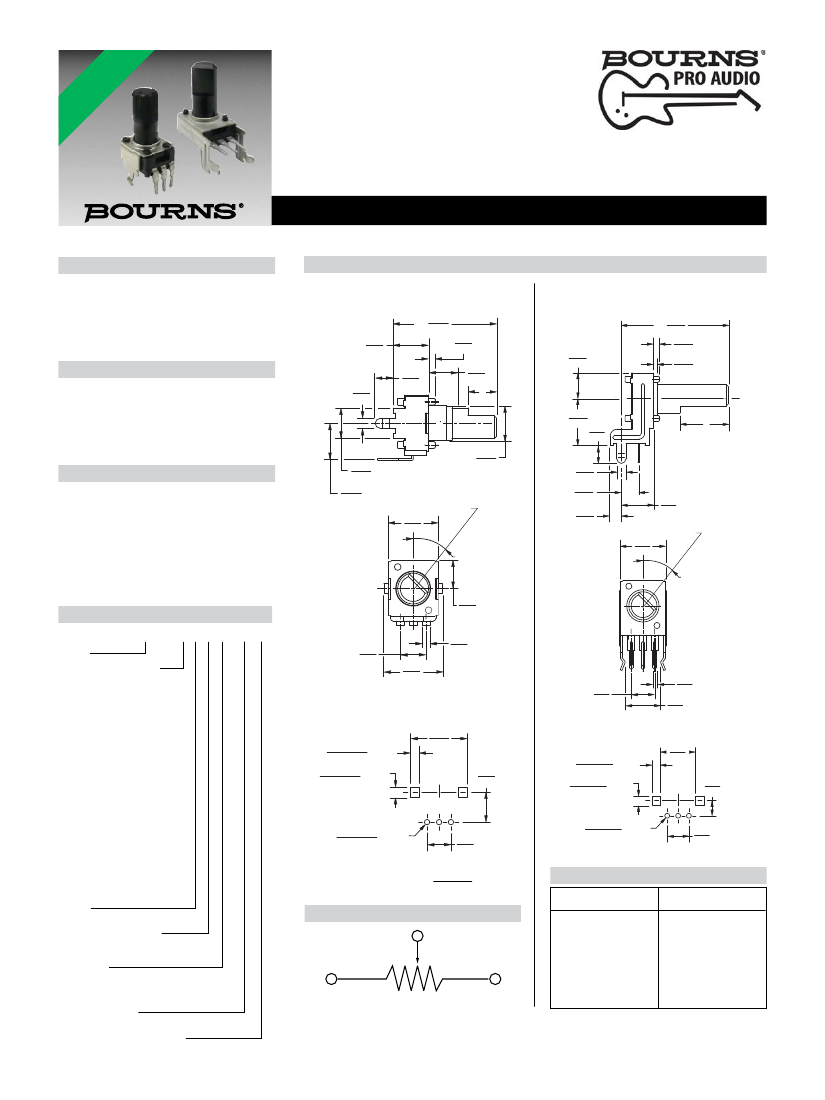

PTV09 Series - 9 mm Potentiometer
Electrical Characteristics
Taper ...................................... Linear, audio
Standard Resistance Range
......................... 1 K ohms to 1 M ohms
Standard Resistance Tolerance.......±20 %
Residual Resistance
.......................500 ohms or ±1 % max.
Product Dimensions
PTV09A-1
(Horizontal/Rear Mount w/Sleeve Bushing)
L±
6.8
(.268)
3.8
(.150)
0.5
(.020)
1.2
(.047)
4.5
(.177)
F
10.0
(.394)
5.5
(.217)
PTV09A-2
(Vertical/Side Mount,
Bushingless, 10 mm Height)
L±
0.5
(.020)
1.2
(.047)
0.8
(.031)
Environmental Characteristics
Operating Temperature....-10 °C to +50 °C
Power Rating
(Linear and Audio) ..................0.05 watt
Maximum Operating Voltage
(Linear and Audio) ...... 20 VDC, 50 VAC
Sliding Noise ........................ 100 mV max.
2.0
(.079)
3.8
(.150)
F
Mechanical Characteristics
Mechanical Angle .....................280 ° ±10 °
Rotational Torque ..............10 to 100 g-cm
Detent Torque ...................20 to 200 gf-cm
Stop Strength ....................... 2 kg-cm min.
Rotational Life ..................... 10,000 cycles
Soldering Condition
..............300 °C max. within 3 seconds
Hardware ............ One flat washer and one
hex nut supplied with bushing version
5.5
(.217)
7.0
(.276)
FULL CCW POSITION
9.7
(.382)
6.8
(.268)
DIA.
2.0
(.078)
3.3
(.129)
2.4
(.094)
6.8
(.267)
FULL CCW POSITION
9.7
(.382)
40 ° ±10 °
40 ° ±10 °
How To Order
5.5
(.216)
3 PLCS.
1.5
(.059)
11.4
(.449)
5.0
(.196)
3 PLCS.
0.8
(.031)
7.4
(.291)
PTV09A - 2 0 20 F - B 203
Model
Terminal Configuration
(Pin Layout)
1 = Horizontal/Rear Mount
w/Sleeve Bushing
2 = Vertical/Side Mount,
Bushingless,
10 mm Height
3 = Vertical/Side Mount,
Bushingless,
6.5 mm Height
4 = Horizontal/Rear Mount,
Bushingless
5 = Horizontal/Rear Mount
w/Plastic Plain Bushing
6 = Horizontal/Rear Mount
w/Metal Threaded
Bushing
7 = Vertical/Side Mount
w/Sleeve Bushing,
6.5 mm Height
8 = Vertical/Side Mount
w/Sleeve Bushing,
10 mm height
Option
0 = No Detent
2 = Center
Standard Shaft Length
15 = 15 mm**
25 = 25 mm
20 = 20 mm
30 = 30 mm
Shaft Style
F = Flat Type Insulated Shaft
S = Insulated Knurled (18 Teeth)
U = Insulated Knurled (40 Teeth)
Resistance Taper
Taper Series followed by Curve Number
Resistance Code (See Table)
Other styles available.
** Bushingless version only.
5.0
(.196)
RECOMMENDED PCB LAYOUT
(HORIZONTAL/REAR MOUNT)
+0.2
1.8
-0.0
2 PLCS.
(.071
+0.008
)
-0.0
+0.2
2.2
-0.0
2 PLCS.
+0.008
(.087
-0.0
)
10.6
(.417)
7.0
(.276)
RECOMMENDED PCB LAYOUT
(VERTICAL/SIDE MOUNT)
1.8
-0.0
2 PLCS.
(.071
+0.008
)
-0.0
+0.2
2.2
-0.0
2 PLCS.
(.087
+0.008
)
-0.0
+0.2
8.2
(.323)
3.3
(.130)
1
2
3
1
2
3
1.0
-0.0
3 PLCS.
(.039
+0.008
)
-0.0
+0.2
5.0
(.197)
1.0
-0.0
3 PLCS.
(.039
+0.008
)
-0.0
+0.2
5.0
(.197)
DIMENSIONS:
MM
(INCHES)
Standard Resistance Table
Resistance
(Ohms)
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
Resistance
Code
102
202
502
103
203
503
104
204
504
105
Schematic
2
1
3
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary
in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
Applications
■
Commercial communications equipment
■
Portable electronics
■
Amplifiers/mixers/drum machines/synthesizers
■
Consumer goods
■
Commercial appliances

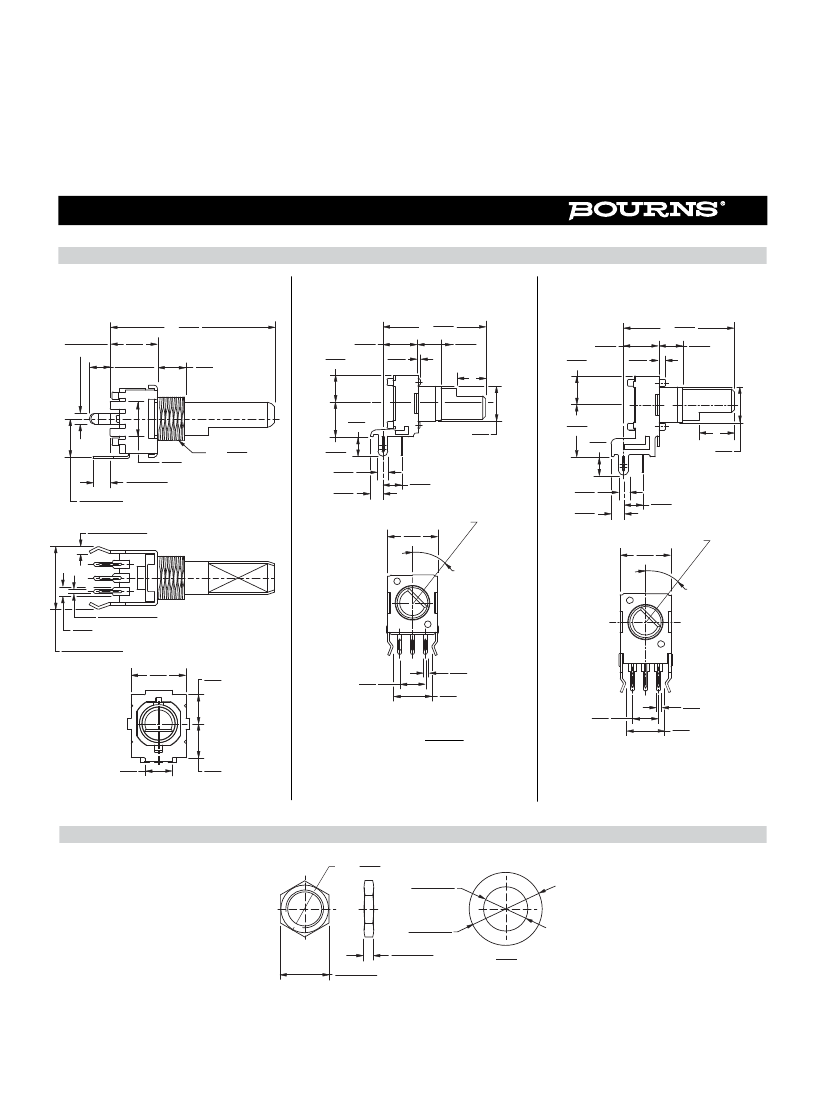

PTV09 Series - 9 mm Potentiometer

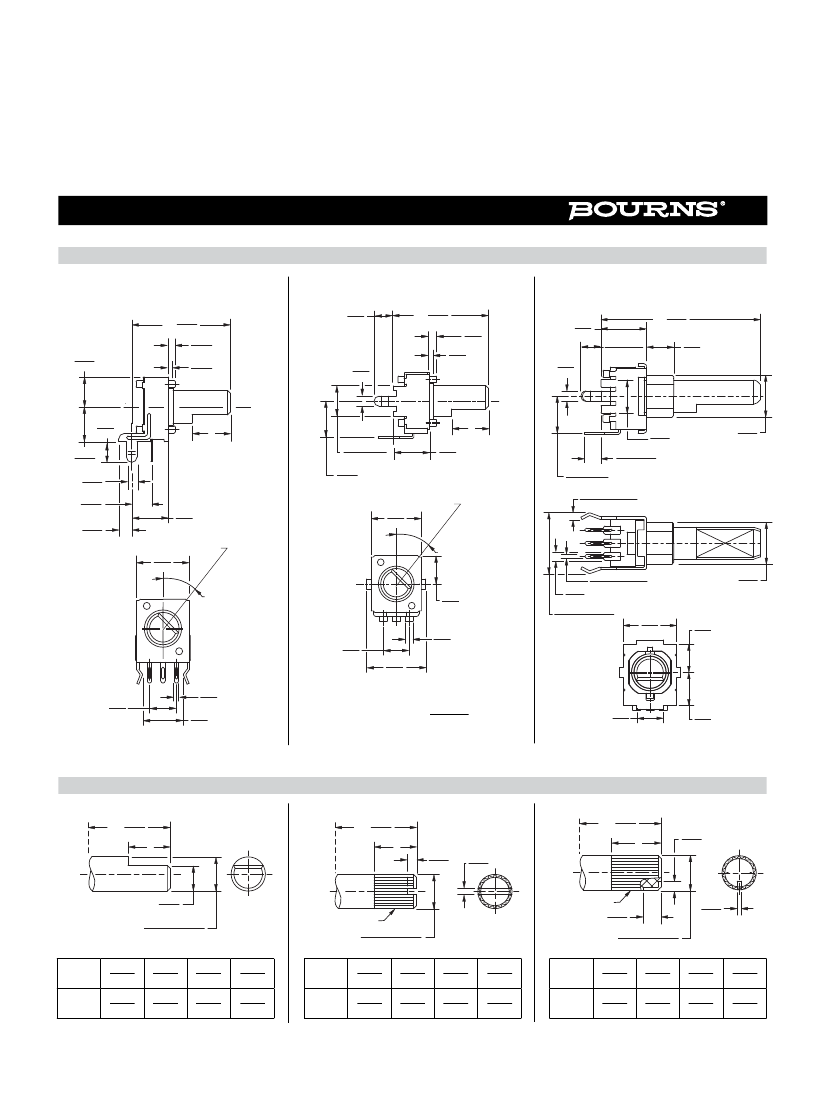

Product Dimensions (Continued)
PTV09A-3
(Vertical/Side Mount,
Bushingless, 6.5 mm Height)
L±
0.5
(.020)
1.2
(.047)
0.8
(.031)
PTV09A-4
(Horizontal/Rear Mount, Bushingless)
3.8
(.150)
L±
0.5
(.020)
1.2
(.047)
2.0
(.079)
PTV09A-5
(Horizontal/Rear Mount
w/Plastic Plain Bushing)
8.4
(.315)
3.5 ± 0.3
(.138 ± .012)
L±
0.5
(.020)
5.5
(.217)
0.8
(.031)
5.1
(.201)
2.0
(.079)
3.8
(.150)
6.5
(.256)
2.0
(.078)
3.3
(.129)
2.4
(.094)
F
6.0 ± 0.5
(.236 ± .020)
7.0
(.276)
F
6.8
(.268)
7.0 ± 0.3
(.276 ± .012)
5.9
(.232)
3.0 ± 0.3
(.118 ± .012)
7.9
(.311)
6.8
(.267)
FULL CCW POSITION
9.7
(.382)
40 ° ±10 °
FULL CCW POSITION
10.0
(.394)
40 ° ±10 °
1.2 +0/-0.2
(.047 +.000/-.008)
1
2
3
5.5
(.216)
3 PLCS.
1.5
(.059)
11.4
(.449)
1.5
(.059)
11.4 +0/-0.5
(.055 +.000/-.020)
0.8 +0/-0.1
(.031 +.000/-.004)
7.9
(.311)
10.0
(.394)
5.5
(.216)
5.0
(.196)
5.0
(.196)
3 PLCS.
0.8
(.031)
7.4
(.291)
DIMENSIONS:
MM
(INCHES)
5.0
(.197)
6.5
.256)
SHAFT SHOWN IN CENTER POSITION
Shaft Styles
F-Type
L±
0.5
(.020)
F
S-Type
L±
0.5
(.020)
A
U-Type
L±
0.5
(.020)
A
1.5
(.059)
1.5
(.059)
1.0
(.039)
4.5
(.177)
6.0 +0.0/-0.1
(.236 +.000/-.004)
18 TEETH KNURL
6.0 +0.0/-0.1
(.236 +.000/-.004)
40 TEETH KNURL
3.1
(.122)
6.0 +0.0/-0.1
(.236 +.000/-.004)
0.7
(.028)
L
F
15
(.591)
6
(.236)
20
(.787)
7
(.275)
25
(.984)
12
(.472)
30
(1.181)
12
(.472)
L
A
15
(.591)
7
(.275)
20
(.787)
7
(.275)
25
(.984)
7
(.275)
30
(1.181)
7
(.275)
L
A
15
(.591)
6
(.236)
20
(.787)
7
(.275)
25
(.984)
7
(.275)
30
(1.181)
7
(.275)
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
PTV09 Series - 9 mm Potentiometer
Product Dimensions (Continued)
PTV09A-6
(Horizontal/Rear Mount
w/Metal Threaded Bushing)
L±
2.0 ± 0.15
(.079 ± .006)
PTV09A-7
(Vertical/Side Mount
w/Sleeve Bushing, 6.5 mm Height)
L±
5.5
(.217)
PTV09A-8
(Vertical/Side Mount
w/Sleeve Bushing, 10 mm Height)
L±
0.5
(.020)
4.5
(.177)
8.4
(.315)
3.5 ± 0.3
(.138 ± .012)
0.5
(.020)
6.8
(.268)
0.5
(.020)
5.0
(.197)
1.2
(.047)
4.5
(.177)
F
5.5
(.217)
6.8
(.268)
1.2
(.047)
3.5
(.138)
5.9
(.232)
3.0 ± 0.3
(.118 ± .012)
7.0 ± 0.3
(.276 ± .012)
1.2 +0/-0.2
(.047 +.000/-.008)
1
2
3
M9 X
0.75
(.030)
6.5
(.256)
2.0
(.078)
2.4
(.094)
6.8
(.267)
10.0
(.394)
3.5
(.138)
F
6.8
(.267)
3.3
(.129)
FULL CCW POSITION
9.7
(.382)
40 ° ±10 °
2.0
(.078)
2.4
(.094)
3.3
(.129)
FULL CCW POSITION
9.7
(.382)
40 ° ±10 °
1.5
(.059)
11.4 +0/-0.5
(.055 +.000/-.020)
0.8 +0/-0.1
(.031 +.000/-.004)
10.0
(.394)
5.5
(.216)
5.0
(.196)
3 PLCS.
0.8
(.031)
7.4
(.291)
5.0
(.196)
DIMENSIONS:
5.0
(.197)
6.5
.256)
MM
(INCHES)
3 PLCS.
0.8
(.031)
7.4
(.291)
SHAFT SHOWN IN CENTER POSITION
Mounting Hardware
M9 X
0.75
(.030)
DIA.
9.1 ± 0.3
(.358 ± .012)
DIA.
15.0 ± 1.0
(.591 ± .039)
2.0 ± 0.2
(.079 ± .008)
0.4
(.016)
THICKNESS
11.0 ± 0.5
(.433 ± .020)
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
PTV09 Series - 9 mm Potentiometer

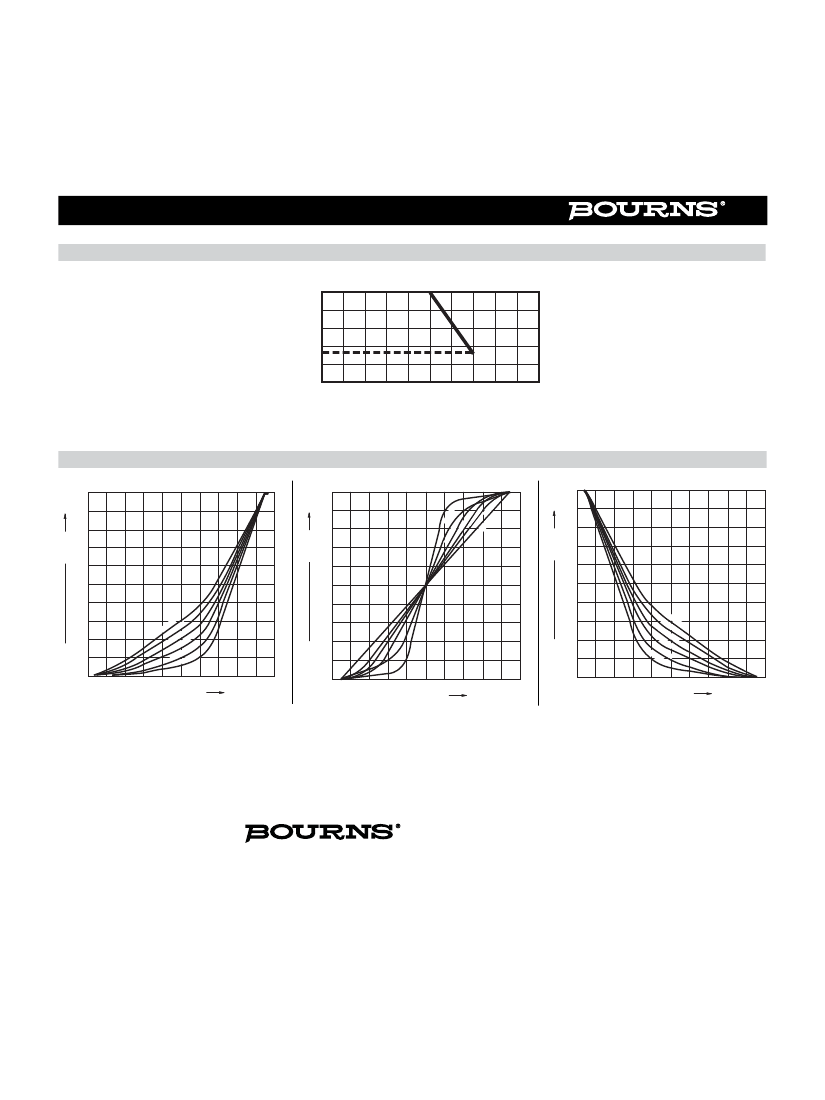

Derating Curve
Rating Power Ratio (%)
100
80
60
40
33
20
0
0
10 20 30 40 50 60 70 80 90 100
Ambient Temperature (°C)
Tapers
A Series Tapers
100
90
80
Terminal 1-2 Output Voltage
X 100 (%)
Terminal 1-3 Input Voltage
70
60
50
40
30
20
10
A6
A5
):
:
0A
A)
(3
(25
A4
):
0A
): A
(2
5A
(1
A2
1
A):
(10
5A): A
(0
B Series Tapers
100
(5B
): B
5
4
(3B
): B
(2B
3
): B
2
(B
):
(1B
B
):
B
1
C Series Tapers
100
90
80
Terminal 1-2 Output Voltage
X 100 (%)
Terminal 1-3 Input Voltage
90
80
Terminal 1-2 Output Voltage
X 100 (%)
Terminal 1-3 Input Voltage
(4B
): B
70
60
50
40
30
20
10
70
60
50
40
30
20
10
(3
(25 0C):
C
C
(20 ): C 6
5
C
(15 ): C
4
C
(10 ): C
(05 C): C
2
C)
:C
1
0
10
20
30
40
50
60
70
80
90
100
0
10
20
30
40
50
60
70
80
90
100
0
10
20
30
40
50
60
70
80
90
100
Rotational Travel (%)
Rotational Travel (%)
Rotational Travel (%)
Asia-Pacific:
Tel: +886-2 2562-4117 • Fax: +886-2 2562-4116
Europe:
Tel: +41-41 768 5555 • Fax: +41-41 768 5510
The Americas:
Tel: +1-951 781-5500 • Fax: +1-951 781-5700
www.bourns.com
REV. 08/13
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
