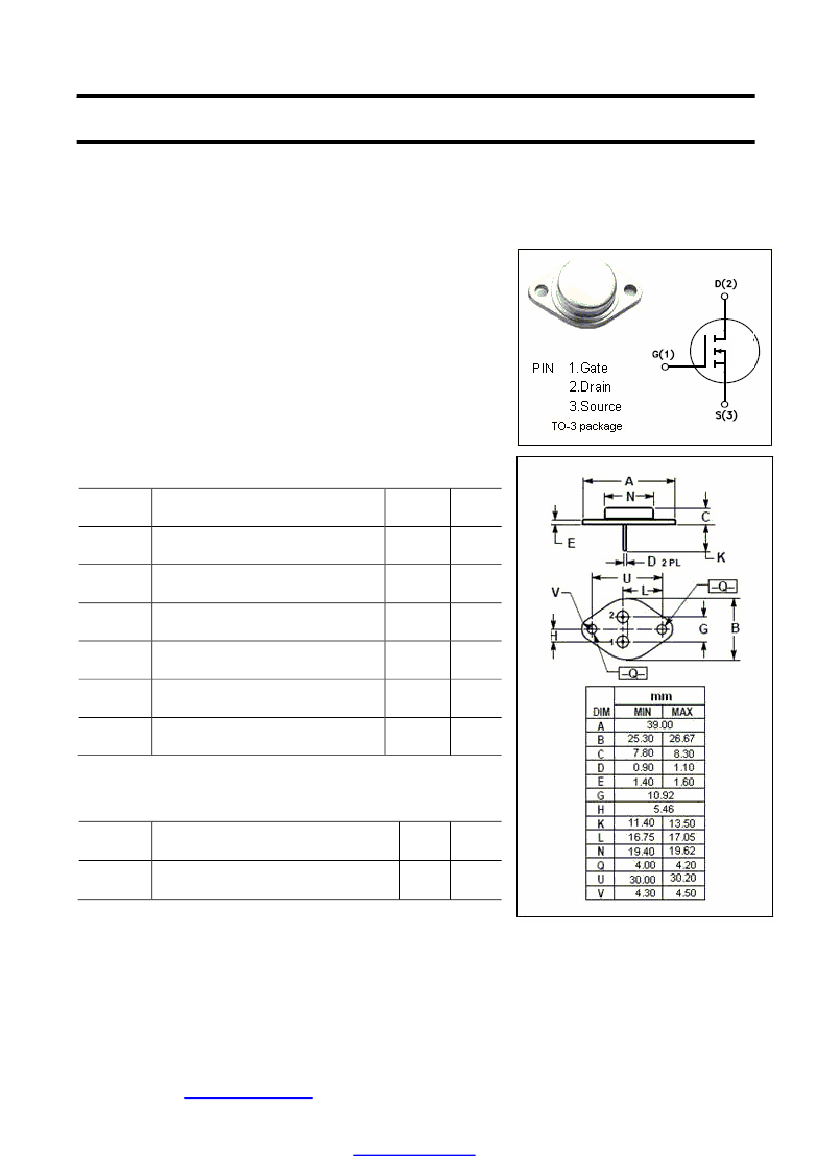

INCHANGE Semiconductor

isc

Product Specification

isc N-Channel MOSFET Transistor

2N6759

DESCRIPTION

·VGS

Rated at

±20V

·Silicon

Gate for fast switching speeds

·I

DSS

、R

DS(ON)

,specified at elevated temperature

·Low

drive reqirements

APPLICATIONS

designed for high power ,high speed application ,such as

switching applies,UPS,AC and DC motor controls ,

relay and high energy pulse circuits.

ABSOLUTE MAXIMUM RATINGS(T

=25℃)

SYMBOL

DSS

tot

stg

ARAMETER

Drain-Source Voltage (V

=0)

Gate-Source Voltage

Drain Current-continuous@ TC=37℃

Total Dissipation@TC=25℃

Max. Operating Junction Temperature

Storage Temperature Range

VALUE

350

±20

4.5

-55~150

UNIT

℃

THERMAL CHARACTERISTICS

SYMBOL

th j-c

PARAMETER

Thermal Resistance,Junction to Case

MAX

1.67

UNIT

℃/W

isc website：www.iscsemi.cn

isc & iscsemi is registered trademark

PDF pdfFactory Pro

www.fineprint.cn
