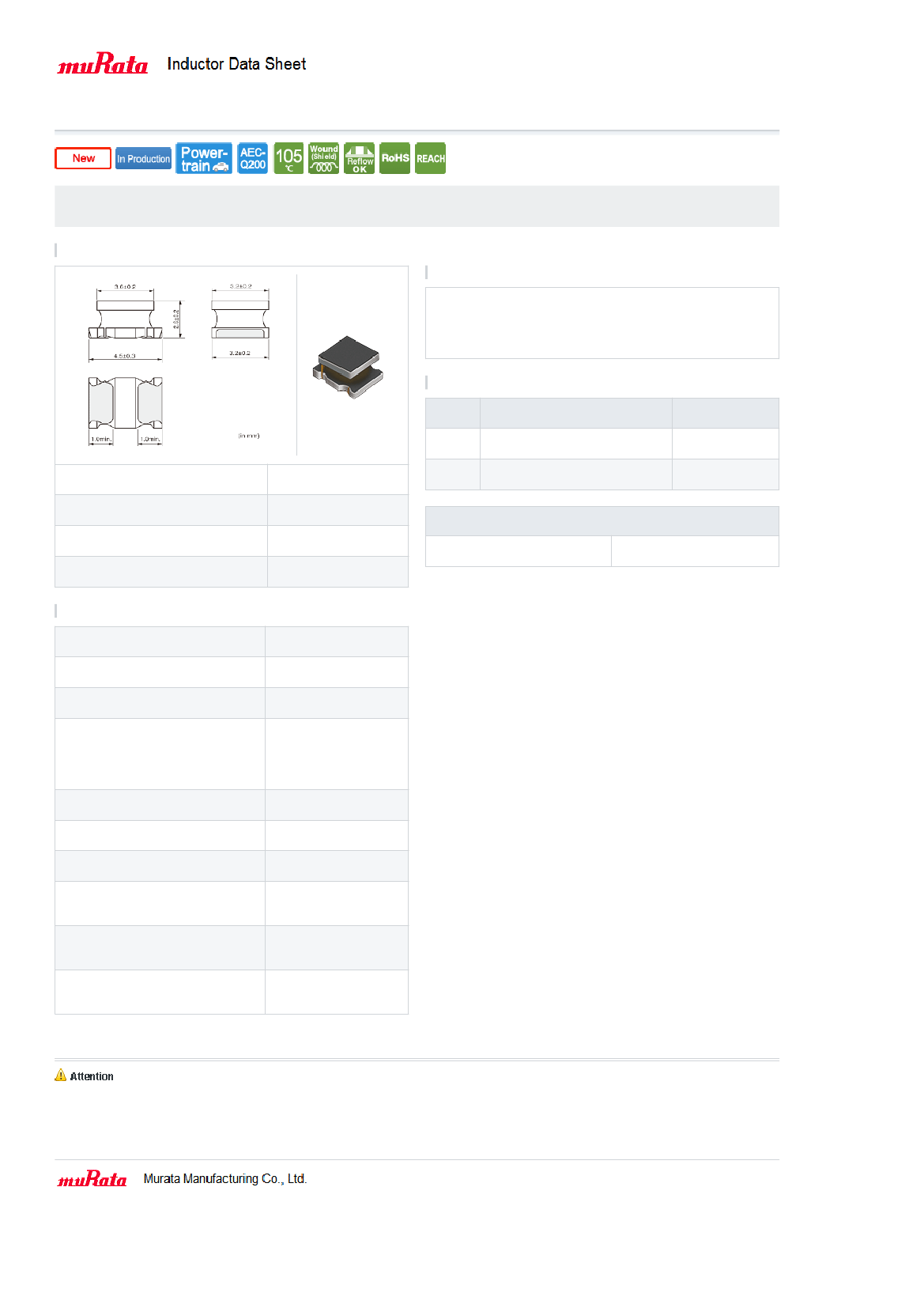

LQH43PH220M26 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LQH43PH220M26

Preview

LQH43PH220M26: DescriptionInductance; File Size82KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Compare View All

LQH43PH220M26 Overview

Inductance

Preview

Download Datasheet

View All

LQH43PH220M26#

# indicates a package specification code.

< List of part numbers with package codes >

LQH43PH220M26L , LQH43PH220M26K

Shape

Notes

When applied Rated current to the Products, Inductance will be within ±30% of

nominal Inductance value.

When applied Rated current to the Products, temperature rise caused by

self-generated heat shall be limited to 40℃ max.

Keep the temperature（ambient temperature plus self-generation of heat) under

125℃.

References

Packaging

code

Specifications

φ180mm Embossed taping

φ330mm Embossed taping

Minimum quantity

500

2500

L size

W size

T size

Size code in inch (mm)

4.5 ±0.3mm

3.2 ±0.2mm

Mass (Typ.)

2.6 ±0.2mm

1 piece

1812 (4532)

0.13g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

22µH ±20%

1MHz

700mA

780mA(Ambient temperature

85℃)

400mA(Ambient temperature

105℃)

0.3924Ω

0.327Ω±20%

15MHz

Rated current (Itemp) (Based on Temperature

rise)

Max. of DC resistance

Avg. of DC resistance

Self resonance frequency (min.)

Operating temperature range (Self-temperature

rise is included)

Operating temperature range (Self-temperature

rise is not included)

-40∼125℃

-40∼105℃

Class of magnetic shield

Magnetic shield of magnetic

powder in resin

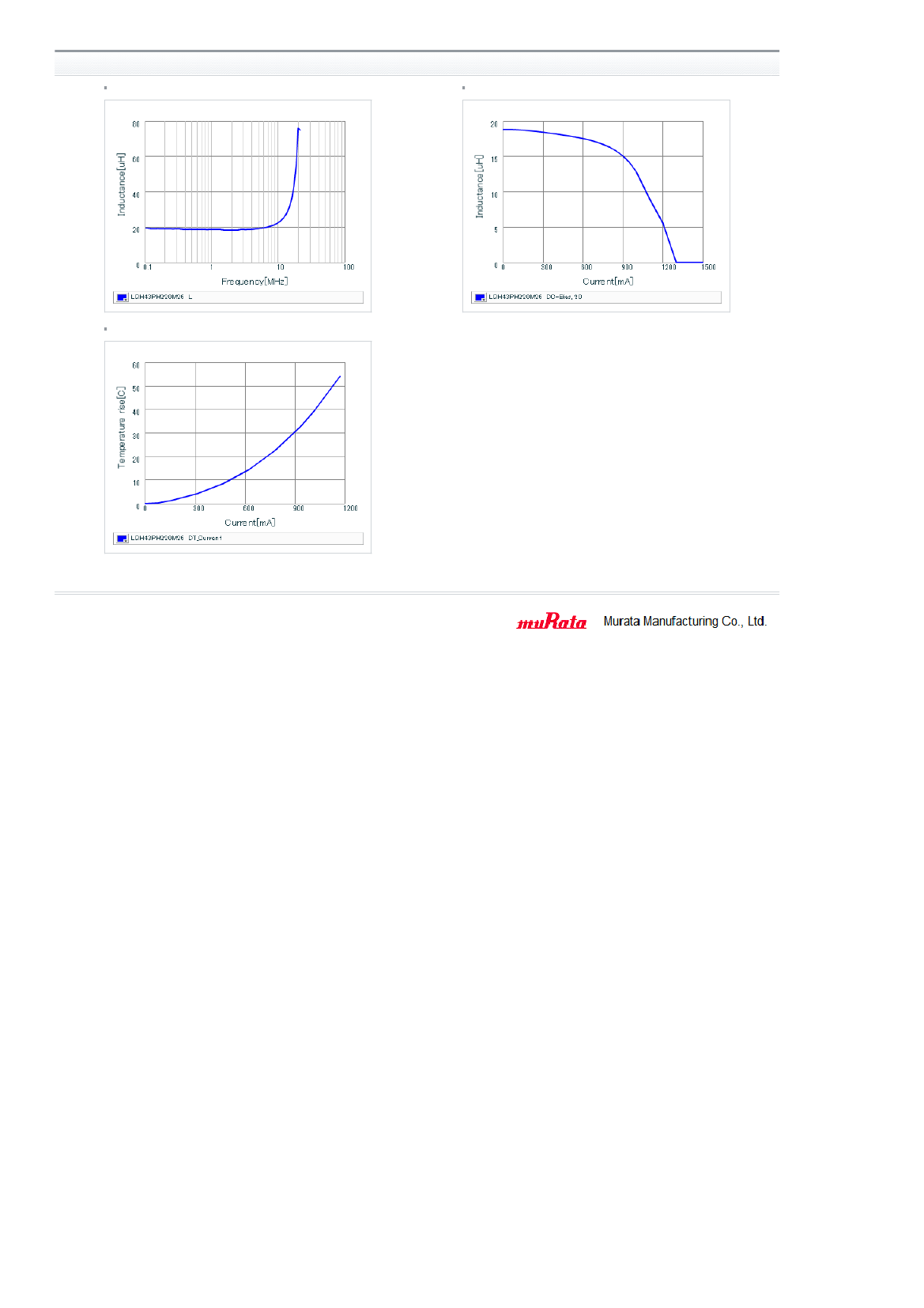

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/04/21
