09195247913 datasheet, PDF - EEWORLD Datasheet

09195247913: DescriptionBoard Euro Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Beige Insulator; CategoryThe connector The connector; File Size552KB，3 Pages; ManufacturerHARTING; Environmental Compliance

Download Datasheet Parametric View All

09195247913 Overview

Board Euro Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Beige Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1481486480
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Connectors, Male connector, Reflow soldering termination (THR), Rated current: ‌1 A, Angled, Copper alloy, Sn over Ni, Termination side, Au over Pd/Ni, Mating side, Performance level: 2, Thermoplastic resin (PCT), Beige
Samacsys Manufacturer	HARTING
Board mount options	HOLE .099-.111
body width	0.335 inch
subject depth	0.543 inch
body length	1.972 inch
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Insulator color	BEIGE
insulator material	POLYETHYLENE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24

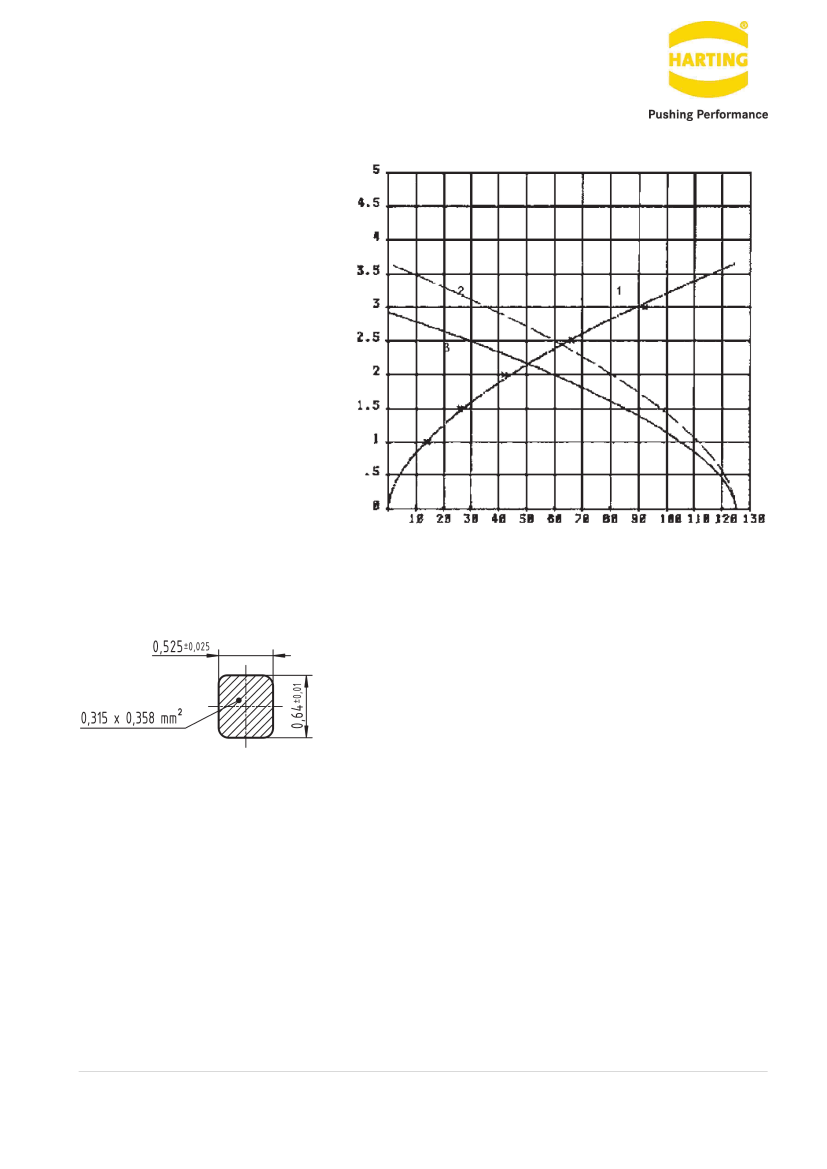

Product data sheet

09 19 524 7913

SEK-19 SV HT MA STD ANG29 RKZ 24P PL3

Part number

Specification

HARTING eCatalogue

09 19 524 7913

SEK-19 SV HT MA STD ANG29 RKZ

24P PL3

https://b2b.harting.com/09195247913

Identification
