BY251 - BY254
Taiwan Semiconductor
CREAT BY ART

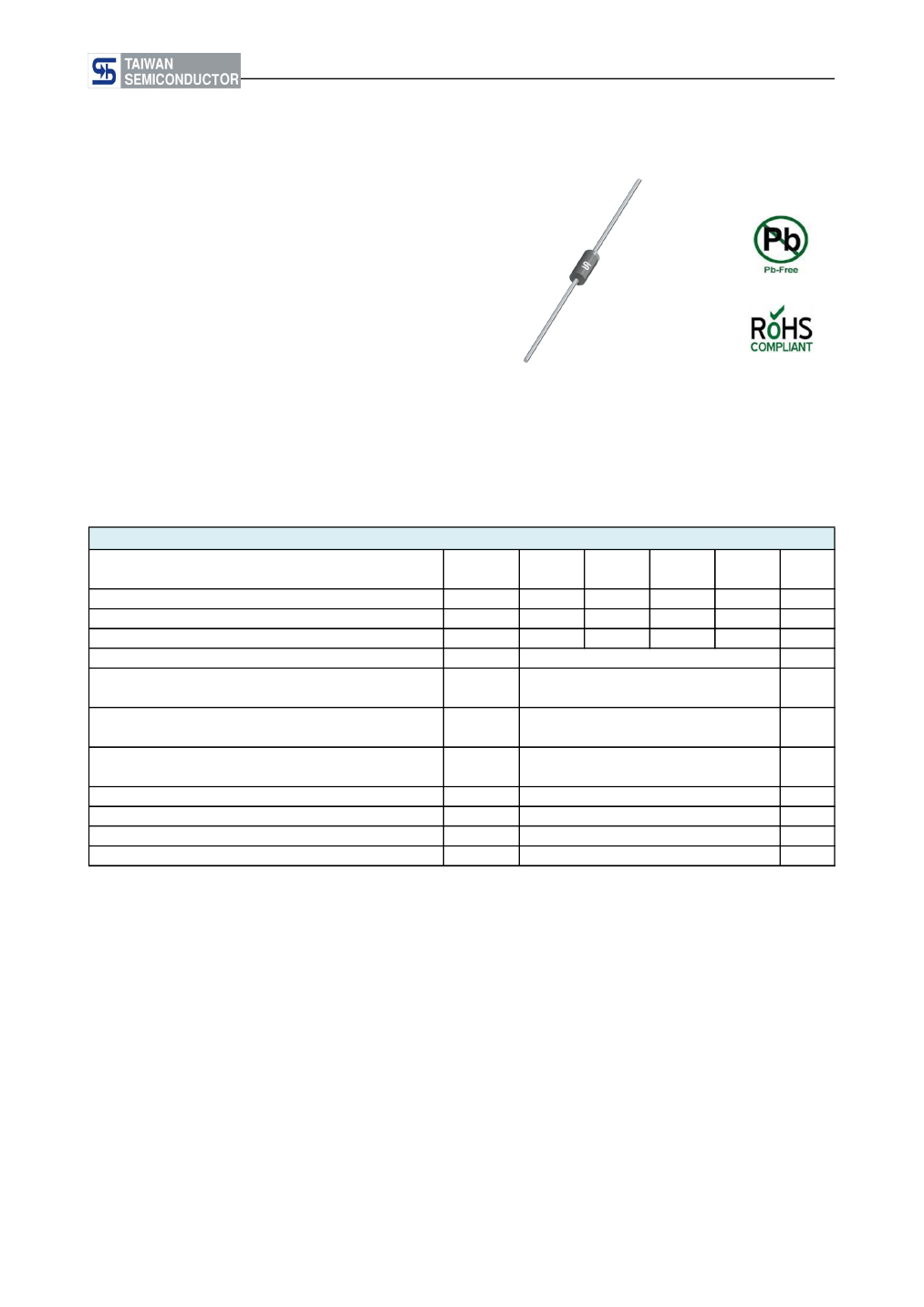

3A, 200V - 800V Silicon Rectifiers
FEATURES
- High efficiency, Low VF
- High current capability
- High reliability
- High surge current capability
- Low power loss
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
MECHANICAL DATA
Case:
DO-201AD
Molding compound, UL flammability classification rating 94V-0
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Pure tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Weight:
1.2 g (approximately)
DO-201AD
MAXIMUM RATINGS AND ELECTRICAL CHARACTERSTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@3A
Maximum reverse current @ rated V
R
Typical junction capacitance (Note 2)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note1: Pulse Test with PW=300μs, 1% Duty Cycle
Note2: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
C
J
R
θJA
T
J
T
STG
BY251
200
140
200
BY252
400
280
400
3
150
1.0
5
100
40
40
- 55 to +150
- 55 to +150
BY253
600
420
600
BY254
800
560
800
UNIT
V
V
V
A
A
V
μA
pF
°C/W
°C
°C
Document Number: DS_D1406026
Version: D15
BY251 - BY254
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
PACKING CODE
A0
R0
B0
G
PACKING CODE
SUFFIX
BY25x
(Note 1)
(*)
PACKAGE
DO-201AD
DO-201AD
DO-201AD
PACKING
500 / Ammo box
1,250 / 13" Paper reel
500 / Bulk packing
Note 1: "x" defines voltage from 200V (BY251) to 800V (BY254)
*: Optional available
EXAMPLE
PREFERRED P/N
BY251 A0G
PART NO.
BY251
PACKING CODE
A0
PACKING CODE
SUFFIX
G
DESCRIPTION
Green compound

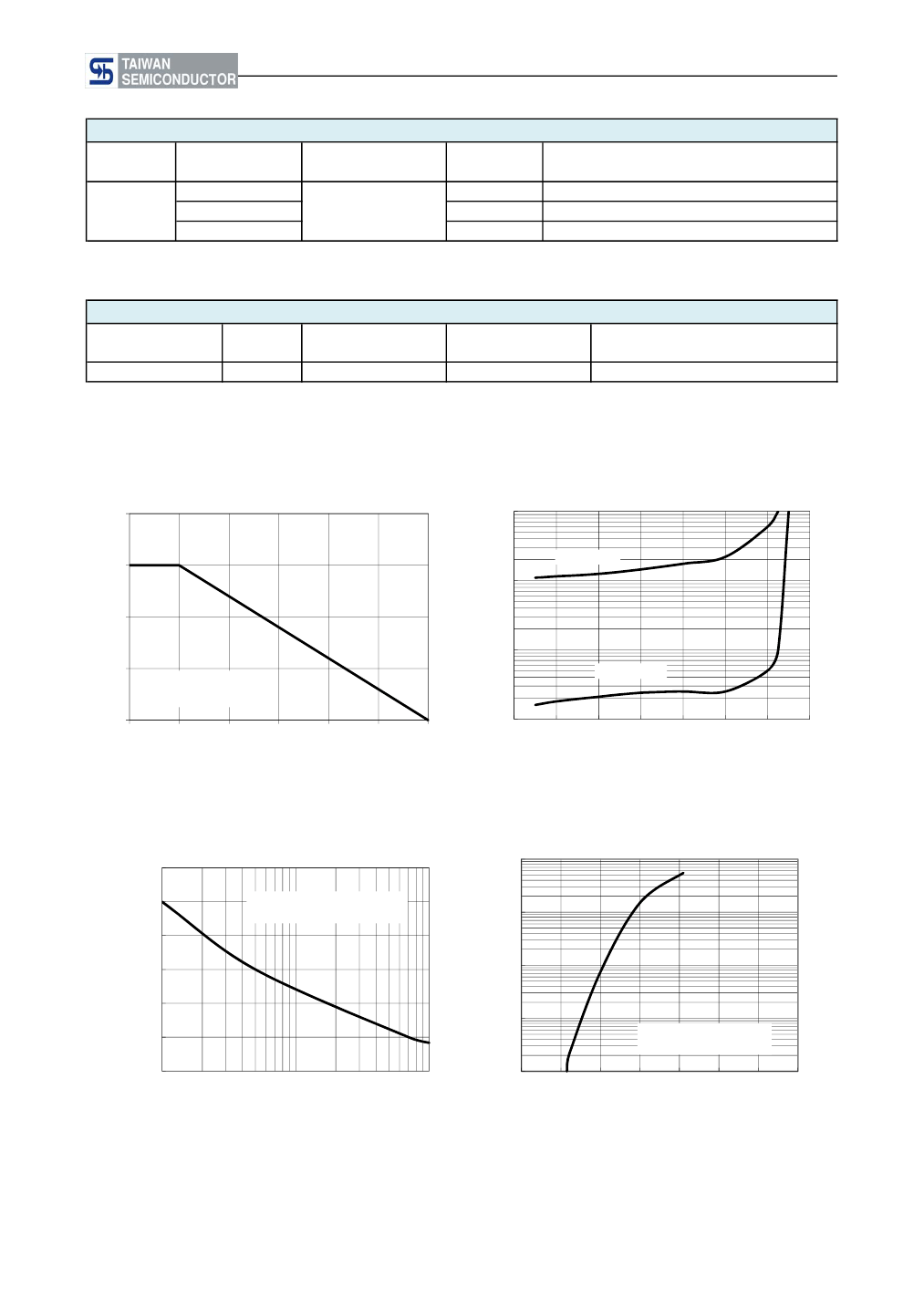

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
10
INSTANTANEOUS REVERSE CURRENT (μA)
FIG.1- MAXMUM FORWARD CURRENT
DERATING CURVE
4
AVERAGE FORWARD CURRENT(A)
3
T
J
=125
o
C
1
2
0.1
T
J
=25
o
C
1
RESISTIVE OR
INDUCTIVE LOAD
0
0
25
50
75
100
125
150
0.01
0
20
40
60
80
100
120
140
AMBIENT TEMPERATURE(
°
C)
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT(A)
180
150
120
90
60
30
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
100
8.3ms Single Half Sine Wave
10
1
0.1
Pulse Width=300μs
1% Duty Cycle
0.01
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
Document Number: DS_D1406026
Version: D15
BY251 - BY254
Taiwan Semiconductor
CREAT BY ART
FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE (pF)
10
f=1.0MHz
Vslg=50mVp-p
1
1
10
REVERSE VOLTAGE (V)
100
PACKAGE OUTLINE DIMENSIONS
DO-201AD
DIM.
A
B
C
D
E
Unit (mm)
Min
5.00
1.20
25.40
8.50
25.40
Max
5.60
1.30
-
9.50
-
Unit (inch)
Min
0.197
0.048
1.000
0.335
1.000
Max
0.220
0.052
-
0.375
-
MARKING DIAGRAM
P/N =
G=
F=
Specific Device Code
Green Compound
Factory Code
YWW = Date Code
