SDS-40J-SMT: DescriptionCONN DIN RECEPTACLE 4 POS SMT; CategoryThe connector The connector; File Size250KB，1 Pages; ManufacturerCUI; Websitehttp://www.cui.com; Environmental Compliance

Download Datasheet Parametric View All

SDS-40J-SMT Overview

CONN DIN RECEPTACLE 4 POS SMT

SDS-40J-SMT Parametric

Parameter Name	Attribute value
Brand Name	CUI Inc
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CUI
Reach Compliance Code	unknow
body width	0.827 inch
subject depth	0.555 inch
body length	0.748 inch
Body/casing type	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact material	BRASS
Contact resistance	30 mΩ
DIN compliance	YES
Dielectric withstand voltage	700VAC V
Durability	5000 Cycles
Insulation resistance	100000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	SDS
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
polarization key	POLAR PIN POSITION
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	4

Preview

Download Datasheet

View All

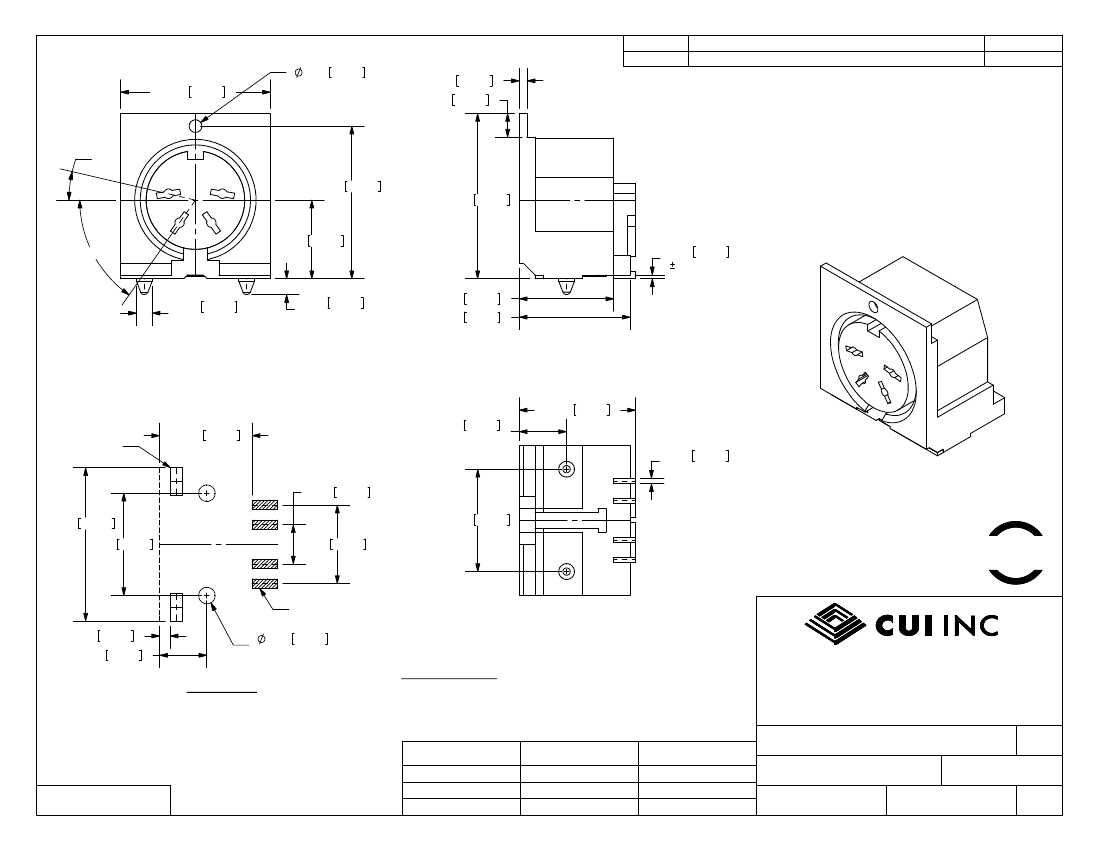

REV.

A

1.60 0.063

19.00 0.748

1.00 0.039

3.00 0.118

DESCRIPTION

NEW DRAWING

DATE

12/27/2005

13°

4

3

1

2

10.00 0.394

55°

19.4 0.764

21.00 0.827

14.10 0.555

1.55X3.50

(2 PLCS)

O

13.00 0.512

11.75 0.463

6.00 0.236

(2 PLCS)

4.98 0.196

4

19.5 0.768

13.0 0.512

3

BS

LE

14.75 0.581

0.70 0.028

(4 PLCS)

TOLERANCE:

X.X ±0.2mm

X.XX ±0.1mm

X.XXX ±0.05mm

2.00 0.079

(2 PLCS)

2.00 0.079

(2 PLCS)

12.00 0.472

TE

0.50 0.020

0.15

9.98 0.393

2

1

RoHS

1.20X3.25

(4 PLCS)

1.35 0.053

6.0 0.236

2.10 0.083

(2 PLCS)

O

PCB LAYOUT

TOP VIEW

SPECIFICATIONS:

RATING: 24V DC @ 1A; 100V AC @ 2A

CONTACT RESISTANCE: 30m OHMS MAX

INSULATION RESISTANCE: 100M OHMS MIN: 500V DC

VOLTAGE WITHSTAND: 500V AC R.M.S. FOR 1 MINUTE

LIFE: 5,000 CYCLES

MATERIAL

TERMINALS (1-4)

EARTH TERMINAL

HOUSING

Brass

Phosphor Bronze

PBT

PLATING

Tin

20050 SW 112th Ave.

Tualatin, OR 97062

Phone: 503-612-2300

800-275-4899

Fax: 503-612-2383

Website: www.cui.com

TITLE:

CIRCULAR DIN RECEPTACLE, SMT, 4 PIN

SDS-40J-SMT

APPROVED BY:

UNITS:

REV:

A

PART NO.

MM [INCHES]

SCALE:

PC FILE NAME:

DRAWN BY:

SDS-40J-SMT

ZRJ
