SAW Components
SAW filter
GPS / GALILEO / GLONASS
Series/type:
Ordering code:
Date:
Version:
B3401
B39162B3401B710
March 25, 2014
2.1
© EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SAW Components
SAW filter
Data sheet
Application
s
Low-loss RF filter for GPS / GALILEO / GLONASS
B3401
1588.65 MHz
application
Features
s
s
s
s
s
s
s
s
s
Package size 2.5 x 2.0 x 0.86 mm
3
Package code DCC4A
RoHS compatible
Approximate weight 0.014 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
AEC-Q200 quarified component family
Lead free soldering compatible with J - STD20C
Electrostatic Sensitive Device
(ESD)
0.7
3
4
0.6
0.6
bottom view
2
1
0.1
0.8
0.86
2.5
2.0
side view
top view
Pin configuration
s
1
s
3
s
2,4
Input
Output
Case ground
1
3
4
2
Please read
cautions and warnings and
important notes
at the end of this document.
2
March 25, 2014
SAW Components
SAW filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –40 ˚C to +85 ˚C
Z
S
=
50
Ω
Z
L
=
50
Ω
min.
Center frequency
f
C
—
typ.
@ 25 ˚C
1588.65
max.
—
B3401
1588.65 MHz
MHz
Maximum insertion attenuation
α
max
1573.42 ... 1577.42 MHz
1571.42 ... 1605.89 MHz
Amplitude ripple
(p-p)
∆α
1573.42 ... 1577.42 MHz
1571.42 ... 1605.89 MHz
VSWR Imput
1573.42 ... 1577.42 MHz
1597.55 ... 1605.89 MHz
VSWR Output
1573.42 ... 1577.42 MHz
1597.55 ... 1605.89 MHz
Group delay ripple
1)
(p-p)
∆τ
1573.42 ... 1577.42 MHz
1597.55 ... 1605.89 MHz
Deviation within GLONASS band relative
to L1 1575.42 MHz
Attenuation
100.00
690.00
800.00
960.00
1420.00
1500.00
1625.00
1660.00
1710.00
1850.00
1980.00
1)
—
—
1.3
1.6
1.7
1.9
dB
dB
—
—
0.2
0.5
1.2
2.0
dB
dB
—
—
1.4
1.4
2.0
2.0
—
—
1.4
1.4
2.0
2.0
—
—
—
1.3
2.4
2.0
8
12
—
ns
ns
ns
α
...
...
...
...
...
...
...
...
...
...
...
690.00
800.00
960.00
1420.00
1500.00
1525.00
1660.00
1710.00
1850.00
1980.00
2570.00
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
44
48
42
32
26
20
1
30
27
25
20
49
54
49
36
32
27
3
36
32
30
26
—
—
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
measured with an aperture of 2 MHz
Please read
cautions and warnings and
important notes
at the end of this document.
3
March 25, 2014
SAW Components
SAW filter
Data sheet
B3401
1588.65 MHz
Maximum ratings
Operable temperature range T
Storage temperature range
DC voltage
Input power at
1571.42 to 1605.89 MHz
700.00 to 915.00 MHz
1710.00 to 1980.00 MHz
T
stg
V
DC
P
in
10
20
20
dBm
dBm
dBm
–45/+125 ˚C
–45/+125 ˚C
6
V
source impedance 50
Ω
Please read
cautions and warnings and
important notes
at the end of this document.
4
March 25, 2014
SAW Components
SAW filter
Data sheet

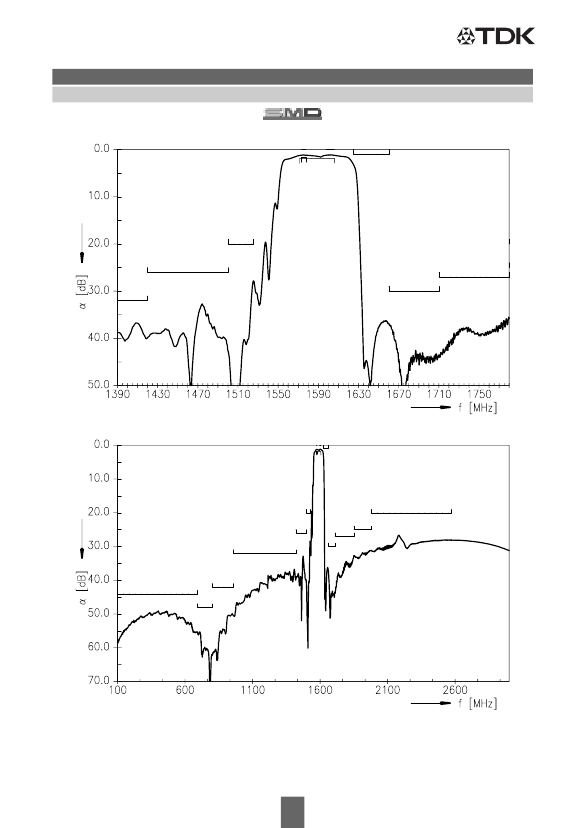

Transfer function
B3401
1588.65 MHz
Transfer function
(wideband)
Please read
cautions and warnings and
important notes
at the end of this document.
5
March 25, 2014
