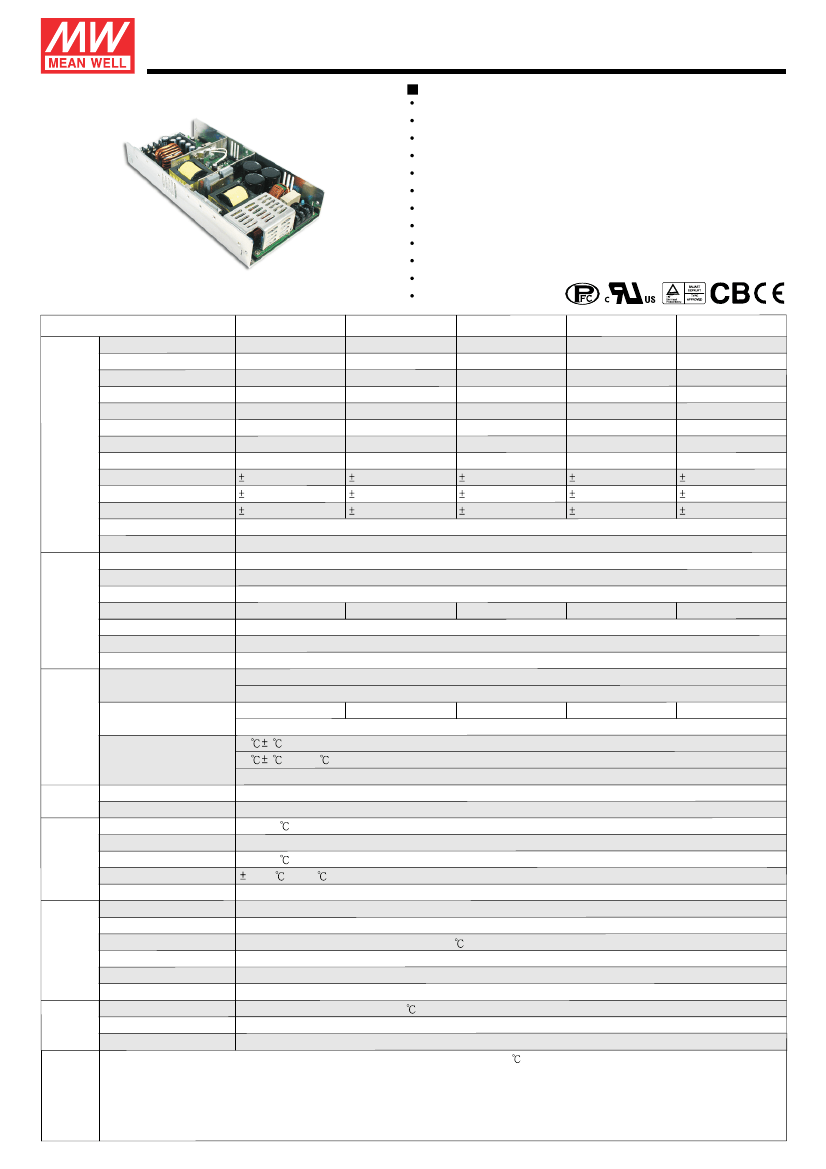

500W Single Output with PFC Function
Features :
USP-500
series
Universal AC input / Full range
Built in active PFC circuit compliance to EN61000-3-2
Protections: Short circuit / Overload / Over voltage / Over temperature
Free air convection for 400W and 500W with 23.5CFM forced air
High power density 6.2w/in
3
AC input active surge current limiting
U-bracket low profile:41mm
Current sharing(1+1) for 24V and 48V models (Optional)
Built-in remote ON-OFF control
Built-in remote sense function
Built in DC OK active signal
3 years warranty
USP-500-5
DC VOLTAGE
RATED CURRENT
5V
80A
USP-500-12
12V
42A
0 ~ 33A
0 ~ 42A
396W
504W
100mVp-p
10.8 ~ 13.2V
2.0%
0.5%
1.0%
20ms/115VAC at full load
127 ~ 370VDC
0.98/115VAC at full load
90%
2.6A/230VAC
50A/230VAC
90%
89%
90%
USP-500-15
15V
33.5A
0 ~ 27A
0 ~ 33.5A
405W
502.5W
100mVp-p
13.5 ~ 16.5V
2.0%
0.5%
1.0%
USP-500-24
24V
21A
0 ~ 17A
0 ~ 21A
408W
504W
150mVp-p
21.6 ~ 27V
2.0%
0.5%
1.0%
..
SPECIFICATION
MODEL
USP-500-48
48V
10.5A
0 ~ 8.5A
0 ~ 10.5A
408W
504W
150mVp-p
43.2 ~ 52.8V
2.0%
0.5%
1.0%
CURRENT RANGE (convection)
0 ~ 60A
CURRENT RANGE (23.5CFM FAN)
0 ~ 80A
RATED POWER (convection)
300W
RATED POWER (23.5CFM FAN)
400W
OUTPUT
RIPPLE & NOISE (max.)
Note.2
80mVp-p
VOLTAGE ADJ. RANGE
VOLTAGE TOLERANCE
Note.3
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION OVER VOLTAGE
OVER TEMPERATURE
REMOTE ON/OFF CONTROL
DC-OK SIGNAL
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
4.5 ~ 5.5V
2.0%
0.5%
2.0%
1500ms, 80ms/230VAC
20ms/230VAC
Note.5
90 ~ 264VAC
3100ms, 80ms/115VAC at full load
47 ~ 63Hz
0.95/230VAC
85%
6A/115VAC
30A/115VAC
<2mA / 240VAC
105 ~ 130% rated output power
Protection type : Constant current limiting, unit will shut down after 3 sec. ,re-power on to recover
5.7 ~ 7V
13.5 ~ 16V
17 ~ 21V
27.8 ~ 32.4V
Protection type : Shut down o/p voltage, re-power to recover
85
5 (TSW1 : detect on heatsink of o/p diode)
95
5
(5V),100 (12V,15V,24V,48V) (TSW2 : detect on heatsink of power transistor)
Protection type : Shut down o/p voltage with auto-recovery
53 ~ 64.8V
FUNCTION
RC+/RC-: 0~0.8V power on ; 4~10V power off
PSU turn on : 3.3V ~ 5.6V ; PSU turn off: 0 ~ 1V
-20 ~ +70
(Refer to output load derating curve)
20 ~ 90% RH non-condensing
-40 ~ +85 , 10 ~ 95% RH
0.03%/ (0 ~ 50 )
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
UL60950-1, TUV EN60950-1 approved
(Note 4)
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
SAFETY & ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
EMC
EMI CONDUCTION & RADIATION
Compliance to EN55022 (CISPR22) Class B
HARMONIC CURRENT
EMS IMMUNITY
MTBF
OTHERS
NOTE
Compliance to EN61000-3-2,-3
Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024, EN61000-6-2, heavy industry level, criteria A
129.8K hrs min. MIL-HDBK-217F (25 )
254*127*41mm (L*W*H)
1.6Kg; 6pcs/10.6Kg/0.67CUFT
DIMENSION
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
File Name:USP-500-SPEC 2010-10-18

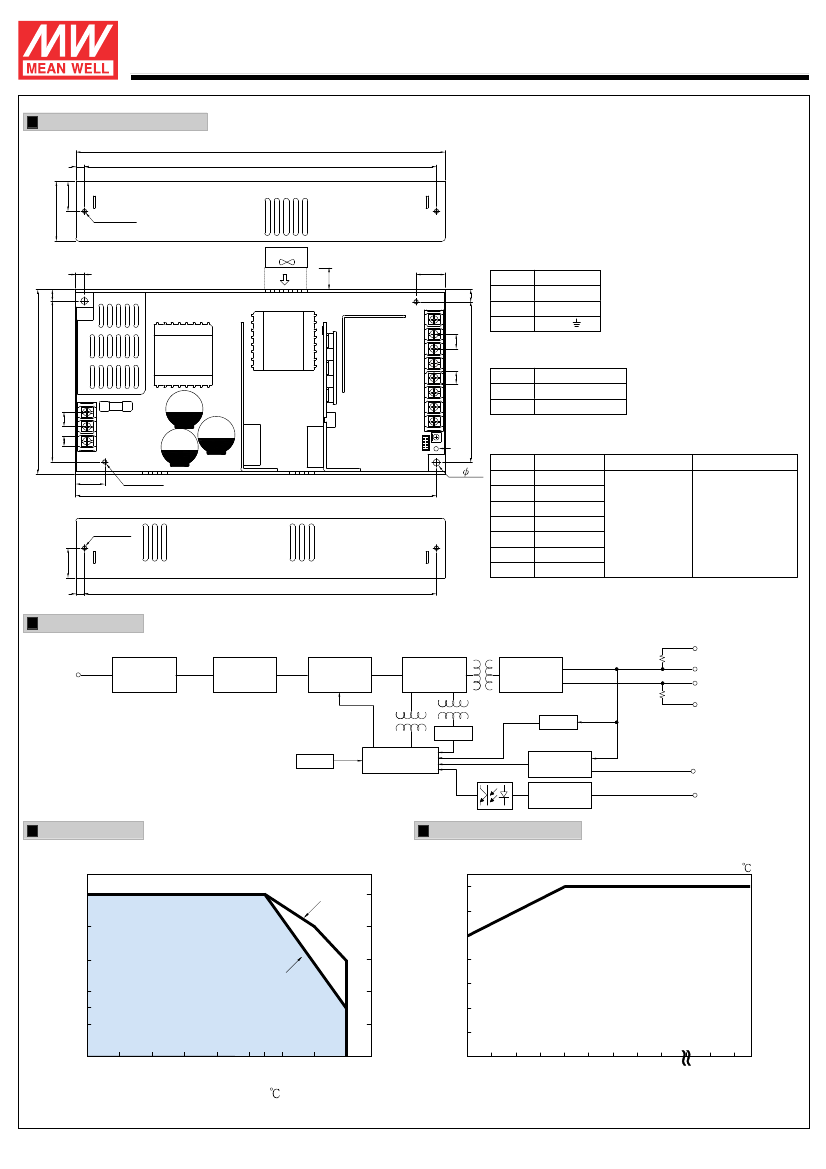

500W Single Output with PFC Function
Function Description of CN50
USP-500
series
Pin No. Function Description
CS
Current sharing signal. When units are connected in parallel, the CS pins of the units should be connected to allow current balance
1
(Optional) between units.
2,8
3
4
5
6
7
-S
RC-
RC+
GND
DC-OK
+S
Negative sensing. The -S signal should be connected to the negative terminal of the load. The -S and +S leads should be twisted in pair to
minimize noise pick-up effect. The maximum line drop compensation is 0.5V.
Return for RC+ signal input.
Turns the output on and off by electrical or dry contact between pin 4 ( RC+) and pin 3 (RC-). 0~0.8V: Power ON, 4~10V: Power OFF.
This pin connects to the negative terminal (-V). Return for DC_OK signal output.
DC-OK signal is a TTL level signal, referenced to pin6(DC-OK GND). High when PSU turns on.
Positive sensing. The +S signal should be connected to the positive terminal of the load. The +S and -S leads should be twisted in pair to
minimize noise pick-up effect. The maximum line drop compensation is 0.5V.
Function Manual
1.Remote Control
The PSU can be turned ON/OFF by using the
"Remote Control" function.
Between RC+(pin4) and RC-(pin3)
SW OFF (0 ~ 0.8V)
SW ON (4 ~ 10V)
Output Status
ON
OFF
1 7
CN50 2 8
LED
TB2
+V
-V
1
CN50
RC-
GND
7
+S
-S
8
+
-
NC
-S
2
LOAD
RC+ DC-OK
SW
Fig 1.1
External Power
Source
I=6~20mA
2.DC-OK Signal
DC-OK signal is a TTL level signal. High when PSU turns on.
Between DC-OK(pin6) and GND(pin5)
3.3 ~ 5.6V
0 ~ 1V
Output Status
ON
OFF
1 7
CN50 2 8
LED
TB2
+V
-V
1
NC
-S
2
CN50
RC-
GND
7
+S
-S
8
RC+ DC-OK
Fig 2.1
File Name:USP-500-SPEC 2010-10-18
500W Single Output with PFC Function
USP-500
series
3.Remote Sense
The remote sensing compensates voltage drop on the load wiring up to 0.5V.
1 7
CN50 2 8
LED
+V
TB2
-V
Sense lines should
be twisted in pairs
+S
(Pin7)
+
-
-S
(pin2,8)
1
NC
-S
2
CN50
RC-
GND
7
+S
-S
8
LOAD
RC+ DC-OK
Fig 3.1
4.Current Sharing with Remote Sensing (Optional for 24V & 48V)
USP-500 has the built-in active current sharing function and can be connected in parallel to provide higher output power :
(1)Parallel operation is available by connecting the units shown as below.
(+S,-S,CS and GND are connected mutually in parallel).
(2)Difference of output voltages among parallel units should be less than 2%.
(3)The total output current must not exceed the value determined by the following equation.
(output current at parallel operation)=(Rated current per unit) (Number of unit) 0.9
(4)In parallel operation 2 units is the maximum, please consult the manufacturer for applications of more connecting in parallel.
(5)The power supplies should be paralleled using short and large diameter wiring and then connected to the load.
PSU
1 7
CN50 2 8
1 7
CN50 2 8
PSU
+V
TB2
-V
+V
TB2
-V
LED
LED
+S
(pin7)
-S
(pin2,8)
GND
(pin5)
CS
(pin1)
+V
LOAD
-V
Sense lines should
be twisted in pairs
1
CS
-S
CN50
RC-
GND
7
+S
-S
8
RC+ DC-OK
Fig 4.1
2
Note : 1.In parallel connection, maybe only one unit (master) operate if the total output load is less than 2% of rated load condition.
The other PSU (slave) may go into standby mode and its output LED and relay will not turn on.
2.2% min. of dummy load is required.
File Name:USP-500-SPEC 2010-10-18
