8131M0500273JCC01 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 8131M0500273JCC01

8131M0500273JCC01: DescriptionCeramic Capacitor, Ceramic, 50V, C0G, -/+30ppm/Cel TC, 0.027uF, 3030; CategoryPassive components capacitor; File Size171KB，9 Pages; ManufacturerSyfer

Download Datasheet Parametric View All

8131M0500273JCC01 Overview

Ceramic Capacitor, Ceramic, 50V, C0G, -/+30ppm/Cel TC, 0.027uF, 3030

8131M0500273JCC01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1271237885
package instruction	, 3030
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.027 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	3.81 mm
length	7.62 mm
Manufacturer's serial number	8131M(50/63V,C0G)
negative tolerance	5%
Number of terminals	2
Package form	Radial
method of packing	TR
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
series	8131M (50/63V,C0G)
size code	3030
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal pitch	5.08 mm
width	7.62 mm

8131M0500273JCC01 Preview

Radial

Lead

Ordering information

Capacitors

Marking and

Marking information

All encapsulated capacitors are marked with:- Capacitance value, tolerance, rated d.c. voltage, dielectric, and where size permits Syfer logo.

Example: 1000pF ±10% 50V 2X1 dielectric

Capacitance:

Code

3P00

10P0

100P

1N00

10N0

1U00

Capacitance

3pF

10pF

100pF

1000pF

10nF

1µF

1N00

C B

Logo

Dielectric code

Dielectric

Class

Ultra stable

Code

CECC

1B/CG

2R1

2X1

2C1

Classes

EIA

X7R

MIL

COG(NPO) CG/(BP)

Stable

To special order

Stable

Tolerance:

Code

Tolerance

±0.25pF

±0.5pF

±1.0pF or ±1%

±2%

±5%

±10%

±20%

Rated voltage d.c.

Code

Voltage

100

200

500

1KV

2KV

3KV

4KV

5KV

Ordering information for Radial Lead Capacitors

Example: .................. 8111M

Type No/Size ref

Voltage d.c.

050 = 50

063 = 63

100 = 100

200 = 200

500 = 500

100

0102

Suffix code.

The remaining alpha/numeric digits are

used to denote variation from the standard products of

customer special requirements (electrical, packing,

mechanical, environmental, coding etc.)

All products with “C42” as the suffix code are RoHS

compliant. Products with other suffix codes may be

RoHS compliant, please contact sales office for details.

Volts

1K0

2K0

3K0

4K0

5K0

1KV

2KV

3KV

4KV

5KV

Dielectric code

Dielectric

Class

Ultra stable

Stable

To special order

Stable

Code

CECC

1B/CG

2R1

2X1

2C1

Classes

EIA

COG(NPO)

X7R

MIL

CG/(BP)

Capacitance (pF)

First digit

Second digit

Third digit

Fourth digit

- 0

- First significant figure of

capacitance value

- Second significant figure

of capacitance value

- Number of zeros following.

eg. 0102 = 1000pF.

For values below 10pF insert

a P for the decimal point.

eg. 8P20 = 8.2pF

Capacitance tolerance code

Ultra stable class

Cr < 10pF

Cr > 10pF

± 0.25 pF

± 0.5 pF

± 1%

± 2%

± 5%

± 10%

Stable class

± 5%

± 10%

± 20%

RADIALDIPPED.ver2

Radial

Dipped

Capacitors

Lead

C0G/X7R

Dimensions

Size

Case

CECC

Pattern

Width

(X) max

inches

Height

(Y) max

inches

Thickness

(Z) max

inches

Lead Space

(S)

inches

Lead Length

(L) min

inches

Lead Diameter

(d)

inches

Dipped Radial

8111M

8111N

8121M

8121N

8131M

8141M

8151M

8161M

8171M

3.81

0.15

3.81

0.15

5.08

0.20

5.08

0.20

7.62

0.30

10.16

0.40

12.70

0.50

18.50

0.73

25.00

0.98

5.31

0.21

5.31

0.21

6.58

0.26

6.58

0.26

9.12

0.36

11.66

0.46

14.20

0.56

16.50

0.65

20.00

0.79

2.54

0.10

2.54

0.10

3.18

0.125

3.18

0.125

3.81

0.15

3.81

0.15

5.08

0.20

6.00

0.24

6.00

0.24

2.54±0.4

0.1±.0.016

5.08±0.4

0.2±0.016

2.54±0.4

0.1±0.016

5.08±0.4

0.2±0.016

5.08±0.4

0.2±0.016

5.08±0.4

0.2±0.016

10.1±0.4

0.4±0.016

14.5±0.5

0.57±0.02

20.5±0.5

0.81±0.02

5.0

0.2

5.0

0.2

5.0

0.2

5.0

0.2

5.0

0.2

5.0

0.2

5.0

0.2

5.0

0.2

5.0

0.2

0.5±0.05

0.02±0.002

0.5±0.05

0.02±0.002

0.5±0.05

0.02±0.002

0.5±0.05

0.02±0.002

0.5±0.05

0.02±0.002

0.5±0.05

0.02±0.002

0.6±0.05

0.025±0.002

0.6±0.05

0.025±0.002

0.6±0.05

0.025±0.002

Dipped Radial

Pattern A

Pattern B

Seating

Plane

Seating

Plane

1.5 (0.6)

max.

RADIALDIPPED.ver2

Radial

Lead Capacitors

snap-in leads

Loose capacitors cropped and

Cropped Leads

Cropped leads between 4.0 (0.157) and 30.0 (1.18) are available to

special order. Some of the preferred codes are listed below,

together with the appropriate suffix code.

Dimensions as for standard product except as specified.

Dimensions mm (inches)

Suffix code - AE3

All radial ranges

Lead length (L)

6 ± 1 (0.236 ± 0.04)

from seating plane

Suffix code - AE4

All radial ranges

Lead length (L)

4 ± 1 (0.162 ± 0.04)

from seating plane

Suffix code - AD7

All radial ranges

Lead length (L)

5 ± 1 (0.2 ± 0.04)

from seating plane

Suffix code - AD5

All radial ranges

Lead length (L)

10 ± 1 (0.4 ± 0.04)

from seating plane

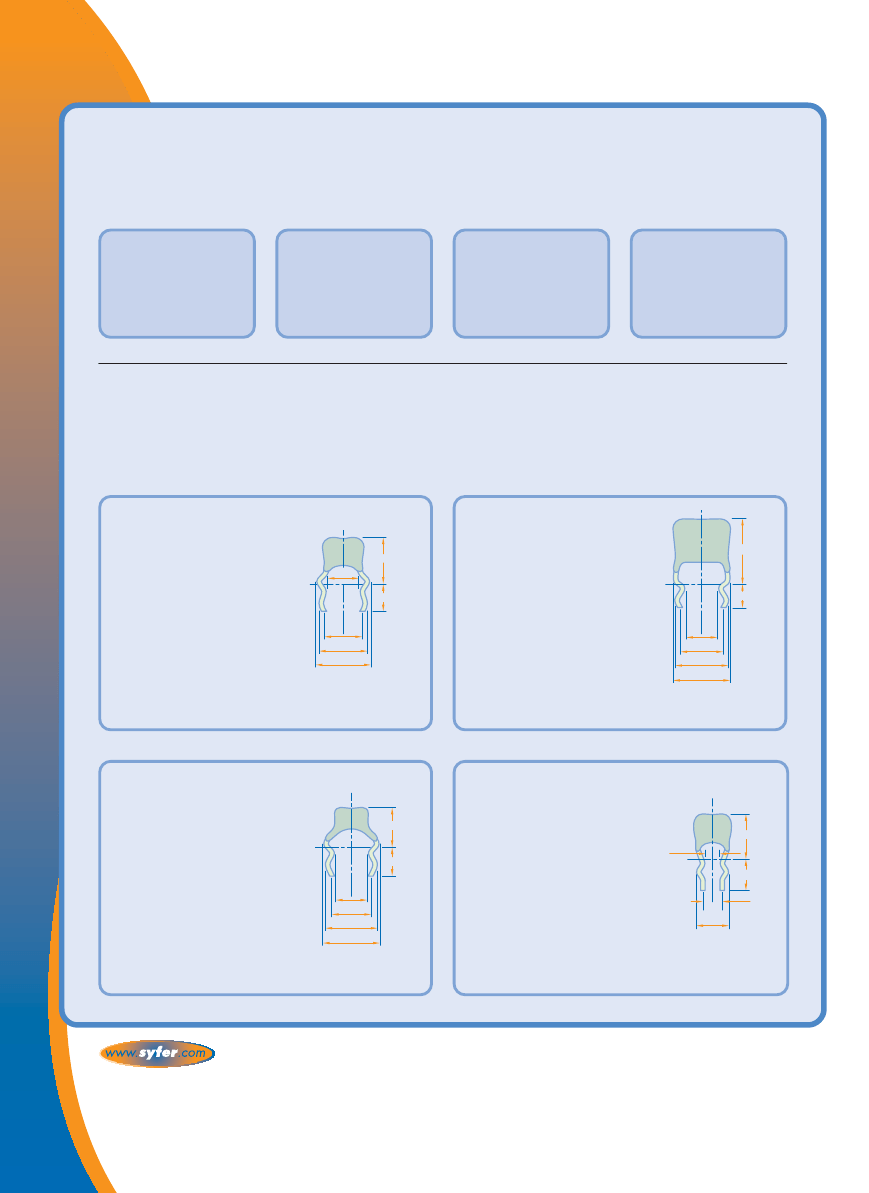

Snap in leads

Various forms of snap in leads (preformed) are available to special

order, some of the preferred suffix codes are listed below.

Dimensions as for standard product except as specified.

Suffix code - AD1

For PCB holes 0.9mm diameter

Types 8121N and 8131M

4±0.5

Seating plane

Suffix code - AD2

For PCB holes 1.2mm diameter

Types 8131M

Seating plane

5±0.5

6±0.5

6-0 +1.0

4.2±0.5

5±0.5

6.6±0.5

Dimensions

Y = 8121N 8 (0.315) Max

8131M 10 (0.394) Max

L = Min: 2.75 (0.108)

Max: 3.50 (0.138)

Dimensions

Y = 10 (0.294) Max

8.8 Max

L = Min: 2.75 (0.108)

Max: 3.50 (0.138)

Suffix code - AD3

For PCB holes 1.2mm diameter

Types 8121N

Seating plane

Suffix code - AO7

For PCB holes 0.8 to 0.97mm diameter

Types 8121M

2±0.3

Seating plane

2.54

4.2±0.5

5±0.5

6.6±0.5

3.5±0.5

Dimensions

Y = 8 (0.315) Max

7.6 Max

L = Min: 2.75 (0.108)

Max: 3.50 (0.138)

Dimensions

Y =6.58 (0.259) Max

L = Min: 2.75 (0.108)

Max: 3.50 (0.138)

RADIALDIPPED.ver2

Radial

Lead

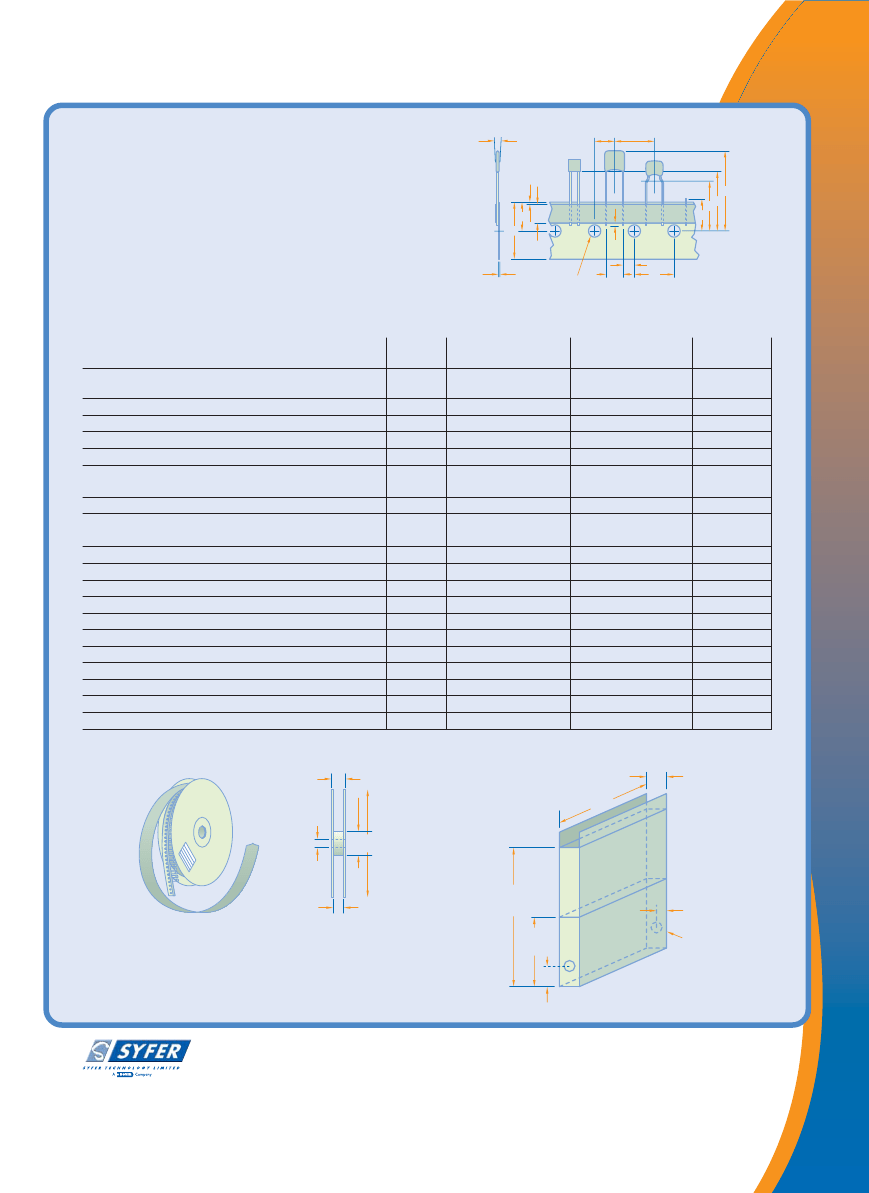

Packaging Information

Capacitors

Bandoliered

A maximum of 3 consecutive components may be missing from the

bandolier, followed by at least 6 filled positions.

Components missing from the bandolier are included in the total

quantity, whereby the number of missing components may not

exceed 0.25% of this total per packing module.

At the beginning and end of a reel the bandolier will exhibit at least

10 blank positions.

Minimum pull strength of product from tape = 5N.

Each reel/carton is provided with a label showing the:

Manufacturer, product style, batch identification, quantity and

date code.

Labelling with bar codes (code 39) is available on request.

∆h

Dimensions mm (inches)

Description

Lead wire diameter

Component pitch

Feed hole pitch

Feed hole centre to lead

Feed hole centre to component

Lead spacing

Component alignment

Tape width

Hold down tape width

Hole position

Hold down tape position

Height to seating plane from tape centre (straight leads) (2)

Height to seating plane from tape centre (formed leads) (2)

Height to top of component from tape centre

Feed hole diameter

Carrier tape plus adhesive tape thickness

Carrier tape thickness

Cut out component snipped lead length from tape centre

Lead wire protusion from hold down

Symbol

2.5mm

lead space

0.5 (0.02),

0.6 (0.025)

12.7 (0.5)

5.08 (0.2)

6.35 (0.25)

2.54 (0.10)

18.0 (0.70)

5mm

lead space

0.5 (0.02),

0.6 (0.025)

12.7 (0.5)

3.81 (0.15)

6.35 (0.25)

5.08 (0.20)

18.0 (0.70)

Tolerance

±0.05 (0.002)

1.00 (0.04)

±0.30 (0.01)

±0.70 (0.03)

+0.6 (0.02)

–0.1 (0.004)

±2.00(0.08)

+1.00 (0.04)

–0.50 (0.02)

±0.30 (0.01)

±0.50 (0.02)

Max

As required

Max

±0.20 (0.008)

±0.10 (0.004)

Max

6.0 (0.23)

9.0 (0.35)

0.50 (0.02)

16 (0.63) to 20 (0.79) 16 (0.63) to 20 (0.79)

32.2 (1.26)

4.0 (0.16)

0.7 (0.03)

0.5 (0.02)

11.0 (0.43)

2.0 (0.08)

Bandoliered reels

52 max

Bandoliered ammo packing

2 carton sizes

3351)

(13

(1.88)

30±1.0

85±1.0

355±1.0

45±1.0

230

(9.05)

(2000 pcs)

(0.94)

20 dia.

(0.79)

The adhesive tape faces outwards. The dispensing direction is as

shown. For the protection of the components a paper inlay is

inserted between the windings of the bandolier. At the end of the

bandolier this paper inlay continues for at least a further two

rotations.

115

(4.50)

(1000 pcs)

(1.77)

RADIALDIPPED.ver2

Radial

Lead

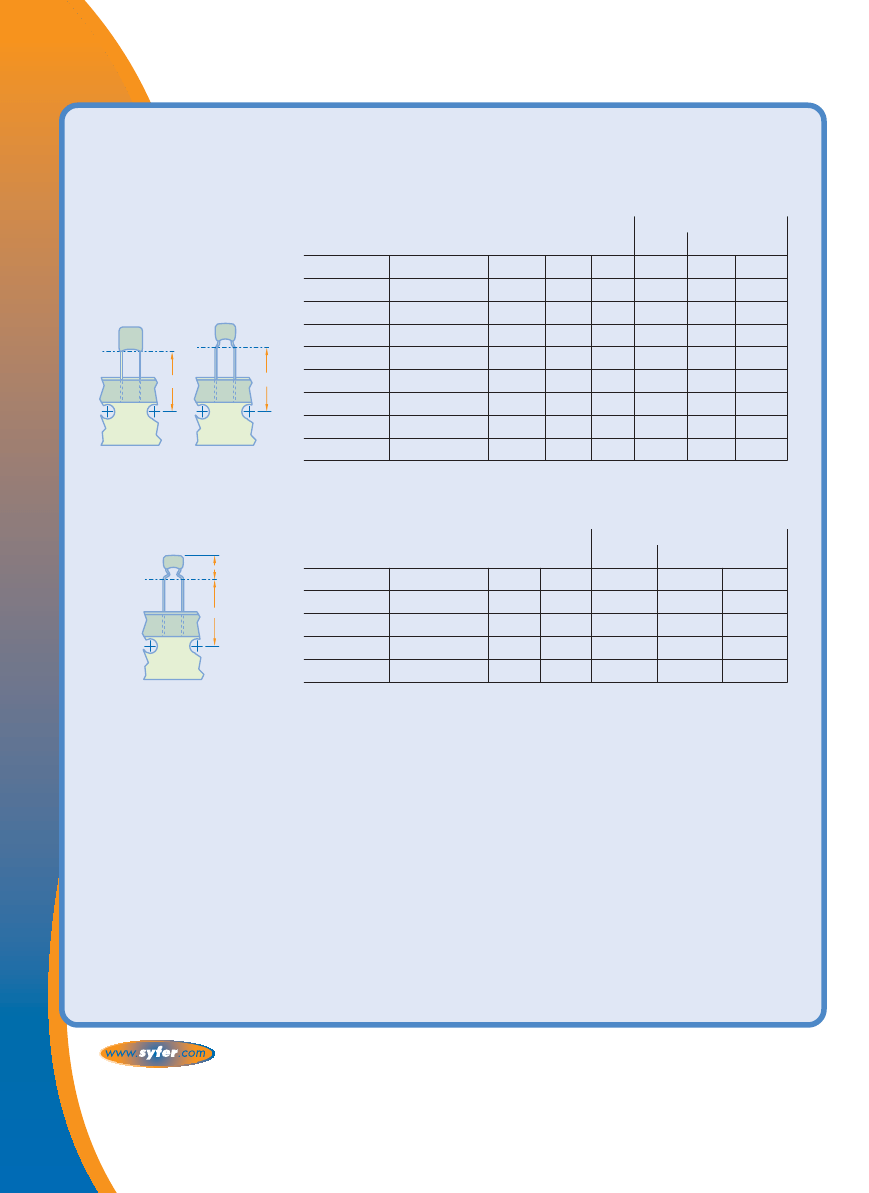

suffix codes

Capacitors

Bandoliered

Dipped radial leaded with 2.54 and 5.08mm lead spacing can be

supplied bandoliered on reels or in ammo boxes to special order.

Some of the preferred suffix codes for bandoliered products are

given below.

For bandoliered products the minimum order quantity, pieces, is

specified in the tables below, larger orders must be in multiples of

this quantity.

Dipped – straight and formed leads

Reel

Product code

8111M

8111N

8121M

8121N

8131M

Lead style

Straight 2.54 crs

Formed 5.08 crs

Straight 2.54 crs

Formed 5.08 crs

Straight 5.08 crs

Diagram

19±1

16±0.5

–

19±1

16±0.5

–

19±1

16±0.5

–

16±0.5

–

16±0.5

–

C01

C30

C01

C30

C01

C30

Suffix code

AMMO pack

C02

C31

C02

C31

C02

C31

C11

C32

C11

C32

C11

C32

2500pcs 1000pcs 2000pcs

Dipped – stand-off lead form

Reel

Product code

8111N

8121N

Lead style

Formed 5.08 crs

Y max

7.5

8.5

16±0.5

19±1

16±0.5

19±1

2500pcs

C12

C13

C12

C13

Suffix code

AMMO pack

1000pcs

C23

C25

C23

C25

2000pcs

C22

C24

C22

C24

This style has been developed to provide a

meniscus-free seating plane with a stress

relieving form for auto-insertion.

RADIALDIPPED.ver2

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

4kW single-phase AC voltage regulator circuit

STK0029 power amplifier circuit diagram

20W bus radio and amplifier circuit

Electromechanical Controlled Resistor-Capacitor Coupling Amplifier Circuit

Automatic gain control amplifier circuit

025 Power supply circuit diagram of CASPER TM-5159 VGA color display

How to use a basic multimeter: 1. Voltage measurement1. Measurement of DC voltage, such as battery, Walkman power supply, etc. First, insert the black test lead into the "com" hole and the red test lead into the "V Ω". Select the k...; totopper Industrial Control Electronics

【AT-START-F403A Review】3. Try USB Composite_Device: [i=s]This post was last edited by mig29 on 2020-11-6 20:47[/i]This article is mainly used as a memo note: confirm that the USB Composite_Device Demo of Artery is easy to use and has a good program str...; mig29 Domestic Chip Exchange

On normal holidays, the city is crowded and jammed with traffic, but this holiday is a bit nice, there is no traffic jam!: During the Qingming Festival, most people go to the countryside. It's so comfortable in the city....; eeleader Talking

A half-bridge switching power supply based on SG3525: A half-bridge switching power supply based on SG3525[/backcolor][/color] [color=rgb(68,68,68)][backcolor=rgb(255,255,255)][/backcolor][/color] [color=rgb(68,68,68)][backcolor=rgb(255,255,255)][/backco...; qwqwqw2088 Analogue and Mixed Signal

Long treasured: I have collected a few MM pictures for a long time, so that we can appreciate them together! :) :) :)...; xiaolong3188 Talking

s3c2440 cannot enter interrupt function: My program can be compiled and linked without any problems, but it can never enter the interrupt function when running. I think it should be a problem with the interrupt vector table, which causes the...; dnvtaje Embedded System

Shortcut: E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components
