HMC882LP5E
v01.0310
FILTER - TUNABLE, LOW PASS SMT
4.5 - 7.6 GHz
Features
Fast Tuning Response; 150 ns
Excellent Wideband Rejection; 40 dB
Single Positive Frequency Control: 0 to +14V
Low Insertion Loss &
User Selectable Cutoff Frequency
Single Chip Replacement
for Mechanically Tuned Designs
32 Lead 5x5 mm SMT Package
3
FILTERS - TUNABLE - SMT
Typical Applications
The HMC882LP5E is ideal for:
• Test & Measurement Equipment
• Military RADAR & EW/ECM
• SATCOM & Space
• Industrial & Medical Equipment

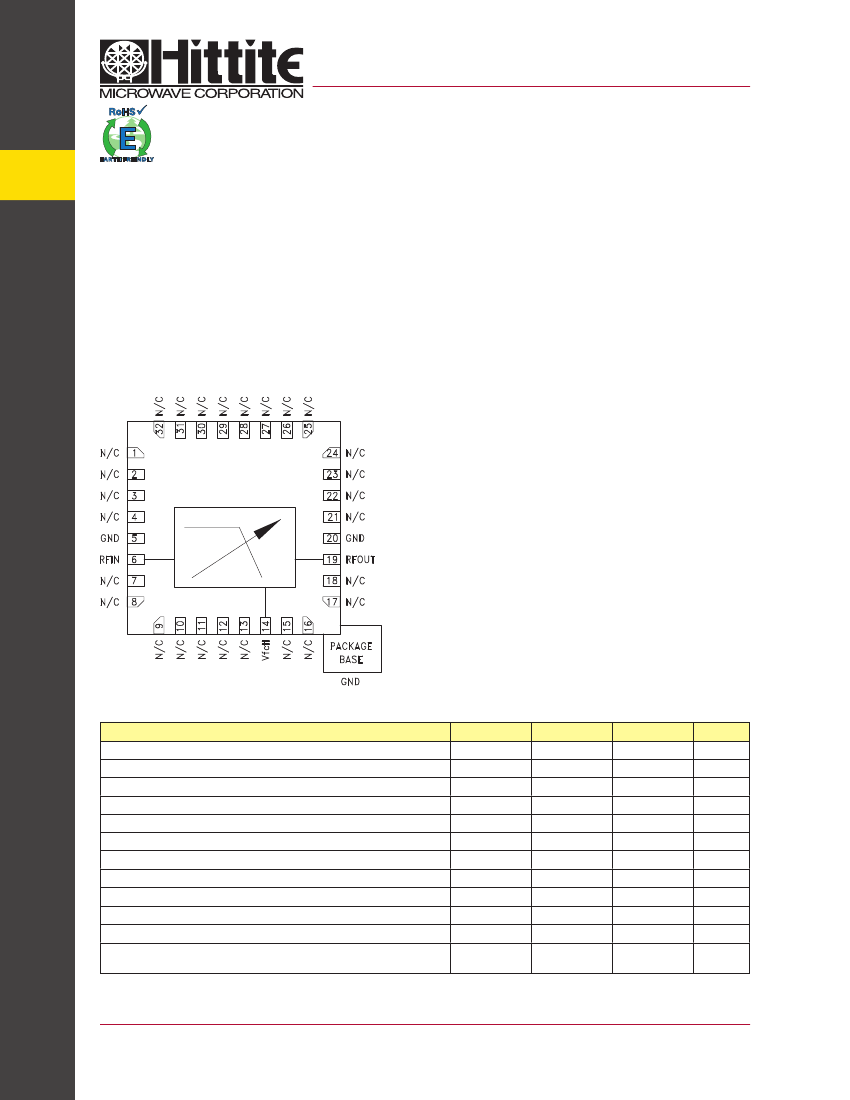

Functional Diagram
General Description
The HMC882LP5E is a MMIC low pass filter which
features a user selectable cutoff frequency. The
cutoff frequency can be varied from 4.5 to 7.6 GHz
by applying a single analog tuning voltage between
0 and 14V. This low pass filter provides a low 2.9 dB
insertion loss, 10 dB return loss and 1.23 x ƒcutoff
stopband attenuation of >20 dB. This tunable filter can
be used as a much smaller alternative to physically
large switched filter banks and cavity tuned filters.
The HMC882LP5E has excellent microphonics due
to the monolithic design, and provides a dynamically
adjustable solution in advanced communications
applications. The low pass tunable filter is packaged
in a RoHS compliant 5x5mm QFN leadless package.
Electrical Specifications,
T
A
= +25°C
Parameter
Passband
ƒcutoff
[1]
Tuning Range (3 dB Loss)
Stopband Frequency (Rejection >20 dB)
Re-entry Frequency (Rejection <30 dB)
Insertion Loss
Return Loss
Maximum Input Power for Linear Operation
Frequency Control Voltage (Vfctl)
Frequency Control Port Source/Sink Current (I
fctl
)a
Residual Phase Noise
[2]
(1 MHz offset)
ƒcutoff Drift Rate (Fixed Vfctl)
Tuning Characteristics
[3]
tFULLBAND (0% Vfctl to 90% RF)
-160
-1.4
150
0
Min.
0
4.5
1.23 x ƒcutoff
30
2.9
10
10
14
±1
Typ.
Max.
7.6
7.6
Units
GHz
GHz
GHz
GHz
dB
dB
dBm
V
mA
dBc/Hz
MHz/°C
ns
[1] ƒcutoff defined as the point at which the insertion loss is 3 dB below the minimum passband insertion loss.
[2] Optimum residual phase noise performance requires the use of a low noise driver circuit.
[3]Tuning speed is dependent on driver circuit. Data measured with a high speed op-amp driver and includes driver slew rate delay.
3-1
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC882LP5E
v01.0310
FILTER - TUNABLE, LOW PASS SMT
4.5 - 7.6 GHz

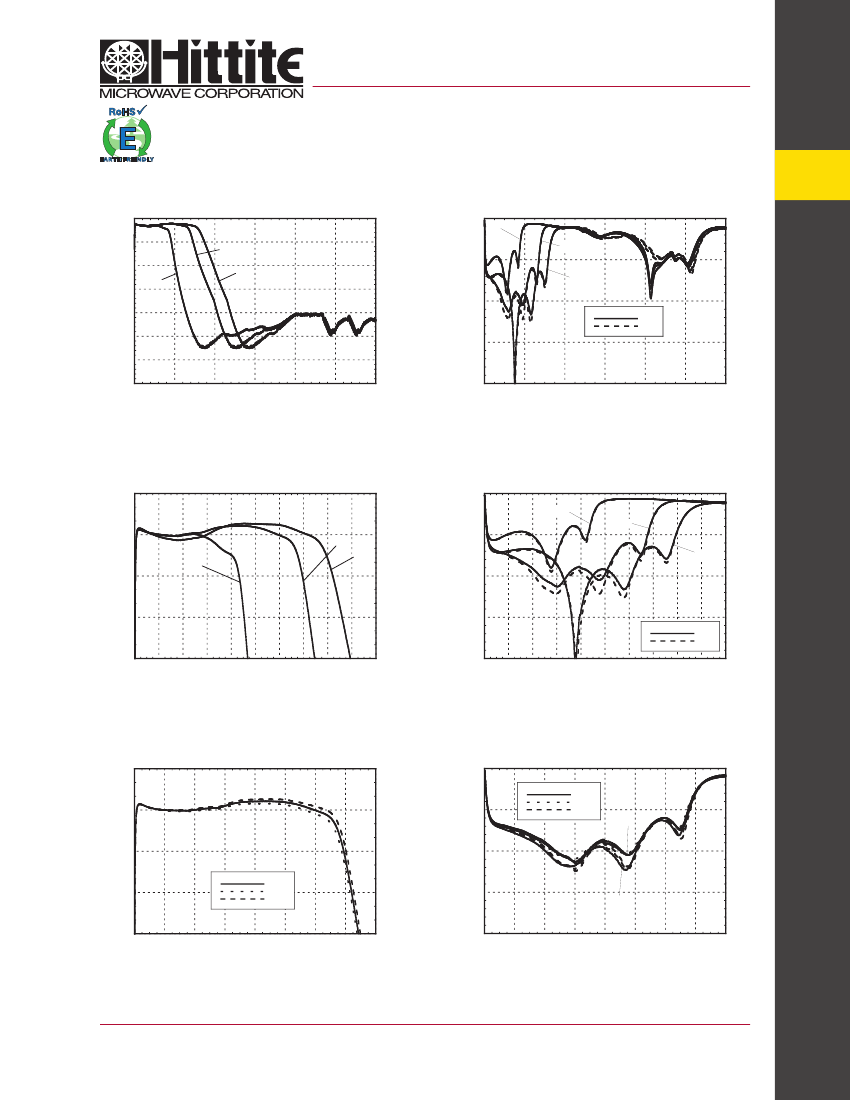

Broadband Insertion Loss
vs. Control Voltage
0
-10
7V
-20
-30
-40
-50
-60
-70
0
5
10
15
20
25
30
-40
0
5
10
15
20
25
30
0V
14V
Broadband
Return Loss vs. Control Voltage
0
3
FILTERS - TUNABLE - SMT
3-2
0V
7V
RETURN LOSS (dB)
-10
INSERTION LOSS (dB)
14V
-20
S11
S22
-30
FREQUENCY (GHz)
FREQUENCY (GHz)
Insertion Loss vs. Control Voltage
[1]
0
Return Loss vs. Control Voltage
[1]
0
0V
7V
INSERTION LOSS (dB)
7V
0V
14V
RETURN LOSS (dB)
-3
-10
14V
-20
-6
-9
-30
S11
S22
-12
0
1
2
3
4
5
6
7
8
9
10
-40
0
1
2
3
4
5
6
7
8
9
10
FREQUENCY (GHz)
FREQUENCY (GHz)
Insertion Loss vs. Temperature, Vfctl @ 7V
[1]
0
Return Loss vs. Temperature, Vfctl @ 7V
[1]
0
+25C
+85C
-40C
INSERTION LOSS (dB)
RETURN LOSS (dB)
-3
-10
S11
-6
-20
-9
+25C
+85C
-40C
-30
S22
-12
0
1
2
3
4
5
6
7
8
-40
0
1
2
3
4
5
6
7
8
FREQUENCY (GHz)
FREQUENCY (GHz)
[1] Low frequency performance limited by external DC blocking capacitors at RF input and output.
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC882LP5E
v01.0310
FILTER - TUNABLE, LOW PASS SMT
4.5 - 7.6 GHz
3
FILTERS - TUNABLE - SMT

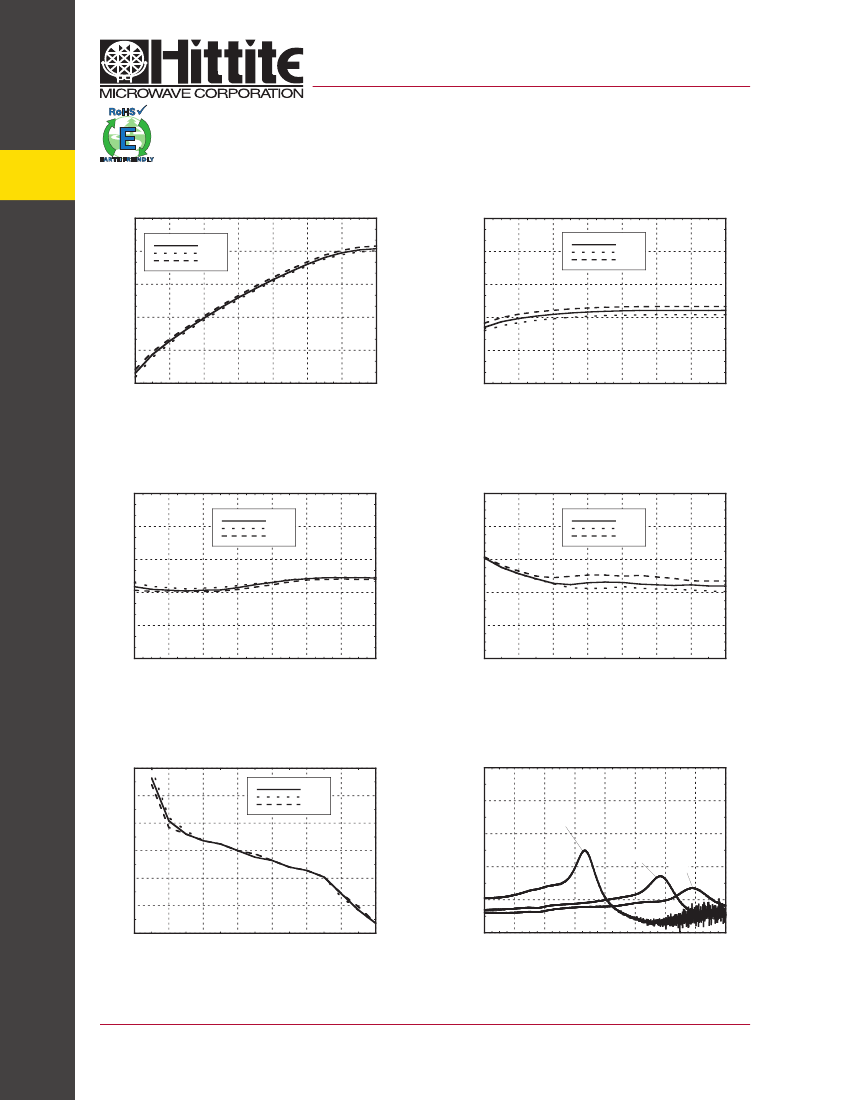

Cutoff Frequency vs. Temperature
9
+25C
+85C
-40C
Average Insertion Loss vs.
Temperature in a 2 dB Bandwidth
0
+25C
+85C
-40C
7
INSERTION LOSS(dB)
6
8
10
12
14
8
-1
FREQUENCY(GHz)
-2
6
-3
5
-4
4
0
2
4
-5
0
2
4
6
8
10
12
14
Vfctl (V)
Vfctl (V)
Rejection Ratio vs. Temperature
1.5
+25C
+85C
-40C
[1]
Maximum Return Loss in a 2 dB
Bandwidth vs. Temperature
0
+25C
+85C
-40C
F20dB TO F3dB RATIO
1.4
-4
RETURN LOSS (dB)
10
12
14
1.3
-8
1.2
-12
1.1
-16
1
0
2
4
6
8
-20
0
2
4
6
8
10
12
14
Vtune(V)
Vfctl (V)
Tuning Sensitivity vs. Temperature
600
+25C
+85C
-40C
500
Group Delay
1
GROUP DELAY (nsec)
0.8
SENSITIVITY(MHz/V)
400
0V
0.6
300
7V
0.4
14V
200
100
0.2
0
0
2
4
6
8
10
12
14
0
1
2
3
4
5
6
7
8
9
Vfctl (V)
FREQUENCY (GHz)
[1] Rejection ratio is defined as the ratio of the frequency at which the relative insertion loss is 20 dB to ƒcutoff
3-3
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC882LP5E
v01.0310
FILTER - TUNABLE, LOW PASS SMT
4.5 - 7.6 GHz
Absolute Maximum Ratings
Frequency Control Voltage (Vfctl)
RF Power Input
Storage Temperature
ESD Rating (HBM)
-0.5 to +15V
26.5 dBm
-65 to +150 °C
Class 1B
Reliability Information
Junction Temperature to Maintain
1 Million Hour MTTF
Nominal Junction Temperature
(T= 85 °C and Pin = 10 dBm)
Operating Temperature
150 °C
90 °C
-40 to +85 °C
3
FILTERS - TUNABLE - SMT
3-4
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS

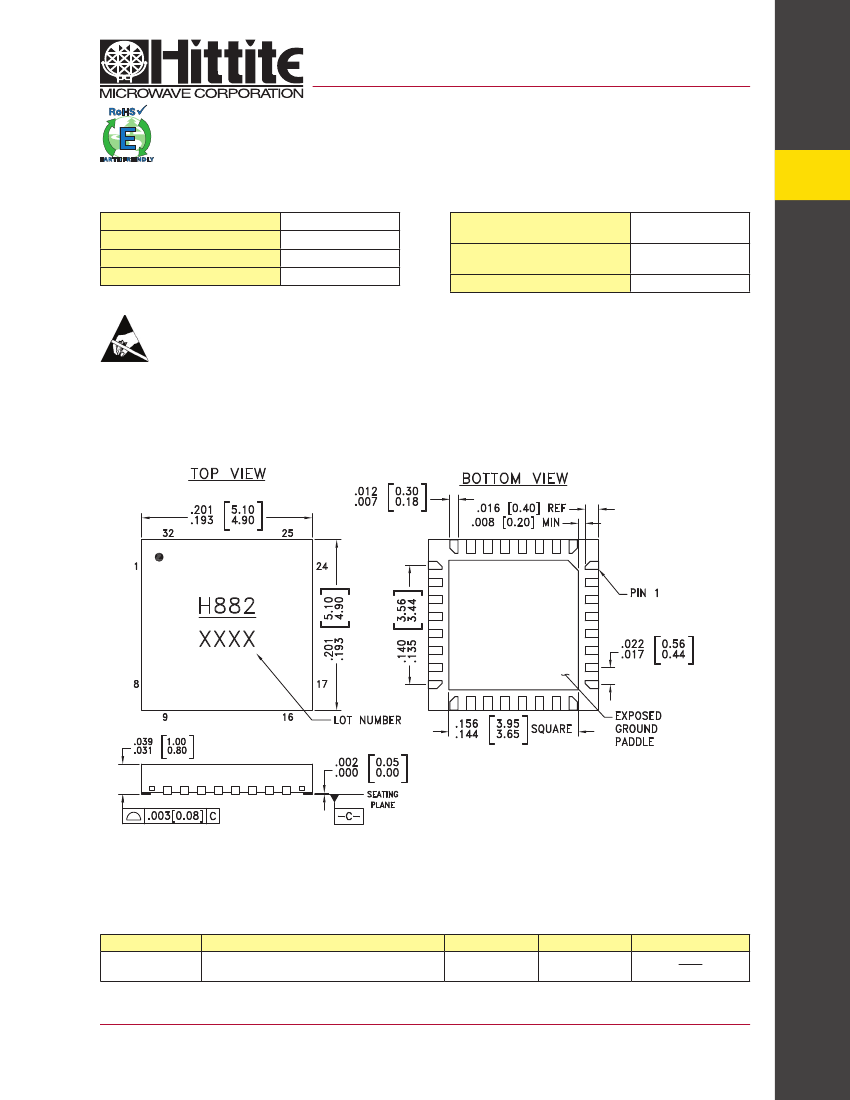

Outline Drawing
NOTES:
1. LEADFRAME MATERIAL: COPPER ALLOY
2. DIMENSIONS ARE IN INCHES [MILLIMETERS]
3. LEAD SPACING TOLERANCE IS NON-CUMULATIVE.
4. Pin BURR LENGTH SHALL BE 0.15mm MAXIMUM.
Pin BURR HEIGHT SHALL BE 0.05mm MAXIMUM.
5. PACKAGE WARP SHALL NOT EXCEED 0.05mm.
6. ALL GROUND LEADS AND GROUND PADDLE MUST BE
SOLDERED TO PCB RF GROUND.
7. REFER TO HITTITE APPLICATION NOTE FOR SUGGESTED
LAND PATTERN.
Package Information
Part Number
HMC882LP5E
Package Body Material
RoHS-compliant Low Stress Injection Molded Plastic
Lead Finish
100% matte Sn
MSL Rating
MSL1
[2]
Package Marking
[1]
H882
XXXX
[1] 4-Digit lot number XXXX
[2] Max peak reflow temperature of 260 °C
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC882LP5E
v01.0310
FILTER - TUNABLE, LOW PASS SMT
4.5 - 7.6 GHz
3
FILTERS - TUNABLE - SMT
Pin Descriptions
Pin Number
1 - 4, 7 - 13,
15 - 18, 21 - 32
Function
N/C
Description
The pins are not connected internally; however, all data
shown herein was measured with these pins connected to
RF/DC ground externally.
These pins and exposed paddle
must be connected to RF/DC ground.
Interface Schematic
5, 20
GND
6
RFIN
This pin is DC coupled and matched to 50 Ohms.
External voltage must not be applied to this pin.
14
Vfctl
Cutoff frequency control voltage.
19
RFOUT
This pin is DC coupled and matched to 50 Ohms.
External voltage must not be applied to this pin.

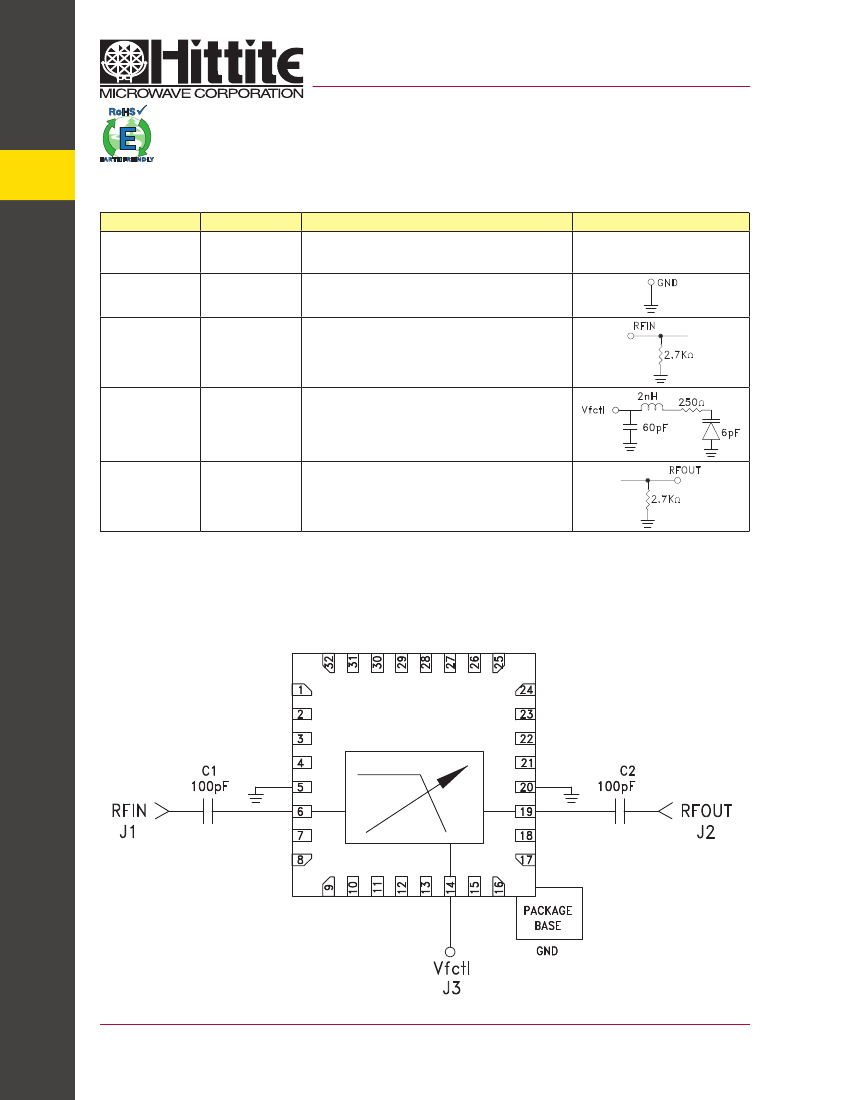

Application Circuit
3-5
