MCH6534 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> MCH6534

MCH6534: DescriptionSwitching, Driver Applications; CategoryDiscrete semiconductor The transistor; File Size34KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

MCH6534 Overview

Switching, Driver Applications

MCH6534 Parametric

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-F6
Contacts	6
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.7 A
Collector-emitter maximum voltage	15 V
Configuration	SEPARATE, 2 ELEMENTS
Minimum DC current gain (hFE)	300
JESD-30 code	R-PDSO-F6
Number of components	2
Number of terminals	6
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.55 W
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	330 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

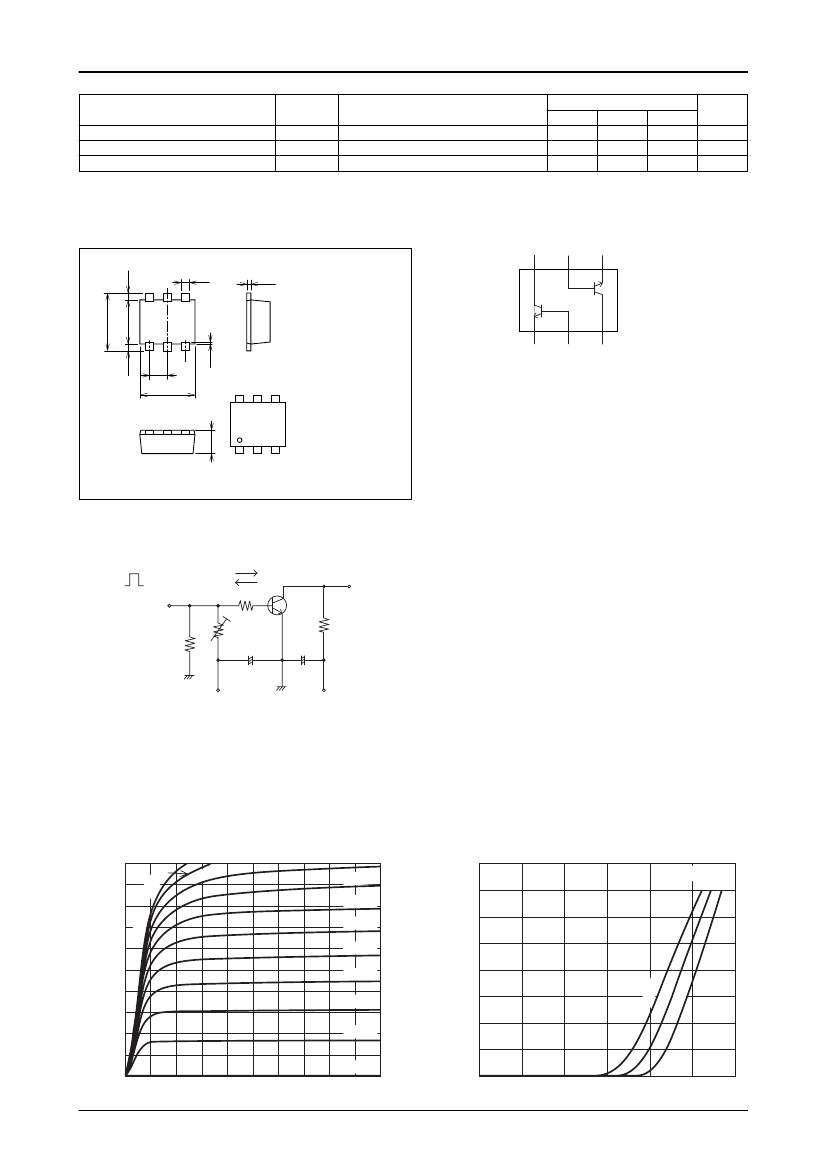

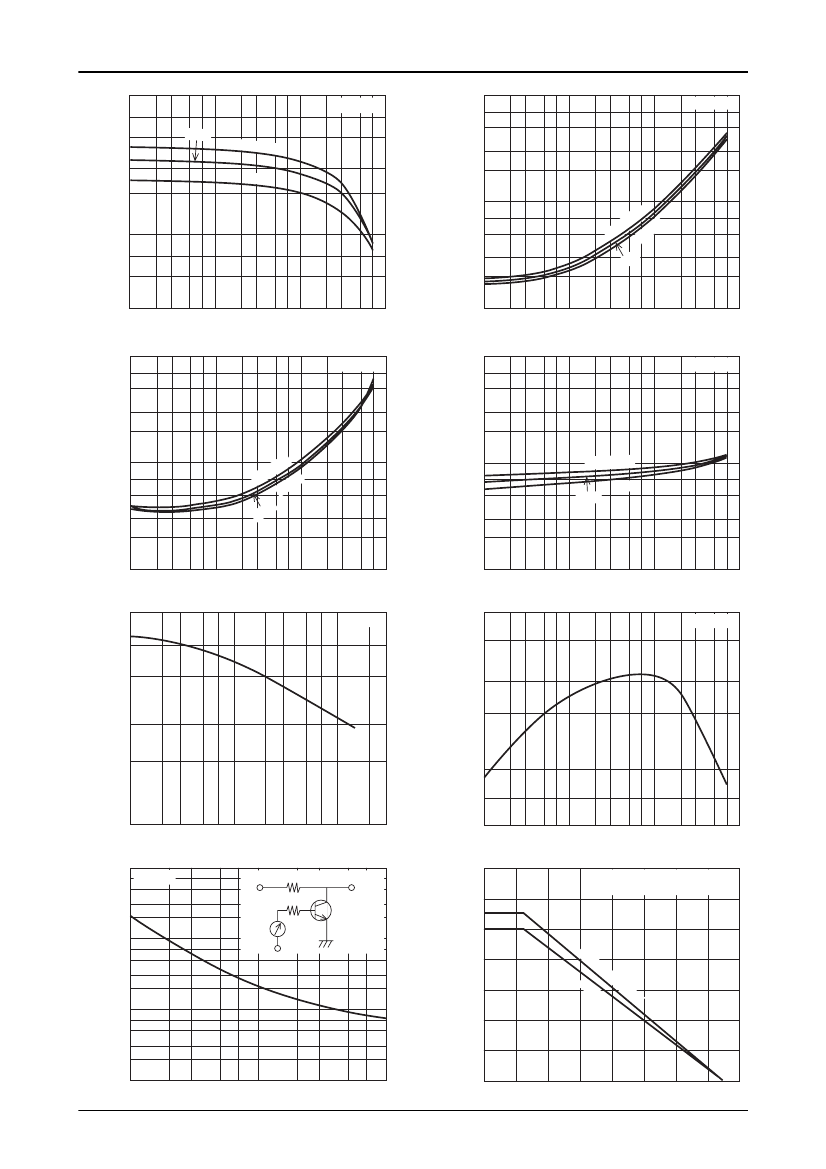

Ordering number : ENN7643

MCH6534

Applications

•

NPN Epitaxial Planar Silicon Transistor

Switching, Driver Applications

Low-frequency power amplifier, high-speed switching motor drivers, muting.

Features

•

Composite type with 2 NPN transistors contained in a single package, facilitating high-density mounting.

Ultrasmall package permitting applied sets to be small and slim.

Small ON-resistance (Ron).

Specifications

Absolute Maximum Ratings

at Ta=25°C

Parameter

Collector-to-Base Voltage

Collector-to-Emitter Voltage

Emitter-to-Base Voltage

Collector Current

Collector Current (Pulse)

Collector Dissipation

Total Power Dissipation

Junction Temperature

Storage Temperature

Symbol

VCBO

VCEO

VEBO

ICP

Tstg

Conditions

Ratings

700

1.4

Mounted on a ceramic board (600mm

!0.8m)

Unit

°C

0.5

0.55

150

--55 to +150

Mounted on a ceramic board (600mm

!0.8m)

Electrical Characteristics

at Ta=25°C

Parameter

Collector Cutoff Current

Emitter Cutoff Current

DC Current Gain

Gain-Bandwidth Product

Output Capacitance

Collector-to-Emitter Saturation Voltage

Base-to-Emitter Saturation Voltage

Collector-to-Base Breakdown Voltage

Collector-to-Emitter Breakdown Voltage

Emitter-to-Base Breakdown Voltage

Symbol

ICBO

IEBO

hFE

Cob

VCE(sat)

VBE(sat)

V(BR)CBO

V(BR)CEO

V(BR)EBO

VCB=15V, IE=0

VEB=4V, IC=0

VCE=2V, IC=10mA

VCE=2V, IC=50mA

VCB=10V, f=1MHz

IC=200mA, IB=10mA

IC=10µA, IE=0

IC=1mA, RBE=∞

IE=10µA, IC=0

300

330

3.2

150

0.9

300

1.2

Conditions

Ratings

min

typ

max

100

800

MHz

Unit

Marking : EG

Continued on next page.

Any and all SANYO products described or contained herein do not have specifications that can handle

applications that require extremely high levels of reliability, such as life-support systems, aircraft's

control systems, or other applications whose failure can be reasonably expected to result in serious

physical and/or material damage. Consult with your SANYO representative nearest you before using

any SANYO products described or contained herein in such applications.

SANYO assumes no responsibility for equipment failures that result from using products at values that

exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other

parameters) listed in products specifications of any and all SANYO products described or contained

herein.

SANYO Electric Co.,Ltd. Semiconductor Company

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

42004EA TS IM TA-100671 No.7643-1/4

MCH6534

Specifications of any and all SANYO products described or contained herein stipulate the performance,

characteristics, and functions of the described products in the independent state, and are not guarantees

of the performance, characteristics, and functions of the described products as mounted in the customer’s

products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,

the customer should always evaluate and test devices mounted in the customer’s products or equipment.

SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all

semiconductor products fail with some probability. It is possible that these probabilistic failures could

give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,

or that could cause damage to other property. When designing equipment, adopt safety measures so

that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective

circuits and error prevention circuits for safe design, redundant design, and structural design.

In the event that any or all SANYO products(including technical data,services) described or

contained herein are controlled under any of applicable local export control laws and regulations,

such products must not be exported without obtaining the export license from the authorities

concerned in accordance with the above law.

No part of this publication may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying and recording, or any information storage or retrieval system,

or otherwise, without the prior written permission of SANYO Electric Co., Ltd.

Any and all information described or contained herein are subject to change without notice due to

product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification"

for the SANYO product that you intend to use.

Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not

guaranteed for volume production. SANYO believes information herein is accurate and reliable, but

no guarantees are made or implied regarding its use or any infringements of intellectual property rights

or other rights of third parties.

This catalog provides information as of April, 2004. Specifications and information herein are subject

to change without notice.

PS No.7643-4/4
