25AA320/P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 25AA320/P

25AA320/P: Description4K X 8 SPI BUS SERIAL EEPROM, PDIP8, 0.300 INCH, PLASTIC, DIP-8; Categorystorage storage; File Size85KB，12 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric Compare View All

25AA320/P Overview

4K X 8 SPI BUS SERIAL EEPROM, PDIP8, 0.300 INCH, PLASTIC, DIP-8

25AA320/P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DIP
package instruction	0.300 INCH, PLASTIC, DIP-8
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
Maximum clock frequency (fCLK)	3 MHz
Data retention time - minimum	200
Durability	1000000 Write/Erase Cycles
JESD-30 code	R-PDIP-T8
JESD-609 code	e3
length	9.46 mm
memory density	32768 bi
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	4096 words
character code	4000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4KX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/5 V
Certification status	Not Qualified
Maximum seat height	4.32 mm
Serial bus type	SPI
Maximum standby current	0.000002 A
Maximum slew rate	0.005 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Maximum write cycle time (tWC)	5 ms
write protect	HARDWARE/SOFTWARE
Base Number Matches	1

Preview

Download Datasheet

View All

25AA320

32K 1.8V SPI

™

Bus Serial EEPROM

FEATURES

• SPI modes 0,0 and 1,1

• 3.0 MHz Clock Rate

• Single supply with Programming Operation down

to 1.8V

• Low Power CMOS Technology

- Max Write Current: 5.0 mA

- Read Current: 1.0 mA@ 5.5V 3 Mhz

- Standby Current: 1

A typical

• 4096 x 8 Organization

• 32-Byte Page

• Sequential Read

• Self-timed ERASE and WRITE Cycles

• Block Write Protection

- Protect none, 1/4, 1/2, or all of Array

• Built-in Write Protection

- Power On/Off Data Protection Circuitry

- Write Enable Latch

- Write Protect Pin

• High Reliability

- Endurance: 1M cycles (guaranteed)

- Data Retention: >200 years

- ESD protection: >4000V

• 8-pin PDIP/SOIC, 14-pin TSSOP

• Temperature ranges supported:

- Commercial (C):

C to +70

- Industrial (I)

-40

C to +85

PACKAGE TYPES

DIP/SOIC

TSSOP

CS 1

SO 2

NC 3

NC 4

NC 5

WP 6

14 V

13 HOLD

12 NC

11 NC

10 NC

9 SCK

8 SI

25AA320

HOLD

SCK

BLOCK DIAGRAM

Status

HV Generator

EEPROM

I/O Control

Logic

Memory

Control

Logic

Dec

Page Latches

SCK

HOLD

Vcc

Vss

Sense Amp.

R/W Control

Y Decoder

Array

DESCRIPTION

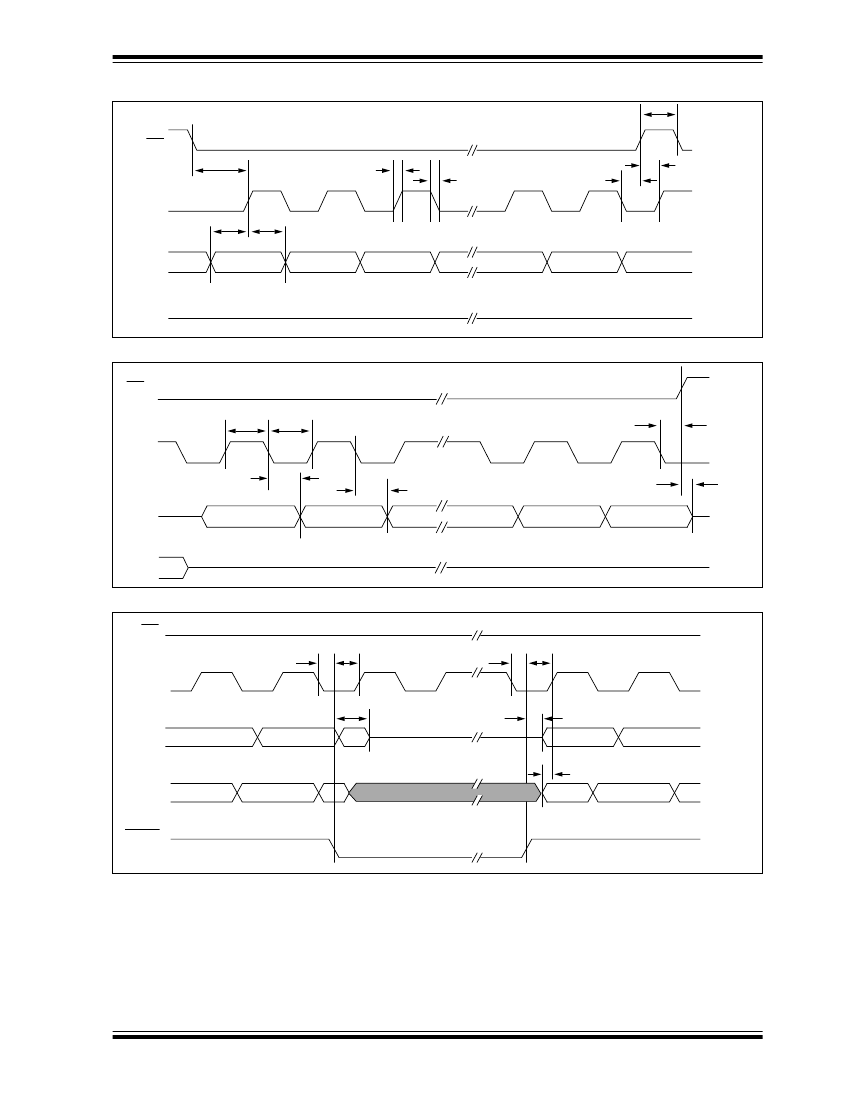

The Microchip Technology Inc. 25AA320 is a 32K-bit

serial Electrically Erasable PROM (EEPROM). The

memory is accessed via a simple Serial Peripheral

Interface (SPI) compatible serial bus. The bus signals

required are a clock input (SCK) plus separate data in

(SI) and data out (SO) lines. Access to the device is

controlled through a chip select (CS) input, allowing any

number of devices to share the same bus.

There are two other inputs that provide the end user

with additional ﬂexibility. Communication to the device

can be paused via the hold pin (HOLD). While the

device is paused, transitions on its inputs will be

ignored, with the exception of chip select, allowing the

host to service higher priority interrupts. Also, write

operations to the Status Register can be disabled via

the write protect pin (WP).

SPI is a trademark of Motorola.

1996 Microchip Technology Inc.

Preliminary

This document was created with FrameMaker 4 0 4

DS21157B-page 1

25AA320/P Related Products

	25AA320/P	25AA320/SNG	25AA320T/SNG	25AA320/SN	25AA320T/SN	25AA320T/ST	25AA320/STG	25AA320/ST	25AA320/PG	25AA320T/STG
Description	4K X 8 SPI BUS SERIAL EEPROM, PDIP8, 0.300 INCH, PLASTIC, DIP-8	4K X 8 SPI BUS SERIAL EEPROM, PDSO8, 0.150 INCH, SOIC-8	4K X 8 SPI BUS SERIAL EEPROM, PDSO8, 0.150 INCH, SOIC-8	4K X 8 SPI BUS SERIAL EEPROM, PDSO8, 0.150 INCH, SOIC-8	4K X 8 SPI BUS SERIAL EEPROM, PDSO8, 0.150 INCH, SOIC-8	4K X 8 SPI BUS SERIAL EEPROM, PDSO14, 4.40 MM, TSSOP-14	4K X 8 SPI BUS SERIAL EEPROM, PDSO14, 4.40 MM, TSSOP-14	4K X 8 SPI BUS SERIAL EEPROM, PDSO14, 4.40 MM, TSSOP-14	4K X 8 SPI BUS SERIAL EEPROM, PDIP8, 0.300 INCH, PLASTIC, DIP-8	4K X 8 SPI BUS SERIAL EEPROM, PDSO14, 4.40 MM, TSSOP-14
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	incompatible	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	DIP	SOIC	SOIC	SOIC	SOIC	TSSOP	TSSOP	TSSOP	DIP	TSSOP
package instruction	0.300 INCH, PLASTIC, DIP-8	0.150 INCH, SOIC-8	0.150 INCH, SOIC-8	SOP, SOP8,.25	0.150 INCH, SOIC-8	4.40 MM, TSSOP-14	4.40 MM, TSSOP-14	TSSOP, TSSOP14,.25	0.300 INCH, PLASTIC, DIP-8	4.40 MM, TSSOP-14
Contacts	8	8	8	8	8	14	14	14	8	14
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum clock frequency (fCLK)	3 MHz	3 MHz	3 MHz	3 MHz	3 MHz	3 MHz	3 MHz	3 MHz	3 MHz	3 MHz
JESD-30 code	R-PDIP-T8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T8	R-PDSO-G14
JESD-609 code	e3	e3	e3	e0	e3	e3	e3	e3	e3	e3
length	9.46 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	5 mm	5 mm	5 mm	9.46 mm	5 mm
memory density	32768 bi	32768 bi	32768 bi	32768 bi	32768 bi	32768 bi	32768 bi	32768 bi	32768 bi	32768 bi
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	14	14	14	8	14
word count	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words
character code	4000	4000	4000	4000	4000	4000	4000	4000	4000	4000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4KX8	4KX8	4KX8	4KX8	4KX8	4KX8	4KX8	4KX8	4KX8	4KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	SOP	SOP	TSSOP	TSSOP	TSSOP	DIP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	260	260	260	260	260	260	260	NOT SPECIFIED	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.32 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.2 mm	1.2 mm	1.2 mm	4.32 mm	1.2 mm
Serial bus type	SPI	SPI	SPI	SPI	SPI	SPI	SPI	SPI	SPI	SPI
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
surface mount	NO	YES	YES	YES	YES	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	MATTE TIN	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	0.65 mm	0.65 mm	0.65 mm	2.54 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	40	40	40	40	40	40	40	NOT SPECIFIED	40
width	7.62 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	4.4 mm	4.4 mm	4.4 mm	7.62 mm	4.4 mm
Maximum write cycle time (tWC)	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms
Base Number Matches	1	1	1	1	1	1	1	1	1	-
Humidity sensitivity level	-	1	1	1	1	1	1	1	-	1
