LED Driver
LP1090-XX-YZ-E Series
Switch-Mode LED Driver
Total Power
96 Watts
Input Voltages
90-264 VAC or 100-277VAC
Number of Outputs
One
Product
Specifications
ANZ#: Z097d, Oct. 2, 2006
SPECIAL FEATURES
•
•
•
•
•
•
•
•
•
•
UL1310 / UL48 Class 2 certified
Various DC output available, max 96-Watts
Meet IP64 standards
Suitable for damp or dry locations
Suitable for wet location with adequate end
plate and connectors
Designed for outdoor or indoor applications
Built-in wiring compartments for easy
installation (selected models)
Compact, lightweight w/ aluminum case
Active PFC to conserve power consumption
DIN Rail Mounting – Optional
ELECTRICAL SPECIFICATIONS
Input range
Frequency
Power Factor
Crest Factor
Inrush current
Input current
Efficiency
EMI filtering
Maximum power
Current Adjust
range
Load regulation
Leakage Current
Hold up time
90 to 264 VAC, Full range or 100-277VAC
47 to 63 Hz
> 0.95 at full load, 115VAC
1.5 max.
40.0 Amps maximum at 230VAC, cold start, 25º C
1.5Amps maximum at 90VAC
85% typical at 230VAC and maximum load
47CFR, Part 2, Part 15 and Cispr PUB, 22 Class A
96W
30 ~ 50%
±3%
0.2mA @ 110VAC, 0.4mA @ 230VAC
Half cycle minimum at 120 VAC and 80% of rated
load
Over-voltage, Over-current, Over-power and Short
circuit protection: Auto-recovery
UL1310 / UL48 Class 2 certified
Certified
Protection
Operating temperature:
-30 to 70 º C
(De-rating : 2% per º C from 50ºC )
SAFETY
Storage temperature:
-40 to 85 º C
UL
Humidity (Non-Condensing):
5% to 95%
CE
Cooling:
Convection
Vibration Frequency:
5 to 50 Hz
MTBF:
>100,000 Hours at full load and 25ºC
ambient conditions (MIL-217F)
EMC :
Compliant to 47CFR, Part 2, Part15 and
Cispr PUB, 22 Class B
ENVIRONMENTAL
MODEL INFORMATION – SINGLE OUTPUT
Constant Voltage Mode
Constant Current Mode
Output
Output
Adjust range (Vdc) Current range (A) Voltage range (Vdc) Adjust range (A)
24 ~ 36
1.0 ~ 2.66
18 ~ 36
1.50 ~ 2.66
LP1090-36-YZ-E
18 ~ 24
1.5 ~ 4.00
12 ~ 24
2.50 ~ 4.00
LP1090-24-YZ-E
12 ~ 19
2.0 ~ 5.00
10 ~ 19
3.00 ~ 5.00
LP1090-19-YZ-E
Model Numbers
Total output
(Watts)
96
96
96

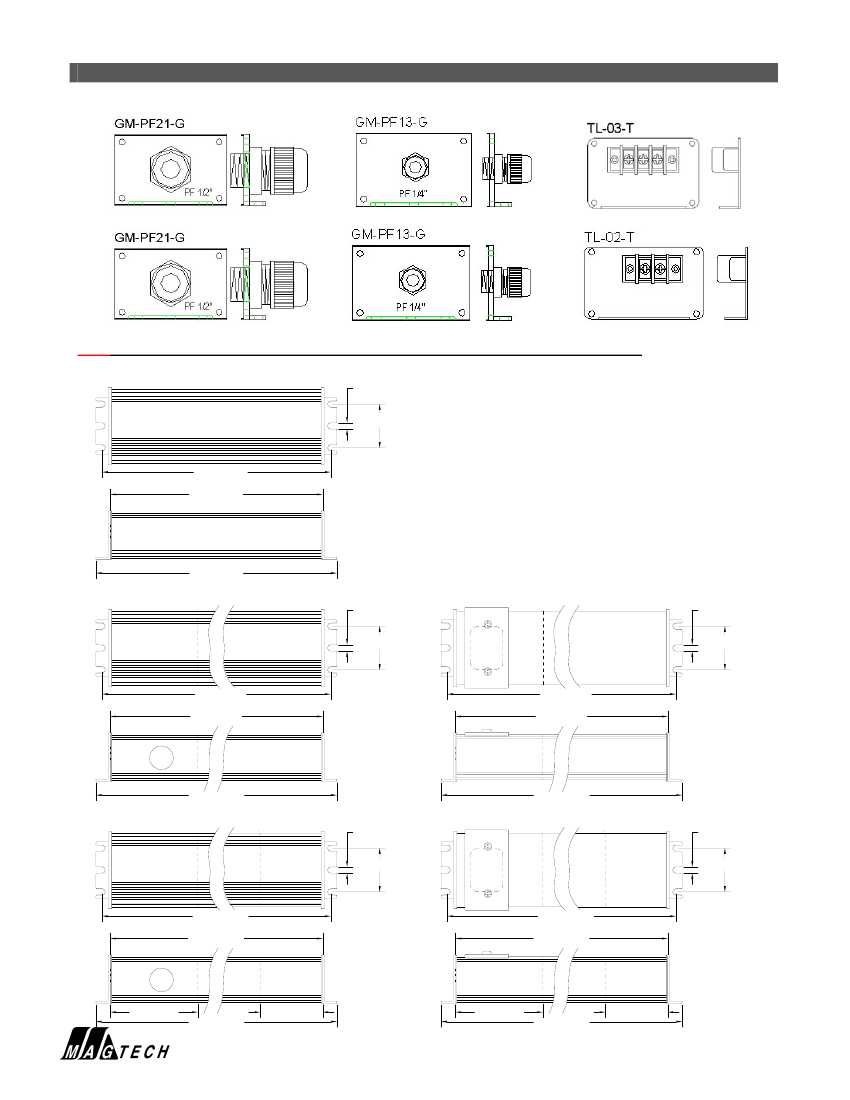

MECHANICAL DRAWING
Model Information – Single DC output
LP1090-XX-YZ-E
XX – DC outputs
Y – AC input side plate options, refer to drawing for more details
Z – DC output side plate options, refer to drawing for more details
E – Aluminum enclosure length, 170, 240, 290mm, refer to drawing for more details
Housing “240”, “290” – The wiring compartment is accessed through side plate only.
Housing “249”, “299” – The wiring compartment can be accessed from the top plate.
