5569-24A2GS-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Other integrated circuit (IC)> 5569-24A2GS-T

Preview

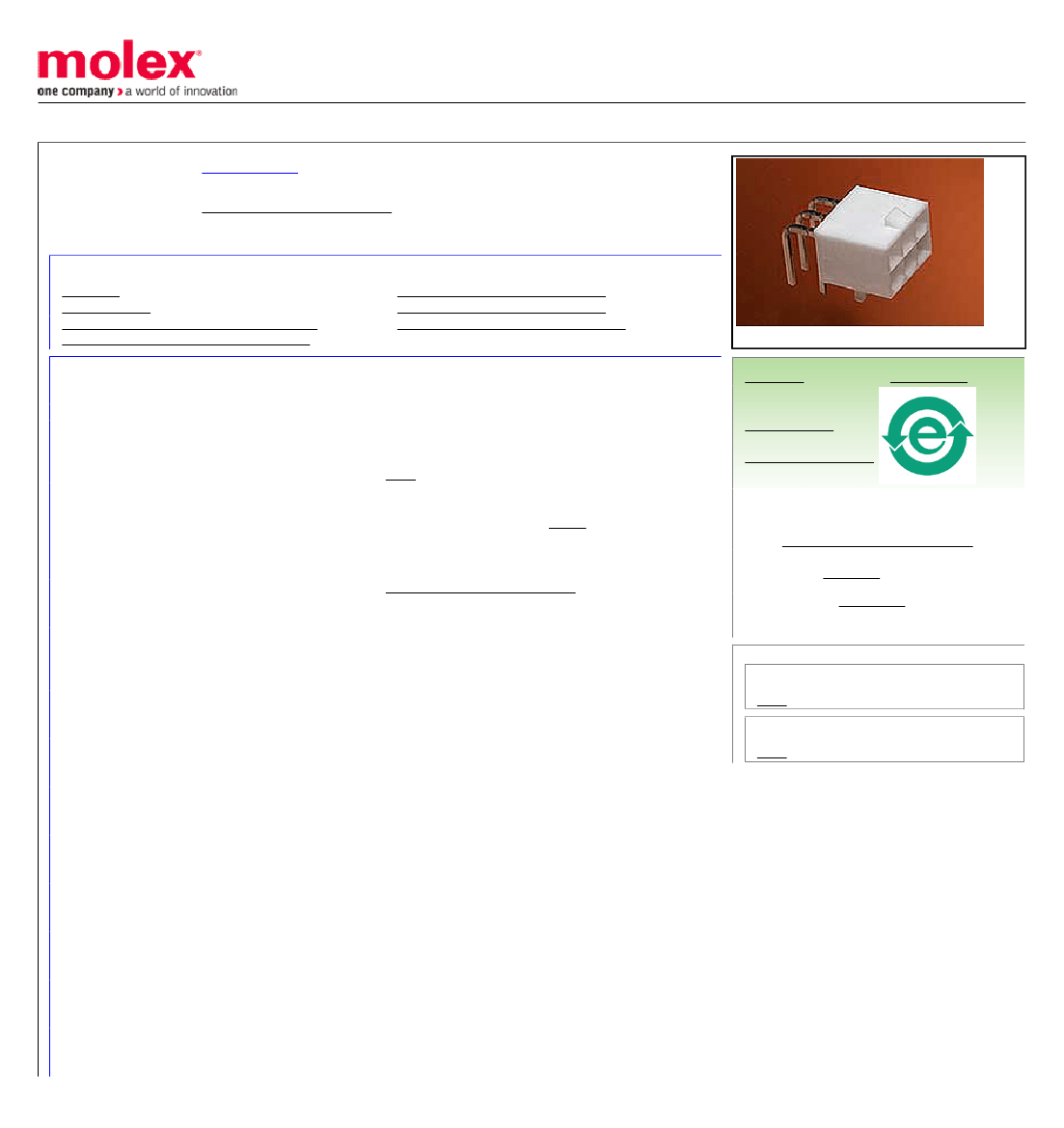

5569-24A2GS-T: Description24 CONTACT(S), MALE, POWER CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size39KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

5569-24A2GS-T Overview

24 CONTACT(S), MALE, POWER CONNECTOR, SOLDER

Preview

Download Datasheet

View All

This document was generated on 07/08/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

50-36-1865

Active

Mini-Fit Jr.™ Power Connectors

Mini-Fit® Jr. Header, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 24

Circuits, PA Polyamide Nylon 6/6 94V-2, 0.76µm Gold (Au) Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45750-001 (PDF)

Product Specification PS-5556-001 (PDF)

Test Summary TS-5556-002 (PDF)

Test Summary TS-5569-001 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Series

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Comments

PCB Headers

5569

Power, Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit® Plus HCS

Crimp Terminal Crimped to 16 AWG wire., See Molex

Product specification PS-5556-001 for additional current

de-rating information.

Mini-Fit Jr.™ Power Connectors

Mini-Fit Jr.™

883906369699

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Natural

94V-2

None

Yes

Brass

Gold

Nickel

Nylon

8.312/g

Right Angle

3.60mm

Yes

1.78mm

Tray

4.20mm

Yes

Search Parts in this Series

5569Series

Mates With

5557 Mini-Fit Jr.™ Receptacle Housing

5569-24A2GS-T Related Products

	5569-24A2GS-T	50-36-1865
Description	24 CONTACT(S), MALE, POWER CONNECTOR, SOLDER	24 CONTACT(S), MALE, POWER CONNECTOR, SOLDER
