ZR01E
High‐reliability discrete products
and engineering services since 1977
FEATURES:
•
•
•
•
Designed for use as relay suppression circuit applications.
Plastic ZR01E package.
Available as “HR” (high reliability) screened per MIL‐PRF‐19500, JANTX level. Add “HR” suffix to base part number.
Available Non‐RoHS (standard) or RoHS compliant (add PBF suffix).
Inverted Series Suppressor Network
MAXIMUM RATINGS
Ratings
Zener diode power dissipation
Rectifier maximum average forward current @ T
A
= 75°C
Rectifier maximum peak reverse voltage
Storage temperature range
Operating temperature range
Solder temperature
Symbol
P
D
I
AV
V
RWM
T
stg
T
J
T
SP
Value
1.5
1.0
600
70 to +175
70 to +150
260 maximum 10sec
Unit
Watts
Amps
Volts
°C
°C
°C
ELECTRICAL CHARACTERISTICS @ 25°C unless otherwise noted
Parameters
Zener voltage
I
ZT
= 1.5mA, T
P
= 10ms
Zener voltage
I
ZT
= 1.5mA, T
P
= 10ms, T
A
= 125°C
Zener voltage
I
ZT
= 1.5mA, T
P
= 10ms, T
A
= ‐55°C
Maximum zener reverse current
V
R
= 24V
Minimum diode breakdown voltage
I
R
= 20µA
Maximum diode reverse current
V
R
= 480V
Symbol
V
Z
V
Z
V
Z
I
R
V
BR
I
R
Min
33
36
30
0.1
600
1
Max
39
43
38
Unit
Volts
Volts
Volts
µA
Volts
µA
Rev. 20130822
ZR01E
High‐reliability discrete products
and engineering services since 1977

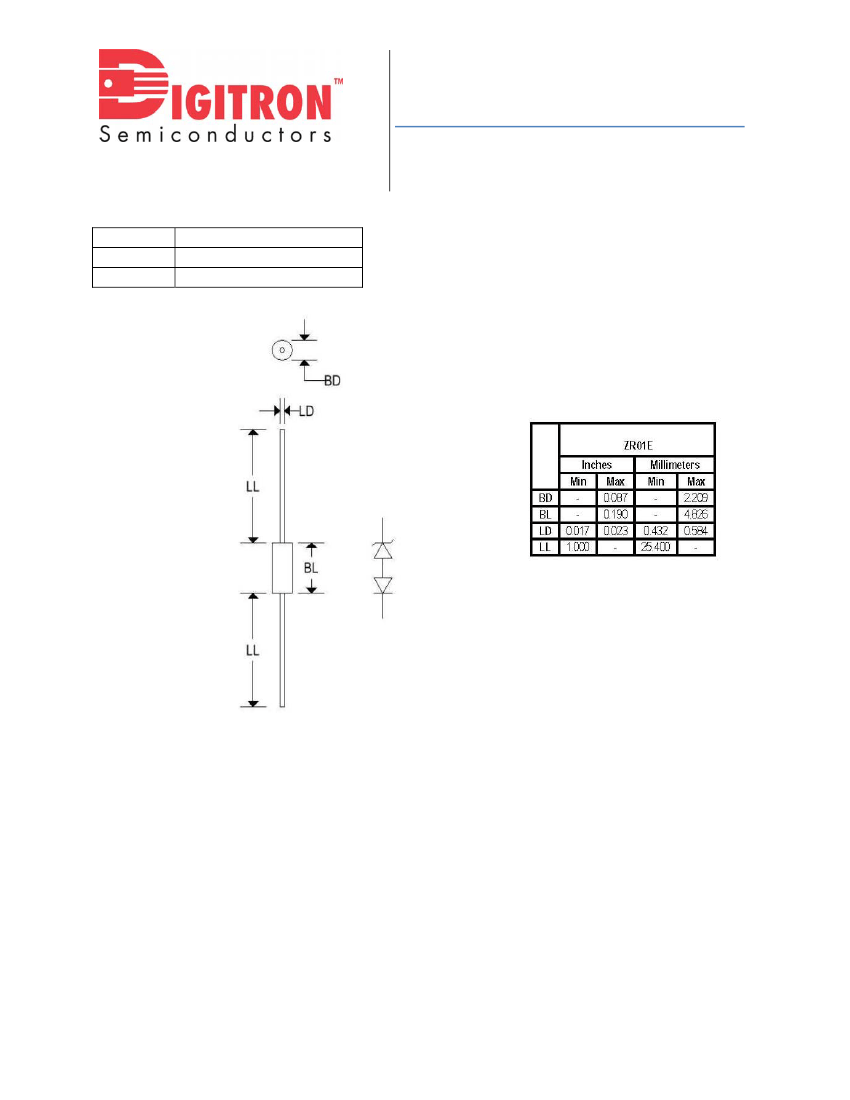

MECHANICAL CHARACTERISTICS
Case
Marking
Polarity
ZR01E plastic package
Body painted, alpha‐numeric
Cathode band
Inverted Series Suppressor Network
Rev. 20130822
