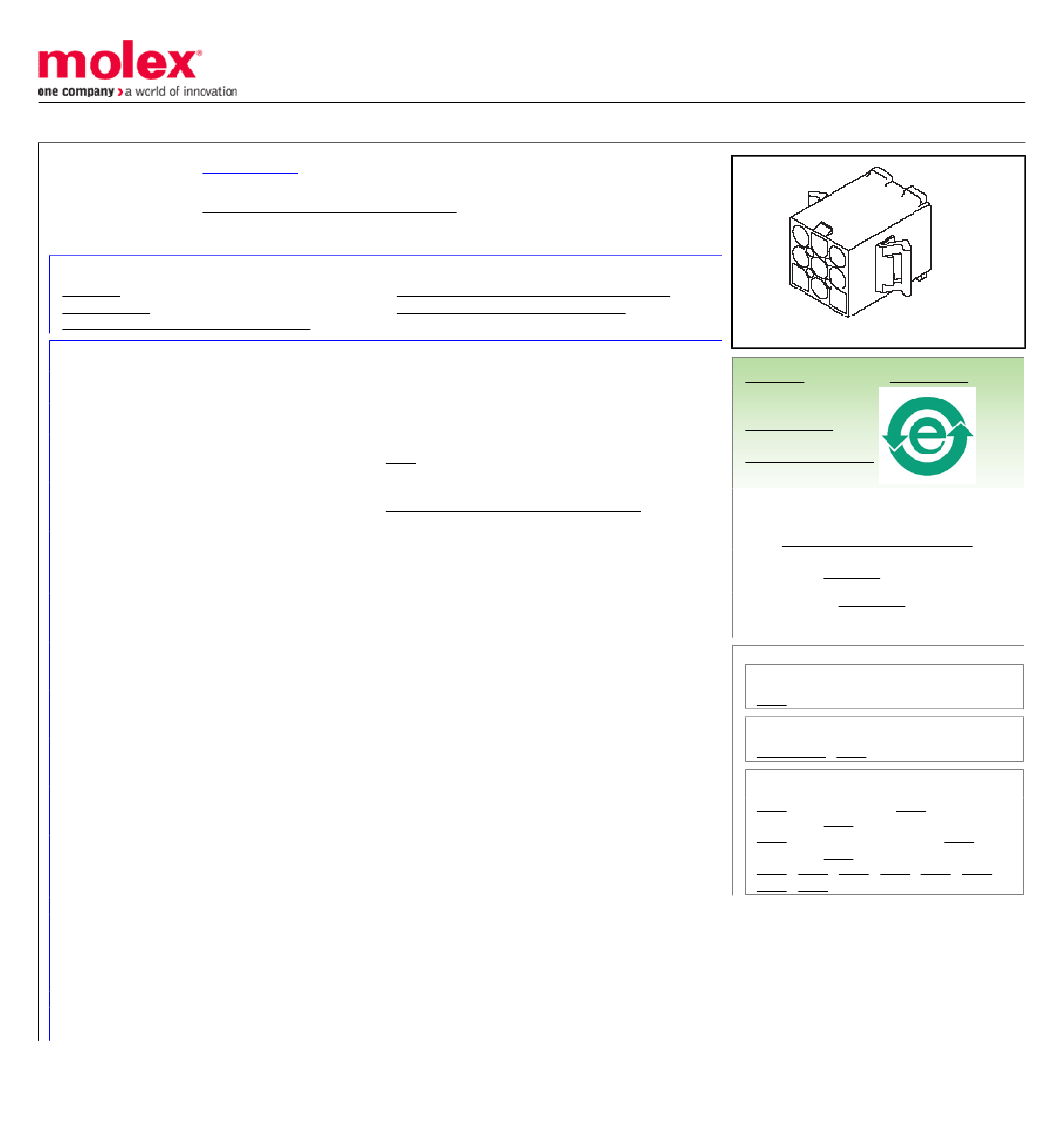

This document was generated on 04/15/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
39-03-6120
Active
Standard .093" Pin and Socket Connectors
2.36mm Diameter Standard .093" Pin and Socket Plug Housing with Positive Latch, UL
94V-2, Panel Mount, without Panel Mount, 12 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-3191-001 (PDF)
Packaging Specification SPK-3191-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Comments
Overview
Product Name
UPC
Crimp Housings
3191
Power, Wire-to-Board, Wire-to-Wire
Polarized to Mating Part
Standard .093" Pin and Socket Connectors
Standard .093"
800753756649
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (maximum)
Circuits Detail
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
No
12
3x4
Natural
94V-2
Plug
No
None
Yes
Nylon
14342.000/mg
3
Bag
Yes
6.70mm
Yes
No
-40°C to +105°C
Search Parts in this Series
3191Series
Mates With
39-03-6124 , 5219
Use With
1189 Crimp Terminals, 1190 Crimp
Terminals, 1380 Male Crimp Terminals,
1381 Female Crimp Terminals, 1433 Crimp
Terminals, 1434 Male Crimp Terminals,
2605 , 2606 , 1973 , 2151 , 2273 , 2870 ,
2871 , 4272
Electrical
Current - Maximum per Contact
7A
Material Info
Old Part Number
3191-12P
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
SPK-3191-001
PS-3191-001
SD-3191-021
