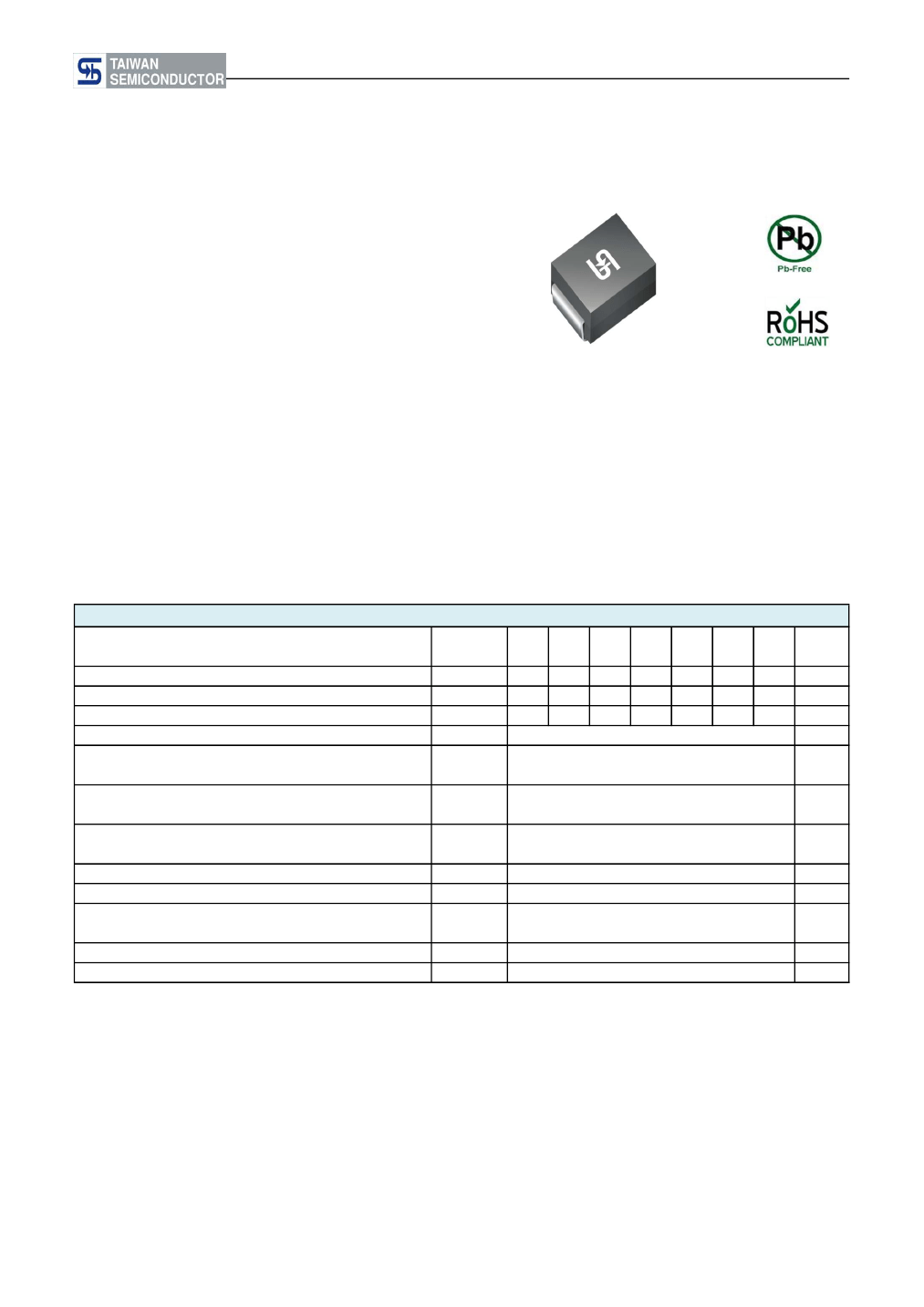

S3A - S3M
Taiwan Semiconductor
CREAT BY ART
3A, 50V - 1000V Surface Mount Rectifiers
FEATURES
- Glass passivated chip junction
- Ideal for automated placement
- Low forward voltage drop
- High current capability
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
DO-214AB (SMC)
MECHANICAL DATA
Case:
DO-214AB (SMC)
Molding compound, UL flammability classification rating 94V-0
Moisture sensitivity level: level 1, per J-STD-020
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.21 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
= 3 A
Maximum reverse current @ rated V
R
Typical reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJL
R
θJA
T
J
T
STG
S3A
50
35
50
S3B
100
70
100
S3D
200
140
200
S3G
400
280
400
3
100
1.15
10
250
1.5
60
13
47
- 55 to +150
- 55 to +150
S3J
600
420
600
S3K S3M
800
560
800
1000
700
1000
UNIT
V
V
V
A
A
V
μA
μs
pF
°C/W
°C
°C
Document Number: DS_D1410016
Version: K15
S3A - S3M
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
PART NO.
SUFFIX
S3x
(Note 1)
R7
H
R6
M6
G
PACKING CODE
PACKING CODE
SUFFIX
SMC
SMC
SMC
850 / 7" Plastic reel
3,000 / 13" Paper reel
3,000 / 13" Plastic reel
PACKAGE
PACKING
Note 1: "xx" defines voltage from 50V (S3A) to 1000V (S3M)
EXAMPLE
PREFERRED
PART NO.
S3MHR7G
PART NO.
S3M
PART NO.
SUFFIX
H
PACKING CODE
R7
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

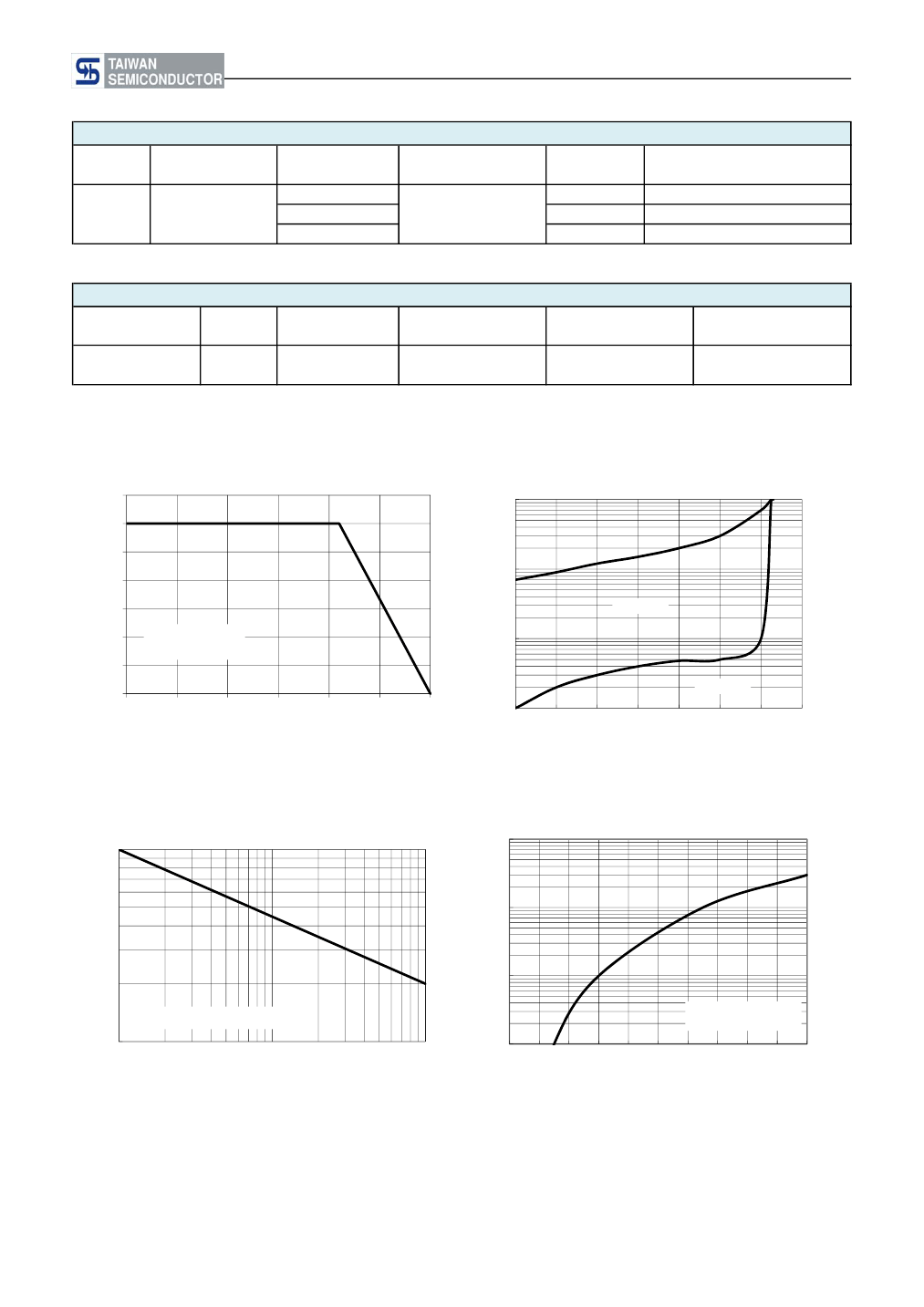

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
3.5
3
2.5
2
1.5
1
0.5
0
0
25
50
75
100
125
150
LEAD TEMPERATURE (
°
C)
RESISTIVE OR
INDUCTIVE LOAD
INSTANTANEOUS REVERSE CURRENT (μA)
AVERAGE FORWARD CURRENT (A)
100
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
10
T
J
=125°C
1
T
J
=25°C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE URRENT (A)
INSTANTANEOUS FORWARD CURRENT (A)
100
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
100
10
1
Pulse Width=300μs
1% Duty Cycle
0.1
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
1.5
1.6
8.3ms Single Half Sine Wave
10
1
10
100
NUMBER OF CYCLES AT 60 Hz
FORWARD VOLTAGE (V)

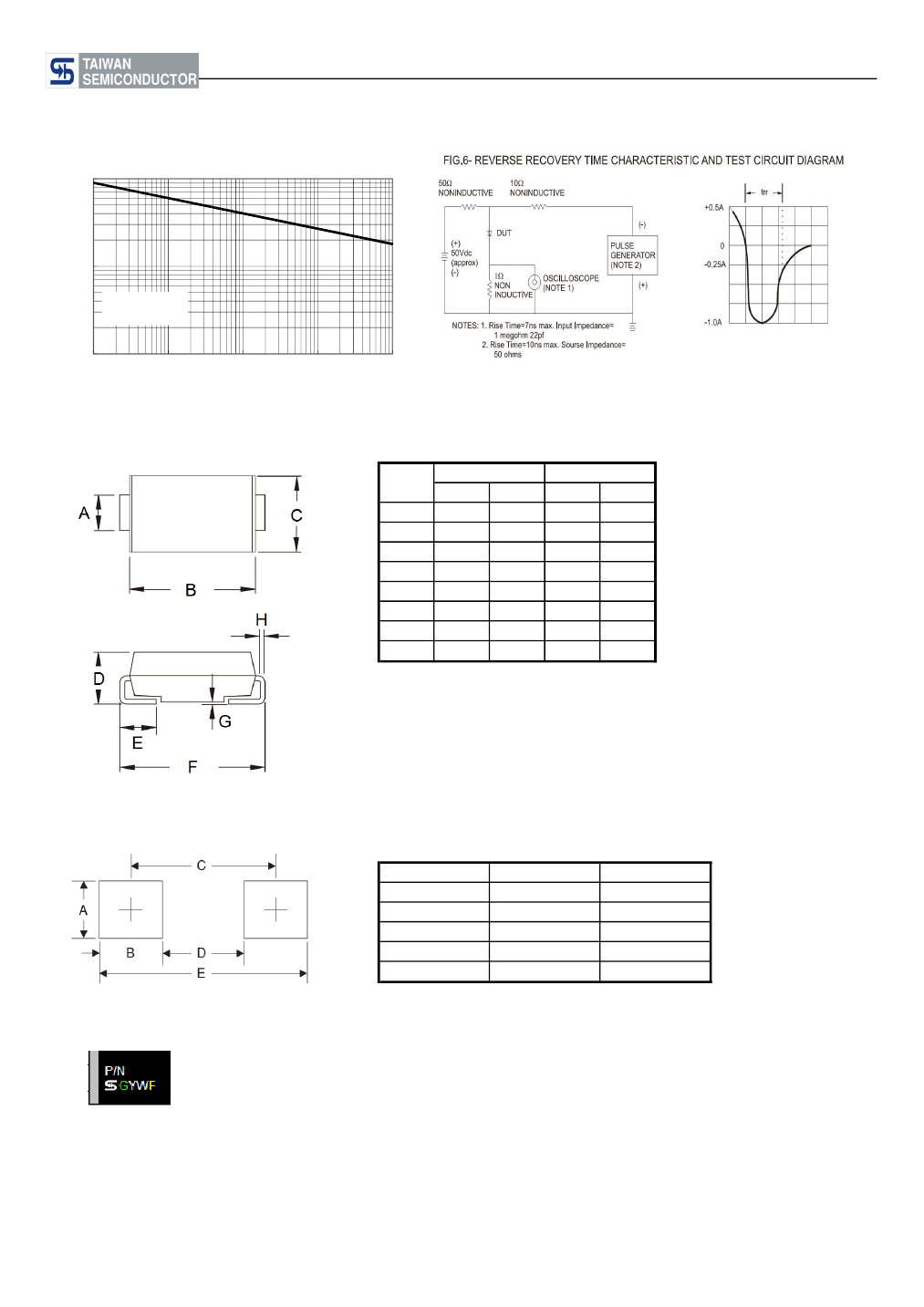

Document Number: DS_D1410016
Version: K15
S3A - S3M
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1410016
Version: K15
