PARA LIGHT ELECTRONICS CO., LTD.
DATA
SHEET
PART NO.: L-T670HECT
REV: A / 0
CUSTOMER’S APPROVAL : _______________
DCC : ____________
DRAWING NO. : DS-7A-10-0005
DATE : 2009-11-18
PAGE 1 of 15
PARA-FOR-065
SURFACE MOUNT DEVICE LED
Part No. : L-T670HECT
Features
Top view, Wide view angle, super red color PLCC 2 package SMD LED .
EIA STD package, packing in 8mm tape on 7" diameter reels (ANSI/EIA-481-B-2001).
Compatible with automatic Pick & Place equipment.
Compatible with IR Reflow soldering and TTW soldering.
Pb free product and acceptable lead-free process!
Meet RoHS Green Product.
REV: A / 0
Application
Backlighting (Switches, keys, displays, illuminated advertising)
Emergency lighting / Signal and symbol luminaries.

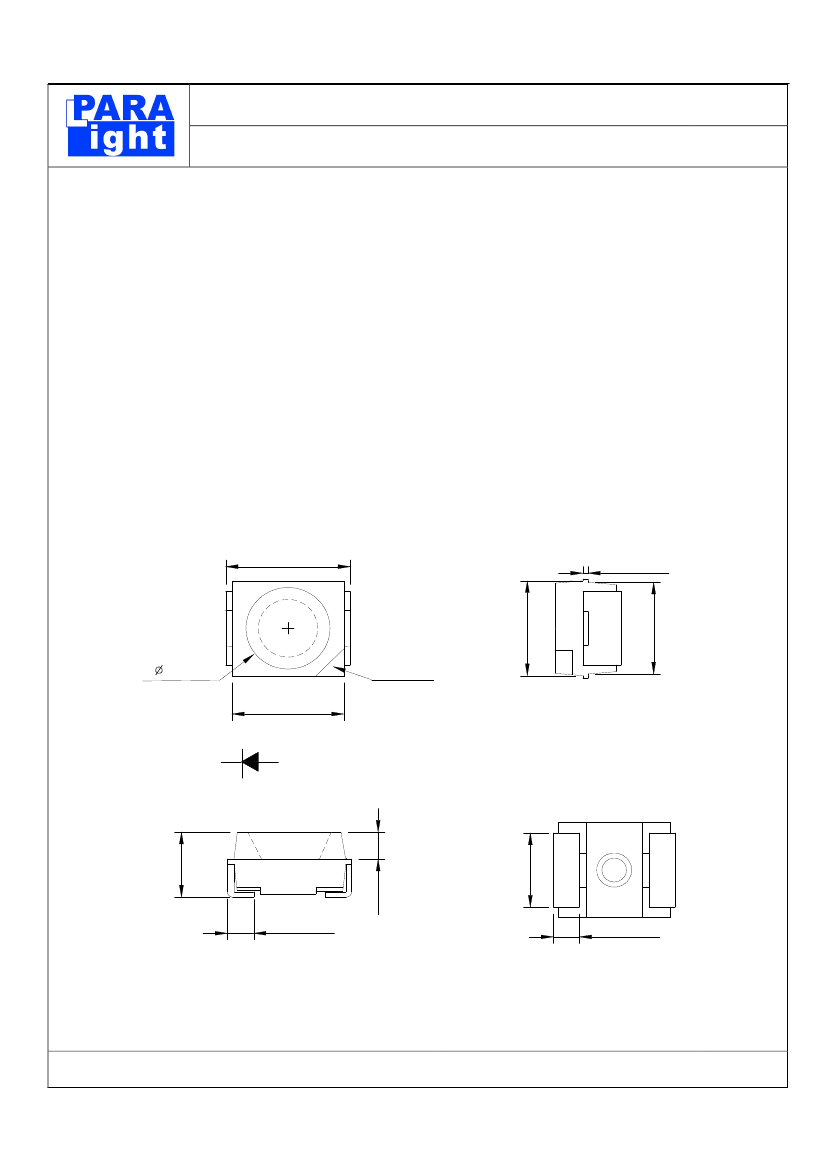

Package Outline Dimensions
TOP VIEW
SIDE VIEW
3.50
0.15
2.40
3.20
+ POLARITY
FRONT VIEW
-
c 0.80
BACK VIEW
1.90
0.75
0.80
2.18
0.75
Notes:
1. All dimensions are in millimeters.
0.10mm (.004") unless otherwise noted.
2. Tolerance is
DRAWING NO. : DS-7A-10-0005
PARA-FOR-068
DATE : 2009-11-18
PAGE
2.70
2.80
2 of 15
SURFACE MOUNT DEVICE LED
Part No. : L-T670HECT
CHIP MATERIALS
Dice Material : AlInGaP
Light Color : Super red
Lens Color : Water Clear
REV: A / 0
Absolute Maximum Ratings(Ta=25
Symbol
P
D
I
PF
I
F
V
R
ESD
Topr
Tstg
Tsld
Parameter
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
Continuous Forward Current
Reverse Voltage
)
Rating
75
100
20
5
2000
-40 ~ + 85
-40 ~ + 100
Reflow Soldering:260
Hand Soldering:350
(for 10seconds)
(for 3 seconds)
Unit
mW
mA
mA
V
V
Electrostatic Discharge Threshold (HBM)
Note A
Operating Temperature Range
Storage Temperature Range
Soldering Temperature (One times MAX.)
Note A :
HBM : Human Body Model. Seller gives no other assurances regarding the ability of to
withstand ESD.
Electro-Optical Characteristics
(Ta=25
Parameter
Luminous Intensity
Viewing Angle
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
VF
IR
2
Symbol
IV
Min.
300
Typ.
500
120
622
20
2.0
)
Max.
Unit
mcd
Deg
nm
nm
2.5
10
V
IF=20mA
IF=20mA
IF = 20mA
VR = 5V
Test Condition
IF=20mA
©
1/2
D
A
DRAWING NO. : DS-7A-10-0005
PARA-FOR-068
DATE : 2009-11-18
PAGE
3 of 15
SURFACE MOUNT DEVICE LED
Part No. : L-T670HECT
Notes:
1. Luminous intensity is measured with a light sensor and filter combination that
proximities the CIE eye-response curve.
2.
1/2 is the off-axis angle at which the luminous intensity is half the axial luminous
intensity.
3. Caution in ESD :
Static Electricity and surge damages the LED. It is recommended use a wrist band or
anti-electrostatic glove when handling the LED. All devices, equipment and machinery
must be properly grounded.
4. Major standard testing equipment by “Instrument System” Model : CAS140B Compact
Array Spectrometer and “KEITHLEY” Source Meter Model : 2400.
REV: A / 0
©

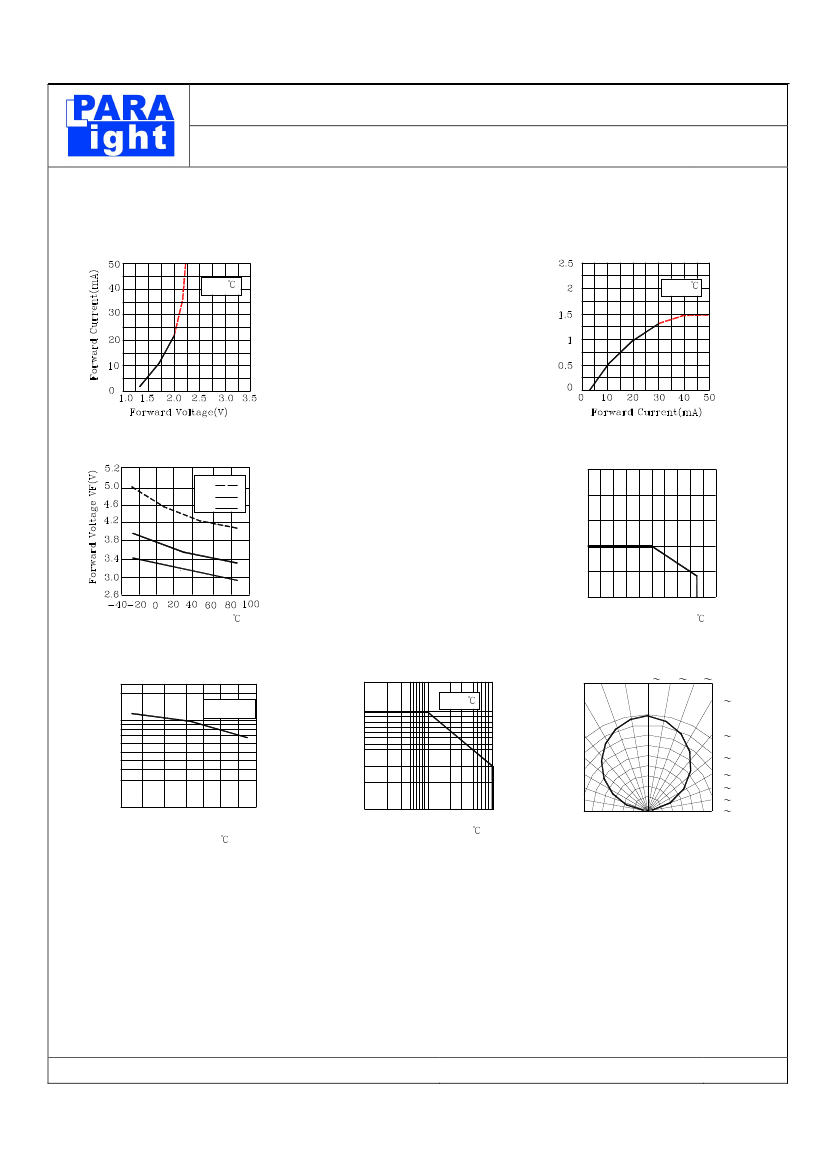

Typical Electro-Optical Characteristics Curves
Fig.1 Relative Intensity vs. Wavelength
DRAWING NO. : DS-7A-10-0005
PARA-FOR-068
DATE : 2009-11-18
PAGE
4 of 15
SURFACE MOUNT DEVICE LED
Part No. : L-T670HECT
Typical Electro-Optical Characteristics Curves
(25
REV: A / 0
Ambient Temperature Unless Otherwise Noted)
Relative Luminous lntensity
Normalized of 20mA
Ta=25
Ta=25
Fig.1 Forward Current vs.Forward Voltage
Fig. Relative Luminous Intensity vs.Forward Current
50
Forward Current IF(mA)
IFP=60mA
IFP=20mA
IFP=5mA
40
30
20
10
0
0
20
40
60
80
100
Ambient Temperature Ta( )
Ambient Temperature Ta( )
Fig.3 Ambient Temperature vs.Forward Voltage
Allowable Forward Current IFP(mA)
Relative luminous intensity
1
0.5
0.2
0.1
-40 -20
0
20 40
100
50
30
20
10
1
0.9
0.8
0.7
5 10
20
50 100
80 100
Fig.5 Luminous Intensity vs.Ambient Temperature
Ambient Temperature Ta( )
Ambient Temperature Ta( )
Fig.6 Forward Current Derating Curve
Fig.7 Spatial Distribution
DRAWING NO. : DS-7A-10-0005
PARA-FOR-068
DATE : 2009-11-18
PAGE
5 of 15
¡
0.5 0.3 0.1
0.2 0.4 0.6
¡
¡
¡
60
70
80
90
¡
50
¡
1.0
40
¡
IFP=20mA
2
Ta=25
¡
¡
¡
Fig.4 Forward Current Derating Curve
200
0
10
20
30
