NS10145T220MNV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > NS10145T220MNV

NS10145T220MNV: DescriptionSMD Power Inductors for Automotive; File Size142KB，1 Pages; ManufacturerTAIYO YUDEN; Websitehttps://www.yuden.co.jp/

Download Datasheet View All

NS10145T220MNV Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NS10145T220MNV	-	-	View	Buy Now

NS10145T220MNV Overview

SMD Power Inductors for Automotive

Preview

Download Datasheet

View All

Spec Sheet

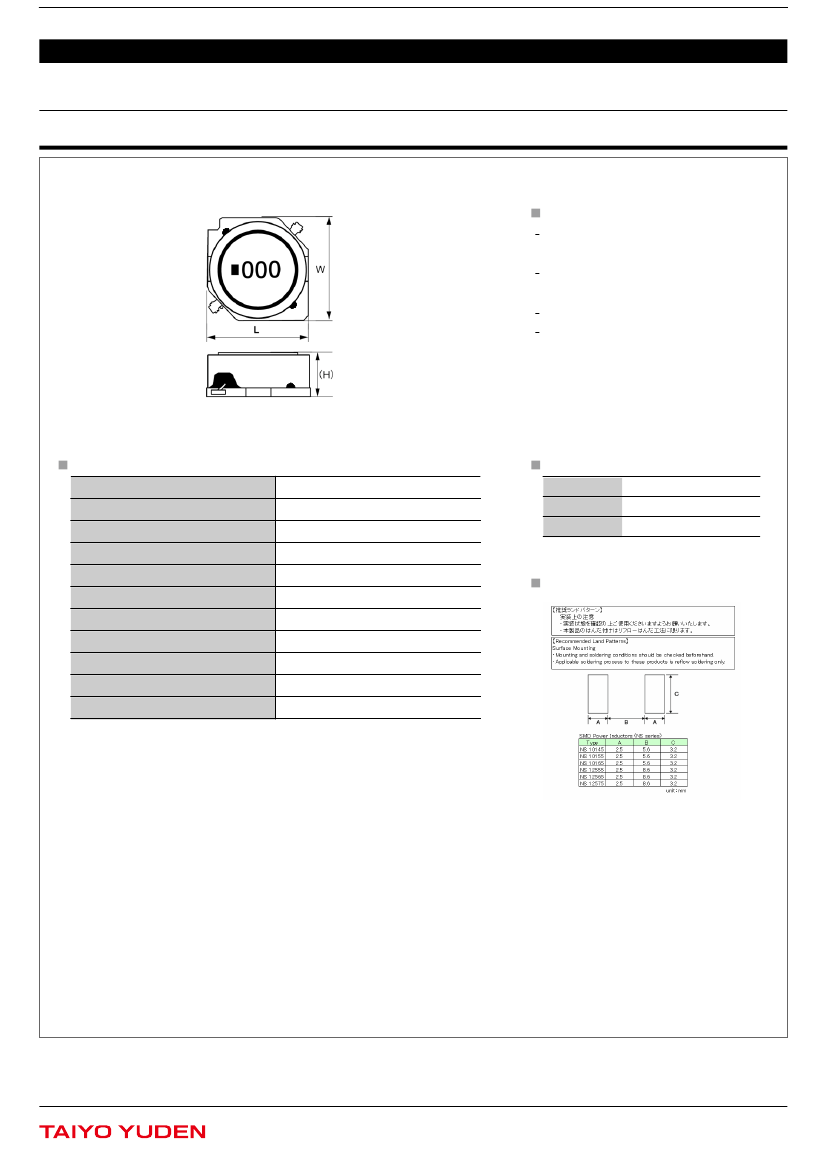

INDUCTORS (High Reliability Application)

SMD Power Inductors for Automotive / Industrial Applications (NS series)

NS10145T220MNV

Features

Item Summary

22μH(±20%), 2.87A, 2.3A

Lifecycle Stage

Mass Production

AEC-Q200 qualified

Standard packaging quantity (minimum)

Taping 2000pcs(500pcs*4reel)

Products characteristics table

CaseSize (EIA/JIS)

Inductance

Inductance Measuring Frequency

Rated Current -Saturation Current

Rated Current -Temperature Rise Current

DC Resistance (max)

Avg. of DC.Resistance

Self-resonant Frequency (min)

RoHS Compliance

Halogen Free

Soldering Method

-/101101

22μH(±20%)

100kHz

2.87A

2.3A

External Dimensions

10.1mm ±0.3

4.5mm ±0.35

Recommended Land Patterns

0.0684Ω

0.057Ω

13.5MHz

Yes

Reflow

2015.03.09

The data is reference only. Electrical characteristics vary depending on environment or measurement condition.

TAIYO YUDEN reserves the right to make change to the Date at any time without notice.

Before making final selection, please check product specification.

http://www.ty-top.com
