NT
Features
n
Surface mount wirewound resistor
n
High power
n
Low temperature coefficient
n
RoHS compliant*
n
Non-inductive versions available
LE
AD
F
RE
E
Applications
n
Power supplies
n
Motor drives
n
Electricity metering
*R
oH
S
C
OM
PL
IA
General Information

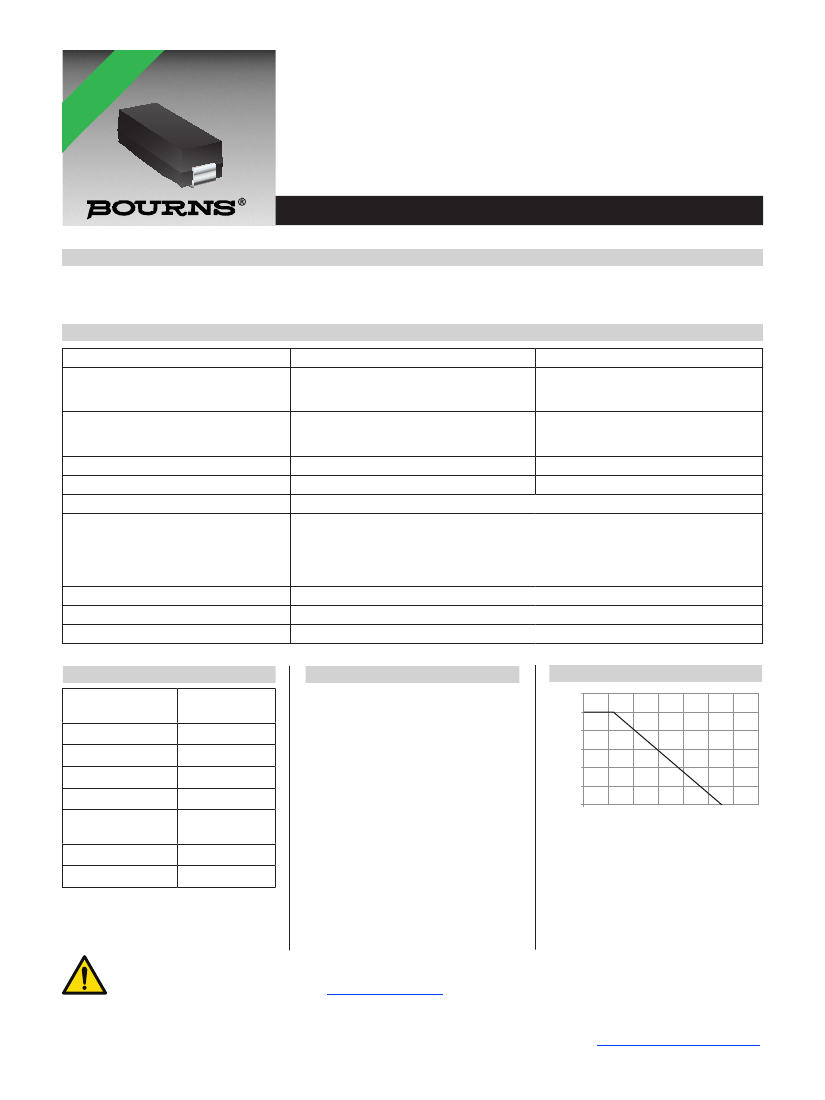

PWR2615/PWR4525 Surface Mount Wirewound Power Resistors
The PWR2615/PWR4525 Series are surface mount wirewound resistors offering 1 and 2 W power ratings as well as a wide
resistance and operating temperature range.
Electrical Characteristics
Parameter
Resistance Range
1 % Based on E24+E96 Series
5 % Based on E24 Series
Resistance Range
(Non-Inductive Versions)
Based on E24 Series
Power Rating @ 70 °C
Maximum Working Voltage
Absolute Tolerance Values
Temperature Coefficient (TCR)
R>10 ohms
1 ohm≤R≤10 ohms
0.1 ohm ≤R<1 ohm
R<0.1 ohm
Operating Temperature
Insulation Resistance
Dielectric Strength
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
PWR2615
0.01 to 5K ohms
0.005 to 2K ohms
1W
58 V
0.5 % / 1 % / 5 %
±20 PPM/°C
±50 PPM/°C
±90 PPM/°C
±150 PPM/°C
-55 to +275 °C
>1000 megohms
1000 VAC
PWR4525
0.01 to 15K ohms
0.005 to 6K ohms
2W
173 V
(For resistances >2K ohms,
please consult factory for availability)
Environmental Characteristics
Tests per
MIL-STD-202
Short Time Overload
Load Life
Moisture Resistance
Thermal Shock
Resistance to Solder
Heat
Shock
Vibration
ΔR
Max.
0.5 % ±0.05
Ω
1.0 % ±0.05
Ω
1.0 % ±0.05
Ω
0.5 % ±0.05
Ω
0.25 % ±0.05
Ω
0.5 % ±0.05
Ω
0.5 % ±0.05
Ω
Physical Characteristics
Flammability ........Conforms to UL94V-0
Lead Frame Material
...............................Copper, tin-plated
Body Material ...................... Epoxy resin
Characteristic Curve
120
100
Power (%)
80
60
40
20
0
0
50
100 150
200
250
300
350
Ambient Temperature (ϒ
C)
Moisture Sensitivity Level .....................1
ESD Classification (HBM) .................N/A
WARNING Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
