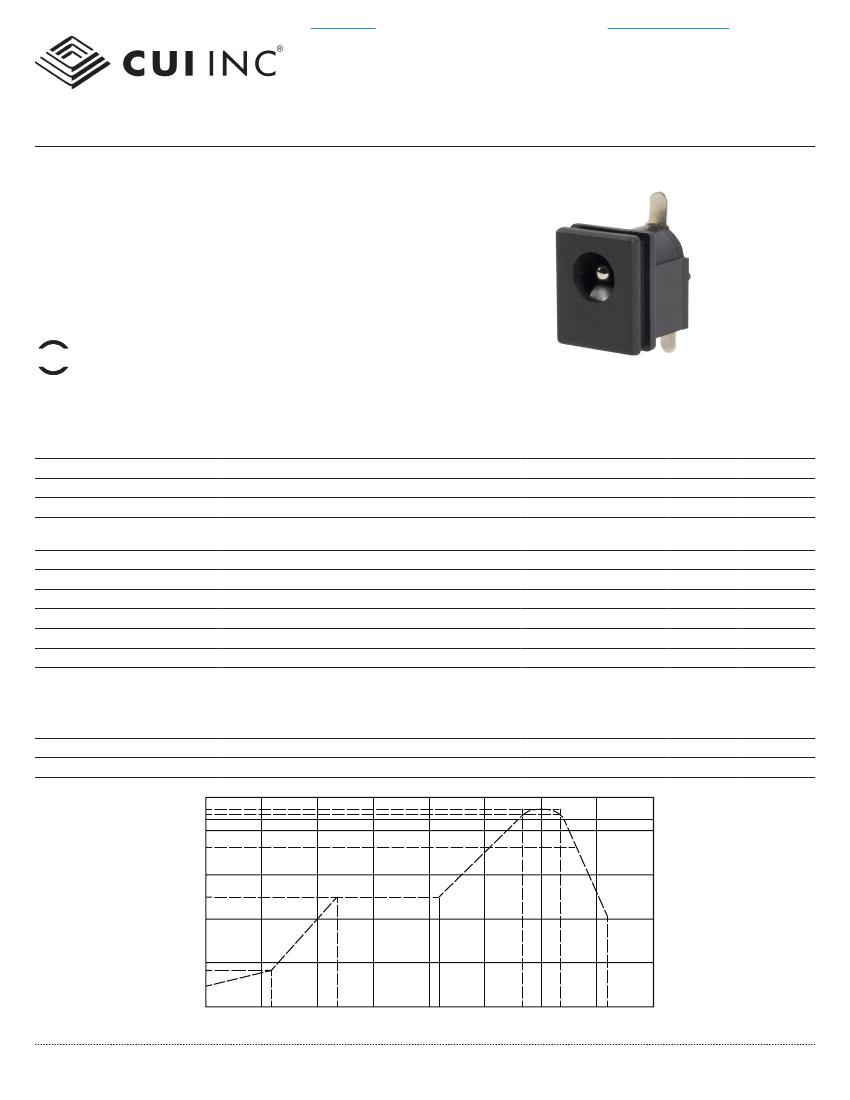

MODEL:
PJ-015BH-SMT
│
DESCRIPTION:
DC POWER JACK
FEATURES
• surface mount
• vertical orientation
• rated up to 5 A
RoHS
SPECIFICATIONS
parameter
rated input voltage
rated input current
contact resistance
1
insulation resistance
voltage withstand
insertion/withdrawl force
terminal strength
operating temperature
life
Notes:
1. When measured at a current of less than 100 mA / 1 kHz
conditions/description
min
typ
24
max
5
units
Vdc
A
mΩ
mΩ
MΩ
Vac
kg
g
°C
cycles
between terminal and mating plug
between terminal in a closed circuit
at 500 Vdc
at 50/60Hz for 1 minute
0.3
any direction for 10 seconds
-25
5,000
100
50
30
500
3
500
85
SOLDERABILITY
parameter
reflow soldering
270
260
250
240
217
180
120
120
conditions/description
see reflow profile
min
255
typ
260
max
265
units
°C
60
50
°C
60
Time (second)
70
120
140
180
240
250
300
340
360
380
420
430
480
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-015BH-SMT
│
DESCRIPTION:
DC POWER JACK
date
04/14/2016
│
page
2 of 3

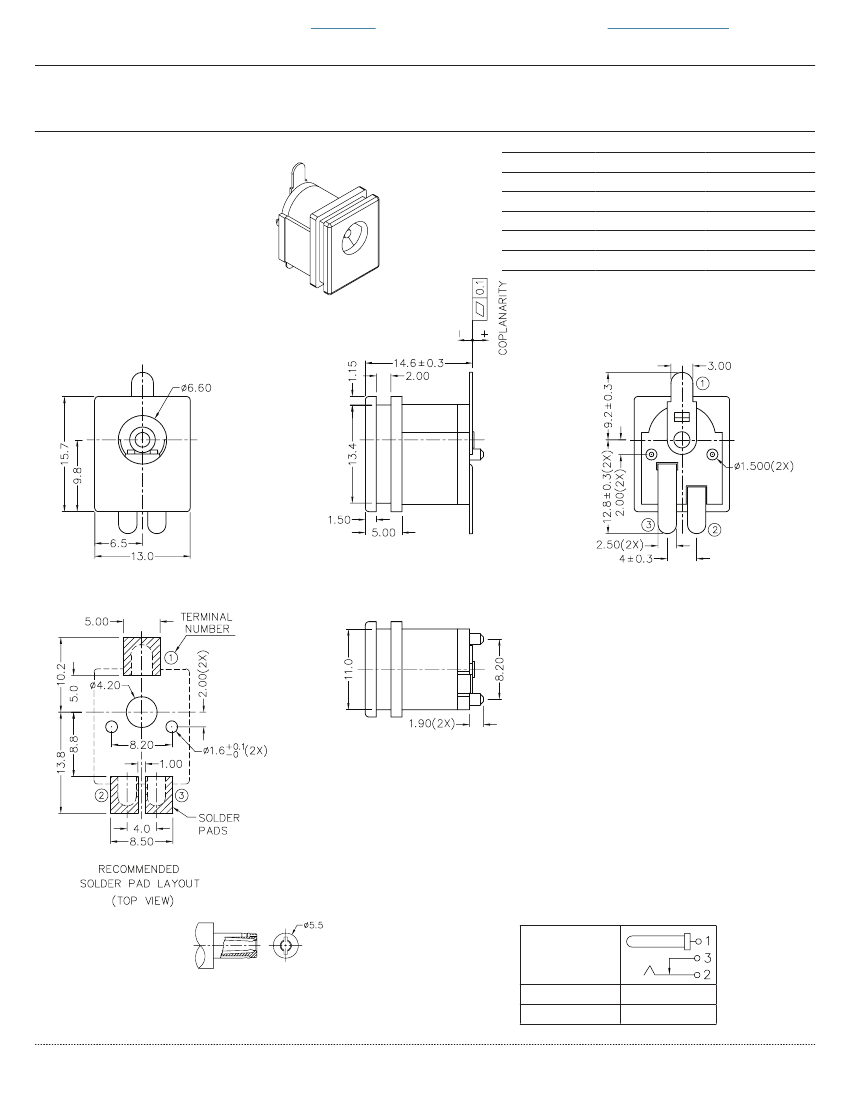

MECHANICAL DRAWING
units: mm
TOLERANCE:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
MATERIAL
center pin
terminal 1
terminal 2
terminal 3
plastic
copper
brass
copper alloy
brass
PA6T
PLATING
nickel
silver
silver
silver
Schematic
MATING PLUG
Jack Insertion Depth: 9.5mm
Model
PJ-015BH-SMT
cui.com
Center Pin
ø2.5 mm
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-015BH-SMT
│
DESCRIPTION:
DC POWER JACK
date
04/14/2016
│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
description
initial release
increased voltage rating
date
07/18/2012
04/14/2016
The revision history provided is for informational purposes only and is believed to be accurate.
Headquarters
20050 SW 112th Ave.
Tualatin, OR 97062
800.275.4899
CUI offers a one (1) year limited warranty. Complete warranty information is listed on our website.
Fax 503.612.2383
cui.com
