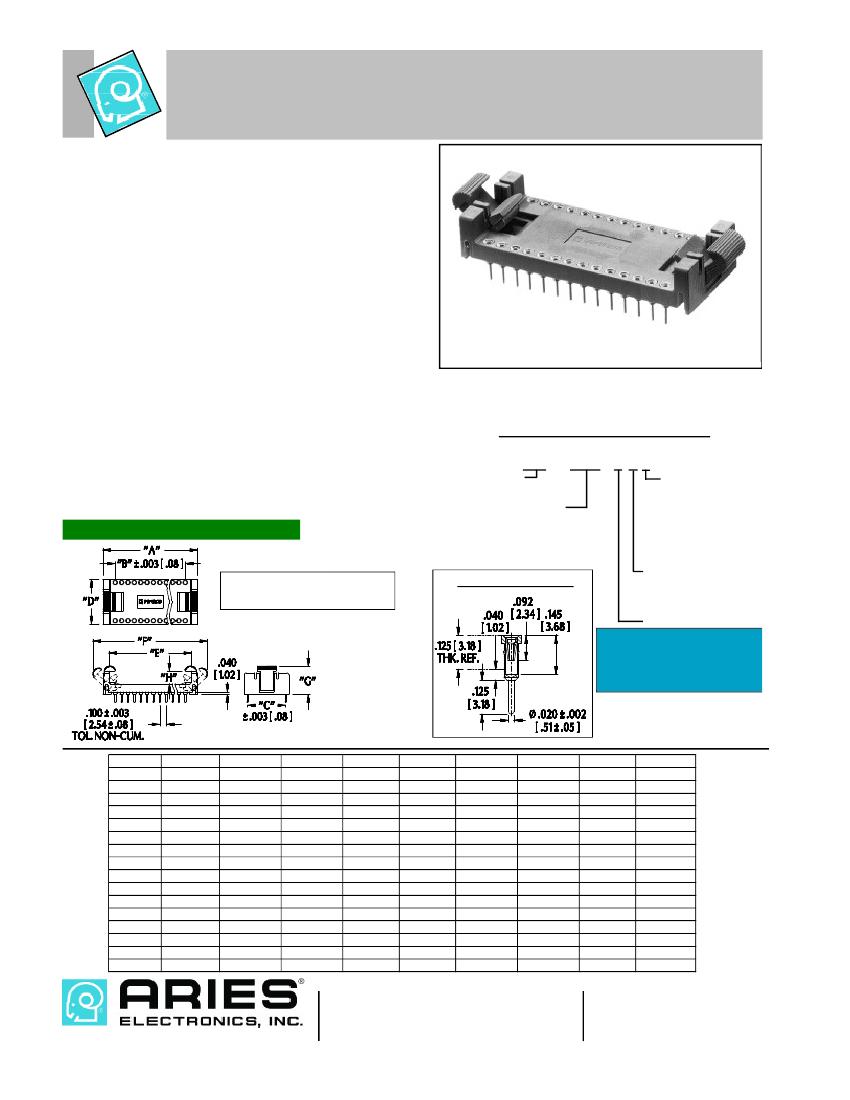

EJECT-A-DIP
®
Lock/Eject DIP Collet
Sockets with Solder Tail Pins
FEATURES:
• Aries EJECT-A-DIP
®
is a rugged, solderable socket with a unique
ejector/latch for fast in-field board maintenance.
• The latch locks in the connector or device, making it ideal for high
vibration environments.
• The latch, when used as an ejector, removes DIP packages without
pin damage.
SPECIFICATIONS:
• Latch and body are blue UL 94V-0 Glass-filled Polyester
Thermoplastic (PBT).
• Pin body is Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-85.
• Pin body plating is either 200µ [5.08µm] min. 93/7 Tin/Lead per
MIL-P-81728 or 10µ [.25µm] min. Gold per MIL-G-45204 over 100µ
[2.54µm] min. Nickel per QQ-N-290.
• 6-fingered collet contact is Beryllium Copper Alloy per UNS C17200
ASTM-B194-92.
• Contact plating is either 150µ [3.81µm] min. 93/7 Tin/Lead per
MIL-P-81728 or 10µ [.25µm] min. Gold per MIL-G-45204 over 50µ
[1.27µm] min. Nickel per QQ-N-290. Heavy 30µ [.76µm] Gold
plating on contact also available.
• Contact current rating=3 Amps.
• Insulation resistance=10,000 MOhms @ 500 VDC.
• Withstanding voltage=1000 V RMS.
• Operating temp.=-67°F to 221°F [-55°C to 105°C] Tin plating,
-67°F to 257°F [-55°C to 125°C] Gold.
• Insertion Force= 67g/pin; Withdrawal Force=30g/pin;
Normal Force=45g/pin; based on .018 [.46] dia. test lead.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
X X - C X X X - 1 X X
Optional plating
No. of pins
Dim. “H” (see table)
suffix:
H=Heavy Gold
collet
T=Tin collet/Tin
shell
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
Suggested PCB hole size=
.030 ± .002 [.76 ± .05] dia.
SOLDER TAIL PIN
All tolerances ± .005 [.13]
unless otherwise specified
Plating:
0=Gold collet/Tin
shell
1=Gold collet/Gold
shell
Solder tail pin
Consult Data Sheet No.
12025 for EJECT-A-DIP
®
collet sockets with wire
wrap pins.
No. of Pins
14
14
16
16
24
24
24
28
28
28
32
32
32
40
40
40
Catalog No.
14-C280-XX
14-C195-XX
16-C280-XX
16-C195-XX
24-C300-XX
24-C212-XX
24-C182-XX
28-C300-XX
28-C212-XX
28-C182-XX
32-C300-XX
32-C212-XX
32-C182-XX
40-C300-XX
40-C212-XX
40-C182-XX
Dim. A
.950 [24.10]
.950 [24.10]
1.050 [26.70]
1.050 [26.70]
1.490 [37.85]
1.490 [37.85]
1.490 [37.85]
1.690 [42.90]
1.690 [42.90]
1.690 [42.90]
1.890 [48.00]
1.890 [48.00]
1.890 [48.00]
2.290 [58.20]
2.290 [58.20]
2.290 [58.20]
Dim. B
.600 [15.24]
.600 [15.24]
.700 [17.78]
.700 [17.78]
1.100 [27.94]
1.100 [27.94]
1.100 [27.94]
1.300 [33.02]
1.300 [33.02]
1.300 [33.02]
1.500 [38.10]
1.500 [38.10]
1.500 [38.10]
1.900 [48.26]
1.900 [48.26]
1.900 [48.26]
Centers "C"
.300 [7.62]
.300 [7.62]
.300 [7.62]
.300 [7.62]
.600 [15.24]
.600 [15.24]
.600 [15.24]
.600 [15.24]
.600 [15.24]
.600 [15.24]
.600 [15.24]
.600 [15.24]
.600 [15.24]
.600 [15.24]
.600 [15.24]
.600 [15.24]
Dim "D"
.400 [10.16]
.400 [10.16]
.400 [10.16]
.400 [10.16]
.700 [17.78]
.700 [17.78]
.700 [17.78]
.700 [17.78]
.700 [17.78]
.700 [17.78]
.700 [17.78]
.700 [17.78]
.700 [17.78]
.700 [17.78]
.700 [17.78]
.700 [17.78]
Dim. "E"
.770 [19.56]
.770 [19.56]
.870 [22.10]
.870 [22.10]
1.300 [33.02]
1.300 [33.02]
1.300 [33.02]
1.500 [38.10]
1.500 [38.10]
1.500 [38.10]
1.700 [43.18]
1.700 [43.18]
1.700 [43.18]
2.100 [53.34]
2.100 [53.34]
2.100 [53.34]
Dim. "F"
1.300 [33.02]
1.300 [33.02]
1.540 [39.12]
1.390 [35.31]
1.970 [50.04]
1.850 [47.00]
1.800 [45.72]
2.170 [55.12]
2.050 [52.07]
2.000 [50.80]
2.540 [64.52]
2.070 [52.58]
2.200 [55.88]
2.780 70.61]
2.650 [67.31]
2.600 [66.04]
Dim. "G"
.490 [12.45]
.450 [11.43]
.490 [12.45]
.450 [11.43]
.570 [14.48]
.490 [12.45]
.460 [11.68]
.570 [14.48]
.490 [12.45]
.460 [11.68]
.570 [14.48]
.490 [12.45]
.460 [11.68]
.570 [14.48]
.490 [12.45]
.460 [11.68]
Dim. "H"
.280 [7.11]
.194 [4.95]
.280 [7.11]
.195 [4.95]
.300 [7.62]
.212 [5.39]
.182 [4.62]
.300 [7.62]
.212 [5.39]
.182 [4.62]
.300 [7.62]
.212 [5.39]
.182 [4.62]
.300 [7.62]
.212 [5.39]
.182 [4.62]
http://www.arieselec.com • info@arieselec.com
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX:(908) 996-3891
ABCDEFG
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033
europe@arieselec.com
12024
REV.D
