501SHB0R2AC6-ROHS Preview

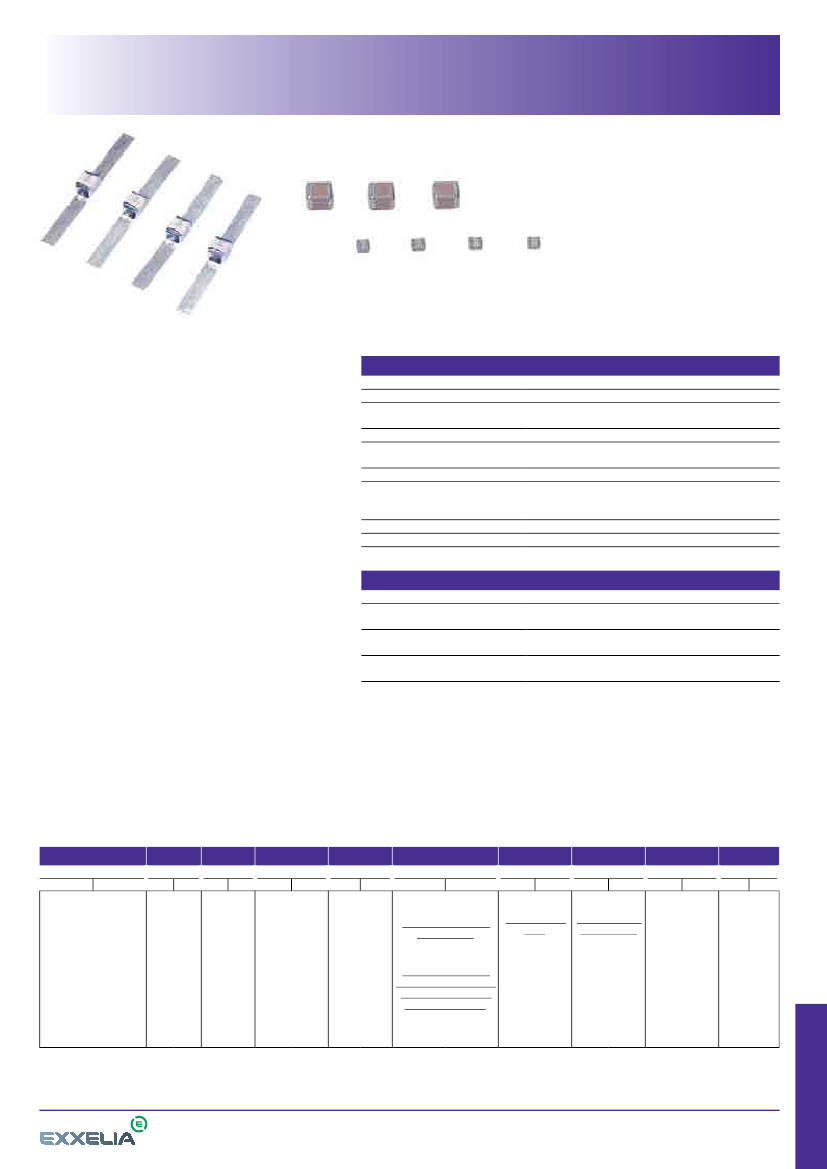

CERAMIC CAPACITORS
Super HiQ
General characteristics
SH Series
FEATURES
• Lowest ESR in class, High Self-Resonant Frequencies, RF
capacitors
• Highest working voltage in class: 1,500V
• Standard EIA sizes: 0402 - 1111
• Capacitance range: 0.2pF - 1,000pF
• NPO, RoHS & REACH compliant
• Operating temperature up to 125° C*
• Laser Marked (optional)
ELECTRICAL AND ENVIRONMENTAL SPECIFICATIONS
Electrical specifications
Parameter
Capacitance
Tolerances
Working voltage (WVDC)
Temperature coefficient
Insulation Resistance
Dielectric Withstanding
(test voltage applied for 5 seconds)
Aging
Piezo Effect
Value
0.2pF - 1,000pF
A, B, C, D below 10pF
F, G, J, K above 10pF
See capacitance range chart
0 ±30ppm/°C, –55°C to +125°C
For SHF and SHS: 0 ±30ppm/°C, –55°C to +150°C
105 MΩ min.
2.5 x WVDC for WVDC ≤ 500V
1.8 x WVDC for extended range values ≥ 820pF
1.5 x WVDC for WVDC > 500V
none
none
APPLICATIONS
• Cellular Base Station Equipments
• Broadband Wireless Service
• Point to Point / Multipoint Radios
• RF Generators (NMR…)
Environmental specifications
Parameter
Life Test
Moisture Resistance Test 1
Moisture Resistance Test 2
Value
2,000 hours, +125°C @ 2 x WVDC (standard WVDC range)
And SHB up to 100pF: 1,000 hours, 175°C at 500V
240 hours, 85% relative humidity @ 85°C
(ESA/SCC n°3009)
56 days, 93% relative humidity @ 40°C
0V, 5V, WVDC
CIRCUIT APPLICATIONS
• Filter Networks
• Matching Networks
• Tuning, Coupling and DC Blocking
PHYSICAL CHARACTERISTICS
• Chip capacitors for surface mounting with:
- Copper barrier and tinning or Silver/Palladium
(non magnetic)
- Nickel barrier and tinning
• Ribbon leads for surface mounting
* The temperature range for the CHB up to 100pF is upgrated from +125°C to +175°C.
The temperature withstanding for SHF and SHS is 150°C for the whole capacitance range.
HOW TO ORDER
501
Voltage code
250
= 25V
500
= 50V
101
= 100V
201
= 200V
251
= 250V
301
= 300V
501
= 500V
601
= 600V
102
= 1,000V
152
= 1,500V
Please refer to voltage given
in capacitance range chart
SH
Dielectric
SH
=
NPO:
(0±30)
ppm/°C
B
Size code
L
= 0402
S
= 0603
A
= 0505
F
= 0805
N
= 1206
T
= 1210
B
= 1111
100
Capacitance code
Please refer to Cap.
Code given in
capacitance range
chart.
J
Tolerance code
A
= ±0.05pF
B
= ±0.1pF
C
= ±0.25pF
D
= ±0.5pF
F
= ±1%
G
= ±2%
J
= ±5%
K
= ±10%
See note 1
S
Termination code
S
= Standard:
tin-plated nickel
Available on sizes 0505,
0603 and 1111:
C
= Non-magnetic:
tin-plated copper
Available on sizes 0505,
0805 (from 0.5pF to 150pF,
consult us for higher cap.
value), 1206 and 1210:
A
= Non-magnetic:
silver/palladium
See note 2
-
Ribbon code
-:
no lead or ribbon
Available on size
1111:
1
= Micro-strip
ribbons
6
= Radial Wires
See note 3
L
Marking code
-:
no marking
E
Tape and reel
-RoHS
-:
no tape and reel The RoHS tag is
not part of the
Available on sizes
E
= Tape and reel
reference
0505 and 1111:
packaging
L
= laser marking Number of compo- Tag added at the
nents per reel:
end of P/N
SHL: 10,000
for information
SHA: 3,000
SHS: 4,000
SHF: 4,000
SHN: 3,000
SHT: 3,000
SHB: 1,000
www.exxelia.com
129
info@exxelia.com
Page revised 09/17
HIGH Q
Note 1: For capacitance values less than 10pF, tolerances B, C and D available. Tolerance code A available for: L case for capacitance values of 0.2pF - 1.9pF. A case for capacitance values of 0.2pF - 4.7pF. S case for capacitance values of 0.2pF -
9.1pF. F case for capacitance values of 0.3pF - 2.2pF. N case for capacitance values of 0.5pF - 1.8pF. B case for capacitance values of 0.2pF - 3.3pF. For capacitance values of 10pF or higher, tolerances F, G, J and K available.
Note 2: All terminations are backward compatible and lead-free. The non-magnetic terminations are all Magnetism-free Rated.
Note 3: When coding ribbons for the description of the part, the termination has to be mentioned for MRcertified types to ensure that only non-magnetic materials are used.
Examples: 501 SHB 470 J1L any termination material could be used. 501 SHB 470 JC1L only non-magnetic termination materials could be used. Please consult us for specific requirements.
CERAMIC CAPACITORS
SH Series
Taping : dimensions

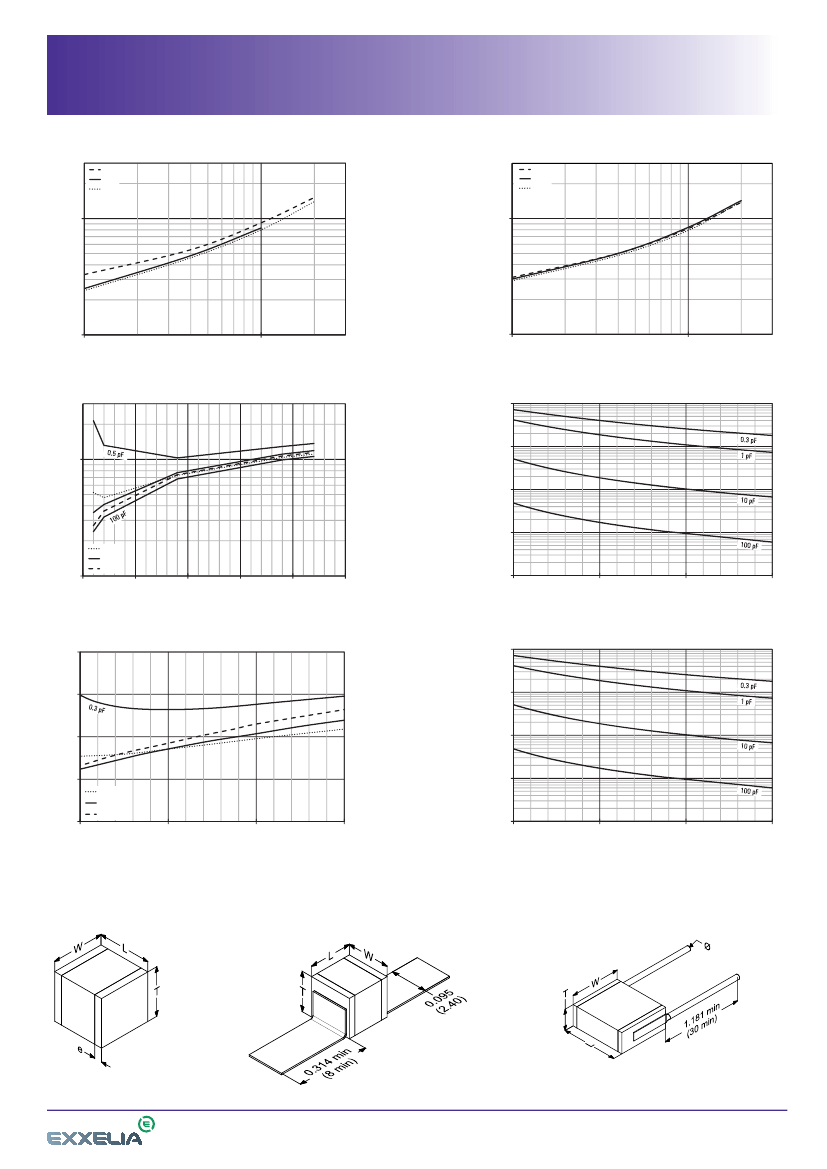

SHA (SIZE 0505): TYPICAL ESR VERSUS FREQUENCY
10 pF
56 pF
68 pF
Super HiQ
SHB (SIZE 1111): TYPICAL ESR VERSUS FREQUENCY
10 pF
27 pF
33 pF
0.10
0.10
ESR (Ω)
ESR (Ω)
0.01
100
0.01
100
Frequency (MHz)
1,000
Frequency (MHz)
1,000
SHS (SIZE 0603): TYPICAL ESR VERSUS FREQUENCY
SHS (SIZE 0603): TYPICAL Q FACTOR VERSUS FREQUENCY
10,000
1,000
0.10
ESR (Ω)
Q factor
0.01
0
3.3 pF
10 pF
47 pF
100
10
1
500
1,000
Frequency (MHz)
1,500
2,000
2,500
500
1,000
Frequency (MHz)
1,500
2,000
SHF (SIZE 0805): TYPICAL ESR VERSUS FREQUENCY
0.2
SHF (SIZE 0805): TYPICAL Q FACTOR VERSUS FREQUENCY
10,000
0.15
1,000
ESR (Ω)
Q factor
1 pF
10 pF
100 pF
0.1
100
0.05
10
0
500
1
1,000
Frequency (MHz)
1,500
2,000
500
1,000
Frequency (MHz)
1,500
2,000
DIMENSIONS in inches (mm)
Chips
Micro-strip ribbon leads (Type 1)
Radial leads: available on all sizes (Type 6)
www.exxelia.com
130
info@exxelia.com
Page revised 09/17
CERAMIC CAPACITORS
Super HiQ
STANDARD RATINGS
Size
Size code
L
Dimensions
inches (mm)
W
T
e
Value (pF)
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
1,000
Cap. Code
0R2
0R3
0R4
0R5
0R6
0R7
0R8
0R9
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
2R4
2R7
3R0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
150
160
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
101
111
121
131
151
161
181
201
221
241
271
301
331
361
391
431
471
511
561
621
681
751
821
911
102
0402
L
0.039 ± 0.006
(1 ± 0.15)
0.02 ± 0.006
(0.5 ± 0.15)
0.02 max
(0.51 max)
0.01 ± 0.006
(0.25 ± 0.15)
Standard
0603
S
0.063 ± 0.01
(1.6 ± 0.25)
0.032 ± 0.01
(0.8 ± 0.25)
0.036 max
(0.9 max)
0.014 ± 0.008
(0.35 ± 0.2)
Standard
0505
A
0.055 ± 0.01
(1.4 ± 0.25)
0.055 ± 0.01
(1.4 ± 0.25)
0.056 max
(1.4 max)
0.01 ± 0.006
(0.25 ± 0.15)
Standard
0805
F
0.08 ± 0.01
(2.03 ± 0.25)
0.05 ± 0.01
(1.27 ± 0.25)
0.05 max
(1.27 max)
0.02 ± 0.012
(0.5 ± 0.3)
Standard
General characteristics
SH Series
1206
N
0.125 ± 0.01
(3.18 ± 0.25)
0.062 ± 0.01
(1.58 ± 0.25)
0.05 max
(1.27 max)
0.02 ± 0.01
(0.5 ± 0.25)
Standard
1210
T
0.125 ± 0.01
(3.18 ± 0.25)
0.095 ± 0.01
(2.41 ± 0.25)
0.06 max
(1.52 max)
0.02 ± 0.01
(0.5 ± 0.25)
Standard
1111
B
0.110 ± 0.016
(2.80 ± 0.40)
0.110 ± 0.016
(2.80 ± 0.40)
0.103 max
(2.60 max)
0.016 ± 0.010
(0.40 ± 0.25)
Standard
Extended
50V
250V
250V
500V
250V
500V
500V
1,500V
50
200V
250V
25 - 50V
200V
200V
100V
200V
300V
1,000V
200V
600V
100V
100V
300V
50V
Special values, tolerances, higher WVDC and matching available, please consult factory.
www.exxelia.com
131
info@exxelia.com
Page revised 09/17
HIGH Q
