SMAJ24A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> SMAJ24A

SMAJ24A: DescriptionTRANSIENT SUPPRESSOR DIODE,SINGLE,UNIDIRECTIONAL,24V V(RWM),DO-214AC / SMA; Categorysemiconductor Discrete semiconductor; File Size1MB，4 Pages; ManufacturerJuxing Electronic; Websitehttp://www.trr-jx.com

Download Datasheet Parametric View All

SMAJ24A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMAJ24A	-	-	View	Buy Now

SMAJ24A Overview

TRANSIENT SUPPRESSOR DIODE,SINGLE,UNIDIRECTIONAL,24V V(RWM),DO-214AC / SMA

SMAJ24A Parametric

Parameter Name	Attribute value
state	CONSULT MFR
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE

Preview

Download Datasheet

View All

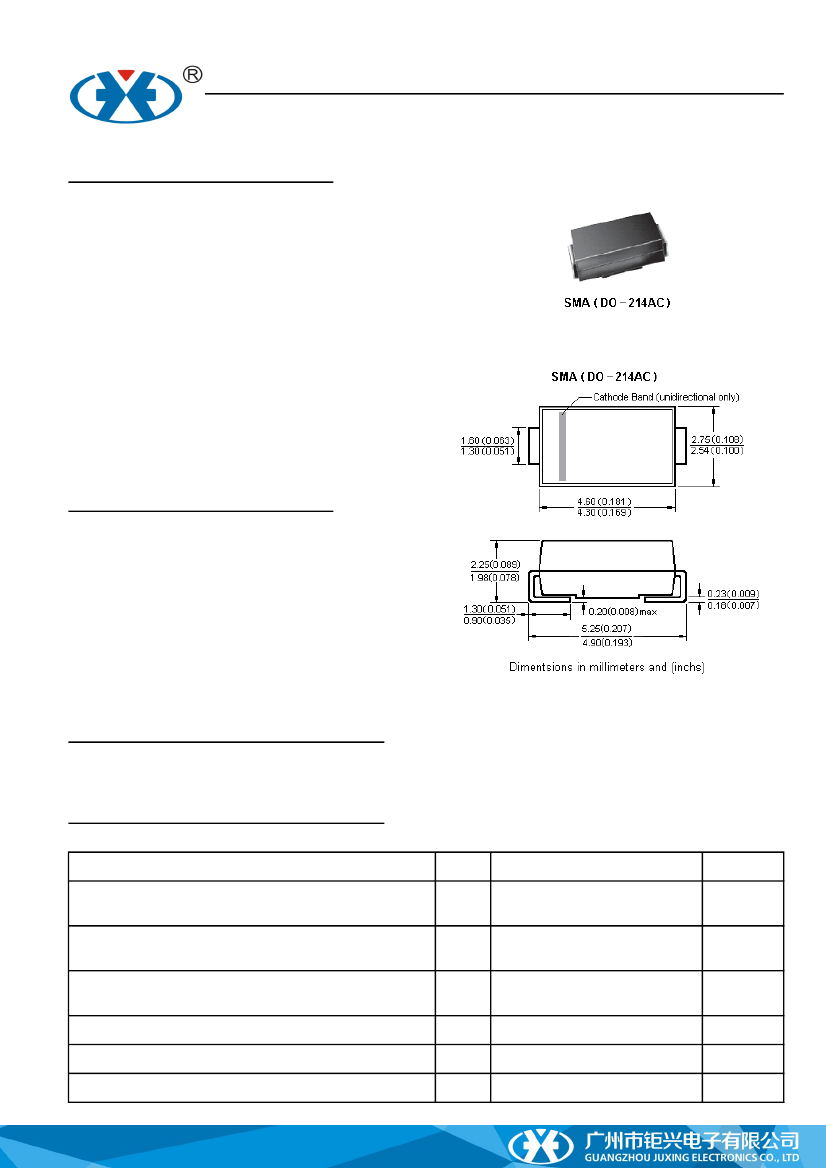

SMAJ5.0 THRU SMAJ188A

TRANSIENT VOLTAGE SUPPRESSORS

Features

●

For surface mounted applications in

order to optimize board space

Low profile space

Glass passivated chip

Low inductance

Excellent clamping capability

Very fast response time

Typical I

less than 1µA at V

400 W peak pulse power capability

with a 10/1000 µs waveform

Component in accordance to

RoHS 2002/95/1 and WEEE 2002/96/EC

●

Mechanical Date

●

Case: JEDEC DO-214AC molded plastic

over passivated chip

Terminals: Solder plated, solderable per

MIL-STD-750 Method 2026

Polarity: For uni-directional types the band

by laser denotes the cathode, which is

positive with respect to the anode under

normal TVS operation

●

Devices for Bidirectional Applications

●

For bi-directional devices, use suffix C or CA (e.g.SMAJ10C, SMAJ10CA).

Electrical characteristics apply in both directions.

Maximum Ratings & Thermal Characteristics

(TA = 25 °C unless otherwise noted)

Symbol

Peak pulse power dissipation

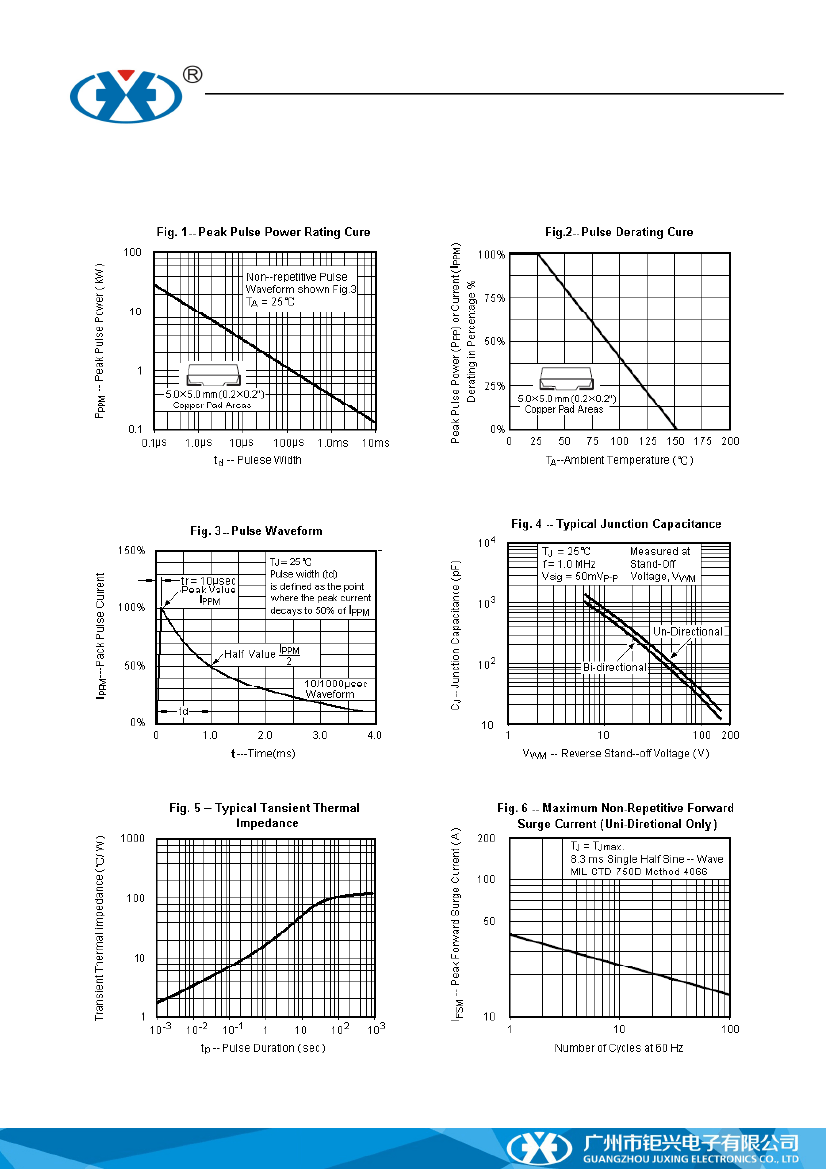

with a 10/1000µs waveform (see fig. 1)

Peak pulse current

with a waveform (see fig. 3 , single pulse)

Peak forward surge current

8.3ms single half sine-wave uni-directional only

Typical thermal resistance, junction to ambient

Typical thermal resistance, junction to lead

Operating junction and storage temperature range

PPM

FSM

θJA

θJL

STG

VALUE

400

See Next Table

120

–55 to +150

UNIT

°C / W

°C

http://www.trr-jx.com
