BD040-62-B-A-0250-0200-L-B datasheet, PDF

Datasheet> All Categories > The connector> The connector> BD040-62-B-A-0250-0200-L-B

BD040-62-B-A-0250-0200-L-B: DescriptionBoard Stacking Connector, 62 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking,; CategoryThe connector The connector; File Size170KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD040-62-B-A-0250-0200-L-B Overview

Board Stacking Connector, 62 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking,

BD040-62-B-A-0250-0200-L-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145001462545
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.134 inch
subject depth	0.098 inch
body length	1.55 inch
Connector type	BOARD STACKING CONNECTOR
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS ARE AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	62
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

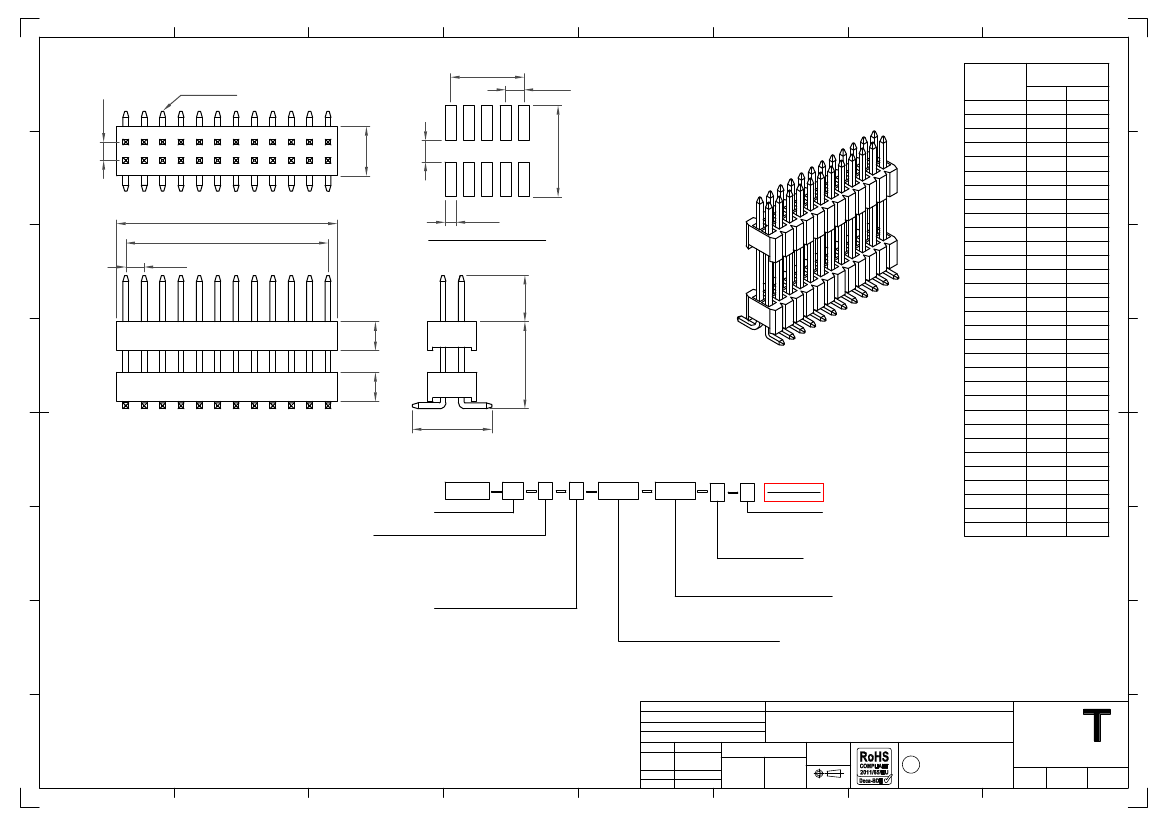

1.27

0.40 sq. Pin

1.27

Number of

Contacts

Dimension

2.54

3.81

5.08

6.35

7.62

8.89

10.16

11.43

12.70

13.97

15.24

16.51

17.78

19.05

20.32

21.59

22.86

24.13

25.40

26.67

27.94

29.21

30.48

31.75

33.02

34.29

35.56

36.83

38.10

39.37

40.64

3.81

5.08

6.35

7.62

8.89

10.16

11.43

12.70

13.97

15.24

16.51

17.78

19.05

20.32

21.59

22.86

24.13

25.40

26.67

27.94

29.21

30.48

31.75

33.02

34.29

35.56

36.83

38.10

39.37

40.64

41.91

B±0.38

A±0.25

0.65

Recommended PCB Layout

1.27

C±0.2

'H'

5.5

Specifications

规格

Material

物料

Insulator Material

绝缘½物料

Option

可选物料

: Polyester

聚酯

LCP, UL 94V-0

(where Insulator Height H = A, B, L, E)

Option

可选物料

: Polyamide

聚醯胺

Nylon 6T, UL 94V-0

(where Insulator Height H = K)

Contact Terminal

接触端子

: Copper Alloy

Plating

电镀

See Ordering Grid

Electrical

电气

Current Rating

电流额定值

: 1A

Contact Resistance

接触电阻值

: 20 mΩ max.

Insulating Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstand Voltage

耐电压

: 300V AC

Mechanical & Environmental

机械

环境

Operating Temperature

工½温度

: -40°C to +105°C

Mates with

配套之母座

Ordering Grid

D±0.2

BD040

No. of Contacts

06 to 66

6.50

3.4

1.5

XXXX

Request Samples

and Quotation

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/ Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Dimension H

(Insulator Height)

L = 2.50mm

(Standard)

K = 1.00mm

A = 1.50mm

B = 2.00mm

Packing Options

B = Tape and Reel with Cap

(Standard)

D = Tube

(Standard - where total height exceeds 25mm)

E = Tube with Cap

Insulator Material

L = LCP

(where Insulator Height H = A, B, L)

N = Nylon 6T

(where Insulator Height H = K)

Dimension C

(1/100mm) (Post Height)

0200 = 2.00mm

(Standard)

or specify Custom Post Height

eg. 0250 = 2.50mm

Dimension D

(1/100mm) (Stack Height)

Minimum = (2 x 'H') + 0.5mm

Maximum = 18mm

or specify Custom Stack Height

eg. 0250 = 2.50mm

Part Number

Product Description

BD040

Drawing Date

(Subject to pin length

在端子长度适合的条件下

)

BD050

BD065

BD055

BD067

BD060

BD091

BD064

BD092

21st December 2007

Detail

Revision

Date

AJO

BD040

G PCN

07/06/16

Length

1.27mm Pitch Elevated Pin Header

Dual Row, Surface Mount, Vertical

Tolerances

(Except as Noted)

Angle

X.° ± 5°

X. ± 0.30

X.X° ± 2°

X.X ± 0.20

X.XX ± 0.15 X.XX° ± 1°

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

AJO

www.gct.co

Not to

Scale

Sheet No.

1/1
