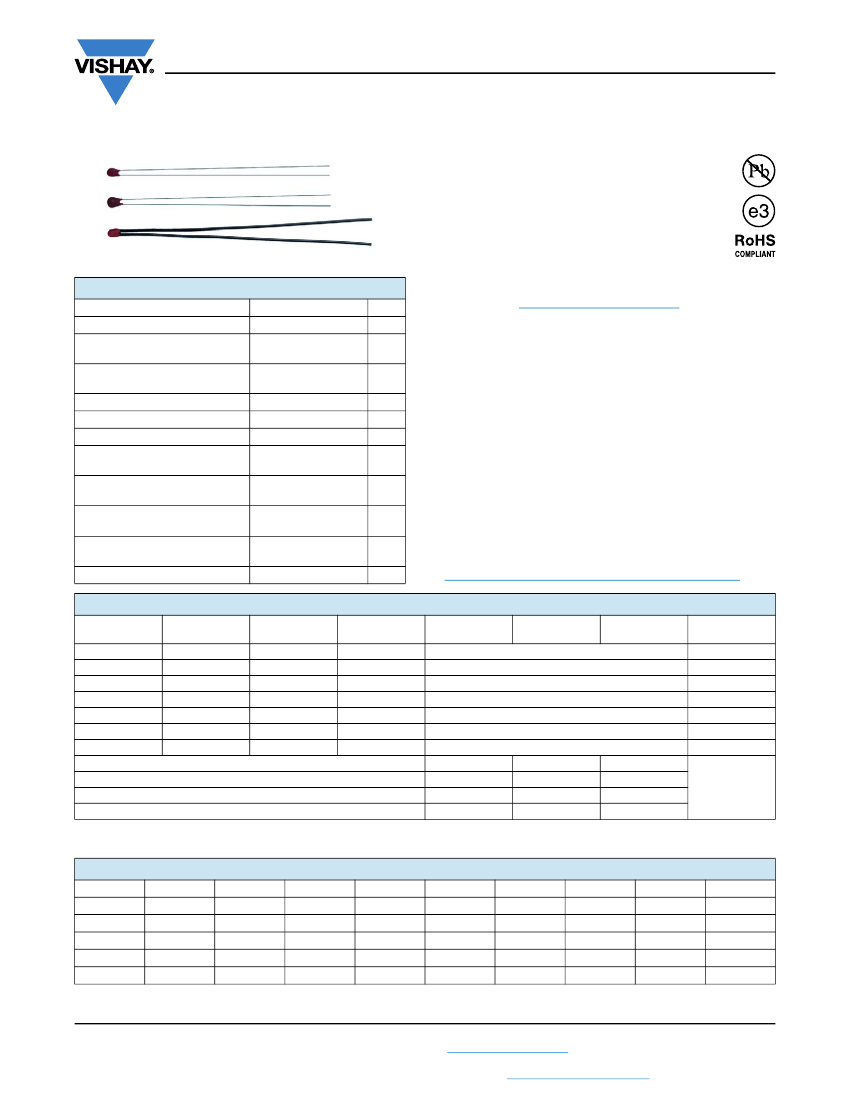

T, M, C
www.vishay.com
Vishay Dale
NTC Thermistors, Radial Leaded and Coated
FEATURES
• Small size - conformally coated
• Wide resistance range
• Available in 7 different R-T curves
• Available in point matched tolerances down to
1 % and curve tracking precision down to
± 0.2 °C
QUICK REFERENCE DATA
PARAMETER
Resistance value at 25 °C
Tolerance on
R
25
-value
(point matched)
Temperature accuracy
(curve tracking)
B
25/75
-value
B
25/85
-value
Maximum dissipation
Dissipation factor
(for information only)
Thermal time constant
(for information only)
Response time (oil)
(for information only)
Operating temperature range
at zero power (short term)
Weight
VALUE
30 to 1M
± 1, ± 2, ± 3, ± 5, ± 10
± 0.2, ± 0.5, ± 1
3477 to 4842
3468 to 4875
50 to 100
2 to 3.5
6 to 14
1.3
-40 to +125 (150)
0.075 to 0.15
UNIT
%
°C
K
K
mW
mW/K
s
s
°C
g
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
Temperature measurement, sensing and control in
industrial, consumer and telecom applications. For
on-board sensing or for accurate remote sensing in metal
probes or housings.
DESCRIPTION
Models T, M, and C are conformally coated, leaded
thermistors. The coating is baked-on phenolic for durability
and long-term stability. Models M and C have tinned solid
copper leads. Model T has solid nickel wires with Teflon
®
insulation.
DESIGN-IN SUPPORT
For complete Curve Computation, visit:
www.vishay.com/thermistors/curve-computation-list/
T, M, C PRODUCT DATA AND
R
25
RESISTANCE RANGE AVAILABILITY
CURVE
B
25/75
B
25/85
(K)
(K)
2
3477
3486
9
3679
3694
8
3925
3943
1
3964
3974
4
4247
4262
7
4437
4461
12
4842
4875
Maximum dissipation at 25 °C in mW
Dissipation factor in mW/K
(1)
Response time in s
(1)
Thermal time constant in s
(1)
TCR
25
(%/K)
-3.84
-4.03
-4.30
-4.39
-4.67
-4.83
-5.23
T
(k)
M
(k)
0.03 to 3.3
10 to 56
20 to 220
0.2 to 18
10 to 100
10 to 270
47 to 1000
75
2.5
1.2
10
C
(k)
R
25
± TOL.
AVAILABILITY
1, 2, 3, 5, 10
1, 2, 3, 5, 10
1, 2, 3, 5, 10
1, 2, 3, 5, 10
1, 2, 3, 5, 10
1, 2, 3, 5, 10
1, 2, 3, 5, 10
50
2.0
1.3
14
100
3.0
1.4
6
Note
(1)
For information only, dissipation factor, response time, and thermal time constant are wire type and product size dependent
STANDARD RESISTANCE VALUES
at 25 °C in
33
39
47
50
56
68
82
100
120
150
180
220
270
330
390
470
500
560
680
820
1K
1.2K
1.5K
1.8K
2.2K
2.7K
3.3K
3.9K
4.7K
5.0K
5.6K
6.8K
8.2K
10K
12K
15K
18K
22K
27K
33K
39K
47K
50K
56K
68K
82K
100K
120K
150K
220K
270K
330K
390K
470K
500K
560K
680K
820K
1M
Note
• Most popular and available values, intermediate resistance values and tolerances available on request
Revision: 09-Aug-2018
Document Number: 33003
1
For technical questions, contact:
thermistor1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T, M, C
www.vishay.com
Vishay Dale
GLOBAL PART NUMBER AND ORDERING INFORMATION
Global Part Numbering: 01C2001FP for POINT MATCHED THERMISTORS
0
1
C
2
0
0
1
F
P
POINT MATCH
TOLERANCE
F
=±1%
G
=±2%
H
=±3%
J
=±5%
K
= ± 10 %
CURVE NR
01
02
04
07
08
09
12
GLOBAL MODEL
T
M
C
RESISTANCE VAL
2001
= 2K
1503
= 150K
PACKAGING
F
= lead (Pb)-free, bulk
P
= tin / lead, bulk
Global Part Numbering: 01C2001SPC3 for CURVE TRACKING THERMISTORS
0
1
C
2
0
0
1
S
P
C
3
CURVE
01
04
08
09
GLOBAL MODEL
T
M
C
RESISTANCE VAL
2001
= 2K
CHARACTERISTICS
S
PACKAGING
F
= lead (Pb)-free,
bulk
P
= tin / lead, bulk
CURVE TRACK
TOLERANCE
(1)
A3
B3
C3
A4
B4
A5
B5
C5
A8
B8
C8
Note
(1)
See following pages for tolerance explanations and details
DIMENSIONS
in inches (millimeters)
TYPE M, C
TYPE T
0.25 (6.35) NOM.
TEFLON INSULATED NICKEL WIRE
D
1.5 (36.1) MIN.
CLEAN LEAD LENGTH
TINNED COPPER WIRE
D
3 ± 0.25 (76.2 ± 6.4)
PRODUCT TYPE
Type M
Type C
Type T
WIRE GAUGE/DIAMETER
(1)
AWG 30: 0.0100 (0.254)
AWG 28: 0.0126 (0.320)
Insulated AWG 30: 0.0100 (0.254)
Note
(1)
Additional wire gauges (non-insulated) available as AWG24 (type E), AWG26 (type B) and AWG32 (type F). Please contact Vishay
(thermistor1@vishay.com) for further details
CURVE NUMBER
2
9
8
1
4
7
12
R
25
MIN.
()
30
10K
20K
200
10K
10K
47K
MAX. DIAMETER
(INCH (mm))
0.342 (8.69)
0.150 (3.81)
0.131 (3.33)
0.315 (8.00)
0.136 (3.45)
0.177 (4.50)
0.252 (6.40)
STANDARD
R
25
RANGE
()
330 to 3K
10K to 56K
27K to 220K
1.8K to 18K
10K to 100K
27K to 270K
330K to 1M
MAX. DIAMETER
(INCH (mm))
0.095 (2.41) to 0.136 (3.45)
0.095 (2.41) to 0.150 (3.81)
0.095 (2.41) to 0.125 (3.18)
0.095 (2.41) to 0.136 (3.45)
0.095 (2.41) to 0.136 (3.45)
0.095 (2.41) to 0.136 (3.45)
0.095 (2.41) to 0.136 (3.45)
Note
• Maximum body diameter is dependent on selected curve number and value, the lower resistance values have the largest diameter. For a
specific part number within the given resistance ranges, please contact
thermistor1@vishay.com
for maximum diameter information
Revision: 09-Aug-2018
Document Number: 33003
2
For technical questions, contact:
thermistor1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T, M, C
www.vishay.com
TOLERANCES AVAILABLE FOR TYPE T, M, AND C THERMISTORS
DESCRIPTION OF THERMISTOR TOLERANCES
The many applications of thermistors have mandated the need for two basic tolerance schemes for these products - curve
tracking and point match thermistors. An example of the resistance tolerance at various temperatures for the two different
tolerancing methods is described in the following graph:
10
9
8
TOLERANCE (± %)
7
6
5
4
3
2
1
0
- 50
- 40
- 30
- 20
- 10
10
20
30
0
A5
100
110
40
50
60
70
80
90
120
130
140
150
A8
A3
A4
25 °C
± 1 °C CURVE TRACK CURVE
± 5 % POINT MATCH CURVE
Vishay Dale
TEMPERATURE (°C)
Fig. 1
CURVE TRACKING TOLERANCE
Thermistors are calibrated at the high temperature of the curve track range and then final tested at the low temperature of
the curve track range. This ensures that the thermistor will meet the specified temperature accuracy at every temperature
within the desired temperature range. Several temperature ranges are available and the accuracy of the thermistor may be
± 0.2 °C, ± 0.5 °C, and ± 1.0 °C. The curve tracking temperature ranges and their code designators are shown in figure 1 and
“Standard Electrical Specifications for Curve Tracking Thermistors” table.
To specify, add the appropriate suffix from the following table to the part number.
Example: 01M1002SFB3 = curve 1, 10 k at +25 °C, curve tracking to ± 0.5 °C from 0 °C to +70 °C
STANDARD ELECTRICAL SPECIFICATIONS FOR CURVE TRACKING THERMISTORS
TEMPERATURE
RANGE FOR
SPECIFIED
ACCURACY
ACCURACY
PART NO.
SUFFIX
CURVE NUMBER
01
04
08
09
± 1 °C
- A3
X
X
X
X
0 °C to +70 °C
± 0.5 °C
- B3
X
X
X
X
± 0.2 °C
- C3
X
X
X
X
± 1 °C
- A4
X
X
X
X
0 °C to +100 °C
± 0.5 °C
- B4
X
X
X
X
± 0.2 °C
- C4
n/a
n/a
n/a
n/a
± 1 °C
- A5
X
X
X
X
25 °C to +90 °C
± 0.5 °C
- B5
X
X
X
X
± 0.2 °C
- C5
X
X
X
X
± 1 °C
- A8
X
X
X
X
0 °C to +50 °C
± 0.5 °C
- B8
X
X
X
X
± 0.2 °C
- C8
X
X
X
X
Revision: 09-Aug-2018
Document Number: 33003
3
For technical questions, contact:
thermistor1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T, M, C
www.vishay.com
POINT MATCH TOLERANCE
The standard leaded thermistors are calibrated and tested at 25 °C to a tolerance of ± 5 % or ± 10 %; however, tighter tolerance,
point matched thermistors are readily available as are special point match temperatures to fit your application.
Since these thermistors have only one controlled point of reference (the point match temperature), the resistance at other
temperatures is given by the specific curve resistance vs. temperature ratio.
Vishay Dale
POINT MATCH TOLERANCES VS. TEMPERATURE
Point match resistance tolerances at temperatures other
than 25 ºC are not the same as at the calibration
temperature. This difference is presented in figure 2.
The tolerance at any given temperature is the point match
tolerance plus a manufacturing tolerance depending on the
specific curve.
MAX. R vs. T
MIN. R vs. T
RESISTANCE
NOMINAL R vs. T
PIVOT POINT
(CALIBRATION TEMPERATURE)
25 °C
TEMPERATURE
Fig. 1
DESIGN-IN SUPPORT
A spreadsheet is available for the Vishay thermistor part numbers that gives you the resistance vs temperature data, the
temperature coefficients and accuracy levels at any given temperature range and step. The Steinhart & Hart formula and
coefficients A, B, and C are shown as well. This data can be obtained by visiting the Vishay NTC curve computation page at:
www.vishay.com/thermistors/curve-computation-list/
or send your part number with required temperature range and step to
thermistor1@vishay.com.
Revision: 09-Aug-2018
Document Number: 33003
4
For technical questions, contact:
thermistor1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of
typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding
statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular application.
Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over
time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for
such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document
or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 08-Feb-17
1
Document Number: 91000
京公网安备 11010802033920号
EEWORLD
