NTC thermistors for
inrush current limiting
Leaded and coated disks
Series/Type:
Date:
B57236S0***M0**
May 2013
© EPCOS AG 2013. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
Inrush current limiters
ICLs
B57236S0***M0**
S236
Applications
Switch-mode power supplies
Features
Useable in series connections up to 265 V
RMS
Coated thermistor disk
Kinked leads of tinned copper wire
Wide resistance range
Manufacturer's logo, NTC and resistance value
stamped on
UL approval (E69802)
Options
Resistance tolerance <20% and alternative lead
configurations available on request
Delivery mode
Bulk (standard) or with cardboard tape on 350-mm reel
General technical data
Climatic category
Max. power
Resistance tolerance
Rated temperature
Dissipation factor
Thermal cooling time constant
Heat capacity
(IEC 60068-1)
(at 25
°C)
Dimensional drawing
Dimensions in mm
Approx. weight 1 g
(in air)
(in air)
P
max
∆R
R
/R
R
T
R
δ
th
τ
c
C
th
55/170/21
2.1
±20
25
approx. 10
approx. 70
approx. 700
W
%
°C
mW/K
s
mJ/K
Electrical specification and ordering codes
R
25
Ω
2.2
2.5
3
4.7
5
8
10
12
16
I
max
(0...65
°C)
A
6.0
5.5
5.0
4.6
4.5
3.7
3.5
3.2
2.9
C
test1)
230 V AC
µF
200
200
300
300
300
300
300
300
300
C
test1)
110 V AC
µF
800
800
1200
1200
1200
1200
1200
1200
1200
R
min
Ordering code
(@ I
max
, 25
°C)
Ω
0.078
0.071
0.093
0.102
0.108
0.192
0.180
0.215
0.262
B57236S0229M0**
B57236S0259M0**
B57236S0309M0**
B57236S0479M0**
B57236S0509M0**
B57236S0809M0**
B57236S0100M0**
B57236S0120M0**
B57236S0160M0**
** = Delivery mode
00 = Bulk
51 = Reel packing
1) For details on the capacitance C
test
please refer to "Application notes", chapter 1.6.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 20
Inrush current limiters
ICLs
B57236S0***M0**
S236
R
25
Ω
20
25
50
80
120
I
max
(0...65
°C)
A
2.8
2.5
1.9
1.6
1.5
C
test1)
230 V AC
µF
300
300
300
400
400
C
test1)
110 V AC
µF
1200
1200
1200
1600
1600
R
min
(@ I
max
, 25
°C)
Ω
0.284
0.357
0.594
0.861
0.990
Ordering code
B57236S0200M0**
B57236S0250M0**
B57236S0500M0**
B57236S0800M0**
B57236S0121M0**
** = Delivery mode
00 = Bulk
51 = Reel packing
1) For details on the capacitance C
test
please refer to "Application notes", chapter 1.6.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 20
Inrush current limiters
ICLs
B57236S0***M0**
S236
Reliability data
Test
Storage in
dry heat
Standard
IEC
60068-2-2
Test conditions
∆R
25
/R
25
(typical)
< 10%
Remarks
No visible
damage
Storage in damp
heat, steady state
Termal schock
Endurance
Cyclic
endurance
Maximum
permissible
capacitance test
Note
Storage at upper
category temperature
T: 170
°C
t: 1000 h
IEC
Temperature of air: 40
°C
60068-2-78 Relative humidity of air: 93%
Duration: 21 days
IEC
Lower test temperature: 55
°C
60068-2-14 t: 30 min
Upper test temperature: 170
°C
t: 30 min
Time to change from lower to
upper temperature: < 30 s
Number of cycles: 10
IEC
Ambient temperature: 25
±5 °C
60539-1
I = I
max
t: 1000 h
IEC
Ambient temperature: 25
±5 °C
60539-1
I = I
max
On-time = 1 min
Cooling time = 5 min
Number of cycles: 1000
IEC
Ambient temperature: 25
±5 °C
60539-1
Capacitance = C
test
Number of cycles: 1000
< 5%
No visible
damage
No visible
damage
< 10%
< 10%
No visible
damage
No visible
damage
< 10%
< 5%
No visible
damage
The self-heating of a thermistor during operation depends on the load applied and the
applicable dissipation factor.
When loaded with maximum allowable current/power and the specified dissipation factor is
taken as a basis, the NTC thermistor may reach a mean temperature of up to 250
°C.
The heat developed during operation will also be dissipated through the lead wires. So the
contact areas, too, may become quite hot at maximum load.
When mounting NTC thermistors you have to ensure that there is an adequate distance
between the thermistor and all parts which are sensitive to heat or combustible.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 20
Inrush current limiters
ICLs
B57236S0***M0**
S236

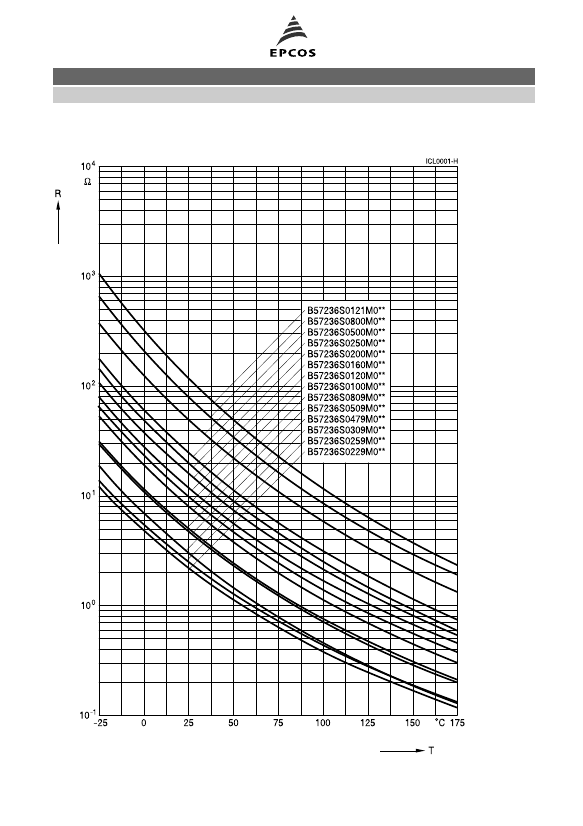

Resistance versus temperature
S236 series
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 20
