GC9864N-3-200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> GC9864N-3-200

GC9864N-3-200: Descriptionthermistors - ntc 550 ohms at 200 deg C A; CategoryCircuit protection; File Size335KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

GC9864N-3-200 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GC9864N-3-200	-	-	View	Buy Now

GC9864N-3-200 Overview

thermistors - ntc 550 ohms at 200 deg C A

GC9864N-3-200 Parametric

Parameter Name	Attribute value
Manufacture	Measurement Specialties
Product Category	Thermistors - NTC
RoHS	Yes
Resistance	550 Ohms
Tolerance	3 %
Termination Style	Radial
Operating Temperature Range	- 50 C to + 300 C
Dimensions	0.083 in Dia. x 0.217 in L
Packaging	Bulk
Type	NTC

Preview

Download Datasheet

View All

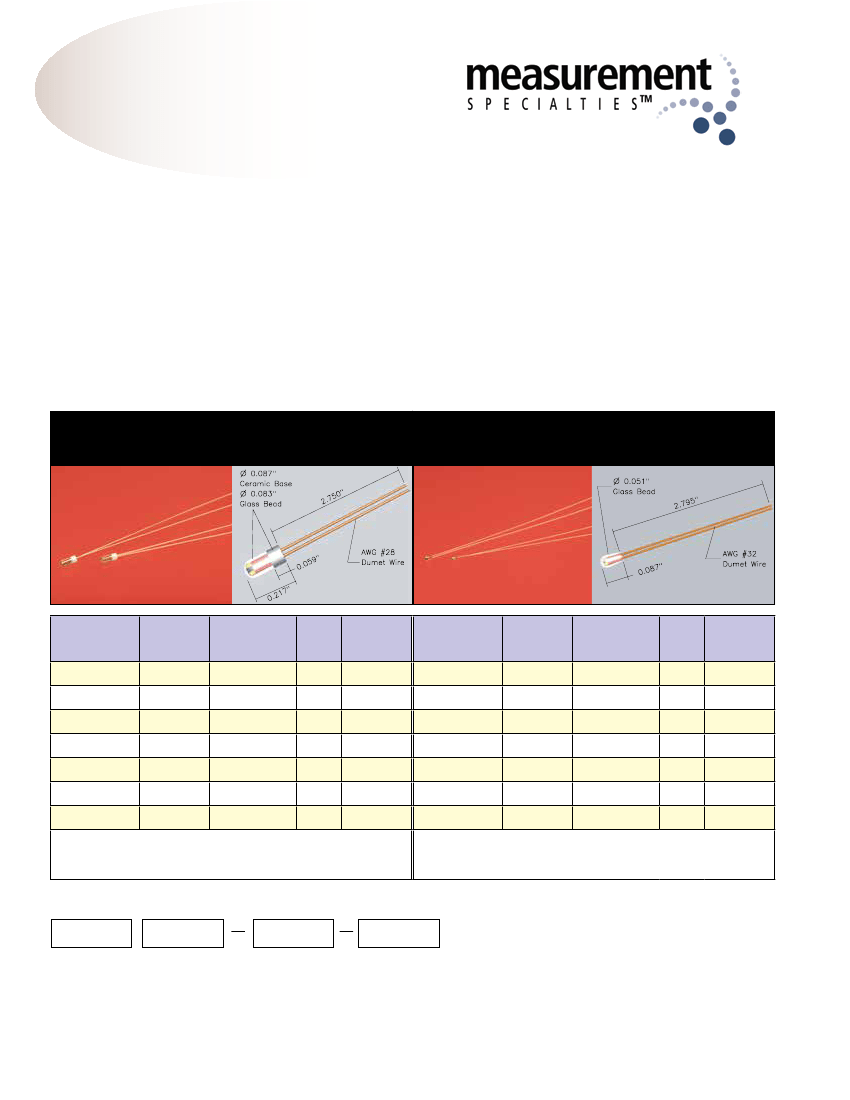

Radial Leaded Glass

Encapsulated Style

Features:

•

Rugged, low cost, very high reliability

Operation from -50˚C up to 300˚C

Values from 2186Ω to 1.38MΩ at 25˚C

Standard tolerance of ±3% at rated temp

Temperature measurement and control

Fast response time

High temperature stability

Glass encapsulation provides resistance to

moisture and other environmental factors

Available in ceramic reinforced glass body

or glass bead configurations

Description:

MS radial leaded glass encapsulated thermistors provide

a low cost option for applications that require superior

stability and high temperature operation. The therm-

istors are glass encapsulated to allow for operation in

a wide array of environments including high humidity

and rapid thermal cycling. The small size allows the

sensor to react quickly to small temperature changes.

Contact the factory for specific design or application

information or the availability of options.

CERAMIC REINFORCED

GLASS BEAD THERMISTOR

MS Part

Number

GC2183T-3-0

GC5373U-3-0

GC1074U-3-0

GC4914A-3-100

GC9864N-3-200

GC2315R-3-200

GC1396V-3-200

Resistance

@25˚C

(Ohms)

2186

5369

10,739

49,120

98,633

231,440

1,388,100

Resistance

Specification

(±3%)

6,000Ω @ 0˚C

15,000Ω @ 0˚C

30,000Ω @ 0˚C

3,300Ω @ 100˚C

550Ω @ 200˚C

1,000Ω @ 200˚C

4,000Ω @ 200˚C

Matl

(Kelvin)

3420 ± 2%

3480 ± 2%

3992 ± 2%

4066 ± 3%

4240 ± 3%

4557 ± 3%

25/85

MS Part

Number

GB2183T-3-0

GB5373U-3-0

GB1074U-3-0

GB4914A-3-100

GB9864N-3-200

GB2315R-3-200

GB1396V-3-200

Resistance

@25˚C

(Ohms)

2186

5369

10,739

49,120

98,633

231,440

1,388,100

Resistance

Specification

(±3%)

6,000Ω @ 0˚C

15,000Ω @ 0˚C

30,000Ω @ 0˚C

3,300Ω @ 100˚C

550Ω @ 200˚C

1,000Ω @ 200˚C

4,000Ω @ 200˚C

Matl

(Kelvin)

3420 ± 2%

3480 ± 2%

3992 ± 2%

4066 ± 3%

4240 ± 3%

4557 ± 3%

25/85

Dissipation factor (δ) is 1.5mW/˚C

Time constant (τ) is 18 sec nominally

Max operating temperature is 300˚C

Dissipation factor (δ) is 0.75mW/˚C

Time constant (τ) is 6 sec nominally

Max operating temperature is 300˚C

Standard resistance tolerance is ±3% at rated temperature

*See R/T tables on page 63.

Basic P/N

Examples:

Material

Tol. Code

Point-match Temperature (°C)

(only used if other than 25°C)

GC1074U-3-0 .............. Curve U material, ±3% at 0˚C

GB1396V-3-200 ........... Curve V material, ±3% at 200˚C

Temperature Sensor Products

precisionsensors.meas-spec.com

1028 Graphite Road, St. Marys, PA 15857

Ph: 814.834.1541 Fax: 814.834.1556

8-7-13

www.meas-spec.com
