CDF-K0402267K1%50PPM/KNP20 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> CDF-K0402267K1%50PPM/KNP20

CDF-K0402267K1%50PPM/KNP20: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.063W, 267000ohm, 50V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0402, CHIP; CategoryPassive components The resistor; File Size72KB，2 Pages; ManufacturerMicrotech GmbH Electronic; Environmental Compliance

Download Datasheet Parametric View All

CDF-K0402267K1%50PPM/KNP20 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.063W, 267000ohm, 50V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0402, CHIP

CDF-K0402267K1%50PPM/KNP20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7247997093
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.4 mm
Package length	1.1 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.6 mm
method of packing	TR, CARDBOARD, 13 INCH
Rated power dissipation(P)	0.063 W
Rated temperature	70 °C
resistance	267000 Ω
Resistor type	FIXED RESISTOR
size code	0402
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	50 ppm/°C
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	50 V

Preview

Download Datasheet

View All

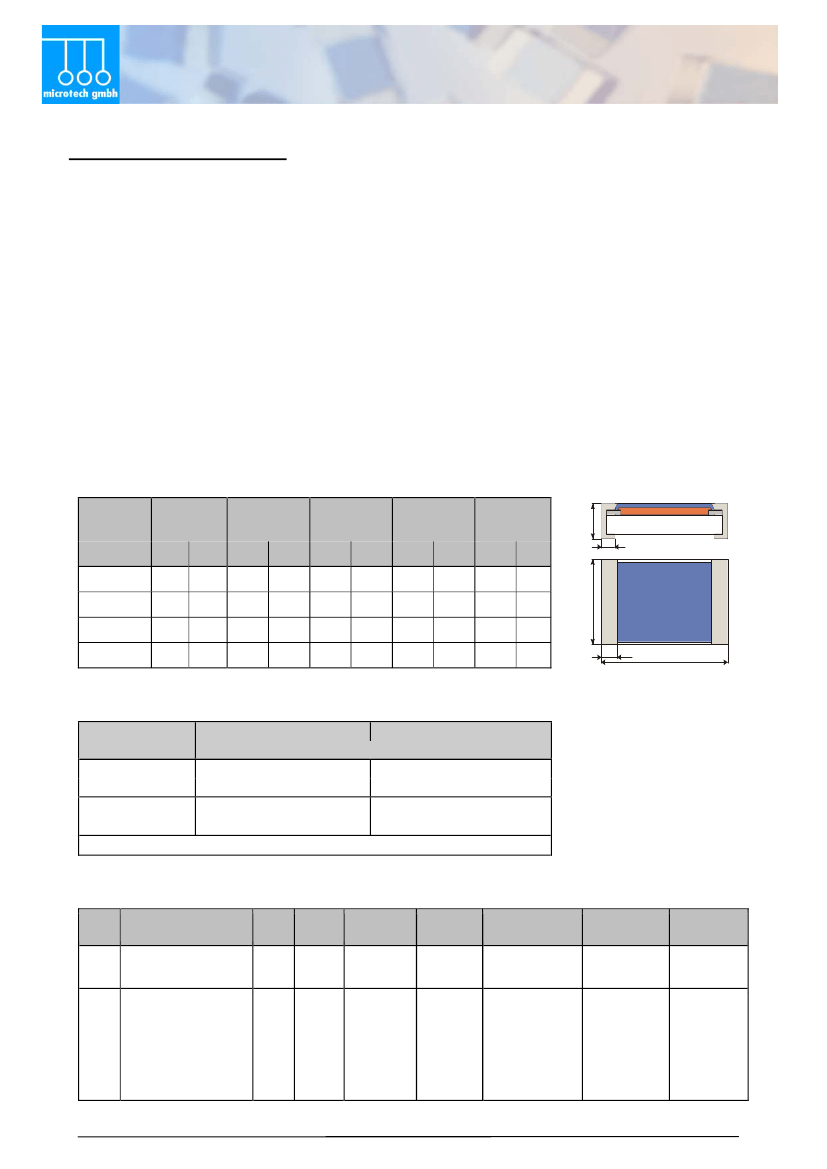

microtech GmbH electronic Teltow

Chip resistors - Made in Germany

ISO 9001:2015

ISO 14001:2015

Thick film series - Standard

Type: CDF

Sizes: 0402, 0603, 0805, 1206

Characteristics:



Chip resistors in thick film technology

Resistance area coated with glass and varnish passivation

High stability and reliability

Tight tolerances (≥0,5%) – low temperature coefficient

RoHS-conform and Halogen-free according to IEC 61249-2-21 / IPC 4101B

Customer specific barcodes available - also in 2D

All sizes can be manufactured with the following contact variants



Electroplated pure tin



Contact with low rest permeability -N, suitable only for reflow soldering method

(The recommended storage time should not exceed 1 year after date code)



Epoxy bondable contact –K



Special corrosive gas resistant contact –S, Sulfur resistance verified according to ASTM B 809

Dimensions (in mm):

Size

Length

Min

Max

Width

Min

Max

Depth

Min

Max

Contact

back

Min

Max

Contact

front

Min

Max

0402

0603

0805

1206

0,95

1,50

1,85

2,90

1,05

1,70

2,15

3,35

0,45

0,75

1,10

1,45

0,55

0,95

1,40

1,75

0,25

0,35

0,40

0,55

0,65

0,10

0,15

0,25

0,35

0,50

0,60

0,75

0,05

0,10

0,15

0,35

0,50

0,60

0,75

Packaging units:

Reel

180 mm

330 mm

Samples on request

Card tape

acc. EN 60286-3

5 T pcs.

10 T pcs. for size 0402

10 T pcs.

20 T pcs.

10 T pcs. for size 0402

20 T pcs. for size 0402

Blister tape

Ordering information:

CDF

Type

-N

Contact

0603

Size

0402

0603

0805

1206

10k

50ppm/K

TCR

100

Marking

Packaging

(optional)

R-

Tolerance

Value

pcs. / Reel

(T pcs.)

CDF Standard (without

add.)

-N (non magnetic)

-K (epoxy bondable)

-S (corrosive gas

resistant)

0,5

1,0

10M

K- with

P- Card tape

Depends on

size and

(from size 0603) B- Blister tape

packaging

N- without

S- Bulk

unit

(only size 0402)

Page 1

Revision: 27-Oct-20

Catalog microtech GmbH electronic
