811-003-07ME7-22PA8K5-36: DescriptionCircular Connector, 22 Contact(s), Male, Receptacle,; CategoryThe connector The connector; File Size285KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

811-003-07ME7-22PA8K5-36 Overview

Circular Connector, 22 Contact(s), Male, Receptacle,

811-003-07ME7-22PA8K5-36 Parametric

Parameter Name	Attribute value
Objectid	1104175116
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-83513
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	WITH CABLE ASSEMBLY
Shell surface	NICKEL PLATED
Housing size	7
Total number of contacts	22

Preview

Download Datasheet

View All

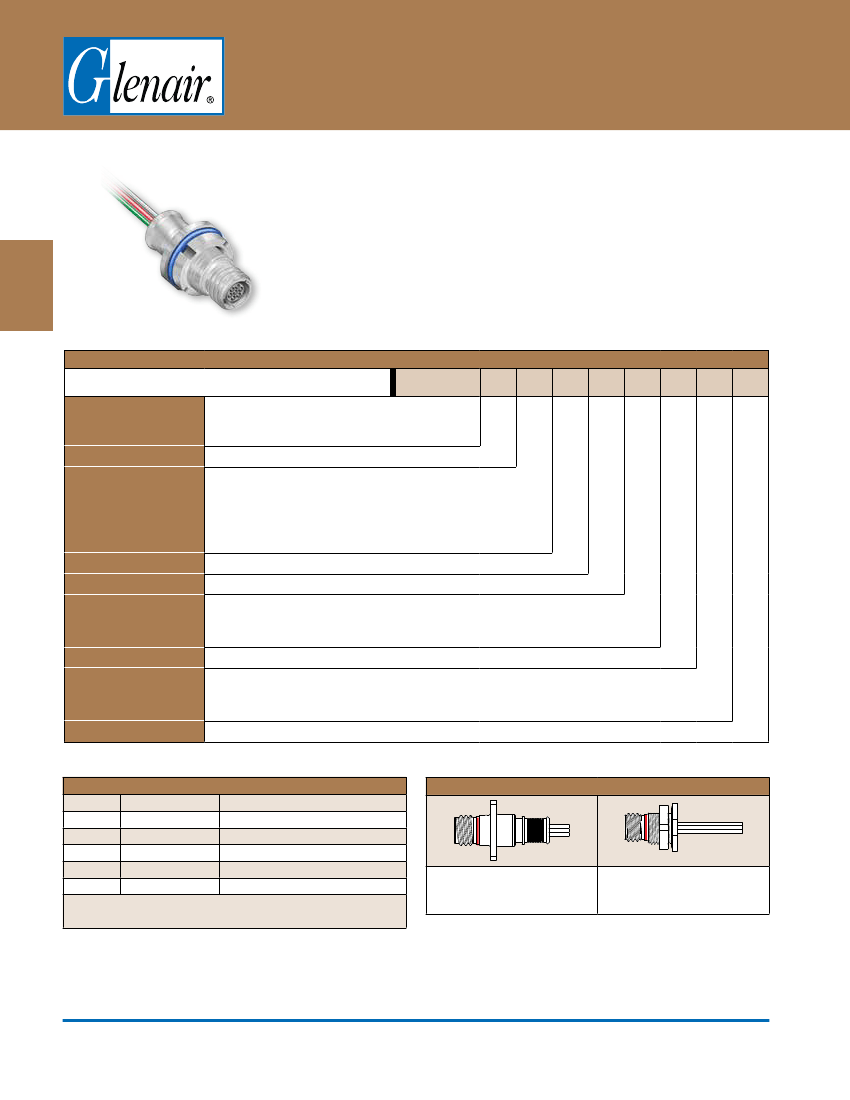

Series 811 Mighty Mouse High Density (HD)

Pre-Wired Jam Nut Receptacle Connectors

811-003-07 and 811-004-07

Jam Nut Pigtail Receptacles

Series 811 Mighty Mouse High Density rear panel

mount jam nut receptacles feature damage-resistant double-start ACME mating

threads. These receptacles are factory-terminated to insulated wire and backpotted

with epoxy. The TwistPin contact system meets requirements of MIL-DTL-83513 and

provides outstanding resistance to high levels of shock and vibration. Choose Type

K general purpose Teflon® wire or Type J lightweight space-grade Tefzel® wire. 3A

current rating, 600 VAC dielectric withstanding voltage.

Mighty Mouse

High Density

How To Order

Sample Part Number

Series

Material/Finish

811-003-07

= Jam Nut Mount with Band Platform

811-004-07

= Low Profile Jam Nut Mount, no Band

Platform

See Material and Finish Table

5-7

= 7 Contacts

6-12

= 12 Contacts

5-7

-18

Shell Size - Insert Arr.

7-22

= 22 Contacts

8-30

= 30 Contacts

9-42

= 42 Contacts

= Pin Contacts

= Normal

= #26 AWG

= Socket Contacts

Alternate Key Positions:

B, C, D, E, F

Contact Type

Key Position

Wire size

Wire Type

Wire Color

Wire Length (inches)

= #28 AWG (Color code 1 or 7 only)

= #30 AWG (Wire Type J, color code 1 or 7 only)

= M22759/11

= M22759-33

= NEMA HP3-EB

= White

= Color code per MIL-STD-681 (striped)*

= 10 Solid colors, repeating

12, 18, 36, 72

Specify any length from 2 inches to 144 inches

*Size 28 AWG and Size 30 AWG J type wire not available in striped color code 5

Material and Finish

Code

ZNU

Material

Aluminum

Finish

Electroless Nickel

Zinc-Nickel-PTFE with Black Chromate

Nickel-PTFE

Zinc-Nickel with Black Chromate

Table I: Series

Stainless Steel

Passivated

ZR plating is RoHS compliat and non-reflective.

ZNU plateing is non-reflective and passes 1,00 hours salt spray testing

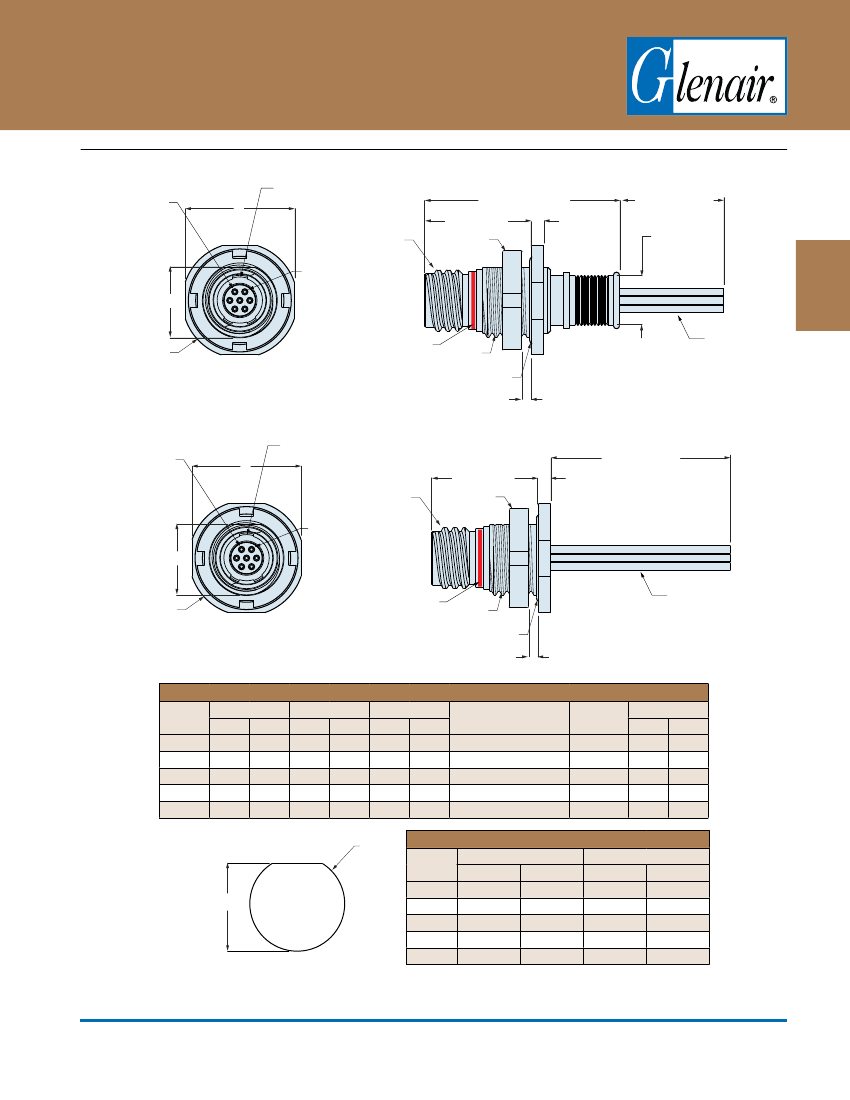

811-003-07

Panel Mount Jam Nut Receptacle

Banding Platform

811-004-07

Low Profile Panel Mount Jam Nut

Receptacle, No Band Platform

Dimensions in Inches (millimeters) are subject to change without notice.

Series 80 Mighty Mouse

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

L-10

E-Mail: sales@glenair.com
