P4FMAJ20CA-W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> P4FMAJ20CA-W

P4FMAJ20CA-W: Descriptiontvs diodes - transient voltage suppressors 5% bi-dir; CategoryDiscrete semiconductor diode; File Size117KB，6 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/; Environmental Compliance

Download Datasheet Parametric View All

P4FMAJ20CA-W Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P4FMAJ20CA-W	-	-	View	Buy Now

P4FMAJ20CA-W Overview

tvs diodes - transient voltage suppressors 5% bi-dir

P4FMAJ20CA-W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rectron Semiconductor
Parts packaging code	DO-214AC
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LOW ZENER IMPEDANCE
Maximum breakdown voltage	21 V
Minimum breakdown voltage	19 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	265
polarity	BIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

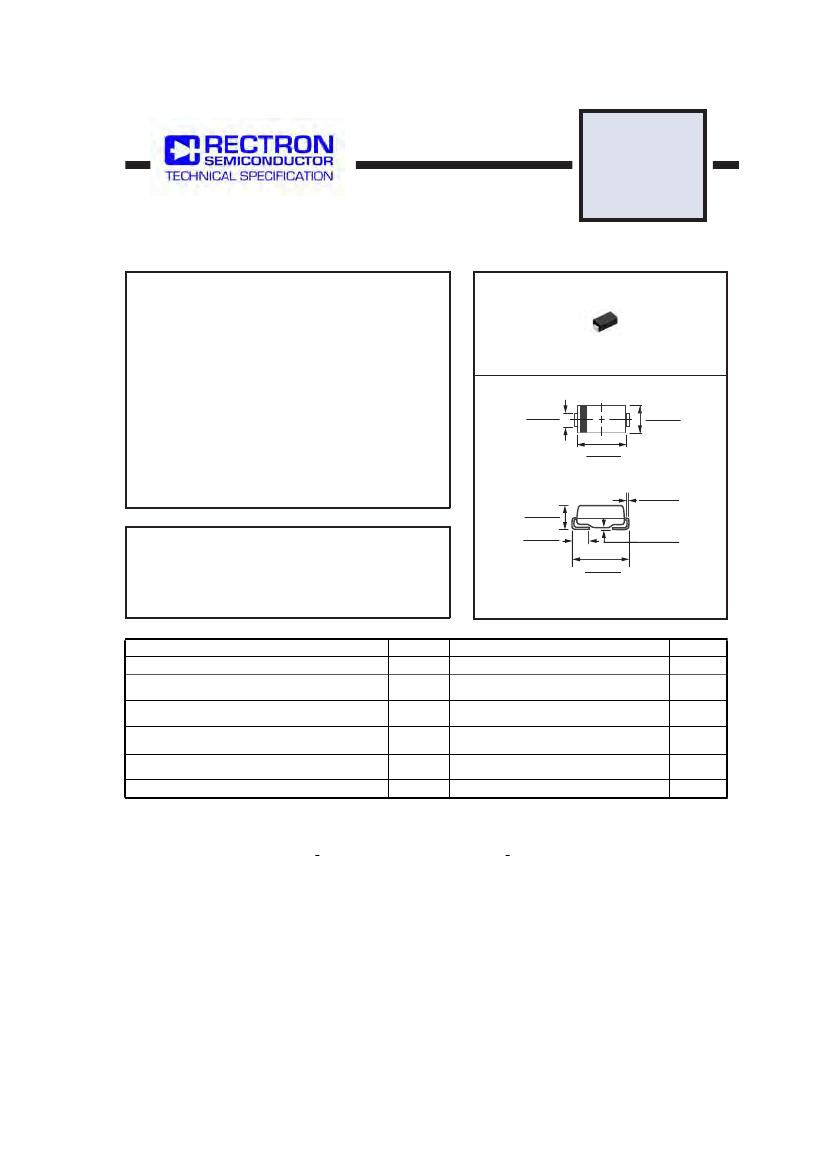

400 WATT PEAK POWER 1.0 WATTS STEADY STATE

FEATURES

Plastic package has underwriters laboratory

Glass passivated chip construction

400 watt surage capability at 1ms

Excellent clamping capability

Low zener impedance

Fast response time

0.067 (1.70 )

0.051 (1.29 )

SURFACE MOUNT GPP

TRANSIENT VOLTAGE SUPPRESSOR

TVS

P4FMAJ

SERIES

DO-214AC

0.110 ( 2.79 )

0.086 ( 2.18 )

0.180 ( 4.57 )

0.160 ( 4.06 )

0.012 ( 0.305 )

0.006 ( 0.152 )

0.091 ( 2.31 )

0.067 ( 1.70 )

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load,

For capacitive load, derate current by 20%.

0.059 ( 1.50 )

0.035 ( 0.89 )

0.008 ( 0.203 )

0.004 ( 0.102 )

0.209 ( 5.31 )

0.185 ( 4.70 )

Dimensions in inches and (millimeters)

MAXIMUM RATINGS

(@ T

=25

C unless otherwise noted)

RATINGS

Peak Power Dissipation at T

= 25

C,T

= 1mS (Note 1)

Peak Pulse Current with a 10/1000uS waveform

( Note 1, Fig.3 )

Steady State Power Dissipation at T

= 75

C lead length,

.375" (9.5 mm) (Note 2)

Peak Forward Surge Current, 8.3ms single half sine wave-

superimmposed on rated load ( JEDEC METHOD ) (Note 3)

Maximum Instantaneous Forward Voltage @25A for unidirectional

only ( Note 5 )

Operating and Storage Temperature Range

SYMBOL

PPM

M(AV)

FSM

, T

STG

VALUE

Minimum 400

SEE TABLE 1

1.0

3.5/6.5

-55 to + 150

UNITS

2013-01

REV: O

NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above TA = 25

C per Fig.2.

2. Mounted on 0.2 X 0.2” (5.0 X 5.0mm) copper pad to each terminal.

3. Measured on 8.3mS single half Sine-Wave or equivalent wave, duty cycle = 4 pulses per minute maximum.

4. "Fully ROHS compliant", "100% Sn plating (Pb-free)".

5. VF = 3.5V max. for devices of V(BR) < 200V and VF = 6.5V max. for devices of V(BR) > 200V.
