2505N-44-01-S datasheet, PDF - EEWORLD Datasheet

2505N-44-01-S: DescriptionIC Socket, PLCC44, 44 Contact(s), Surface Mount; CategoryThe connector socket; File Size35KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

2505N-44-01-S Overview

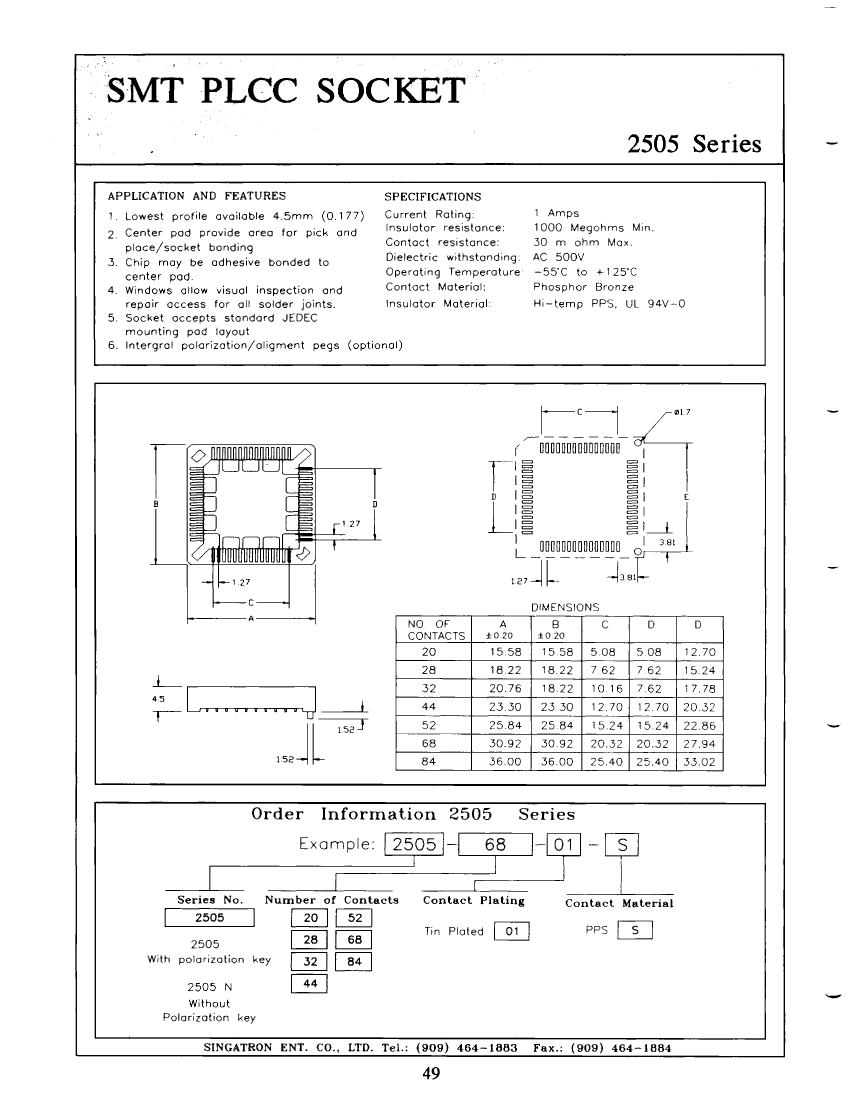

IC Socket, PLCC44, 44 Contact(s), Surface Mount

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	WITHOUT LOCATING PEGS
body width	0.913 inch
subject depth	0.173 inch
body length	0.913 inch
Contact structure	11X11
Contact to complete cooperation	SN
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PLCC44
Dielectric withstand voltage	600VAC V
Shell material	GLASS FILLED POLYPHENYLENE SULPHIDE
Insulation resistance	5000000000 Ω
Manufacturer's serial number	2505
Installation method	STRAIGHT
Number of contacts	44
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Termination type	SURFACE MOUNT
Base Number Matches	1
