BAS 16S H6327 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> BAS 16S H6327

BAS 16S H6327: Descriptiondiodes - general purpose, power, switching AF digital transistor; Categorysemiconductor Discrete semiconductor; File Size1005KB，21 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BAS 16S H6327 Overview

diodes - general purpose, power, switching AF digital transistor

BAS 16S H6327 Parametric

Parameter Name	Attribute value
Manufacture	Infine
Product Category	Diodes - General Purpose, Power, Switching
RoHS	Yes
Produc	Switching Diodes
Peak Reverse Voltage	85 V
Forward Continuous Curre	200 mA
Max Surge Curre	4.5 A
Configurati	Triple
Recovery Time	4 ns
Forward Voltage D	1.25 V
Maximum Reverse Leakage Curre	1 uA
Maximum Power Dissipati	250 mW
Operating Temperature Range	- 65 C to + 150 C
Mounting Style	SMD/SMT
Package / Case	SOT363-6
Packaging	Reel
Maximum Diode Capacitance	2 pF
Maximum Operating Temperature	+ 150 C
Minimum Operating Temperature	- 65 C
Factory Pack Quantity	3000

Preview

Download Datasheet

View All

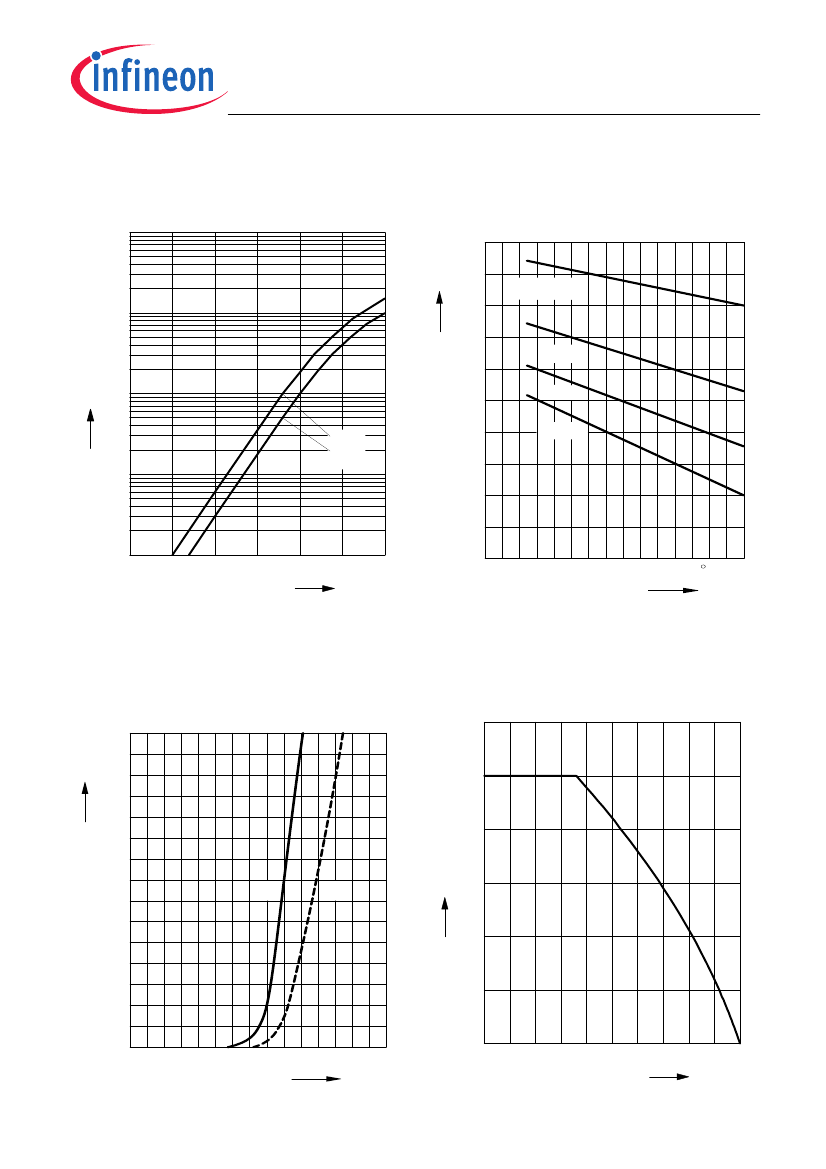

BAS16...

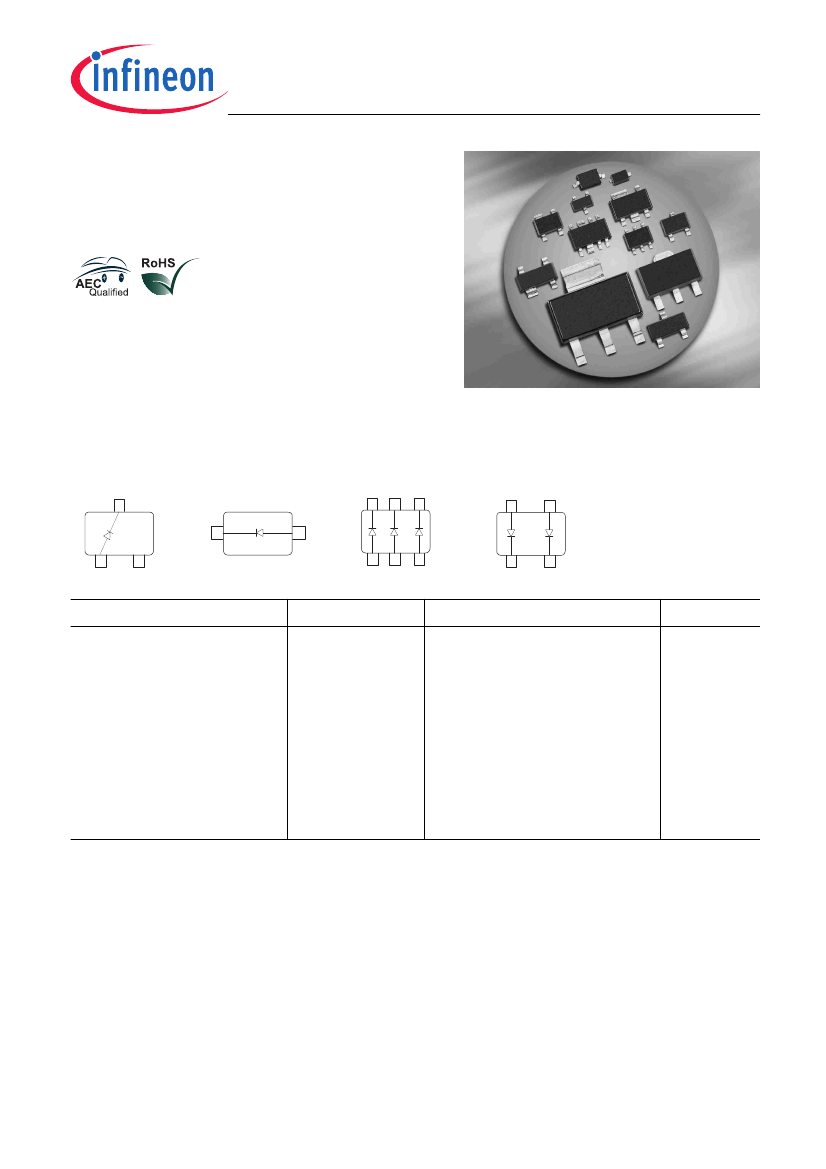

Silicon Switching Diode

•

For high-speed switching applications

•

Pb-free (RoHS compliant) package

•

Qualified according AEC Q101

BAS16

BAS16W

BAS16-02L

BAS16-02V

BAS16-02W

BAS16-03W

BAS16S

BAS16U

BAS16-07L4

, !

Type

BAS16

BAS16-02L*

BAS16-02V

BAS16-02W

BAS16-03W

BAS16-07L4*

BAS16S

BAS16U

BAS16W

* Preliminary Data

Pb-containing

Package

SOT23

TSLP-2-1

SC79

SCD80

SOD323

TSLP-4-4

SOT363

SC74

SOT323

Configuration

single

single, leadless

single

parallel pair, leadless

parallel triple

single

Marking

A6s

white B

A6s

package may be available upon special request

2009-09-28

BAS 16S H6327 Related Products

	BAS 16S H6327	BAS 16-03W E6327	BAS 16 E6433	BAS 16-02W H6327	BAS 16W H6327	BAS 16-02V H6327	BAS 16 E6327	BAS 16W H6433	BAS 16-02L E6327	BAS 16S H6727
Description	diodes - general purpose, power, switching AF digital transistor	diodes - general purpose, power, switching silicon switch diode	diodes - general purpose, power, switching silicon switch diode	diodes - general purpose, power, switching AF diode	diodes - general purpose, power, switching AF digital transistor	diodes - general purpose, power, switching AF diode	diodes - general purpose, power, switching AF diode 85v 0.25a	diodes - general purpose, power, switching AF digital transistor	diodes - general purpose, power, switching silicon switching diode	diodes - general purpose, power, switching AF digital transistor
Manufacture	Infine	Infine	Infine	Infine	Infine	Infine	Infine	Infine	Infine	-
Product Category	Diodes - General Purpose, Power, Switching	Diodes - General Purpose, Power, Switching	Diodes - General Purpose, Power, Switching	Diodes - General Purpose, Power, Switching	Diodes - General Purpose, Power, Switching	Diodes - General Purpose, Power, Switching	Diodes - General Purpose, Power, Switching	Diodes - General Purpose, Power, Switching	Diodes - General Purpose, Power, Switching	-
RoHS	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	-
Produc	Switching Diodes	Switching Diodes	Switching Diodes	Switching Diodes	Switching Diodes	Switching Diodes	Switching Diodes	-	Switching Diodes	-
Peak Reverse Voltage	85 V	85 V	85 V	80 V	85 V	85 V	85 V	-	85 V	-
Forward Continuous Curre	200 mA	0.25 A	0.25 A	200 mA	250 mA	200 mA	0.25 A	-	0.2 A	-
Max Surge Curre	4.5 A	4.5 A	4.5 A	2.5 A	4.5 A	2.5 A	4.5 A	-	4.5 A	-
Configurati	Triple	Single	Single	Single	-	Single	Single	-	Single	-
Recovery Time	4 ns	4 ns	4 ns	4 ns	4 ns	4 ns	4 ns	-	4 ns	-
Forward Voltage D	1.25 V	1.25 V	1.25 V	1250 mV	1.25 V	1.25 V	1.25 V	-	1.25 V	-
Maximum Reverse Leakage Curre	1 uA	0.1 uA	0.1 uA	1 uA	0.1 uA	1 uA	0.1 uA	-	0.1 uA	-
Operating Temperature Range	- 65 C to + 150 C	+ 150 C	+ 150 C	-	- 65 C to + 150 C	- 65 C to + 150 C	+ 150 C	-	+ 150 C	-
Mounting Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	-	SMD/SMT	-
Package / Case	SOT363-6	SOD-323-2	SOT-23-3	SCD-80	SOT-323-3	SC79-2	SOT-23-3	-	TSLP-2	-
Packaging	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel	-
Maximum Operating Temperature	+ 150 C	+ 150 C	+ 150 C	-	+ 150 C	+ 150 C	+ 150 C	-	+ 150 C	-
Minimum Operating Temperature	- 65 C	- 65 C	- 65 C	-	- 65 C	- 65 C	- 65 C	-	- 65 C	-
Factory Pack Quantity	3000	3000	10000	3000	3000	3000	3000	10000	15000	-
