(1/2)
Conformity to RoHS Directive
EMC Filters for AC Power Line
For Single-phase, Mid-size Box Cased ZRCS-00 Series
FEATURES
• Excellent noise attenuation in the low range making it perfect
EMC prevention equipment for inverters.
• Screw terminal has a spring which moves the washer up and
has a safe design to prevent the screw from falling.
• It is a product conforming to RoHS directive.
APPLICATIONS
• Power line noise prevention
• Machine tools and NC control devices
• Medical equipment such as MRIs
• Other industrial equipment
SHAPES AND DIMENSIONS
G
2-ø9.0
Bolt H
SAFETY STANDARDS
Standard and standard No.
U.S.A
Canada
Part No.
UL
UL1283
E62388
E62388
E62388
E62388
E62388
CSA
CSA C22.2 No.8
LR76849C
LR76849C
LR76849C
LR76849C
LR76849C
Europe
NEMKO
EN60939
P08209002
P08209002
P08209002
P08209002
P08209002
ZRCS2003-00
ZRCS2006-00
ZRCS2010-00
ZRCS2020-00
ZRCS2030-00
13.5 13.5
F
2-ø5.0
D
E
4
1
A
3
2
C
B
Dimensions in mm
Part No.
ZRCS2003-00
ZRCS2006-00
ZRCS2010-00
ZRCS2020-00
ZRCS2030-00
A
55
55
55
55
55
B
80
100
100
135
135
C
35
40
40
40
40
D
29.8
34.8
34.8
34.8
34.8
E
3
3
3
3
3
F
40
40
40
40
40
G
65
85
8015
120
120
H
M4
M4
M4
M4
M4
• Case:plastic, block terminal: phillips head screw terminals, base: metal
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice.
002-01 / 20080817 / e9133_zrcs_00.fm

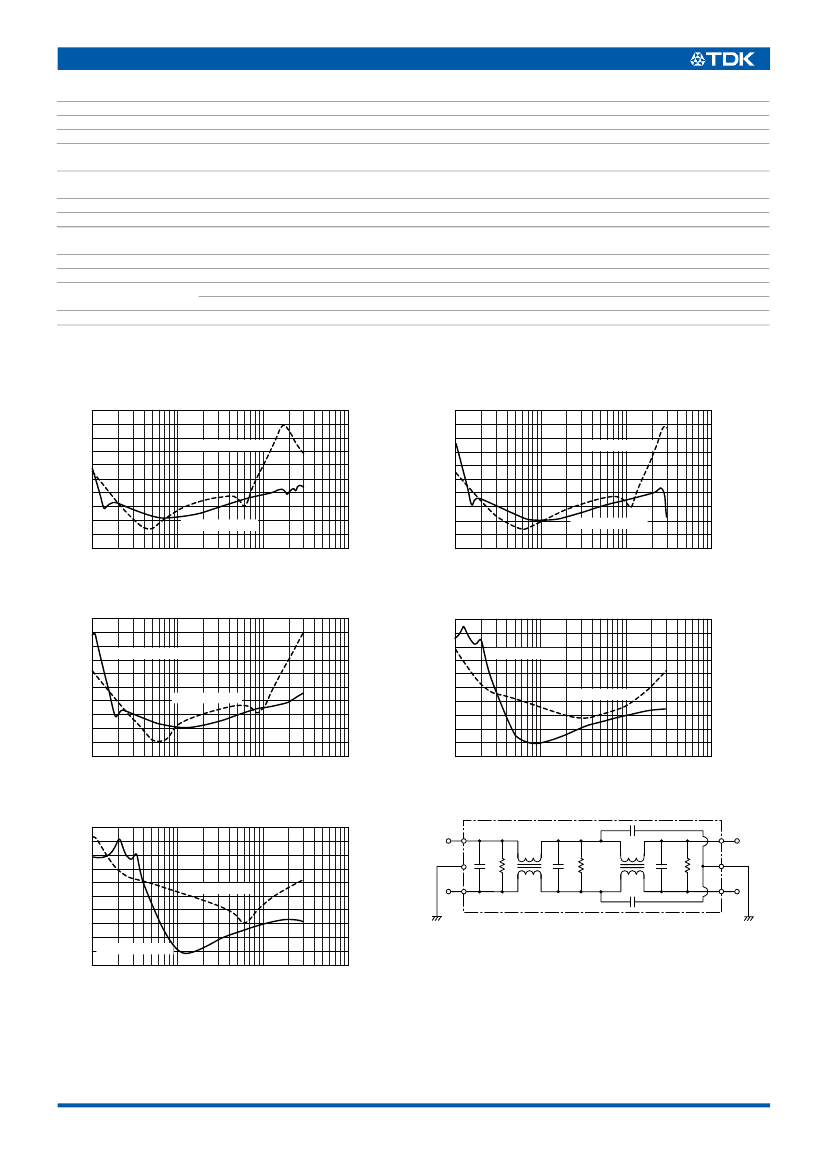

(2/2)
ELECTRICAL CHARACTERISTICS
Part No.
Rated voltage Eac(V)
Rated current(A)
Test voltage Eac (V)
[Between terminal and ground terminal]
Insulation resistance (MΩ)
[DC.500V,1min / between terminal and ground terminal]
Leakage current (mA)[250V • 60Hz]
DC resistance (mΩ)
Operating temperature range (° C)
[Including self-temperature rise]
With derating over(°C)
Temperature rise (° C)
Attenuation frequency range Differential mode at 40dB
(MHz)[+5 to +35° C]
Common mode at 30dB
Weight (g)
ZRCS2003-00
250
3
2500
100min.
1.0max.
380max.
–25 to +85
55
30max.
0.2 to 30
0.1 to 8
195
ZRCS2006-00
250
6
2500
100min.
1.0max.
135max.
–25 to +85
55
30max.
0.2 to 30
0.1 to 10
300
ZRCS2010-00
250
10
2500
100min.
1.0max.
70max.
–25 to +85
55
30max.
0.3 to 30
0.1 to 10
320
ZRCS2020-00
250
20
2500
100min.
1.0max.
24max.
–25 to +85
55
30max.
0.4 to 30
0.2 to 20
430
ZRCS2030-00
250
30
2500
100min.
1.0max.
12max.
–25 to +85
55
30max.
0.6 to 30
0.4 to 20
435
TYPICAL ELECTRICAL CHARACTERISTICS
ATTENUATION vs. FREQUENCY CHARACTERISTICS
ZRCS2003-00
0
–10
–20
–30
–40
–50
–60
–70
–80
–90
–100
ZRCS2006-00
0
–10
–20
–30
–40
–50
–60
–70
–80
–90
–100
Attenuation(dB)
Attenuation(dB)
Common mode
Common mode
Differential mode
0.1
1
Frequency (MHz)
Differential mode
0.1
1
Frequency (MHz)
10
100
10
100
ZRCS2010-00
0
–10
–20
–30
–40
–50
–60
–70
–80
–90
–100
ZRCS2020-00
0
–10
–20
–30
–40
–50
–60
–70
–80
–90
–100
Attenuation(dB)
Attenuation(dB)
Differential mode
Differential mode
Common mode
Common mode
0.1
1
Frequency (MHz)
10
100
0.1
1
Frequency (MHz)
10
100
ZRCS2030-00
0
–10
–20
–30
–40
Common mode
–50
–60
–70
–80
–90 Differential mode
–100
0.1
1
10
Frequency (MHz)
CIRCUIT DIAGRAM
1
Ground
terminal
4
Ground
terminal
Attenuation(dB)
R
R
R
2
R: Bleeder resistor
Case GND
3
100
• All specifications are subject to change without notice.
002-01 / 20080817 / e9133_zrcs_00.fm
