FZT694BTA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> FZT694BTA

FZT694BTA: Descriptiontransistors darlington npn high gain & crnt; Categorysemiconductor Discrete semiconductor; File Size735KB，7 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric View All

FZT694BTA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FZT694BTA	-	-	View	Buy Now

FZT694BTA Overview

transistors darlington npn high gain & crnt

FZT694BTA Parametric

Parameter Name	Attribute value
Manufacture	Diodes Incorporated
Product Category	Transistors Darling
RoHS	Yes
Configurati	Single Dual Collec
Transistor Polarity	NPN
Collector- Emitter Voltage VCEO Max	120 V
Emitter- Base Voltage VEBO	5 V
Collector- Base Voltage VCBO	120 V
Maximum DC Collector Curre	1 A
Maximum Collector Cut-off Curre	0.1 uA
Power Dissipati	2 W
Maximum Operating Temperature	+ 150 C
Mounting Style	SMD/SMT
Package / Case	SOT-223
Packaging	Reel
Continuous Collector Curre	1 A
DC Collector/Base Gain hfe Mi	500 at 100 mA at 2 V, 400 at 200 mA at 2 V, 150 at 400 mA at 2 V
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

Green

FZT694B

120V NPN MEDIUM POWER HIGH GAIN TRANSISTOR IN SOT223

Features



CEO

> 120V

CBO

> 120V

= 1A Continuous Current

hFE > 400 for High Gain @ 0.2A

Very Low Saturation Voltage

Complementary PNP Type: FZT795A

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data



Case: SOT223

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish - Matte Tin Plated Leads.

Solderable per MIL-STD-202, Method 208

Weight: 0.112 grams (Approximate)

Applications



Darlington Replacement

Relay and Solenoid Driver

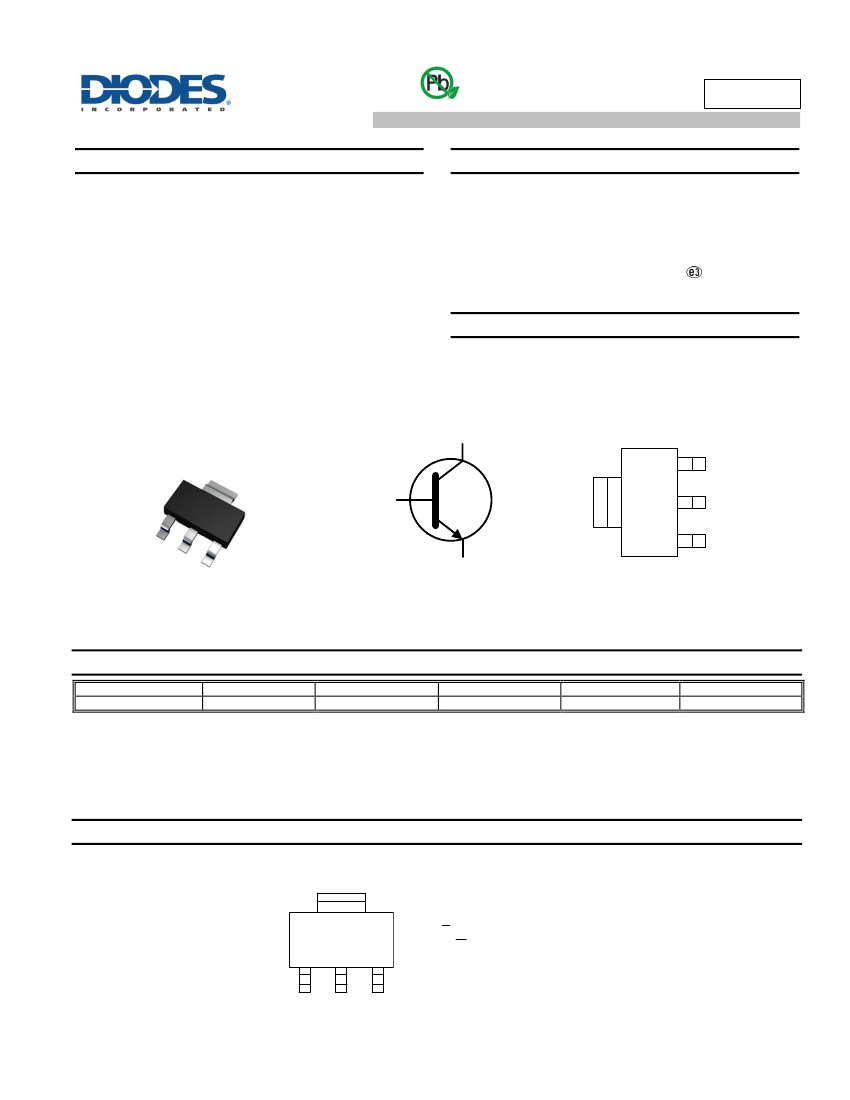

SOT223

Top View

Device Symbol

Top View

Pin-Out

Ordering Information

(Notes 4)

Product

FZT694BTA

Notes:

Compliance

AEC-Q101

Marking

FZT694B

Reel size (inches)

Tape width (mm)

Quantity per reel

1,000

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SOT223

FZT 694B = Product Type Marking Code

YWW = Date Code Marking

Y or Y = Last Digit of Year (ex: 5= 2015)

WW or WW = Week Code (01~53)

FZT

694B

YWW

FZT694B

Document number: DS33158 Rev. 4 - 2

1 of 7

www.diodes.com

January 2016
